7: Polymorphism

Polymorphism is the third essential feature of an object-oriented programming language, after data abstraction and inheritance.

It provides another dimension of separation of interface from implementation, to decouple what from how. Polymorphism allows improved code organization and readability as well as the creation of extensible programs that can be “grown” not only during the original creation of the project but also when new features are desired.

Encapsulation creates new data types by combining characteristics and behaviors. Implementation hiding separates the interface from the implementation by making the details private. This sort of mechanical organization makes ready sense to someone with a procedural programming background. But polymorphism deals with decoupling in terms of types. In the last chapter, you saw how inheritance allows the treatment of an object as its own type or its base type. This ability is critical because it allows many types (derived from the same base type) to be treated as if they were one type, and a single piece of code to work on all those different types equally. The polymorphic method call allows one type to express its distinction from another, similar type, as long as they’re both derived from the same base type. This distinction is expressed through differences in behavior of the methods you can call through the base class.

In this chapter, you’ll learn about polymorphism (also called dynamic binding or late binding or run-time binding) starting from the basics, with simple examples that strip away everything but the polymorphic behavior of the program.

In Chapter 6 you saw how an object can be used as its own type or as an object of its base type. Taking an object handle and treating it as the handle of the base type is called upcasting because of the way inheritance trees are drawn with the base class at the top.

You also saw a problem arise, which is embodied in the following: (See page 141 if you have trouble executing this program.)

The method Music.tune( ) accepts an Instrument handle, but also anything derived from Instrument. In main( ), you can see this happening as a Wind handle is passed to tune( ), with no cast necessary. This is acceptable; the interface in Instrument must exist in Wind, because Wind is inherited from Instrument. Upcasting from Wind to Instrument may “narrow” that interface, but it cannot make it anything less than the full interface to Instrument.

This program might seem strange to you. Why should anyone intentionally forget the type of an object? This is what happens when you upcast, and it seems like it could be much more straightforward if tune( ) simply takes a Wind handle as its argument. This brings up an essential point: If you did that, you’d need to write a new tune( ) for every type of Instrument in your system. Suppose we follow this reasoning and add Stringed and Brass instruments:

This works, but there’s a major drawback: You must write type-specific methods for each new Instrument2 class you add. This means more programming in the first place, but it also means that if you want to add a new method like tune( ) or a new type of Instrument, you’ve got a lot of work to do. Add the fact that the compiler won’t give you any error messages if you forget to overload one of your methods and the whole process of working with types becomes unmanageable.

Wouldn’t it be much nicer if you could just write a single method that takes the base class as its argument, and not any of the specific derived classes? That is, wouldn’t it be nice if you could forget that there are derived classes, and write your code to talk only to the base class?

That’s exactly what polymorphism allows you to do. However, most programmers (who come from a procedural programming background) have a bit of trouble with the way polymorphism works.

The difficulty with Music.java can be seen by running the program. The output is Wind.play( ). This is clearly the desired output, but it doesn’t seem to make sense that it would work that way. Look at the tune( ) method:

It receives an Instrument handle. So how can the compiler possibly know that this Instrument handle points to a Wind in this case and not a Brass or Stringed? The compiler can’t. To get a deeper understanding of the issue, it’s useful to examine the subject of binding.

Connecting a method call to a method body is called binding. When binding is performed before the program is run (by the compiler and linker, if there is one), it’s called early binding. You might not have heard the term before because it has never been an option with procedural languages. C compilers have only one kind of method call, and that’s early binding.

The confusing part of the above program revolves around early binding because the compiler cannot know the correct method to call when it has only an Instrument handle.

The solution is called late binding, which means that the binding occurs at run-time based on the type of object. Late binding is also called dynamic binding or run-time binding. When a language implements late binding, there must be some mechanism to determine the type of the object at run-time and to call the appropriate method. That is, the compiler still doesn’t know the object type, but the method-call mechanism finds out and calls the correct method body. The late-binding mechanism varies from language to language, but you can imagine that some sort of type information must be installed in the objects.

All method binding in Java uses late binding unless a method has been declared final. This means that you ordinarily don’t need to make any decisions about whether late binding will occur – it happens automatically.

Why would you declare a method final? As noted in the last chapter, it prevents anyone from overriding that method. Perhaps more importantly, it effectively “turns off” dynamic binding, or rather it tells the compiler that dynamic binding isn’t necessary. This allows the compiler to generate more efficient code for final method calls.

Once you know that all method binding in Java happens polymorphically via late binding, you can write your code to talk to the base-class and know that all the derived-class cases will work correctly using the same code. Or to put it another way, you “send a message to an object and let the object figure out the right thing to do.”

The classic example in OOP is the “shape” example. This is commonly used because it is easy to visualize, but unfortunately it can confuse novice programmers into thinking that OOP is just for graphics programming, which is of course not the case.

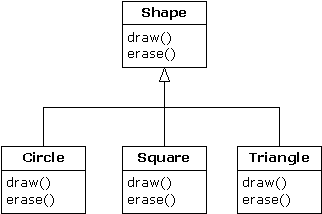

The shape example has a base class called Shape and various derived types: Circle, Square, Triangle, etc. The reason the example works so well is that it’s easy to say “a circle is a type of shape” and be understood. The inheritance diagram shows the relationships:

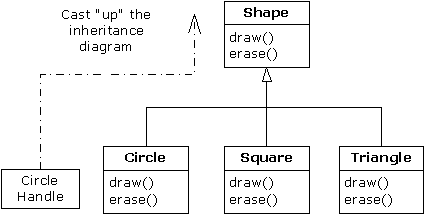

The upcast could occur in a statement as simple as:

Here, a Circle object is created and the resulting handle is immediately assigned to a Shape, which would seem to be an error (assigning one type to another) and yet it’s fine because a Circle is a Shape by inheritance. So the compiler agrees with the statement and doesn’t issue an error message.

When you call one of the base class methods (that have been overridden in the derived classes):

Again, you might expect that Shape’s draw( ) is called because this is, after all, a Shape handle, so how could the compiler know to do anything else? And yet the proper Circle.draw( ) is called because of late binding (polymorphism).

The following example puts it a slightly different way:

The base class Shape establishes the common interface to anything inherited from Shape – that is, all shapes can be drawn and erased. The derived classes override these definitions to provide unique behavior for each specific type of shape.

The main class Shapes contains a static method randShape( ) that produces a handle to a randomly-selected Shape object each time you call it. Note that the upcasting happens in each of the return statements, which take a handle to a Circle, Square, or Triangle and send it out of the method as the return type, Shape. So whenever you call this method you never get a chance to see what specific type it is, since you always get back a plain Shape handle.

main( ) contains an array of Shape handles filled through calls to randShape( ). At this point you know you have Shapes, but you don’t know anything more specific than that (and neither does the compiler). However, when you step through this array and call draw( ) for each one, the correct type-specific behavior magically occurs, as you can see from one output example:

Of course, since the shapes are all chosen randomly each time, your runs will have different results. The point of choosing the shapes randomly is to drive home the understanding that the compiler can have no special knowledge that allows it to make the correct calls at compile time. All the calls to draw( ) are made through dynamic binding.

Now let’s return to the musical instrument example. Because of polymorphism, you can add as many new types as you want to the system without changing the tune( ) method. In a well-designed OOP program, most or all of your methods will follow the model of tune( ) and communicate only with the base-class interface. Such a program is extensible because you can add new functionality by inheriting new data types from the common base class. The methods that manipulate the base-class interface will not need to be changed at all to accommodate the new classes.

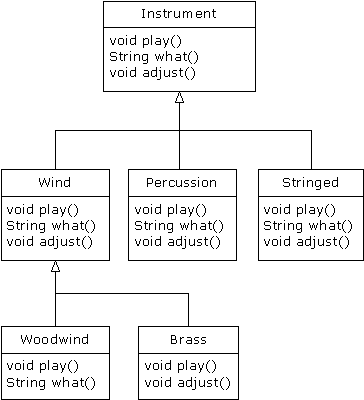

Consider what happens if you take the instrument example and add more methods in the base class and a number of new classes. Here’s the diagram:

All these new classes work correctly with the old, unchanged tune( ) method. Even if tune( ) is in a separate file and new methods are added to the interface of Instrument, tune( ) works correctly without recompilation. Here is the implementation of the above diagram:

The new methods are what( ), which returns a String handle with a description of the class, and adjust( ), which provides some way to adjust each instrument.

In main( ), when you place something inside the Instrument3 array you automatically upcast to Instrument3.

You can see that the tune( ) method is blissfully ignorant of all the code changes that have happened around it, and yet it works correctly. This is exactly what polymorphism is supposed to provide. Your code changes don’t cause damage to parts of the program that should not be affected. Put another way, polymorphism is one of the most important techniques that allow the programmer to “separate the things that change from the things that stay the same.”

Let’s take a different look at the first example in this chapter. In the following program, the interface of the method play( ) is changed in the process of overriding it, which means that you haven’t overridden the method, but instead overloaded it. The compiler allows you to overload methods so it gives no complaint. But the behavior is probably not what you want. Here’s the example:

There’s another confusing aspect thrown in here. In InstrumentX, the play( ) method takes an int that has the identifier NoteX. That is, even though NoteX is a class name, it can also be used as an identifier without complaint. But in WindX, play( ) takes a NoteX handle that has an identifier n. (Although you could even say play(NoteX NoteX) without an error.) Thus it appears that the programmer intended to override play( ) but mistyped the method a bit. The compiler, however, assumed that an overload and not an override was intended. Note that if you follow the standard Java naming convention, the argument identifier would be noteX, which would distinguish it from the class name.

In tune, the InstrumentX i is sent the play( ) message, with one of NoteX’s members (MIDDLE_C) as an argument. Since NoteX contains int definitions, this means that the int version of the now-overloaded play( ) method is called, and since that has not been overridden the base-class version is used.

The output is:

This certainly doesn’t appear to be a polymorphic method call. Once you understand what’s happening, you can fix the problem fairly easily, but imagine how difficult it might be to find the bug if it’s buried in a program of significant size.

In all the instrument examples, the methods in the base class Instrument were always “dummy” methods. If these methods are ever called, you’ve done something wrong. That’s because the intent of Instrument is to create a common interface for all the classes derived from it.

The only reason to establish this common interface is so it can be expressed differently for each different subtype. It establishes a basic form, so you can say what’s in common with all the derived classes. Another way of saying this is to call Instrument an abstract base class (or simply an abstract class). You create an abstract class when you want to manipulate a set of classes through this common interface. All derived-class methods that match the signature of the base-class declaration will be called using the dynamic binding mechanism. (However, as seen in the last section, if the method’s name is the same as the base class but the arguments are different, you’ve got overloading, which probably isn’t what you want.)

If you have an abstract class like Instrument, objects of that class almost always have no meaning. That is, Instrument is meant to express only the interface, and not a particular implementation, so creating an Instrument object makes no sense, and you’ll probably want to prevent the user from doing it. This can be accomplished by making all the methods in Instrument print error messages, but this delays the information until run-time and requires reliable exhaustive testing on the user’s part. It’s always better to catch problems at compile time.

Java provides a mechanism for doing this called the abstract method. This is a method that is incomplete; it has only a declaration and no method body. Here is the syntax for an abstract method declaration:

A class containing abstract methods is called an abstract class. If a class contains one or more abstract methods, the class must be qualified as abstract. (Otherwise, the compiler gives you an error message.)

If an abstract class is incomplete, what is the compiler supposed to do when someone tries to make an object of that class? It cannot safely create an object of an abstract class, so you get an error message from the compiler. This way the compiler ensures the purity of the abstract class, and you don’t need to worry about misusing it.

If you inherit from an abstract class and you want to make objects of the new type, you must provide method definitions for all the abstract methods in the base class. If you don’t (and you may choose not to), then the derived class is also abstract and the compiler will force you to qualify that class with the abstract keyword.

It’s possible to declare a class as abstract without including any abstract methods. This is useful when you’ve got a class in which it doesn’t make sense to have any abstract methods, and yet you want to prevent any instances of that class.

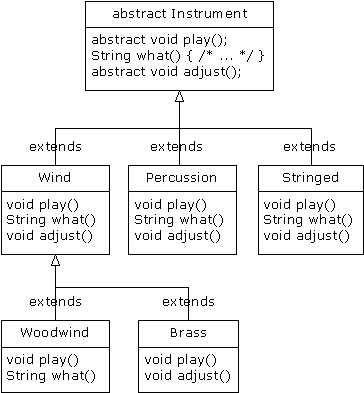

The Instrument class can easily be turned into an abstract class. Only some of the methods will be abstract, since making a class abstract doesn’t force you to make all the methods abstract. Here’s what it looks like:

Here’s the orchestra example modified to use abstract classes and methods:

You can see that there’s really no change except in the base class.

It’s helpful to create abstract classes and methods because they make the abstractness of a class explicit and tell both the user and the compiler how it was intended to be used.

The interface keyword takes the abstract concept one step further. You could think of it as a “pure” abstract class. It allows the creator to establish the form for a class: method names, argument lists and return types, but no method bodies. An interface can also contain data members, but these are implicitly static and final. An interface provides only a form, but no implementation.

An interface says: “This is what all classes that implement this particular interface will look like.” Thus, any code that uses a particular interface knows what methods might be called for that interface, and that’s all. So the interface is used to establish a “protocol” between classes. (Some object-oriented programming languages have a keyword called protocol to do the same thing.)

To create an interface, use the interface keyword instead of the class keyword. Like a class, you can add the public keyword before the interface keyword (but only if that interface is defined in a file of the same name) or leave it off to give “friendly” status.

To make a class that conforms to a particular interface (or group of interfaces) use the implements keyword. You’re saying “The interface is what it looks like and here’s how it works.” Other than that, it bears a strong resemblance to inheritance. The diagram for the instrument example shows this:

Once you’ve implemented an interface, that implementation becomes an ordinary class that can be extended in the regular way.

You can choose to explicitly declare the method declarations in an interface as public. But they are public even if you don’t say it. So when you implement an interface, the methods from the interface must be defined as public. Otherwise they would default to “friendly” and you’d be restricting the accessibility of a method during inheritance, which is not allowed by the Java compiler.

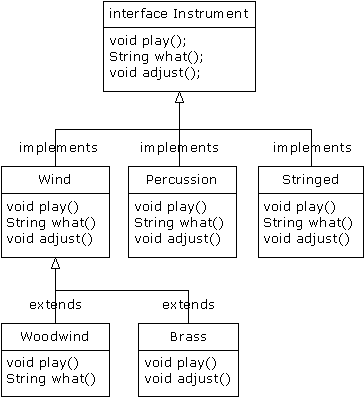

You can see this in the modified version of the Instrument example. Note that every method in the interface is strictly a declaration, which is the only thing the compiler allows. In addition, none of the methods in Instrument5 are declared as public, but they’re automatically public anyway:

The rest of the code works the same. It doesn’t matter if you are upcasting to a “regular” class called Instrument5, an abstract class called Instrument5, or to an interface called Instrument5. The behavior is the same. In fact, you can see in the tune( ) method that there isn’t any evidence about whether Instrument5 is a “regular” class, an abstract class or an interface. This is the intent: Each approach gives the programmer different control over the way objects are created and used.

The interface isn’t simply a “more pure” form of abstract class. It has a higher purpose than that. Because an interface has no implementation at all – that is, there is no storage associated with an interface – there’s nothing to prevent many interfaces from being combined. This is valuable because there are times when you need to say “An x is an a and a b and a c.” In C++, this act of combining multiple class interfaces is called multiple inheritance, and it carries some rather sticky baggage because each class can have an implementation. In Java, you can perform the same act, but only one of the classes can have an implementation, so the problems seen in C++ do not occur with Java when combining multiple interfaces:

In a derived class, you aren’t forced to have a base class that is either an abstract or “concrete” (one with no abstract methods). If you do inherit from a non-interface, you can inherit from only one. All the rest of the base elements must be interfaces. You place all the interface names after the implements keyword and separate them with commas. You can have as many interfaces as you want and each one becomes an independent type that you can upcast to. The following example shows a concrete class combined with several interfaces to produce a new class:

You can see that Hero combines the concrete class ActionCharacter with the interfaces CanFight, CanSwim, and CanFly. When you combine a concrete class with interfaces this way, the concrete class must come first, then the interfaces. (The compiler gives an error otherwise.)

Note that the signature for fight( ) is the same in the interface CanFight and the class ActionCharacter, and that fight( ) is not provided with a definition in Hero. The rule for an interface is that you can inherit from it (as you will see shortly), but then you’ve got another interface. If you want to create an object of the new type, it must be a class with all definitions provided. Even though Hero does not explicitly provide a definition for fight( ), the definition comes along with ActionCharacter so it is automatically provided and it’s possible to create objects of Hero.

In class Adventure, you can see that there are four methods that take as arguments the various interfaces and the concrete class. When a Hero object is created, it can be passed to any of these methods, which means it is being upcast to each interface in turn. Because of the way interfaces are designed in Java, this works without a hitch and without any particular effort on the part of the programmer.

Keep in mind that the core reason for interfaces is shown in the above example: to be able to upcast to more than one base type. However, a second reason for using interfaces is the same as using an abstract base class: to prevent the client programmer from making an object of this class and to establish that it is only an interface. This brings up a question: Should you use an interface or an abstract class? An interface gives you the benefits of an abstract class and the benefits of an interface, so if it’s possible to create your base class without any method definitions or member variables you should always prefer interfaces to abstract classes. In fact, if you know something is going to be a base class, your first choice should be to make it an interface, and only if you’re forced to have method definitions or member variables should you change to an abstract class.

You can easily add new method declarations to an interface using inheritance, and you can also combine several interfaces into a new interface with inheritance. In both cases you get a new interface, as seen in this example:

DangerousMonster is a simple extension to Monster that produces a new interface. This is implemented in DragonZilla.

The syntax used in Vampire works only when inheriting interfaces. Normally, you can use extends with only a single class, but since an interface can be made from multiple other interfaces, extends can refer to multiple base interfaces when building a new interface. As you can see, the interface names are simply separated with commas.

Because any fields you put into an interface are automatically static and final, the interface is a convenient tool for creating groups of constant values, much as you would with an enum in C or C++. For example:

Notice the Java style of using all uppercase letters (with underscores to separate multiple words in a single identifier) for static final primitives that have constant initializers – that is, for compile-time constants.

The fields in an interface are automatically public, so it’s unnecessary to specify that.

Now you can use the constants from outside the package by importing c07.* or c07.Months just as you would with any other package, and referencing the values with expressions like Months.JANUARY. Of course, what you get is just an int so there isn’t the extra type safety that C++’s enum has, but this (commonly-used) technique is certainly an improvement over hard-coding numbers into your programs. (This is often referred to as using “magic numbers” and it produces very difficult-to-maintain code.)

If you do want extra type safety, you can build a class like this:[37]

The class is called Month2 since there’s already a Month in the standard Java library. It’s a final class with a private constructor so no one can inherit from it or make any instances of it. The only instances are the final static ones created in the class itself: JAN, FEB, MAR, etc. These objects are also used in the array month, which lets you choose months by number instead of by name. (Notice the extra JAN in the array to provide an offset by one, so that December is month 12.) In main( ) you can see the type safety: m is a Month2 object so it can be assigned only to a Month2. The previous example Months.java provided only int values, so an int variable intended to represent a month could actually be given any integer value, which wasn’t too safe.

This approach also allows you to use == or equals( ) interchangeably, as shown at the end of main( ).

Fields defined in interfaces are automatically static and final. These cannot be “blank finals,” but they can be initialized with non-constant expressions. For example:

Since the fields are static, they are initialized when the class is first loaded, upon first access of any of the fields. Here’s a simple test:

The fields, of course, are not part of the interface but instead are stored in the static storage area for that interface.

In Java 1.1 it’s possible to place a class definition within another class definition. This is called an inner class. The inner class is a useful feature because it allows you to group classes that logically belong together and to control the visibility of one within the other. However, it’s important to understand that inner classes are distinctly different from composition.

Often, while you're learning about them, the need for inner classes isn’t immediately obvious. At the end of this section, after all of the syntax and semantics of inner classes have been described, you’ll find an example that should make clear the benefits of inner classes.

You create an inner class just as you’d expect: by placing the class definition inside a surrounding class: (See page 141 if you have trouble executing this program.)

The inner classes, when used inside ship( ), look just like the use of any other classes. Here, the only practical difference is that the names are nested within Parcel1. You’ll see in a while that this isn’t the only difference.

More typically, an outer class will have a method that returns a handle to an inner class, like this:

If you want to make an object of the inner class anywhere except from within a non-static method of the outer class, you must specify the type of that object as OuterClassName.InnerClassName, as seen in main( ).

So far, inner classes don’t seem that dramatic. After all, if it’s hiding you’re after, Java already has a perfectly good hiding mechanism – just allow the class to be “friendly” (visible only within a package) rather than creating it as an inner class.

However, inner classes really come into their own when you start upcasting to a base class, and in particular to an interface. (The effect of producing an interface handle from an object that implements it is essentially the same as upcasting to a base class.) That’s because the inner class can then be completely unseen and unavailable to anyone, which is convenient for hiding the implementation. All you get back is a handle to the base class or the interface, and it’s possible that you can’t even find out the exact type, as shown here:

Now Contents and Destination represent interfaces available to the client programmer. (The interface, remember, automatically makes all of its members public.) For convenience, these are placed inside a single file, but ordinarily Contents and Destination would each be public in their own files.

In Parcel3, something new has been added: the inner class PContents is private so no one but Parcel3 can access it. PDestination is protected, so no one but Parcel3, classes in the Parcel3 package (since protected also gives package access; that is, protected is also “friendly”), and the inheritors of Parcel3 can access PDestination. This means that the client programmer has restricted knowledge and access to these members. In fact, you can’t even downcast to a private inner class (or a protected inner class unless you’re an inheritor), because you can’t access the name, as you can see in class Test. Thus, the private inner class provides a way for the class designer to completely prevent any type-coding dependencies and to completely hide details about implementation. In addition, extension of an interface is useless from the client programmer’s perspective since the client programmer cannot access any additional methods that aren’t part of the public interface class. This also provides an opportunity for the Java compiler to generate more efficient code.

Normal (non-inner) classes cannot be made private or protected – only public or “friendly.”

Note that Contents doesn’t need to be an abstract class. You could use an ordinary class here as well, but the most typical starting point for such a design is an interface.

What you’ve seen so far encompasses the typical use for inner classes. In general, the code that you’ll write and read involving inner classes will be “plain” inner classes that are simple and easy to understand. However, the design for inner classes is quite complete and there are a number of other, more obscure, ways that you can use them if you choose: inner classes can be created within a method or even an arbitrary scope. There are two reasons for doing this:

In the following examples, the previous code will be modified to use:

This will all take place within the package innerscopes. First, the common interfaces from the previous code will be defined in their own files so they can be used in all the examples:

The point has been made that Contents could be an abstract class, so here it will be in a more natural form, as an interface:

Although it’s an ordinary class with an implementation, Wrapping is also being used as a common “interface” to its derived classes:

You’ll notice above that Wrapping has a constructor that requires an argument, to make things a bit more interesting.

The first example shows the creation of an entire class within the scope of a method (instead of the scope of another class):

The class PDestination is part of dest( ) rather than being part of Parcel4. (Also notice that you could use the class identifier PDestination for an inner class inside each class in the same subdirectory without a name clash.) Therefore, PDestination cannot be accessed outside of dest( ). Notice the upcasting that occurs in the return statement – nothing comes out of dest( ) except a handle to the base class Destination. Of course, the fact that the name of the class PDestination is placed inside dest( ) doesn’t mean that PDestination is not a valid object once dest( ) returns.

The next example shows how you can nest an inner class within any arbitrary scope:

The class TrackingSlip is nested inside the scope of an if statement. This does not mean that the class is conditionally created – it gets compiled along with everything else. However, it’s not available outside the scope in which it is defined. Other than that, it looks just like an ordinary class.

The next example looks a little strange:

The cont( ) method combines the creation of the return value with the definition of the class that represents that return value! In addition, the class is anonymous – it has no name. To make matters a bit worse, it looks like you’re starting out to create a Contents object:

but then, before you get to the semicolon, you say, “But wait, I think I’ll slip in a class definition”:

What this strange syntax means is “create an object of an anonymous class that’s inherited from Contents.” The handle returned by the new expression is automatically upcast to a Contents handle. The anonymous inner class syntax is a shorthand for:

In the anonymous inner class, Contents is created using a default constructor. The following code shows what to do if your base class needs a constructor with an argument:

That is, you simply pass the appropriate argument to the base-class constructor, seen here as the x passed in new Wrapping(x). An anonymous class cannot have a constructor where you would normally call super( ).

In both of the previous examples, the semicolon doesn’t mark the end of the class body (as it does in C++). Instead, it marks the end of the expression that happens to contain the anonymous class. Thus, it’s identical to the use of the semicolon everywhere else.

What happens if you need to perform some kind of initialization for an object of an anonymous inner class? Since it’s anonymous, there’s no name to give the constructor so you can’t have a constructor. You can, however, perform initialization at the point of definition of your fields:

If you’re defining an anonymous inner class and want to use an object that’s defined outside the anonymous inner class, the compiler requires that the outside object be final. This is why the argument to dest( ) is final. If you forget, you’ll get a compile-time error message.

As long as you’re simply assigning a field, the above approach is fine. But what if you need to perform some constructor-like activity? With Java 1.1 instance initialization, you can, in effect, create a constructor for an anonymous inner class:

Inside the instance initializer you can see code that couldn’t be executed as part of a field initializer (that is, the if statement). So in effect, an instance initializer is the constructor for an anonymous inner class. Of course, it’s limited; you can’t overload instance initializers so you can have only one of these constructors.

So far, it appears that inner classes are just a name-hiding and code-organization scheme, which is helpful but not totally compelling. However, there’s another twist. When you create an inner class, objects of that inner class have a link to the enclosing object that made them, and so they can access the members of that enclosing object – without any special qualifications. In addition, inner classes have access rights to all the elements in the enclosing class.[38] The following example demonstrates this:

The Sequence is simply a fixed-sized array of Object with a class wrapped around it. You call add( ) to add a new Object to the end of the sequence (if there’s room left). To fetch each of the objects in a Sequence, there’s an interface called Selector, which allows you to see if you’re at the end( ), to look at the current( ) Object, and to move to the next( ) Object in the Sequence. Because Selector is an interface, many other classes can implement the interface in their own ways, and many methods can take the interface as an argument, in order to create generic code.

Here, the SSelector is a private class that provides Selector functionality. In main( ), you can see the creation of a Sequence, followed by the addition of a number of String objects. Then, a Selector is produced with a call to getSelector( ) and this is used to move through the Sequence and select each item.

At first, the creation of SSelector looks like just another inner class. But examine it closely. Note that each of the methods end( ), current( ), and next( ) refer to o, which is a handle that isn’t part of SSelector, but is instead a private field in the enclosing class. However, the inner class can access methods and fields from the enclosing class as if they owned them. This turns out to be very convenient, as you can see in the above example.

So an inner class has access to the members of the enclosing class. How can this happen? The inner class must keep a reference to the particular object of the enclosing class that was responsible for creating it. Then when you refer to a member of the enclosing class, that (hidden) reference is used to select that member. Fortunately, the compiler takes care of all these details for you, but you can also understand now that an object of an inner class can be created only in association with an object of the enclosing class. The process of construction requires the initialization of the handle to the object of the enclosing class, and the compiler will complain if it cannot access the handle. Most of the time this occurs without any intervention on the part of the programmer.

To understand the meaning of static when applied to inner classes, you must remember that the object of the inner class implicitly keeps a handle to the object of the enclosing class that created it. This is not true, however, when you say an inner class is static. A static inner class means:

There are some restrictions: static members can be at only the outer level of a class, so inner classes cannot have static data or static inner classes.

If you don’t need to create an object of the outer class in order to create an object of the inner class, you can make everything static. For this to work, you must also make the inner classes static:

In main( ), no object of Parcel10 is necessary; instead you use the normal syntax for selecting a static member to call the methods that return handles to Contents and Destination.

Normally you can't put any code inside an interface, but a static inner class can be part of an interface. Since the class is static it doesn't violate the rules for interfaces – the static inner class is only placed inside the namespace of the interface:

Earlier in the book I suggested putting a main( ) in every class to act as a test bed for that class. One drawback to this is the amount of extra code you must carry around. If this is a problem, you can use a static inner class to hold your test code:

This generates a separate class called TestBed$Tester (to run the program you say java TestBed$Tester). You can use this class for testing, but you don't need to include it in your shipping product.

If you need to produce the handle to the outer class object, you name the outer class followed by a dot and this. For example, in the class Sequence.SSelector, any of its methods can produce the stored handle to the outer class Sequence by saying Sequence.this. The resulting handle is automatically the correct type. (This is known and checked at compile time, so there is no run-time overhead.)

Sometimes you want to tell some other object to create an object of one of its inner classes. To do this you must provide a handle to the other outer class object in the new expression, like this:

To create an object of the inner class directly, you don’t follow the same form and refer to the outer class name Parcel11 as you might expect, but instead you must use an object of the outer class to make an object of the inner class:

Thus, it’s not possible to create an object of the inner class unless you already have an object of the outer class. This is because the object of the inner class is quietly connected to the object of the outer class that it was made from. However, if you make a static inner class, then it doesn’t need a handle to the outer class object.

Because the inner class constructor must attach to a handle of the enclosing class object, things are slightly complicated when you inherit from an inner class. The problem is that the “secret” handle to the enclosing class object must be initialized, and yet in the derived class there’s no longer a default object to attach to. The answer is to use a syntax provided to make the association explicit:

You can see that InheritInner is extending only the inner class, not the outer one. But when it comes time to create a constructor, the default one is no good and you can’t just pass a handle to an enclosing object. In addition, you must use the syntax

inside the constructor. This provides the necessary handle and the program will then compile.

What happens when you create an inner class, then inherit from the enclosing class and redefine the inner class? That is, is it possible to override an inner class? This seems like it would be a powerful concept, but “overriding” an inner class as if it were another method of the outer class doesn’t really do anything:

The default constructor is synthesized automatically by the compiler, and this calls the base-class default constructor. You might think that since a BigEgg is being created, the “overridden” version of Yolk would be used, but this is not the case. The output is:

This example simply shows that there isn’t any extra inner class magic going on when you inherit from the outer class. However, it’s still possible to explicitly inherit from the inner class:

Now BigEgg2.Yolk explicitly extends Egg2.Yolk and overrides its methods. The method insertYolk( ) allows BigEgg2 to upcast one of its own Yolk objects into the y handle in Egg2, so when g( ) calls y.f( ) the overridden version of f( ) is used. The output is:

The second call to Egg2.Yolk( ) is the base-class constructor call of the BigEgg2.Yolk constructor. You can see that the overridden version of f( ) is used when g( ) is called.

Since every class produces a .class file that holds all the information about how to create objects of this type (this information produces a meta-class called the Class object), you might guess that inner classes must also produce .class files to contain the information for their Class objects. The names of these files/classes have a strict formula: the name of the enclosing class, followed by a ‘$’, followed by the name of the inner class. For example, the .class files created by InheritInner.java include:

If inner classes are anonymous, the compiler simply starts generating numbers as inner class identifiers. If inner classes are nested within inner classes, their names are simply appended after a ‘$’ and the outer class identifier(s).

Although this scheme of generating internal names is simple and straightforward, it’s also robust and handles most situations.[39] Since it is the standard naming scheme for Java, the generated files are automatically platform-independent. (Note that the Java compiler is changing your inner classes in all sorts of other ways in order to make them work.)

At this point you’ve seen a lot of syntax and semantics describing the way inner classes work, but this doesn’t answer the question of why they exist. Why did Sun go to so much trouble to add such a fundamental language feature in Java 1.1? The answer is something that I will refer to here as a control framework.

An application framework is a class or a set of classes that’s designed to solve a particular type of problem. To apply an application framework, you inherit from one or more classes and override some of the methods. The code you write in the overridden methods customizes the general solution provided by that application framework to solve your specific problem. The control framework is a particular type of application framework dominated by the need to respond to events; a system that primarily responds to events is called an event-driven system. One of the most important problems in application programming is the graphical user interface (GUI), which is almost entirely event-driven. As you will see in Chapter 13, the Java Swing library is a control framework that elegantly solves the GUI problem using inner classes.

To see how inner classes allow the simple creation and use of control frameworks, consider a control framework whose job is to execute events whenever those events are “ready.” Although “ready” could mean anything, in this case the default will be based on clock time. What follows is a control framework that contains no specific information about what it’s controlling. First, here is the interface that describes any control event. It’s an abstract class instead of an actual interface because the default behavior is control based on time, so some of the implementation can be included here:

The constructor simply captures the time when you want the Event to run, while ready( ) tells you when it’s time to run it. Of course, ready( ) could be overridden in a derived class to base the Event on something other than time.

action( ) is the method that’s called when the Event is ready( ), and description( ) gives textual information about the Event.

The next file contains the actual control framework that manages and fires events. The first class is really just a “helper” class whose job is to hold Event objects. You could replace it with any appropriate collection, and in Chapter 8 you’ll discover other collections that will do the trick without requiring you to write this extra code:

EventSet arbitrarily holds 100 Events. (If a “real” collection from Chapter 8 is used here you don’t need to worry about its maximum size, since it will resize itself). The index is used to keep track of the next available space, and next is used when you’re looking for the next Event in the list, to see whether you’ve looped around. This is important during a call to getNext( ), because Event objects are removed from the list (using removeCurrent( )) once they’re run, so getNext( ) will encounter holes in the list as it moves through it.

Note that removeCurrent( ) doesn’t just set some flag indicating that the object is no longer in use. Instead, it sets the handle to null. This is important because if the garbage collector sees a handle that’s still in use then it can’t clean up the object. If you think your handles might hang around (as they would here), then it’s a good idea to set them to null to give the garbage collector permission to clean them up.

Controller is where the actual work goes on. It uses an EventSet to hold its Event objects, and addEvent( ) allows you to add new events to this list. But the important method is run( ). This method loops through the EventSet, hunting for an Event object that’s ready( ) to run. For each one it finds ready( ), it calls the action( ) method, prints out the description( ), and then removes the Event from the list.

Note that so far in this design you know nothing about exactly what an Event does. And this is the crux of the design; how it “separates the things that change from the things that stay the same.” Or, to use my term, the “vector of change” is the different actions of the various kinds of Event objects, and you express different actions by creating different Event subclasses.

This is where inner classes come into play. They allow two things:

Consider a particular implementation of the control framework designed to control greenhouse functions.[40] Each action is entirely different: turning lights, water, and thermostats on and off, ringing bells, and restarting the system. But the control framework is designed to easily isolate this different code. For each type of action you inherit a new Event inner class, and write the control code inside of action( ).

As is typical with an application framework, the class GreenhouseControls is inherited from Controller:

Note that light, water, thermostat, and rings all belong to the outer class GreenhouseControls, and yet the inner classes have no problem accessing those fields. Also, most of the action( ) methods also involve some sort of hardware control, which would most likely involve calls to non-Java code.

Most of the Event classes look similar, but Bell and Restart are special. Bell rings, and if it hasn’t yet rung enough times it adds a new Bell object to the event list, so it will ring again later. Notice how inner classes almost look like multiple inheritance: Bell has all the methods of Event and it also appears to have all the methods of the outer class GreenhouseControls.

Restart is responsible for initializing the system, so it adds all the appropriate events. Of course, a more flexible way to accomplish this is to avoid hard-coding the events and instead read them from a file. (An exercise in Chapter 10 asks you to modify this example to do just that.) Since Restart( ) is just another Event object, you can also add a Restart object within Restart.action( ) so that the system regularly restarts itself. And all you need to do in main( ) is create a GreenhouseControls object and add a Restart object to get it going.

This example should move you a long way toward appreciating the value of inner classes, especially when used within a control framework. However, in the latter half of Chapter 13 you’ll see how elegantly inner classes are used to describe the actions of a graphical user interface. By the time you finish that section you should be fully convinced.

As usual, constructors are different from other kinds of methods. This is also true when polymorphism is involved. Even though constructors are not polymorphic (although you can have a kind of “virtual constructor,” as you will see in Chapter 11), it’s important to understand the way constructors work in complex hierarchies and with polymorphism. This understanding will help you avoid unpleasant entanglements.

The order of constructor calls was briefly discussed in Chapter 4, but that was before inheritance and polymorphism were introduced.

A constructor for the base class is always called in the constructor for a derived class, chaining upward so that a constructor for every base class is called. This makes sense because the constructor has a special job: to see that the object is built properly. A derived class has access to its own members only, and not to those of the base class (whose members are typically private). Only the base-class constructor has the proper knowledge and access to initialize its own elements. Therefore, it’s essential that all constructors get called, otherwise the entire object wouldn’t be constructed properly. That’s why the compiler enforces a constructor call for every portion of a derived class. It will silently call the default constructor if you don’t explicitly call a base-class constructor in the derived-class constructor body. If there is no default constructor, the compiler will complain. (In the case where a class has no constructors, the compiler will automatically synthesize a default constructor.)

Let’s take a look at an example that shows the effects of composition, inheritance, and polymorphism on the order of construction:

This example creates a complex class out of other classes, and each class has a constructor that announces itself. The important class is Sandwich, which reflects three levels of inheritance (four, if you count the implicit inheritance from Object) and three member objects. When a Sandwich object is created in main( ), the output is:

This means that the order of constructor calls for a complex object is as follows:

The order of the constructor calls is important. When you inherit, you know all about the base class and can access any public and protected members of the base class. This means that you must be able to assume that all the members of the base class are valid when you’re in the derived class. In a normal method, construction has already taken place, so all the members of all parts of the object have been built. Inside the constructor, however, you must be able to assume that all members that you use have been built. The only way to guarantee this is for the base-class constructor to be called first. Then when you’re in the derived-class constructor, all the members you can access in the base class have been initialized. “Knowing that all members are valid” inside the constructor is also the reason that, whenever possible, you should initialize all member objects (that is, objects placed in the class using composition) at their point of definition in the class (e.g.: b, c, and l in the example above). If you follow this practice, you will help ensure that all base class members and member objects of the current object have been initialized. Unfortunately, this doesn’t handle every case, as you will see in the next section.

When you use composition to create a new class, you never worry about finalizing the member objects of that class. Each member is an independent object and thus is garbage collected and finalized regardless of whether it happens to be a member of your class. With inheritance, however, you must override finalize( ) in the derived class if you have any special cleanup that must happen as part of garbage collection. When you override finalize( ) in an inherited class, it’s important to remember to call the base-class version of finalize( ), since otherwise the base-class finalization will not happen. The following example proves this:

The class DoBaseFinalization simply holds a flag that indicates to each class in the hierarchy whether to call super.finalize( ). This flag is set based on a command-line argument, so you can view the behavior with and without base-class finalization.

Each class in the hierarchy also contains a member object of class Characteristic. You will see that regardless of whether the base class finalizers are called, the Characteristic member objects are always finalized.

Each overridden finalize( ) must have access to at least protected members since the finalize( ) method in class Object is protected and the compiler will not allow you to reduce the access during inheritance. (“Friendly” is less accessible than protected.)

In Frog.main( ), the DoBaseFinalization flag is configured and a single Frog object is created. Remember that garbage collection and in particular finalization might not happen for any particular object so to enforce this, System.runFinalizersOnExit(true) adds the extra overhead to guarantee that finalization takes place. Without base-class finalization, the output is:

You can see that, indeed, no finalizers are called for the base classes of Frog. But if you add the “finalize” argument on the command line, you get:

Although the order the member objects are finalized is the same order that they are created, technically the order of finalization of objects is unspecified. With base classes, however, you have control over the order of finalization. The best order to use is the one that’s shown here, which is the reverse of the order of initialization. Following the form that’s used in C++ for destructors, you should perform the derived-class finalization first, then the base-class finalization. That’s because the derived-class finalization could call some methods in the base class that require that the base-class components are still alive, so you must not destroy them prematurely.

The hierarchy of constructor calls brings up an interesting dilemma. What happens if you’re inside a constructor and you call a dynamically-bound method of the object being constructed? Inside an ordinary method you can imagine what will happen – the dynamically-bound call is resolved at run-time because the object cannot know whether it belongs to the class the method is in or some class derived from it. For consistency, you might think this is what should happen inside constructors.

This is not exactly the case. If you call a dynamically-bound method inside a constructor, the overridden definition for that method is used. However, the effect can be rather unexpected, and can conceal some difficult-to-find bugs.

Conceptually, the constructor’s job is to bring the object into existence (which is hardly an ordinary feat). Inside any constructor, the entire object might be only partially formed – you can know only that the base-class objects have been initialized, but you cannot know which classes are inherited from you. A dynamically-bound method call, however, reaches “forward” or “outward” into the inheritance hierarchy. It calls a method in a derived class. If you do this inside a constructor, you call a method that might manipulate members that haven’t been initialized yet – a sure recipe for disaster.

You can see the problem in the following example:

In Glyph, the draw( ) method is abstract, so it is designed to be overridden. Indeed, you are forced to override it in RoundGlyph. But the Glyph constructor calls this method, and the call ends up in RoundGlyph.draw( ), which would seem to be the intent. But look at the output:

When Glyph’s constructor calls draw( ), the value of radius isn’t even the default initial value 1. It’s zero. This would probably result in either a dot or nothing at all being drawn on the screen, and you’d be staring, trying to figure out why the program won’t work.

The order of initialization described in the previous section isn’t quite complete, and that’s the key to solving the mystery. The actual process of initialization is:

There’s an upside to this, which is that everything is at least initialized to zero (or whatever zero means for that particular data type) and not just left as garbage. This includes object handles that are embedded inside a class via composition. So if you forget to initialize that handle you’ll get an exception at run time. Everything else gets zero, which is usually a telltale value when looking at output.

On the other hand, you should be pretty horrified at the outcome of this program. You’ve done a perfectly logical thing and yet the behavior is mysteriously wrong, with no complaints from the compiler. (C++ produces more rational behavior in this situation.) Bugs like this could easily be buried and take a long time to discover.

As a result, a good guideline for constructors is, “Do as little as possible to set the object into a good state, and if you can possibly avoid it, don’t call any methods.” The only safe methods to call inside a constructor are those that are final in the base class. (This also applies to private methods, which are automatically final.) These cannot be overridden and thus cannot produce this kind of surprise.

Once you learn about polymorphism, it can seem that everything ought to be inherited because polymorphism is such a clever tool. This can burden your designs; in fact if you choose inheritance first when you’re using an existing class to make a new class things can become needlessly complicated.

A better approach is to choose composition first, when it’s not obvious which one you should use. Composition does not force a design into an inheritance hierarchy. But composition is also more flexible since it’s possible to dynamically choose a type (and thus behavior) when using composition, whereas inheritance requires an exact type to be known at compile time. The following example illustrates this:

A Stage object contains a handle to an Actor, which is initialized to a HappyActor object. This means go( ) produces a particular behavior. But since a handle can be re-bound to a different object at run time, a handle for a SadActor object can be substituted in a and then the behavior produced by go( ) changes. Thus you gain dynamic flexibility at run time. In contrast, you can’t decide to inherit differently at run time; that must be completely determined at compile time.

A general guideline is “Use inheritance to express differences in behavior, and member variables to express variations in state.” In the above example, both are used: two different classes are inherited to express the difference in the act( ) method, and Stage uses composition to allow its state to be changed. In this case, that change in state happens to produce a change in behavior.

When studying inheritance, it would seem that the cleanest way to create an inheritance hierarchy is to take the “pure” approach. That is, only methods that have been established in the base class or interface are to be overridden in the derived class, as seen in this diagram:

This can be termed a pure “is-a” relationship because the interface of a class establishes what it is. Inheritance guarantees that any derived class will have the interface of the base class and nothing less. If you follow the above diagram, derived classes will also have no more than the base class interface.

This can be thought of as pure substitution, because derived class objects can be perfectly substituted for the base class, and you never need to know any extra information about the subclasses when you’re using them:

That is, the base class can receive any message you can send to the derived class because the two have exactly the same interface. All you need to do is upcast from the derived class and never look back to see what exact type of object you’re dealing with. Everything is handled through polymorphism.

When you see it this way, it seems like a pure “is-a” relationship is the only sensible way to do things, and any other design indicates muddled thinking and is by definition broken. This too is a trap. As soon as you start thinking this way, you’ll turn around and discover that extending the interface (which, unfortunately, the keyword extends seems to promote) is the perfect solution to a particular problem. This could be termed an “is-like-a” relationship because the derived class is like the base class – it has the same fundamental interface – but it has other features that require additional methods to implement:

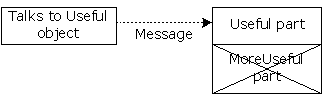

While this is also a useful and sensible approach (depending on the situation) it has a drawback. The extended part of the interface in the derived class is not available from the base class, so once you upcast you can’t call the new methods:

If you’re not upcasting in this case, it won’t bother you, but often you’ll get into a situation in which you need to rediscover the exact type of the object so you can access the extended methods of that type. The following sections show how this is done.

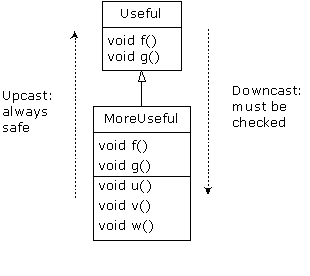

Since you lose the specific type information via an upcast (moving up the inheritance hierarchy), it makes sense that to retrieve the type information – that is, to move back down the inheritance hierarchy – you use a downcast. However, you know an upcast is always safe; the base class cannot have a bigger interface than the derived class, therefore every message you send through the base class interface is guaranteed to be accepted. But with a downcast, you don’t really know that a shape (for example) is actually a circle. It could instead be a triangle or square or some other type.

To solve this problem there must be some way to guarantee that a downcast is correct, so you won’t accidentally cast to the wrong type and then send a message that the object can’t accept. This would be quite unsafe.

In some languages (like C++) you must perform a special operation in order to get a type-safe downcast, but in Java every cast is checked! So even though it looks like you’re just performing an ordinary parenthesized cast, at run time this cast is checked to ensure that it is in fact the type you think it is. If it isn’t, you get a ClassCastException. This act of checking types at run time is called run-time type identification (RTTI). The following example demonstrates the behavior of RTTI:

As in the diagram, MoreUseful extends the interface of Useful. But since it’s inherited, it can also be upcast to a Useful. You can see this happening in the initialization of the array x in main( ). Since both objects in the array are of class Useful, you can send the f( ) and g( ) methods to both, and if you try to call u( ) (which exists only in MoreUseful) you’ll get a compile-time error message.

If you want to access the extended interface of a MoreUseful object, you can try to downcast. If it’s the correct type, it will be successful. Otherwise, you’ll get a ClassCastException. You don’t need to write any special code for this exception, since it indicates a programmer error that could happen anywhere in a program.

There’s more to RTTI than a simple cast. For example, there’s a way to see what type you’re dealing with before you try to downcast it. All of Chapter 11 is devoted to the study of different aspects of Java run-time type identification.

Polymorphism means “different forms.” In object-oriented programming, you have the same face (the common interface in the base class) and different forms using that face: the different versions of the dynamically-bound methods.

You’ve seen in this chapter that it’s impossible to understand, or even create, an example of polymorphism without using data abstraction and inheritance. Polymorphism is a feature that cannot be viewed in isolation (like a switch statement, for example), but instead works only in concert, as part of a “big picture” of class relationships. People are often confused by other, non-object-oriented features of Java, like method overloading, which are sometimes presented as object-oriented. Don’t be fooled: If it isn’t late binding, it isn’t polymorphism.

To use polymorphism, and thus object-oriented techniques, effectively in your programs you must expand your view of programming to include not just members and messages of an individual class, but also the commonality among classes and their relationships with each other. Although this requires significant effort, it’s a worthy struggle, because the results are faster program development, better code organization, extensible programs, and easier code maintenance.

[37] This approach was inspired by an e-mail from Rich Hoffarth.

[38] This is very different from the design of nested classes in C++, which is simply a name-hiding mechanism. There is no link to an enclosing object and no implied permissions in C++.

[39] On the other hand, ‘$’ is a meta-character to the Unix shell and so you’ll sometimes have trouble when listing the .class files. This is a bit strange coming from Sun, a Unix-based company. My guess is that they weren’t considering this issue, but instead thought you’d naturally focus on the source-code files.

[40] For some reason this has always been a pleasing problem for me to solve; it came from C++ Inside & Out, but Java allows a much more elegant solution.
