dtn::daemon::Configuration::Network Class Reference

#include <Configuration.h>

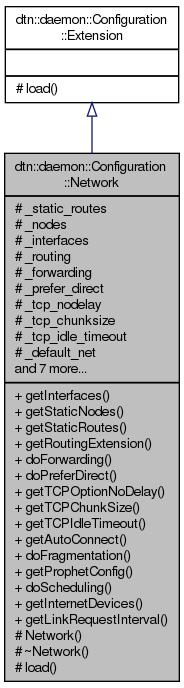

Inheritance diagram for dtn::daemon::Configuration::Network:

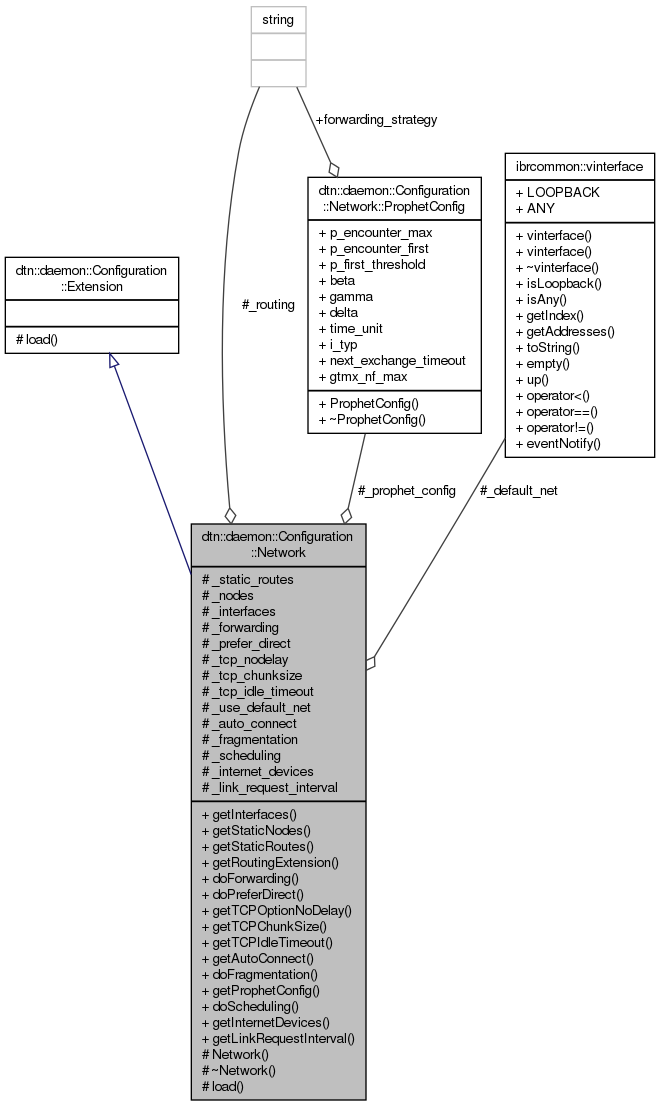

Collaboration diagram for dtn::daemon::Configuration::Network:

Classes
class	ProphetConfig

Public Member Functions
const std::list< NetConfig > &	getInterfaces () const
const std::list< Node > &	getStaticNodes () const
const std::multimap < std::string, std::string > &	getStaticRoutes () const
RoutingExtension	getRoutingExtension () const
bool	doForwarding () const
bool	doPreferDirect () const
bool	getTCPOptionNoDelay () const
dtn::data::Length	getTCPChunkSize () const
dtn::data::Timeout	getTCPIdleTimeout () const
dtn::data::Timeout	getAutoConnect () const
bool	doFragmentation () const
ProphetConfig	getProphetConfig () const
bool	doScheduling () const
std::set< ibrcommon::vinterface >	getInternetDevices () const
size_t	getLinkRequestInterval () const

Protected Member Functions
	Network ()
virtual	~Network ()
void	load (const ibrcommon::ConfigFile &conf)

Protected Attributes
std::multimap< std::string, std::string >	_static_routes
std::list< Node >	_nodes
std::list< NetConfig >	_interfaces
std::string	_routing
bool	_forwarding
bool	_prefer_direct
bool	_tcp_nodelay
dtn::data::Length	_tcp_chunksize
dtn::data::Timeout	_tcp_idle_timeout
ibrcommon::vinterface	_default_net
bool	_use_default_net
dtn::data::Timeout	_auto_connect
bool	_fragmentation
bool	_scheduling
ProphetConfig	_prophet_config
std::set< ibrcommon::vinterface >	_internet_devices
size_t	_link_request_interval

Friends
class	Configuration

Detailed Description

Definition at line 272 of file Configuration.h.

Constructor & Destructor Documentation

dtn::daemon::Configuration::Network::Network ( )

protected

Definition at line 94 of file Configuration.cpp.

dtn::daemon::Configuration::Network::~Network ( )

protectedvirtual

Definition at line 129 of file Configuration.cpp.

Member Function Documentation

bool dtn::daemon::Configuration::Network::doForwarding

(

)

const

Define if forwarding is enabled. If not, only local bundles will be accepted.

Returns

True, if forwarding is enabled.

Definition at line 981 of file Configuration.cpp.

Referenced by dtn::dht::DHTNameService::componentUp().

bool dtn::daemon::Configuration::Network::doFragmentation

(

)

const

Returns

True, if fragmentation support is enabled.

Definition at line 991 of file Configuration.cpp.

Referenced by dtn::api::Registration::underflow().

bool dtn::daemon::Configuration::Network::doPreferDirect

(

)

const

Define if direct routes are preferred instead of spreading bundles to all neighbors.

Returns

True, if direct routes should preferred

Definition at line 986 of file Configuration.cpp.

Referenced by dtn::routing::FloodRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

bool dtn::daemon::Configuration::Network::doScheduling

(

)

const

Returns

True, if scheduling is used.

Definition at line 996 of file Configuration.cpp.

dtn::data::Timeout dtn::daemon::Configuration::Network::getAutoConnect

(

)

const

Returns

Each x seconds try to connect to all available nodes.

Definition at line 1016 of file Configuration.cpp.

Referenced by dtn::net::ConnectionManager::componentUp().

const std::list< Configuration::NetConfig > & dtn::daemon::Configuration::Network::getInterfaces

(

)

const

Returns all configured network interfaces

Definition at line 584 of file Configuration.cpp.

Referenced by dtn::dht::DHTNameService::componentRun().

std::set< ibrcommon::vinterface > dtn::daemon::Configuration::Network::getInternetDevices

(

)

const

Returns

The interfaces which are potentially connected to the internet

Definition at line 1026 of file Configuration.cpp.

Referenced by dtn::core::BundleCore::eventNotify().

size_t dtn::daemon::Configuration::Network::getLinkRequestInterval

(

)

const

Returns

Number of milliseconds between two linkstate-requests (as netlink-fallback)

Definition at line 1031 of file Configuration.cpp.

Configuration::Network::ProphetConfig dtn::daemon::Configuration::Network::getProphetConfig

(

)

const

Returns

a struct containing the prophet configuration parameters

Definition at line 1021 of file Configuration.cpp.

Configuration::RoutingExtension dtn::daemon::Configuration::Network::getRoutingExtension

(

)

const

Returns

the routing extension to use.

Definition at line 971 of file Configuration.cpp.

References dtn::daemon::Configuration::DEFAULT_ROUTING, dtn::daemon::Configuration::EPIDEMIC_ROUTING, dtn::daemon::Configuration::FLOOD_ROUTING, dtn::daemon::Configuration::NO_ROUTING, and dtn::daemon::Configuration::PROPHET_ROUTING.

const std::list< Node > & dtn::daemon::Configuration::Network::getStaticNodes

(

)

const

Returns all static neighboring nodes

Definition at line 928 of file Configuration.cpp.

const std::multimap< std::string, std::string > & dtn::daemon::Configuration::Network::getStaticRoutes

(

)

const

Returns all static routes

Definition at line 923 of file Configuration.cpp.

Referenced by dtn::routing::StaticRoutingExtension::run().

dtn::data::Length dtn::daemon::Configuration::Network::getTCPChunkSize

(

)

const

Returns

The size of TCP chunks for bundles.

Definition at line 1006 of file Configuration.cpp.

dtn::data::Timeout dtn::daemon::Configuration::Network::getTCPIdleTimeout

(

)

const

Returns

The idle timeout for TCP connections in seconds.

Definition at line 1011 of file Configuration.cpp.

Referenced by dtn::net::TCPConnection::eventConnectionUp().

bool dtn::daemon::Configuration::Network::getTCPOptionNoDelay

(

)

const

Returns

True, is tcp options NODELAY should be set.

Definition at line 1001 of file Configuration.cpp.

void dtn::daemon::Configuration::Network::load ( const ibrcommon::ConfigFile &  conf)

protectedvirtual

Load static routes

load static nodes

get routing extension

get the routing extension

prefer direct routes

get network interfaces

TCP options

auto connect interval

fragmentation support

read internet devices

scheduling support

read link-request-interval

Implements dtn::daemon::Configuration::Extension.

Definition at line 663 of file Configuration.cpp.

References dtn::core::Node::add(), dtn::core::Node::getEID(), dtn::daemon::Configuration::NetConfig::iface, ibrcommon::ConfigFile::keyExists(), dtn::daemon::Configuration::NetConfig::mtu, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_ETHERNET, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_LOWPAN, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_UDP, dtn::daemon::Configuration::NetConfig::NETWORK_EMAIL, dtn::daemon::Configuration::NetConfig::NETWORK_FILE, dtn::daemon::Configuration::NetConfig::NETWORK_HTTP, dtn::daemon::Configuration::NetConfig::NETWORK_LOWPAN, dtn::daemon::Configuration::NetConfig::NETWORK_TCP, dtn::daemon::Configuration::NetConfig::NETWORK_UDP, dtn::daemon::Configuration::NetConfig::NETWORK_UNKNOWN, dtn::core::Node::NODE_STATIC_GLOBAL, dtn::core::Node::NODE_STATIC_LOCAL, dtn::daemon::Configuration::NetConfig::port, ibrcommon::ConfigFile::read(), dtn::core::Node::setConnectImmediately(), dtn::utils::Utils::tokenize(), and dtn::daemon::Configuration::NetConfig::url.

Referenced by dtn::daemon::Configuration::load().

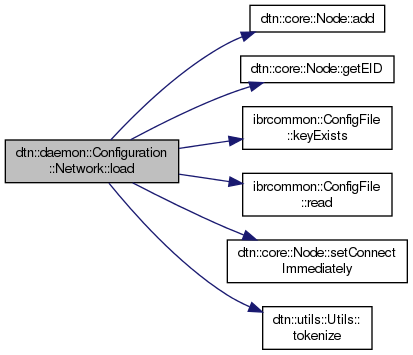

Here is the call graph for this function:

Friends And Related Function Documentation

friend class Configuration

friend

Definition at line 274 of file Configuration.h.

Member Data Documentation

dtn::data::Timeout dtn::daemon::Configuration::Network::_auto_connect

protected

Definition at line 314 of file Configuration.h.

ibrcommon::vinterface dtn::daemon::Configuration::Network::_default_net

protected

Definition at line 312 of file Configuration.h.

Referenced by dtn::daemon::Configuration::params().

bool dtn::daemon::Configuration::Network::_forwarding

protected

Definition at line 307 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_fragmentation

protected

Definition at line 315 of file Configuration.h.

std::list<NetConfig> dtn::daemon::Configuration::Network::_interfaces

protected

Definition at line 305 of file Configuration.h.

std::set<ibrcommon::vinterface> dtn::daemon::Configuration::Network::_internet_devices

protected

Definition at line 318 of file Configuration.h.

size_t dtn::daemon::Configuration::Network::_link_request_interval

protected

Definition at line 319 of file Configuration.h.

std::list<Node> dtn::daemon::Configuration::Network::_nodes

protected

Definition at line 304 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_prefer_direct

protected

Definition at line 308 of file Configuration.h.

ProphetConfig dtn::daemon::Configuration::Network::_prophet_config

protected

Definition at line 317 of file Configuration.h.

std::string dtn::daemon::Configuration::Network::_routing

protected

Definition at line 306 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_scheduling

protected

Definition at line 316 of file Configuration.h.

std::multimap<std::string, std::string> dtn::daemon::Configuration::Network::_static_routes

protected

Definition at line 303 of file Configuration.h.

dtn::data::Length dtn::daemon::Configuration::Network::_tcp_chunksize

protected

Definition at line 310 of file Configuration.h.

dtn::data::Timeout dtn::daemon::Configuration::Network::_tcp_idle_timeout

protected

Definition at line 311 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_tcp_nodelay

protected

Definition at line 309 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_use_default_net

protected

Definition at line 313 of file Configuration.h.

Referenced by dtn::daemon::Configuration::params().

---

The documentation for this class was generated from the following files:

• daemon/src/Configuration.h
• daemon/src/Configuration.cpp
