#include <stdlib.h>
#include <string.h>
#include "mode_hdr.h"

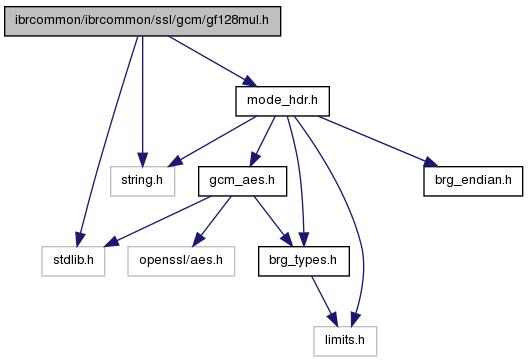

Include dependency graph for gf128mul.h:

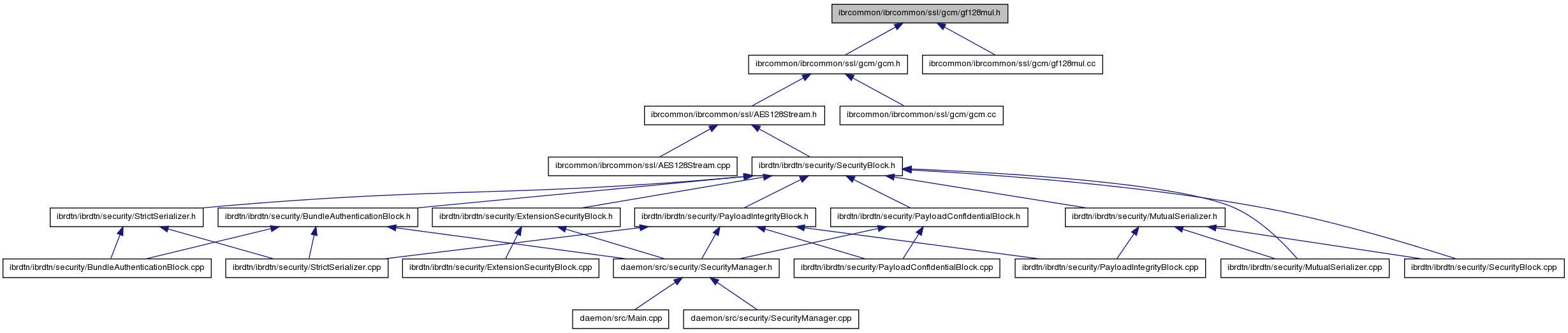

This graph shows which files directly or indirectly include this file:

Defines
#define	TABLES_8K
#define	GF_BYTE_LEN 16
#define	tab64k(x) ((gf_t64k)x)
#define	xor_64k(i, a, t, r) xor_block_aligned(r, tab64k(t)[i][a[i]])
#define	gf_mul_64k(a, t, r)
#define	tab8k(x) ((gf_t8k)x)
#define	xor_8k(i, a, t, r)
#define	gf_mul_8k(a, t, r)
#define	tab4k(x) ((gf_t4k)x)
#define	xor_4k(i, a, t, r) mul_x8(r); xor_block_aligned(r, tab4k(t)[a[i]])
#define	gf_mul_4k(a, t, r)
#define	tab256(t) ((gf_t256)t)
#define	xor_256(i, a, t, r)
#define	gf_mul_256(a, t, r)
Typedefs
typedef uint_32t(*	gf_t64k )[256][GF_BYTE_LEN >> 2]
typedef uint_32t(*	gf_t8k )[16][GF_BYTE_LEN >> 2]
typedef uint_32t(*	gf_t4k )[GF_BYTE_LEN >> 2]
typedef uint_32t(*	gf_t256 )[GF_BYTE_LEN >> 2]
Functions
void	gf_mul (void a, const void b)
void	init_64k_table (unsigned char g[], void *t)
void	init_8k_table (unsigned char g[], void *t)
void	init_4k_table (unsigned char g[], void *t)
void	init_256_table (unsigned char g[], void *t)
Variables
const unsigned short	gf_tab [256]

Define Documentation

#define GF_BYTE_LEN 16

Definition at line 104 of file gf128mul.h.

Referenced by gcm_auth_data(), gcm_auth_header(), gcm_compute_tag(), gcm_init_message(), gf_mul(), and init_8k_table().

#define gf_mul_256	(	a,
		t,
		r
	)

Value:

do { int i = 15;                \
    move_block_aligned(r,tab256(t)[a[15] & 15]); mul_x4(r); \
    xor_block_aligned(r, tab256(t)[a[15] >> 4]);            \
    while(i--)                                              \
    {   xor_256(i, a, t, r);                                \
    }                                                       \
    move_block_aligned(a, r);                               \
} while(0)

Definition at line 935 of file gf128mul.h.

#define gf_mul_4k	(	a,
		t,
		r
	)

Value:

do { int i = 15; \
    move_block_aligned(r,tab4k(t)[a[15]]);  \
    while(i--)                              \
    {   xor_4k(i, a, t, r);                 \
    }                                       \
    move_block_aligned(a, r);               \
} while(0)

Definition at line 846 of file gf128mul.h.

#define gf_mul_64k	(	a,
		t,
		r
	)

Value:

do {                \
    move_block_aligned(r, tab64k(t)[0][a[0]]);  \
    xor_64k( 1, a, t, r);                       \
    xor_64k( 2, a, t, r); xor_64k( 3, a, t, r); \
    xor_64k( 4, a, t, r); xor_64k( 5, a, t, r); \
    xor_64k( 6, a, t, r); xor_64k( 7, a, t, r); \
    xor_64k( 8, a, t, r); xor_64k( 9, a, t, r); \
    xor_64k(10, a, t, r); xor_64k(11, a, t, r); \
    xor_64k(12, a, t, r); xor_64k(13, a, t, r); \
    xor_64k(14, a, t, r); xor_64k(15, a, t, r); \
    move_block_aligned(a, r);                   \
} while(0)

Definition at line 672 of file gf128mul.h.

#define gf_mul_8k	(	a,
		t,
		r
	)

Value:

do { int i;              \
    memcpy(r, tab8k(t)[0][a[0] & 15], GF_BYTE_LEN); \
    xor_block_aligned(r, tab8k(t)[1][a[0] >> 4]);   \
    for(i = 1; i < GF_BYTE_LEN; ++i)                \
    {   xor_8k(i, a, t, r);                         \
    }                                               \
    memcpy(a, r, GF_BYTE_LEN);                      \
} while(0)

Definition at line 765 of file gf128mul.h.

#define tab256 ( t ) ((gf_t256)t)

Definition at line 879 of file gf128mul.h.

#define tab4k ( x ) ((gf_t4k)x)

Definition at line 798 of file gf128mul.h.

#define tab64k ( x ) ((gf_t64k)x)

Definition at line 636 of file gf128mul.h.

#define tab8k ( x ) ((gf_t8k)x)

Definition at line 712 of file gf128mul.h.

Referenced by init_8k_table().

#define TABLES_8K

Definition at line 52 of file gf128mul.h.

#define xor_256	(	i,
		a,
		t,
		r
	)

Value:

mul_x4(r); xor_block_aligned(r, tab256(t)[a[i] & 15]);  \
    mul_x4(r); xor_block_aligned(r, tab256(t)[a[i] >> 4])

Definition at line 880 of file gf128mul.h.

#define xor_4k	(	i,
		a,
		t,
		r
	)	mul_x8(r); xor_block_aligned(r, tab4k(t)[a[i]])

Definition at line 799 of file gf128mul.h.

#define xor_64k	(	i,
		a,
		t,
		r
	)	xor_block_aligned(r, tab64k(t)[i][a[i]])

Definition at line 637 of file gf128mul.h.

#define xor_8k	(	i,
		a,
		t,
		r
	)

Value:

xor_block_aligned(r, tab8k(t)[i + i][a[i] & 15]); \
    xor_block_aligned(r, tab8k(t)[i + i + 1][a[i] >> 4])

Definition at line 713 of file gf128mul.h.

Typedef Documentation

typedef uint_32t(* gf_t256)[GF_BYTE_LEN >> 2]

Definition at line 878 of file gf128mul.h.

typedef uint_32t(* gf_t4k)[GF_BYTE_LEN >> 2]

Definition at line 797 of file gf128mul.h.

typedef uint_32t(* gf_t64k)[256][GF_BYTE_LEN >> 2]

Definition at line 635 of file gf128mul.h.

typedef uint_32t(* gf_t8k)[16][GF_BYTE_LEN >> 2]

Definition at line 711 of file gf128mul.h.

Function Documentation

void gf_mul	(	void *	a,
		const void *	b
	)

Definition at line 106 of file gf128mul.cc.

References GF_BYTE_LEN, move_block_aligned(), and xor_block_aligned().

Referenced by gcm_compute_tag().

Here is the call graph for this function:

void init_256_table	(	unsigned char	g[],
		void *	t
	)

Referenced by gcm_init_and_key().

void init_4k_table	(	unsigned char	g[],
		void *	t
	)

Referenced by gcm_init_and_key().

void init_64k_table	(	unsigned char	g[],
		void *	t
	)

Referenced by gcm_init_and_key().

void init_8k_table	(	unsigned char	g[],
		void *	t
	)

Definition at line 175 of file gf128mul.cc.

References GF_BYTE_LEN, and tab8k.

Referenced by gcm_init_and_key().

Variable Documentation

const unsigned short gf_tab[256]

Definition at line 104 of file gf128mul.cc.
