dtn::net::LOWPANConnectionSender Class Reference

#include <LOWPANConnection.h>

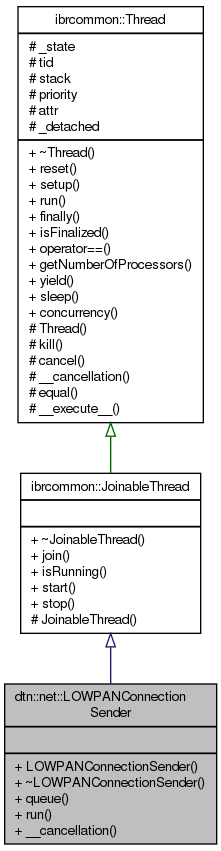

Inheritance diagram for dtn::net::LOWPANConnectionSender:

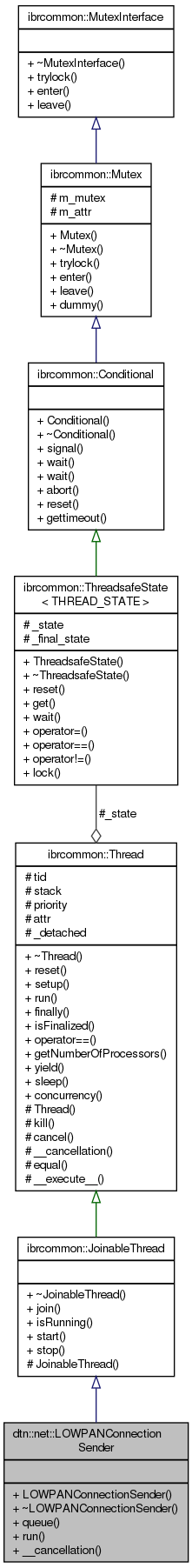

Collaboration diagram for dtn::net::LOWPANConnectionSender:

Public Member Functions
	LOWPANConnectionSender (ibrcommon::lowpanstream &_stream)
virtual	~LOWPANConnectionSender ()
void	queue (const dtn::net::BundleTransfer &job)
void	run () throw ()
void	__cancellation () throw ()
Public Member Functions inherited from ibrcommon::JoinableThread
virtual	~JoinableThread ()=0
void	join (void) throw (ThreadException)
bool	isRunning (void)
void	start (int priority=0) throw (ThreadException)
void	stop () throw ()

Additional Inherited Members
Protected Member Functions inherited from ibrcommon::JoinableThread
	JoinableThread (size_t size=DEFAULT_STACKSIZE)
Static Protected Member Functions inherited from ibrcommon::Thread
static size_t	getNumberOfProcessors ()
static void	yield (void)
static void	sleep (time_t timeout)
static void	concurrency (int level)
static bool	equal (pthread_t thread1, pthread_t thread2)
static void *	__execute__ (void *obj) throw ()

Detailed Description

Definition at line 36 of file LOWPANConnection.h.

Constructor & Destructor Documentation

dtn::net::LOWPANConnectionSender::LOWPANConnectionSender

(

ibrcommon::lowpanstream &

_stream)

Definition at line 111 of file LOWPANConnection.cpp.

dtn::net::LOWPANConnectionSender::~LOWPANConnectionSender ( )

virtual

Definition at line 116 of file LOWPANConnection.cpp.

Member Function Documentation

void dtn::net::LOWPANConnectionSender::__cancellation ( ) throw ( )

virtual

Implements ibrcommon::Thread.

Definition at line 155 of file LOWPANConnection.cpp.

References ibrcommon::Queue< T >::abort().

Here is the call graph for this function:

void dtn::net::LOWPANConnectionSender::queue

(

const dtn::net::BundleTransfer &

job)

Queueing a job, originally coming from the DTN core, to work its way down to the CL through the lowpanstream

Parameters

job	Reference to the job conatining EID and bundle

Definition at line 120 of file LOWPANConnection.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Queue< T >::push().

Referenced by dtn::net::LOWPANConvergenceLayer::queue().

Here is the call graph for this function:

void dtn::net::LOWPANConnectionSender::run ( ) throw ( )

virtual

Abstract interface for thread context run method.

Implements ibrcommon::Thread.

Definition at line 126 of file LOWPANConnection.cpp.

References dtn::net::BundleTransfer::complete(), dtn::storage::BundleStorage::get(), dtn::net::BundleTransfer::getBundle(), dtn::core::BundleCore::getInstance(), ibrcommon::Queue< T >::getnpop(), dtn::core::BundleCore::getStorage(), IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

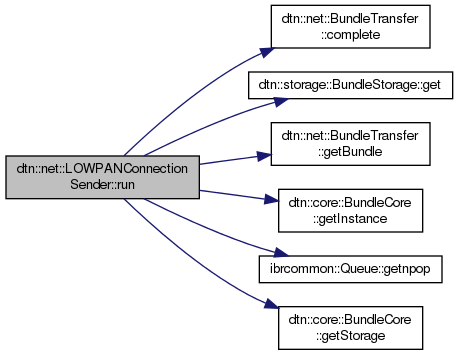

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• daemon/src/net/LOWPANConnection.h
• daemon/src/net/LOWPANConnection.cpp
