ibrcommon::lowpanstream Class Reference

#include <lowpanstream.h>

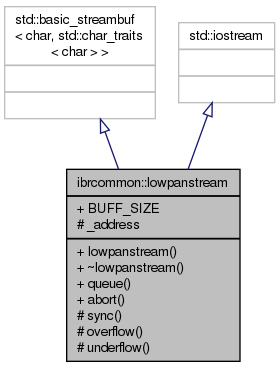

Inheritance diagram for ibrcommon::lowpanstream:

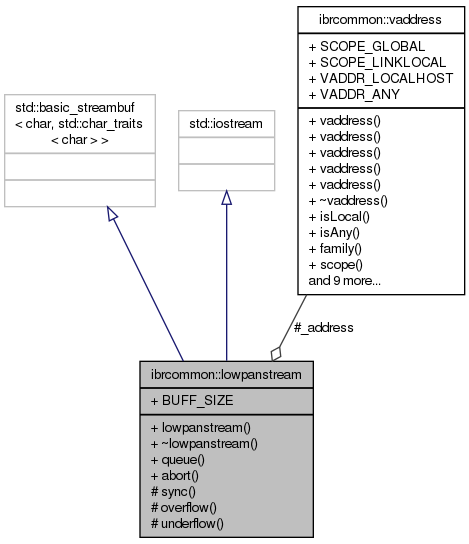

Collaboration diagram for ibrcommon::lowpanstream:

Public Member Functions
	lowpanstream (lowpanstream_callback &callback, const ibrcommon::vaddress &address)
virtual	~lowpanstream ()
void	queue (char *buf, size_t len)
void	abort ()

Static Public Attributes
static const size_t	BUFF_SIZE = 113

Protected Member Functions
virtual int	sync ()
virtual std::char_traits< char > ::int_type	overflow (std::char_traits< char >::int_type=std::char_traits< char >::eof())
virtual std::char_traits< char > ::int_type	underflow ()

Protected Attributes
const ibrcommon::vaddress	_address

Detailed Description

Definition at line 45 of file lowpanstream.h.

Constructor & Destructor Documentation

ibrcommon::lowpanstream::lowpanstream	(	lowpanstream_callback &	callback,
		const ibrcommon::vaddress &	address
	)

Definition at line 65 of file lowpanstream.cpp.

References BUFF_SIZE.

ibrcommon::lowpanstream::~lowpanstream ( )

virtual

Definition at line 75 of file lowpanstream.cpp.

Member Function Documentation

void ibrcommon::lowpanstream::abort

(

)

Definition at line 79 of file lowpanstream.cpp.

References ibrcommon::Conditional::signal(), and ibrcommon::Conditional::wait().

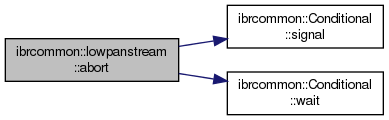

Here is the call graph for this function:

std::char_traits< char >::int_type ibrcommon::lowpanstream::overflow ( std::char_traits< char >::int_type  c = std::char_traits<char>::eof())

protectedvirtual

Definition at line 156 of file lowpanstream.cpp.

References _address, BUFF_SIZE, IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, SEGMENT_FIRST, SEGMENT_LAST, SEGMENT_MIDDLE, and ibrcommon::lowpanstream_callback::send_cb().

Referenced by sync().

Here is the call graph for this function:

void ibrcommon::lowpanstream::queue	(	char *	buf,
		size_t	len
	)

Queueing data received from the CL worker thread for the LOWPANConnection

Parameters

buf	Buffer with received data
len	Length of the buffer

Definition at line 92 of file lowpanstream.cpp.

References ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, SEGMENT_FIRST, SEGMENT_LAST, SEQ_NUM_MASK, ibrcommon::Conditional::signal(), and ibrcommon::Conditional::wait().

Referenced by dtn::net::LOWPANConvergenceLayer::componentRun().

Here is the call graph for this function:

int ibrcommon::lowpanstream::sync ( )

protectedvirtual

Definition at line 142 of file lowpanstream.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, overflow(), and SEGMENT_LAST.

Here is the call graph for this function:

std::char_traits< char >::int_type ibrcommon::lowpanstream::underflow ( )

protectedvirtual

Definition at line 207 of file lowpanstream.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, ibrcommon::Conditional::signal(), and ibrcommon::Conditional::wait().

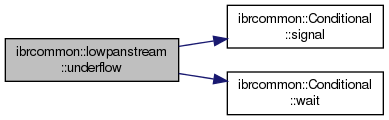

Here is the call graph for this function:

Member Data Documentation

const ibrcommon::vaddress ibrcommon::lowpanstream::_address

protected

Definition at line 70 of file lowpanstream.h.

Referenced by overflow().

const size_t ibrcommon::lowpanstream::BUFF_SIZE = 113

static

Size of the input and output buffers.

Definition at line 51 of file lowpanstream.h.

Referenced by lowpanstream(), and overflow().

---

The documentation for this class was generated from the following files:

• ibrcommon/ibrcommon/net/lowpanstream.h
• ibrcommon/ibrcommon/net/lowpanstream.cpp
