#include <LOWPANConvergenceLayer.h>

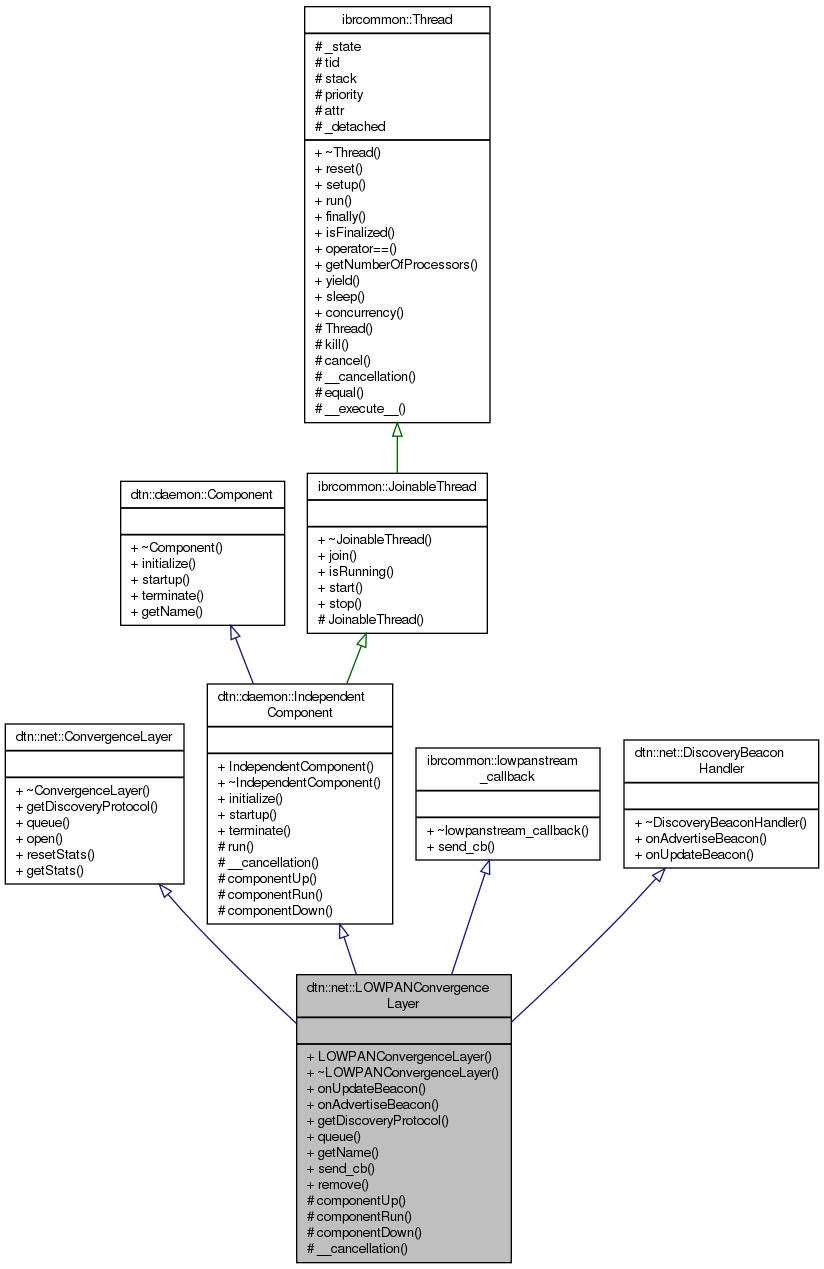

Inheritance diagram for dtn::net::LOWPANConvergenceLayer:

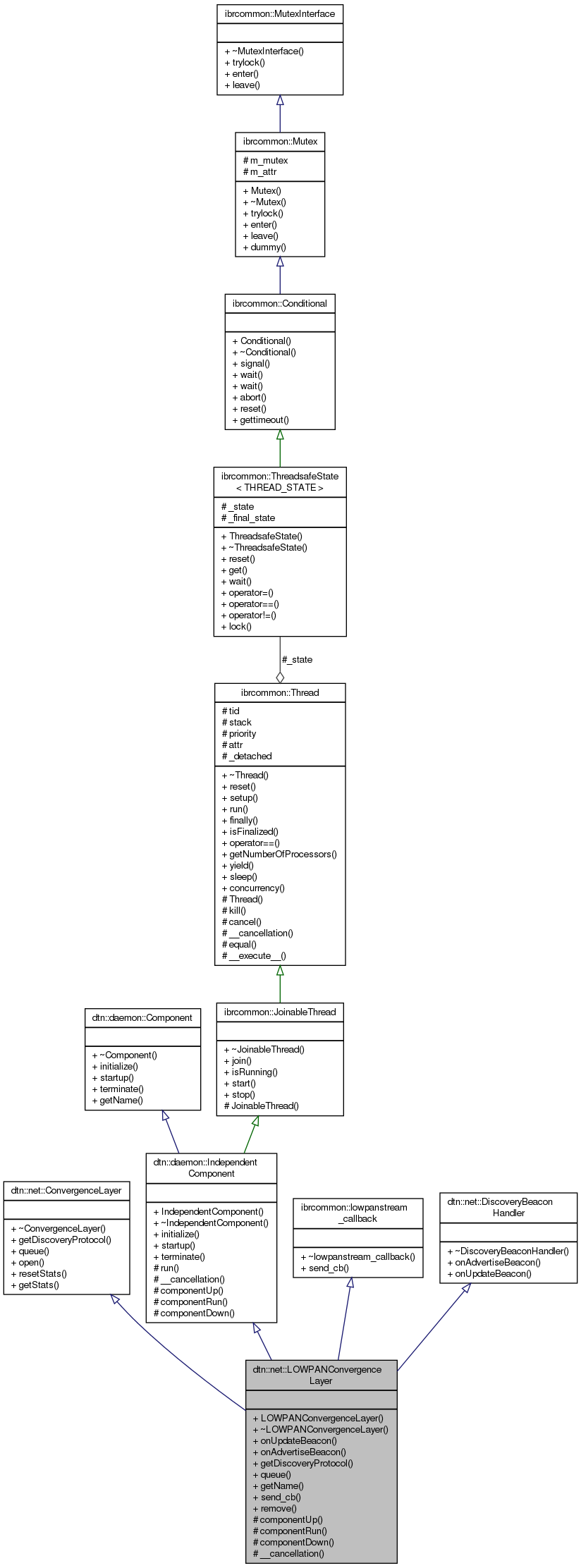

Collaboration diagram for dtn::net::LOWPANConvergenceLayer:

Public Member Functions
	LOWPANConvergenceLayer (const ibrcommon::vinterface &net, uint16_t panid, unsigned int mtu=115)

virtual	~LOWPANConvergenceLayer ()

void	onUpdateBeacon (const ibrcommon::vinterface &iface, DiscoveryBeacon &announcement) throw (dtn::net::DiscoveryBeaconHandler::NoServiceHereException)

void	onAdvertiseBeacon (const ibrcommon::vinterface &iface, const DiscoveryBeacon &beacon) throw ()

dtn::core::Node::Protocol	getDiscoveryProtocol () const

void	queue (const dtn::core::Node &n, const dtn::net::BundleTransfer &job)

virtual const std::string	getName () const

virtual void	send_cb (const char *buf, const size_t len, const ibrcommon::vaddress &addr)

void	remove (const LOWPANConnection *conn)

Public Member Functions inherited from dtn::net::ConvergenceLayer
virtual	~ConvergenceLayer ()=0

virtual void	open (const dtn::core::Node &)

virtual void	resetStats ()

virtual void	getStats (ConvergenceLayer::stats_data &data) const

Public Member Functions inherited from dtn::daemon::IndependentComponent
	IndependentComponent ()

virtual	~IndependentComponent ()

virtual void	initialize () throw ()

virtual void	startup () throw ()

virtual void	terminate () throw ()

Public Member Functions inherited from dtn::daemon::Component
virtual	~Component ()=0

Public Member Functions inherited from ibrcommon::lowpanstream_callback
virtual	~lowpanstream_callback ()

Public Member Functions inherited from dtn::net::DiscoveryBeaconHandler
virtual	~DiscoveryBeaconHandler ()=0

Protected Member Functions
virtual void	componentUp () throw ()

virtual void	componentRun () throw ()

virtual void	componentDown () throw ()

void	__cancellation () throw ()

Protected Member Functions inherited from dtn::daemon::IndependentComponent
void	run () throw ()

Protected Member Functions inherited from ibrcommon::JoinableThread
virtual	~JoinableThread ()=0

void	join (void) throw (ThreadException)

bool	isRunning (void)

void	start (int priority=0) throw (ThreadException)

void	stop () throw ()

	JoinableThread (size_t size=DEFAULT_STACKSIZE)

Additional Inherited Members
Public Types inherited from dtn::net::ConvergenceLayer
typedef std::pair< string, string >	stats_pair

typedef std::map< string, string >	stats_data

Detailed Description

This class implements a ConvergenceLayer for LOWPAN.

Definition at line 46 of file LOWPANConvergenceLayer.h.

Constructor & Destructor Documentation

dtn::net::LOWPANConvergenceLayer::LOWPANConvergenceLayer	(	const ibrcommon::vinterface &	net,
		uint16_t	panid,
		unsigned int	mtu = `115`
	)

Definition at line 54 of file LOWPANConvergenceLayer.cpp.

References AF_IEEE802154.

dtn::net::LOWPANConvergenceLayer::~LOWPANConvergenceLayer ( )

virtual

Definition at line 65 of file LOWPANConvergenceLayer.cpp.

References componentDown().

Here is the call graph for this function:

Member Function Documentation

void dtn::net::LOWPANConvergenceLayer::__cancellation	(	)
throw	(
	)

protectedvirtual

This method is called after componentDown() and should should guarantee that blocking calls in componentRun() will unblock.

Implements dtn::daemon::IndependentComponent.

Definition at line 303 of file LOWPANConvergenceLayer.cpp.

References _running, and ibrcommon::vsocket::down().

Here is the call graph for this function:

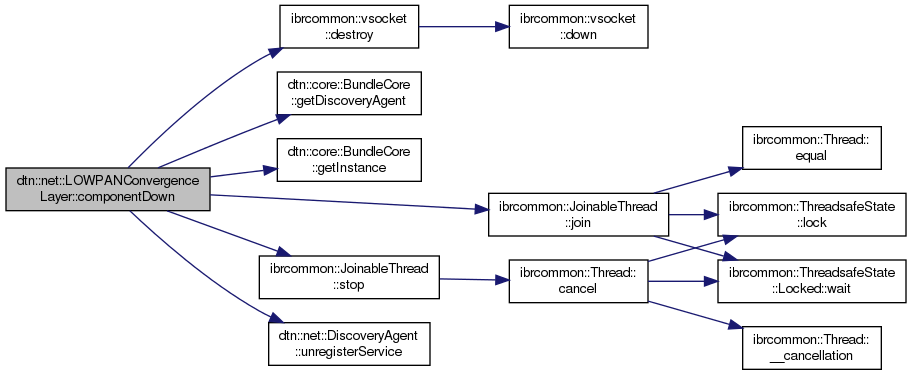

void dtn::net::LOWPANConvergenceLayer::componentDown	(	)
throw	(
	)

protectedvirtual

This method is called if the component should stop. Clean-up code should be inserted here.

Implements dtn::daemon::IndependentComponent.

Definition at line 199 of file LOWPANConvergenceLayer.cpp.

References ibrcommon::vsocket::destroy(), dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), ibrcommon::JoinableThread::join(), ibrcommon::JoinableThread::stop(), and dtn::net::DiscoveryAgent::unregisterService().

Referenced by ~LOWPANConvergenceLayer().

Here is the call graph for this function:

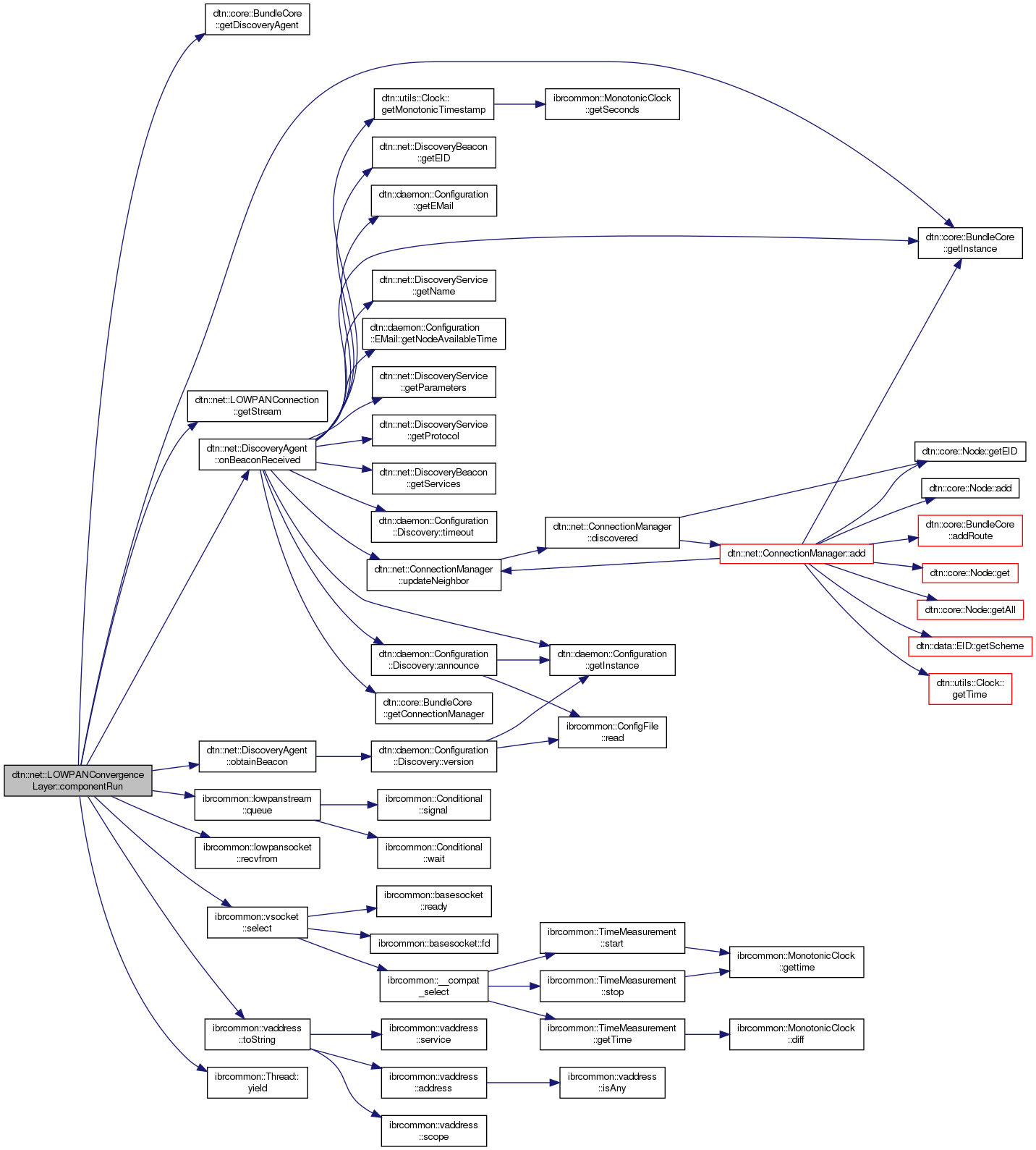

void dtn::net::LOWPANConvergenceLayer::componentRun	(	)
throw	(
	)

protectedvirtual

This is the run method. The component should loop in there until componentDown() or __cancellation() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 237 of file LOWPANConvergenceLayer.cpp.

References _running, EXTENDED_MASK, dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), dtn::net::LOWPANConnection::getStream(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::local, dtn::net::DiscoveryAgent::obtainBeacon(), dtn::net::DiscoveryAgent::onBeaconReceived(), ibrcommon::lowpanstream::queue(), ibrcommon::lowpansocket::recvfrom(), ibrcommon::vsocket::select(), ibrcommon::vaddress::toString(), and ibrcommon::Thread::yield().

Here is the call graph for this function:

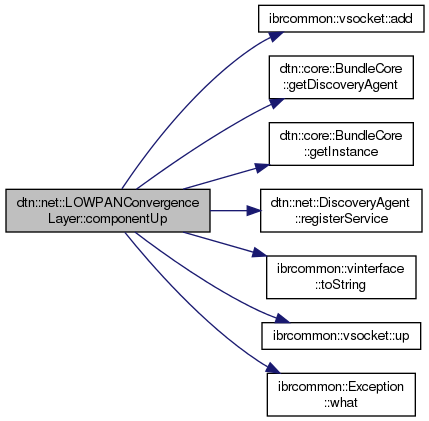

void dtn::net::LOWPANConvergenceLayer::componentUp	(	)
throw	(
	)

protectedvirtual

Is called in preparation of the component. Before componentRun() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 183 of file LOWPANConvergenceLayer.cpp.

References _running, ibrcommon::vsocket::add(), ibrcommon::LogLevel::error, dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::net::DiscoveryAgent::registerService(), ibrcommon::vinterface::toString(), ibrcommon::vsocket::up(), and ibrcommon::Exception::what().

Here is the call graph for this function:

dtn::core::Node::Protocol dtn::net::LOWPANConvergenceLayer::getDiscoveryProtocol ( ) const

virtual

Implements dtn::net::ConvergenceLayer.

Definition at line 70 of file LOWPANConvergenceLayer.cpp.

References dtn::core::Node::CONN_LOWPAN.

const std::string dtn::net::LOWPANConvergenceLayer::getName ( ) const

virtual

See Also: Component::getName()

Implements dtn::daemon::Component.

Definition at line 309 of file LOWPANConvergenceLayer.cpp.

void dtn::net::LOWPANConvergenceLayer::onAdvertiseBeacon	(	const ibrcommon::vinterface &	iface,
		const DiscoveryBeacon &	beacon
	)
throw	(
	)

virtual

Reimplemented from dtn::net::DiscoveryBeaconHandler.

Definition at line 209 of file LOWPANConvergenceLayer.cpp.

References BUFF_SIZE, ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and IBRCOMMON_LOGGER_TAG.

void dtn::net::LOWPANConvergenceLayer::onUpdateBeacon	(	const ibrcommon::vinterface &	iface,
		DiscoveryBeacon &	announcement
	)
throw	(	dtn::net::DiscoveryBeaconHandler::NoServiceHereException
	)

virtual

this method updates the given values

Reimplemented from dtn::net::DiscoveryBeaconHandler.

Definition at line 75 of file LOWPANConvergenceLayer.cpp.

References sockaddr_ieee802154::addr, ieee802154_addr::addr_type, ibrcommon::lowpansocket::getAddress(), IEEE802154_ADDR_SHORT, ieee802154_addr::pan_id, and ieee802154_addr::short_addr.

Here is the call graph for this function:

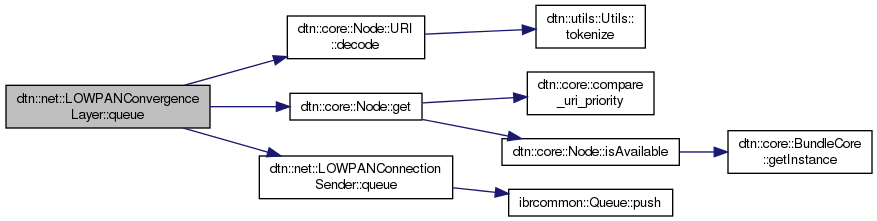

void dtn::net::LOWPANConvergenceLayer::queue	(	const dtn::core::Node &	n,
		const dtn::net::BundleTransfer &	job
	)

virtual

Queueing a job for a specific node. Starting point for the DTN core to submit bundles to nodes behind the LoWPAN CL

Parameters

n	Node reference
job	Job reference

Implements dtn::net::ConvergenceLayer.

Definition at line 123 of file LOWPANConvergenceLayer.cpp.

References dtn::net::LOWPANConnection::_sender, sockaddr_ieee802154::addr, AF_IEEE802154, dtn::core::Node::CONN_LOWPAN, dtn::core::Node::URI::decode(), dtn::core::Node::get(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and dtn::net::LOWPANConnectionSender::queue().

Here is the call graph for this function:

void dtn::net::LOWPANConvergenceLayer::remove ( const LOWPANConnection * conn)

Definition at line 168 of file LOWPANConvergenceLayer.cpp.

Referenced by dtn::net::LOWPANConnection::finally().

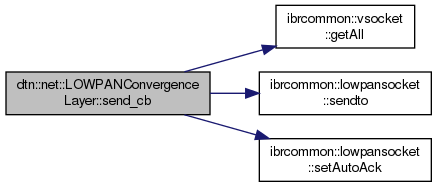

void dtn::net::LOWPANConvergenceLayer::send_cb	(	const char *	buf,
		const size_t	len,
		const ibrcommon::vaddress &	addr
	)

virtual

Callback interface for sending data back from the lowpanstream to the CL

Parameters

buf	Buffer with a data frame
len	Length of the buffer
address	IEEE 802.15.4 short address of the destination

Implements ibrcommon::lowpanstream_callback.

Definition at line 99 of file LOWPANConvergenceLayer.cpp.

References ibrcommon::vsocket::getAll(), ibrcommon::lowpansocket::sendto(), and ibrcommon::lowpansocket::setAutoAck().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

daemon/src/net/LOWPANConvergenceLayer.h
daemon/src/net/LOWPANConvergenceLayer.cpp
