#include <PayloadIntegrityBlock.h>

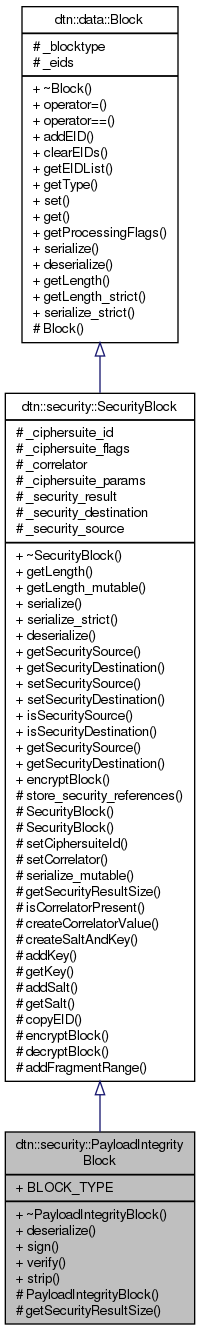

Inheritance diagram for dtn::security::PayloadIntegrityBlock:

Collaboration diagram for dtn::security::PayloadIntegrityBlock:

Classes
class	Factory

Public Member Functions
virtual	~PayloadIntegrityBlock ()

virtual std::istream &	deserialize (std::istream &stream, const dtn::data::Length &length)

Public Member Functions inherited from dtn::security::SecurityBlock
virtual	~SecurityBlock ()=0

virtual dtn::data::Length	getLength () const

virtual dtn::data::Length	getLength_mutable () const

virtual std::ostream &	serialize (std::ostream &stream, dtn::data::Length &length) const

virtual std::ostream &	serialize_strict (std::ostream &stream, dtn::data::Length &length) const

const dtn::data::EID	getSecuritySource () const

const dtn::data::EID	getSecurityDestination () const

void	setSecuritySource (const dtn::data::EID &source)

void	setSecurityDestination (const dtn::data::EID &destination)

bool	isSecuritySource (const dtn::data::Bundle &, const dtn::data::EID &) const

bool	isSecurityDestination (const dtn::data::Bundle &, const dtn::data::EID &) const

const dtn::data::EID	getSecuritySource (const dtn::data::Bundle &) const

const dtn::data::EID	getSecurityDestination (const dtn::data::Bundle &) const

template<class T >
T &	encryptBlock (dtn::data::Bundle &bundle, dtn::data::Bundle::iterator &it, uint32_t salt, const unsigned char ephemeral_key[ibrcommon::AES128Stream::key_size_in_bytes])

Public Member Functions inherited from dtn::data::Block
virtual	~Block ()

Block &	operator= (const Block &block)

bool	operator== (const block_t &id) const

virtual void	addEID (const dtn::data::EID &eid)

virtual void	clearEIDs ()

virtual const eid_list &	getEIDList () const

const block_t &	getType () const

void	set (ProcFlags flag, const bool &value)

bool	get (ProcFlags flag) const

const Bitset< ProcFlags > &	getProcessingFlags () const

virtual Length	getLength_strict () const

Static Public Member Functions
static void	sign (dtn::data::Bundle &bundle, const SecurityKey &key, const dtn::data::EID &destination)

static void	verify (const dtn::data::Bundle &bundle, const SecurityKey &key)

static void	strip (dtn::data::Bundle &bundle)

Static Public Attributes
static const dtn::data::block_t	BLOCK_TYPE = SecurityBlock::PAYLOAD_INTEGRITY_BLOCK

Protected Member Functions
	PayloadIntegrityBlock ()

virtual dtn::data::Length	getSecurityResultSize () const

Protected Member Functions inherited from dtn::security::SecurityBlock
void	store_security_references ()

	SecurityBlock (const SecurityBlock::BLOCK_TYPES type, const CIPHERSUITE_IDS id)

	SecurityBlock (const SecurityBlock::BLOCK_TYPES type)

void	setCiphersuiteId (const CIPHERSUITE_IDS id)

void	setCorrelator (const dtn::data::Number &corr)

virtual MutableSerializer &	serialize_mutable (MutableSerializer &serializer, bool include_security_result=true) const

Protected Member Functions inherited from dtn::data::Block
	Block (block_t blocktype)

Friends
class	dtn::data::Bundle

Additional Inherited Members
Public Types inherited from dtn::security::SecurityBlock
enum	BLOCK_TYPES { BUNDLE_AUTHENTICATION_BLOCK = 0x02, PAYLOAD_INTEGRITY_BLOCK = 0x03, PAYLOAD_CONFIDENTIAL_BLOCK = 0x04, EXTENSION_SECURITY_BLOCK = 0x09 }

enum	TLV_TYPES { not_set = 0, initialization_vector = 1, key_information = 3, fragment_range = 4, integrity_signature = 5, salt = 7, PCB_integrity_check_value = 8, encapsulated_block = 10, block_type_of_encapsulated_block = 11 }

enum	CIPHERSUITE_FLAGS { CONTAINS_SECURITY_RESULT = 1 << 0, CONTAINS_CORRELATOR = 1 << 1, CONTAINS_CIPHERSUITE_PARAMS = 1 << 2, CONTAINS_SECURITY_DESTINATION = 1 << 3, CONTAINS_SECURITY_SOURCE = 1 << 4, BIT5_RESERVED = 1 << 5, BIT6_RESERVED = 1 << 6 }

enum	CIPHERSUITE_IDS { BAB_HMAC = 0x001, PIB_RSA_SHA256 = 0x002, PCB_RSA_AES128_PAYLOAD_PIB_PCB = 0x003, ESB_RSA_AES128_EXT = 0x004 }

Static Protected Member Functions inherited from dtn::security::SecurityBlock
static bool	isCorrelatorPresent (const dtn::data::Bundle &bundle, const dtn::data::Number &correlator)

static dtn::data::Number	createCorrelatorValue (const dtn::data::Bundle &bundle)

static void	createSaltAndKey (uint32_t &salt, unsigned char *key, dtn::data::Length key_size)

static void	addKey (TLVList &security_parameter, unsigned char const const key, dtn::data::Length key_size, RSA rsa)

static bool	getKey (const TLVList &security_parameter, unsigned char key, dtn::data::Length key_size, RSA rsa)

static void	addSalt (TLVList &security_parameters, const uint32_t &salt)

static uint32_t	getSalt (const TLVList &security_parameters)

static void	copyEID (const dtn::data::Block &from, dtn::data::Block &to, dtn::data::Length skip=0)

template<class T >
static T &	encryptBlock (dtn::data::Bundle &bundle, dtn::data::Bundle::iterator &it, uint32_t salt, const unsigned char ephemeral_key[ibrcommon::AES128Stream::key_size_in_bytes])

static void	decryptBlock (dtn::data::Bundle &bundle, dtn::data::Bundle::iterator &it, uint32_t salt, const unsigned char key[ibrcommon::AES128Stream::key_size_in_bytes])

static void	addFragmentRange (TLVList &ciphersuite_params, const dtn::data::Number &fragmentoffset, const dtn::data::Number &payload_length)

Protected Attributes inherited from dtn::security::SecurityBlock
dtn::data::Number	_ciphersuite_id

dtn::data::Bitset < CIPHERSUITE_FLAGS >	_ciphersuite_flags

dtn::data::Number	_correlator

TLVList	_ciphersuite_params

TLVList	_security_result

dtn::data::EID	_security_destination

dtn::data::EID	_security_source

Detailed Description

Signs bundles for connections of security aware nodes. A factory with a rsa key can be created for signing or verifieing the bundle. From the bundle the primary block, the payload block, PayloadIntegrityBlock and the PayloadConfidentialBlock will be covered by the signature.
A sign can be added using the addHash()-Method. Verification can be done via one of the verify()-Methods.

Definition at line 43 of file PayloadIntegrityBlock.h.

Constructor & Destructor Documentation

dtn::security::PayloadIntegrityBlock::~PayloadIntegrityBlock ( )

virtual

frees the internal PKEY object, without deleting the rsa object

given in the constructor

Definition at line 53 of file PayloadIntegrityBlock.cpp.

dtn::security::PayloadIntegrityBlock::PayloadIntegrityBlock ( )

protected

Constructs an empty PayloadIntegrityBlock in order for adding it to a bundle and sets its ciphersuite id to PIB_RSA_SHA256.

Definition at line 48 of file PayloadIntegrityBlock.cpp.

Referenced by dtn::security::PayloadIntegrityBlock::Factory::create().

Member Function Documentation

std::istream & dtn::security::PayloadIntegrityBlock::deserialize	(	std::istream &	stream,
		const dtn::data::Length &	length
	)

virtual

Parses the PayloadIntegrityBlock from a Stream

Parameters

stream the stream to read from

Reimplemented from dtn::security::SecurityBlock.

Definition at line 190 of file PayloadIntegrityBlock.cpp.

References dtn::security::SecurityBlock::_security_result, dtn::security::SecurityBlock::deserialize(), and dtn::security::SecurityBlock::TLVList::getLength().

Here is the call graph for this function:

dtn::data::Length dtn::security::PayloadIntegrityBlock::getSecurityResultSize ( ) const

protectedvirtual

Returns the size of the security result field. This is used for strict canonicalisation, where the block itself is included to the canonical form, but the security result is excluded or unknown.

Reimplemented from dtn::security::SecurityBlock.

Definition at line 57 of file PayloadIntegrityBlock.cpp.

References dtn::security::SecurityBlock::getSecurityResultSize().

Here is the call graph for this function:

void dtn::security::PayloadIntegrityBlock::sign	(	dtn::data::Bundle &	bundle,
		const SecurityKey &	key,
		const dtn::data::EID &	destination
	)

static

Takes a bundle and adds a PayloadIntegrityBlock to it using the key given in the constructor after the primary block.

Parameters

bundle the bundle to be hashed and signed

Definition at line 67 of file PayloadIntegrityBlock.cpp.

Referenced by dtn::security::SecurityManager::sign().

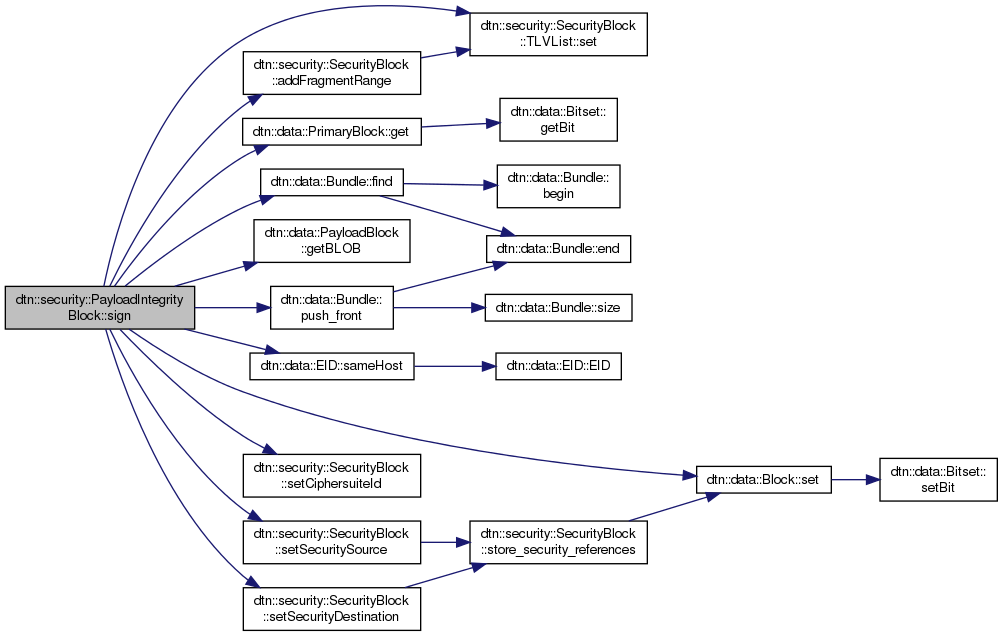

Here is the call graph for this function:

void dtn::security::PayloadIntegrityBlock::strip ( dtn::data::Bundle & bundle)

static

Removes all PayloadIntegrityBlocks from a bundle

Parameters

bundle the bundle, which shall be cleaned from pibs

Definition at line 185 of file PayloadIntegrityBlock.cpp.

References dtn::data::Bundle::begin(), BLOCK_TYPE, dtn::data::Bundle::end(), and dtn::data::Bundle::erase().

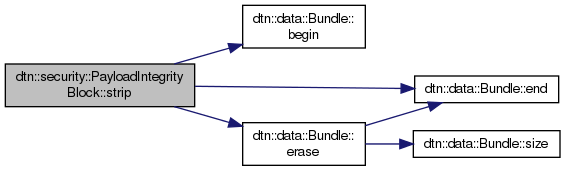

Here is the call graph for this function:

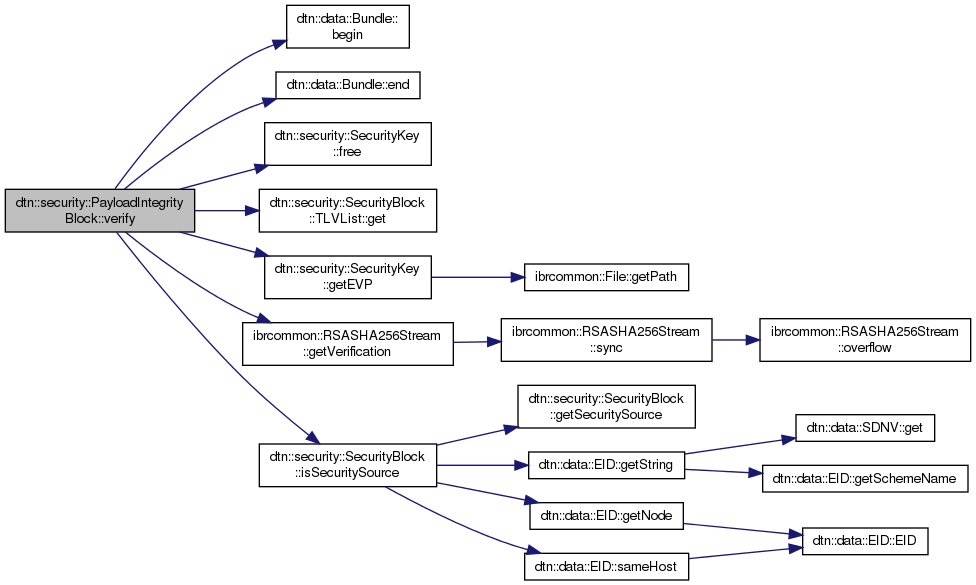

void dtn::security::PayloadIntegrityBlock::verify	(	const dtn::data::Bundle &	bundle,
		const SecurityKey &	key
	)

static

Tests if the bundles signatures is correct. There might be multiple PIBs inside the bundle, which may be tested and the result will be 1 if one matches.

Parameters

bundle the bundle to be checked
