IBR-DTNSuite: dtn::data::EID Class Reference

IBR-DTNSuite 0.12

#include <EID.h>

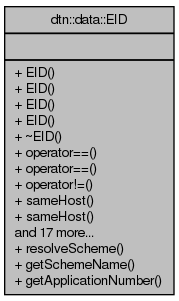

Collaboration diagram for dtn::data::EID:

Collaboration graph

Public Types
enum	Scheme { SCHEME_DTN = 0, SCHEME_CBHE = 1, SCHEME_EXTENDED = 2 }

typedef std::pair< Number, Number >	Compressed

Public Member Functions
	EID ()

	EID (const std::string &scheme, const std::string &ssp)

	EID (const std::string &value)

	EID (const dtn::data::Number &node, const dtn::data::Number &application)

virtual	~EID ()

bool	operator== (const EID &other) const

bool	operator== (const std::string &other) const

bool	operator!= (const EID &other) const

bool	sameHost (const std::string &other) const

bool	sameHost (const EID &other) const

bool	operator< (const EID &other) const

bool	operator> (const EID &other) const

std::string	getString () const

void	setApplication (const dtn::data::Number &app) throw ()

void	setApplication (const std::string &app) throw ()

std::string	getApplication () const throw ()

bool	isApplication (const dtn::data::Number &app) const throw ()

bool	isApplication (const std::string &app) const throw ()

std::string	getHost () const throw ()

const std::string	getScheme () const

const std::string	getSSP () const

std::string	getDelimiter () const

EID	getNode () const throw ()

bool	hasApplication () const

bool	isCompressable () const

bool	isNone () const

Compressed	getCompressed () const

Static Public Member Functions
static Scheme	resolveScheme (const std::string &s)

static const std::string	getSchemeName (const Scheme s)

static Number	getApplicationNumber (const std::string &app)

Detailed Description

Definition at line 34 of file EID.h.

Member Typedef Documentation

typedef std::pair<Number, Number> dtn::data::EID::Compressed

Get the compressed EID as two numeric values. Both values are set to zero if the EID is not compressable.

Returns: A pair of two numeric values.

Definition at line 123 of file EID.h.

Member Enumeration Documentation

enum dtn::data::EID::Scheme

Enumerator
SCHEME_DTN
SCHEME_CBHE
SCHEME_EXTENDED

Definition at line 37 of file EID.h.

Constructor & Destructor Documentation

dtn::data::EID::EID ( )

Definition at line 184 of file EID.cpp.

Referenced by getNode(), operator==(), and sameHost().

dtn::data::EID::EID	(	const std::string &	scheme,
		const std::string &	ssp
	)

Definition at line 197 of file EID.cpp.

References resolveScheme(), SCHEME_CBHE, and SCHEME_DTN.

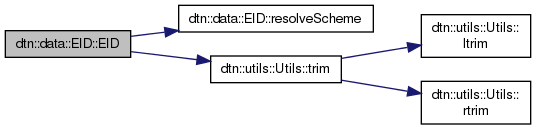

Here is the call graph for this function:

dtn::data::EID::EID ( const std::string & value)

Definition at line 223 of file EID.cpp.

References resolveScheme(), SCHEME_CBHE, SCHEME_DTN, and dtn::utils::Utils::trim().

Here is the call graph for this function:

dtn::data::EID::EID	(	const dtn::data::Number &	node,
		const dtn::data::Number &	application
	)

Constructor for CBHE EIDs.

Parameters

node	Node number.
application	Application number.

Definition at line 282 of file EID.cpp.

References SCHEME_DTN.

dtn::data::EID::~EID ( )

virtual

Definition at line 292 of file EID.cpp.

Member Function Documentation

std::string dtn::data::EID::getApplication	(	)		const
throw	(
	)

Definition at line 438 of file EID.cpp.

References SCHEME_CBHE, SCHEME_DTN, and dtn::data::SDNV< E >::toString().

Here is the call graph for this function:

Number dtn::data::EID::getApplicationNumber ( const std::string & app)

static

Map an application string to a CBHE number

Definition at line 135 of file EID.cpp.

References GUINT32_TO_BE, and dtn::data::SDNV< E >::read().

Referenced by setApplication().

Here is the call graph for this function:

EID::Compressed dtn::data::EID::getCompressed ( ) const

Definition at line 571 of file EID.cpp.

References isCompressable().

Referenced by dtn::data::DefaultSerializer::getLength(), and dtn::data::DefaultSerializer::operator<<().

Here is the call graph for this function:

std::string dtn::data::EID::getDelimiter ( ) const

Definition at line 562 of file EID.cpp.

References SCHEME_CBHE.

std::string dtn::data::EID::getHost	(	)		const
throw	(
	)

Definition at line 475 of file EID.cpp.

References SCHEME_CBHE, SCHEME_DTN, and dtn::data::SDNV< E >::toString().

Referenced by dtn::net::TCPConnection::initiateExtendedHandshake().

Here is the call graph for this function:

EID dtn::data::EID::getNode	(	)		const
throw	(
	)

Return the EID with stripped application part

Returns: The EID without any application specific part

Definition at line 528 of file EID.cpp.

References EID(), SCHEME_CBHE, and SCHEME_DTN.

Referenced by dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::security::SecurityKeyManager::get(), dtn::security::SecurityBlock::getSecurityDestination(), dtn::security::SecurityBlock::getSecuritySource(), dtn::security::SecurityKeyManager::hasKey(), dtn::security::SecurityBlock::isSecurityDestination(), dtn::security::SecurityBlock::isSecuritySource(), dtn::routing::ForwardingStrategy::neighborDPIsGreater(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::routing::ProphetRoutingExtension::processHandshake(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), dtn::routing::EpidemicRoutingExtension::run(), and dtn::security::SecurityKeyManager::store().

Here is the call graph for this function:

const std::string dtn::data::EID::getScheme ( ) const

Definition at line 487 of file EID.cpp.

References getSchemeName(), SCHEME_CBHE, and SCHEME_DTN.

Referenced by dtn::net::ConnectionManager::add(), dtn::data::Dictionary::add(), and dtn::data::Dictionary::getRef().

Here is the call graph for this function:

const std::string dtn::data::EID::getSchemeName ( const Scheme s)

static

Returns the name of a scheme

Definition at line 57 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

Referenced by getScheme(), and getString().

const std::string dtn::data::EID::getSSP ( ) const

Definition at line 499 of file EID.cpp.

References dtn::data::SDNV< E >::get(), SCHEME_CBHE, and SCHEME_DTN.

Referenced by dtn::data::Dictionary::add(), and dtn::data::Dictionary::getRef().

Here is the call graph for this function:

std::string dtn::data::EID::getString ( ) const

Definition at line 374 of file EID.cpp.

References dtn::data::SDNV< E >::get(), getSchemeName(), SCHEME_CBHE, and SCHEME_DTN.

Referenced by dtn::daemon::Debugger::callbackBundleReceived(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::net::HTTPConvergenceLayer::componentRun(), dtn::api::Client::connect(), dtn::api::OrderedStreamHandler::get(), dtn::security::MutableSerializer::getLength(), dtn::daemon::NativeDaemon::getLocalUri(), dtn::net::TransferCompletedEvent::getMessage(), dtn::routing::NodeHandshakeEvent::getMessage(), dtn::net::ConnectionEvent::getMessage(), dtn::routing::StaticRouteChangeEvent::getMessage(), dtn::net::TransferAbortedEvent::getMessage(), dtn::daemon::NativeDaemon::getNeighbors(), dtn::net::TCPConnection::initiateExtendedHandshake(), dtn::security::SecurityBlock::isSecurityDestination(), dtn::security::SecurityBlock::isSecuritySource(), main(), dtn::routing::StaticRegexRoute::match(), dtn::api::PlainSerializer::operator<<(), dtn::streams::operator<<(), dtn::security::MutableSerializer::operator<<(), dtn::net::operator<<(), dtn::data::operator<<(), dtn::core::operator<<(), print_summary(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::routing::ProphetRoutingExtension::processHandshake(), dtn::net::DatagramConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), dtn::net::DatagramConnection::queue(), dtn::net::EMailConvergenceLayer::queue(), dtn::net::ConnectionManager::queue(), dtn::api::EventConnection::raiseEvent(), dtn::daemon::NativeDaemon::raiseEvent(), dtn::data::BundleID::raw(), dtn::api::NativeSession::resetEndpoint(), dtn::api::ExtendedApiHandler::run(), dtn::data::BundleID::toString(), dtn::routing::StaticRegexRoute::toString(), dtn::net::DiscoveryBeacon::toString(), dtn::core::Node::toString(), dtn::routing::RoutingExtension::transferTo(), dtn::data::CustodySignalBlock::write(), and dtn::data::StatusReportBlock::write().

Here is the call graph for this function:

bool dtn::data::EID::hasApplication ( ) const

Definition at line 540 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

bool dtn::data::EID::isApplication	(	const dtn::data::Number &	app)		const
throw	(
	)

Definition at line 455 of file EID.cpp.

Referenced by dtn::net::FileConvergenceLayer::componentRun().

bool dtn::data::EID::isApplication	(	const std::string &	app)		const
throw	(
	)

Definition at line 461 of file EID.cpp.

bool dtn::data::EID::isCompressable ( ) const

check if a EID is compressable.

Returns: True, if the EID is compressable.

Definition at line 552 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

Referenced by dtn::data::Bundle::allEIDsInCBHE(), getCompressed(), and dtn::data::DefaultSerializer::isCompressable().

bool dtn::data::EID::isNone ( ) const

Determine if this EID is null

Returns: True, if the EID is null

Definition at line 557 of file EID.cpp.

References SCHEME_DTN.

Referenced by dtn::api::Client::connect(), dtn::security::SecurityBlock::getSecurityDestination(), and dtn::security::SecurityBlock::getSecuritySource().

bool dtn::data::EID::operator!= ( const EID & other) const

Definition at line 317 of file EID.cpp.

bool dtn::data::EID::operator< ( const EID & other) const

Definition at line 343 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

bool dtn::data::EID::operator== ( const EID & other) const

Definition at line 296 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

bool dtn::data::EID::operator== ( const std::string & other) const

Definition at line 312 of file EID.cpp.

References EID().

Here is the call graph for this function:

bool dtn::data::EID::operator> ( const EID & other) const

Definition at line 369 of file EID.cpp.

EID::Scheme dtn::data::EID::resolveScheme ( const std::string & s)

static

Resolves a scheme in a string to the corresponding enum

Definition at line 69 of file EID.cpp.

References SCHEME_CBHE, SCHEME_DTN, and SCHEME_EXTENDED.

Referenced by EID().

bool dtn::data::EID::sameHost ( const std::string & other) const

Definition at line 322 of file EID.cpp.

References EID().

Referenced by dtn::security::BundleAuthenticationBlock::auth(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::security::PayloadConfidentialBlock::encrypt(), dtn::security::SecurityBlock::isSecurityDestination(), dtn::security::SecurityBlock::isSecuritySource(), dtn::net::TCPConnection::match(), dtn::routing::ProphetRoutingExtension::processHandshake(), dtn::core::BundleCore::raiseEvent(), dtn::dht::DHTNameService::raiseEvent(), dtn::security::PayloadIntegrityBlock::sign(), dtn::core::FragmentManager::signal(), and dtn::routing::DeliveryPredictabilityMap::update().

Here is the call graph for this function:

bool dtn::data::EID::sameHost ( const EID & other) const

Definition at line 327 of file EID.cpp.

References SCHEME_CBHE, and SCHEME_DTN.

void dtn::data::EID::setApplication	(	const dtn::data::Number &	app)
throw	(
	)

Definition at line 403 of file EID.cpp.

References dtn::data::SDNV< E >::toString().

Referenced by dtn::api::NativeSession::addEndpoint(), dtn::api::BinaryStreamClient::eventConnectionUp(), dtn::core::AbstractWorker::initialize(), dtn::api::Registration::Registration(), dtn::api::NativeSession::removeEndpoint(), dtn::api::OrderedStreamHandler::run(), and dtn::api::ExtendedApiHandler::run().

Here is the call graph for this function:

void dtn::data::EID::setApplication	(	const std::string &	app)
throw	(
	)

Definition at line 420 of file EID.cpp.

References getApplicationNumber().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

ibrdtn/ibrdtn/data/EID.h
ibrdtn/ibrdtn/data/EID.cpp

dtn
data
EID
Generated on Thu Mar 27 2014 09:26:22 for IBR-DTNSuite by 1.8.4
