dtn::streams::StreamConnection Class Reference

#include <StreamConnection.h>

Inheritance diagram for dtn::streams::StreamConnection:

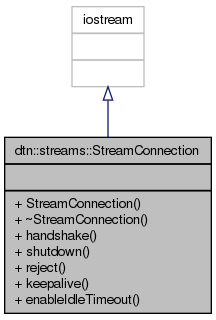

Collaboration diagram for dtn::streams::StreamConnection:

Classes
class	Callback
class	StreamClosedException
class	StreamErrorException
class	StreamShutdownException
class	TransmissionInterruptedException

Public Types
enum	ConnectionShutdownCases {   CONNECTION_SHUTDOWN_NOTSET = 0, CONNECTION_SHUTDOWN_IDLE = 1, CONNECTION_SHUTDOWN_ERROR = 2, CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN = 3,   CONNECTION_SHUTDOWN_NODE_TIMEOUT = 4, CONNECTION_SHUTDOWN_PEER_SHUTDOWN = 5 }

Public Member Functions
	StreamConnection (StreamConnection::Callback &cb, iostream &stream, const dtn::data::Length buffer_size=4096)
virtual	~StreamConnection ()
void	handshake (const dtn::data::EID &eid, const dtn::data::Timeout &timeout, const dtn::data::Bitset< StreamContactHeader::HEADER_BITS > &flags)
void	shutdown (ConnectionShutdownCases csc=CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN)
void	reject ()
void	keepalive ()
void	enableIdleTimeout (const dtn::data::Timeout &seconds)

Detailed Description

Definition at line 43 of file StreamConnection.h.

Member Enumeration Documentation

enum dtn::streams::StreamConnection::ConnectionShutdownCases

Enumerator
CONNECTION_SHUTDOWN_NOTSET
CONNECTION_SHUTDOWN_IDLE
CONNECTION_SHUTDOWN_ERROR
CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN
CONNECTION_SHUTDOWN_NODE_TIMEOUT
CONNECTION_SHUTDOWN_PEER_SHUTDOWN

Definition at line 46 of file StreamConnection.h.

Constructor & Destructor Documentation

dtn::streams::StreamConnection::StreamConnection	(	StreamConnection::Callback &	cb,
		iostream &	stream,
		const dtn::data::Length	buffer_size = 4096
	)

Constructor of the StreamConnection class

Parameters

cb	Callback object for events of this stream
stream	The underlying stream object

Definition at line 36 of file StreamConnection.cpp.

dtn::streams::StreamConnection::~StreamConnection ( )

virtual

Destructor of the StreamConnection class

Returns

Definition at line 41 of file StreamConnection.cpp.

Member Function Documentation

void dtn::streams::StreamConnection::enableIdleTimeout

(

const dtn::data::Timeout &

seconds)

enables the idle timeout thread

Parameters

seconds

Definition at line 158 of file StreamConnection.cpp.

void dtn::streams::StreamConnection::handshake	(	const dtn::data::EID &	eid,
		const dtn::data::Timeout &	timeout,
		const dtn::data::Bitset< StreamContactHeader::HEADER_BITS > &	flags
	)

Do a handshake with the other peer. This operation is needed to communicate.

Parameters

eid	The local address of this node.
timeout	The desired timeout for this connection.

Definition at line 45 of file StreamConnection.cpp.

References dtn::streams::StreamContactHeader::_flags, dtn::streams::StreamContactHeader::_keepalive, and dtn::streams::StreamConnection::Callback::eventConnectionUp().

Referenced by dtn::api::Client::connect(), and dtn::api::BinaryStreamClient::run().

Here is the call graph for this function:

void dtn::streams::StreamConnection::keepalive

(

)

send a keepalive

Definition at line 68 of file StreamConnection.cpp.

void dtn::streams::StreamConnection::reject

(

)

This method rejects the currently transmitted bundle

Definition at line 63 of file StreamConnection.cpp.

void dtn::streams::StreamConnection::shutdown

(

ConnectionShutdownCases

csc = CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN)

This method shutdown the whole connection handling process. To differ between the expected cases of disconnection a connection shutdown case is needed.

CONNECTION_SHUTDOWN_IDLE The connection was idle and should go down now.

CONNECTION_SHUTDOWN_ERROR A critical tcp error occured and the connection is closed.

CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN The connection is ok, but a shutdown is requested from anywhere.

CONNECTION_SHUTDOWN_NODE_TIMEOUT The node of this connection is gone. So shutdown this connection.

CONNECTION_SHUTDOWN_PEER_SHUTDOWN The peer has shutdown this connection by a shutdown message.

Parameters

csc	The case of the requested shutdown.

Definition at line 73 of file StreamConnection.cpp.

References CONNECTION_SHUTDOWN_ERROR, CONNECTION_SHUTDOWN_IDLE, CONNECTION_SHUTDOWN_NODE_TIMEOUT, CONNECTION_SHUTDOWN_NOTSET, CONNECTION_SHUTDOWN_PEER_SHUTDOWN, CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN, dtn::streams::StreamConnection::Callback::eventConnectionDown(), dtn::streams::StreamConnection::Callback::eventError(), dtn::streams::StreamConnection::Callback::eventShutdown(), dtn::streams::StreamConnection::Callback::eventTimeout(), dtn::streams::StreamDataSegment::MSG_SHUTDOWN_IDLE_TIMEOUT, and dtn::streams::StreamDataSegment::MSG_SHUTDOWN_NONE.

Referenced by dtn::api::BinaryStreamClient::__cancellation(), dtn::api::Client::abort(), dtn::api::Client::close(), and dtn::api::BinaryStreamClient::run().

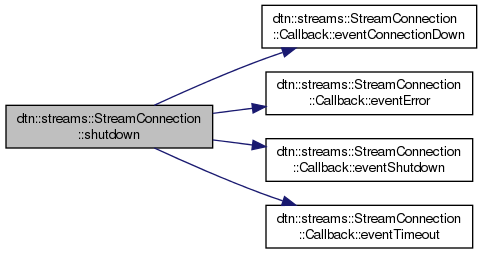

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ibrdtn/ibrdtn/streams/StreamConnection.h
• ibrdtn/ibrdtn/streams/StreamConnection.cpp
