IBR-DTNSuite  0.12
Classes | Public Member Functions | Static Public Member Functions | Protected Types | Protected Attributes | Static Protected Attributes | List of all members
ibrcommon::LinkManager Class Referenceabstract

#include <LinkManager.h>

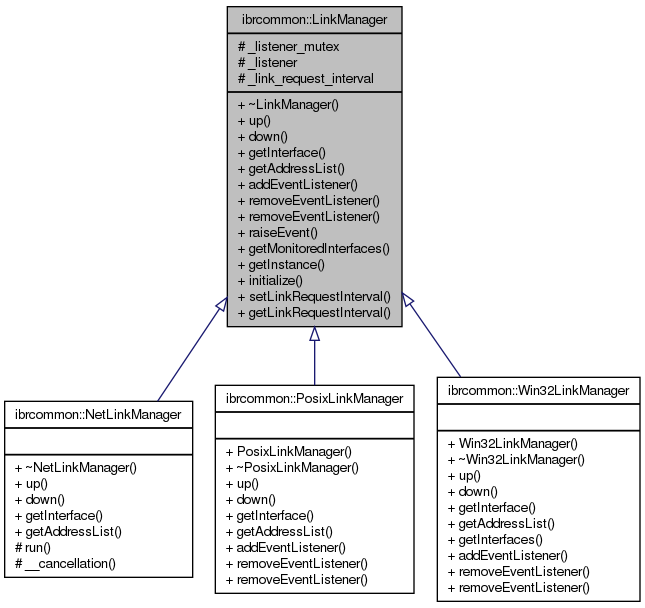

Inheritance diagram for ibrcommon::LinkManager:
Inheritance graph

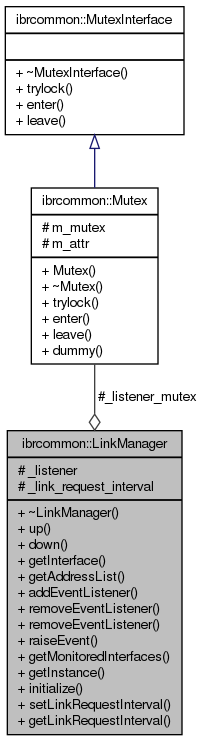

Collaboration diagram for ibrcommon::LinkManager:
Collaboration graph

Classes

class  EventCallback


Public Member Functions

virtual ~LinkManager ()

virtual void up () throw ()

virtual void down () throw ()

virtual const ibrcommon::vinterface getInterface (int index) const =0

virtual const std::list< vaddress > getAddressList (const vinterface &iface, const std::string &scope="")=0

virtual void addEventListener (const vinterface &, LinkManager::EventCallback *) throw ()

virtual void removeEventListener (const vinterface &, LinkManager::EventCallback *) throw ()

virtual void removeEventListener (LinkManager::EventCallback *) throw ()

void raiseEvent (const LinkEvent &lme)

std::set< vinterface > getMonitoredInterfaces ()


Static Public Member Functions

static LinkManager & getInstance ()

static void initialize ()

static void setLinkRequestInterval (size_t interval)

static size_t getLinkRequestInterval ()


Protected Types

typedef std::set
< LinkManager::EventCallback * > 		callback_set

typedef std::map
< ibrcommon::vinterface,
callback_set > 		listener_map


Protected Attributes

ibrcommon::Mutex _listener_mutex

listener_map _listener


Static Protected Attributes

static size_t _link_request_interval = 5000


Detailed Description

Definition at line 35 of file LinkManager.h.

Member Typedef Documentation

typedef std::set<LinkManager::EventCallback* > ibrcommon::LinkManager::callback_set
protected

Definition at line 87 of file LinkManager.h.

typedef std::map<ibrcommon::vinterface, callback_set> ibrcommon::LinkManager::listener_map
protected

Definition at line 88 of file LinkManager.h.

Constructor & Destructor Documentation

virtual ibrcommon::LinkManager::~LinkManager ( )
inlinevirtual

Definition at line 45 of file LinkManager.h.

Member Function Documentation

void ibrcommon::LinkManager::addEventListener ( const vinterface &  iface,
LinkManager::EventCallback *  cb
)
throw (
)
virtual

Reimplemented in ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Definition at line 67 of file LinkManager.cpp.

Referenced by ibrcommon::PosixLinkManager::addEventListener(), ibrcommon::Win32LinkManager::addEventListener(), dtn::net::IPNDAgent::componentUp(), dtn::net::UDPConvergenceLayer::componentUp(), dtn::core::BundleCore::onConfigurationChanged(), and dtn::net::IPNDAgent::raiseEvent().

virtual void ibrcommon::LinkManager::down ( )
throw (
)
inlinevirtual

Reimplemented in ibrcommon::NetLinkManager, ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Definition at line 48 of file LinkManager.h.

virtual const std::list<vaddress> ibrcommon::LinkManager::getAddressList ( const vinterface &  iface,
const std::string &  scope = ""
)
pure virtual

Implemented in ibrcommon::NetLinkManager, ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Referenced by ibrcommon::vinterface::getAddresses(), and ibrcommon::LinkMonitor::run().

LinkManager & ibrcommon::LinkManager::getInstance ( )
static

Return the singleton instance of the LinkManager

Definition at line 45 of file LinkManager.cpp.

Referenced by dtn::net::IPNDAgent::componentDown(), dtn::net::UDPConvergenceLayer::componentDown(), dtn::core::BundleCore::componentDown(), dtn::net::IPNDAgent::componentUp(), dtn::net::UDPConvergenceLayer::componentUp(), ibrcommon::vinterface::getAddresses(), initialize(), dtn::core::BundleCore::onConfigurationChanged(), dtn::daemon::Configuration::params(), dtn::net::IPNDAgent::raiseEvent(), dtn::net::TCPConvergenceLayer::raiseEvent(), ibrcommon::rtnl_addr_get_local_vaddress(), and dtn::net::TCPConvergenceLayer::~TCPConvergenceLayer().

virtual const ibrcommon::vinterface ibrcommon::LinkManager::getInterface ( int  index) const
pure virtual

Implemented in ibrcommon::NetLinkManager, ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Referenced by ibrcommon::rtnl_addr_get_local_vaddress().

size_t ibrcommon::LinkManager::getLinkRequestInterval ( )
static

Get the interval for checking address changes on interfaces

Definition at line 137 of file LinkManager.cpp.

References _link_request_interval.

Referenced by ibrcommon::LinkMonitor::run().

std::set< vinterface > ibrcommon::LinkManager::getMonitoredInterfaces ( )

Definition at line 142 of file LinkManager.cpp.

References _listener, and _listener_mutex.

Referenced by ibrcommon::LinkMonitor::remove(), and ibrcommon::LinkMonitor::run().

void ibrcommon::LinkManager::initialize ( )
static

Initialize the LinkManager

Definition at line 58 of file LinkManager.cpp.

References getInstance(), and up().

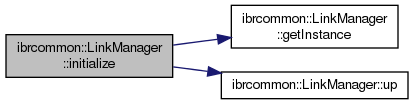

Here is the call graph for this function:

void ibrcommon::LinkManager::raiseEvent ( const LinkEvent &  lme)

Definition at line 109 of file LinkManager.cpp.

References _listener, _listener_mutex, ibrcommon::LinkEvent::ACTION_ADDRESS_ADDED, ibrcommon::LinkEvent::getAction(), ibrcommon::LinkEvent::getInterface(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, ibrcommon::Thread::sleep(), and ibrcommon::LinkEvent::toString().

Referenced by ibrcommon::LinkMonitor::run().

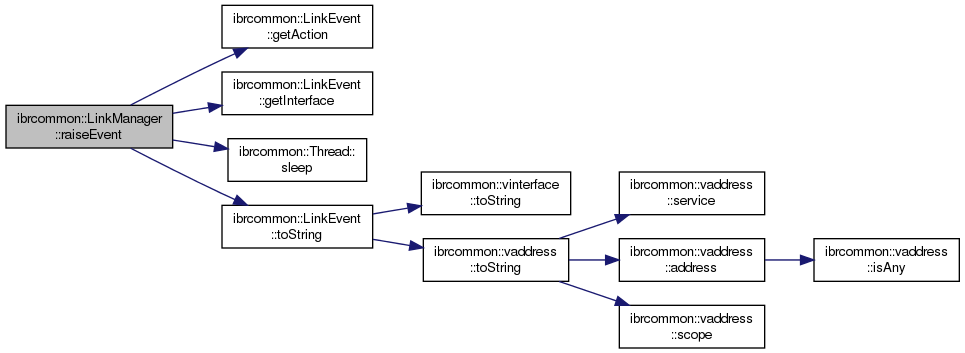

Here is the call graph for this function:

void ibrcommon::LinkManager::removeEventListener ( const vinterface &  iface,
LinkManager::EventCallback *  cb
)
throw (
)
virtual

Reimplemented in ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Definition at line 76 of file LinkManager.cpp.

Referenced by dtn::net::IPNDAgent::componentDown(), dtn::net::UDPConvergenceLayer::componentDown(), dtn::core::BundleCore::componentDown(), dtn::core::BundleCore::onConfigurationChanged(), dtn::net::IPNDAgent::raiseEvent(), dtn::net::TCPConvergenceLayer::raiseEvent(), ibrcommon::PosixLinkManager::removeEventListener(), ibrcommon::Win32LinkManager::removeEventListener(), and dtn::net::TCPConvergenceLayer::~TCPConvergenceLayer().

void ibrcommon::LinkManager::removeEventListener ( LinkManager::EventCallback *  cb)
throw (
)
virtual

Reimplemented in ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Definition at line 91 of file LinkManager.cpp.

void ibrcommon::LinkManager::setLinkRequestInterval ( size_t  interval)
static

Set the interval for checking address changes on interfaces

Definition at line 132 of file LinkManager.cpp.

References _link_request_interval.

virtual void ibrcommon::LinkManager::up ( )
throw (
)
inlinevirtual

Reimplemented in ibrcommon::NetLinkManager, ibrcommon::Win32LinkManager, and ibrcommon::PosixLinkManager.

Definition at line 47 of file LinkManager.h.

Referenced by initialize().

Member Data Documentation

size_t ibrcommon::LinkManager::_link_request_interval = 5000
staticprotected

Definition at line 91 of file LinkManager.h.

Referenced by getLinkRequestInterval(), and setLinkRequestInterval().

listener_map ibrcommon::LinkManager::_listener
protected

Definition at line 89 of file LinkManager.h.

Referenced by getMonitoredInterfaces(), and raiseEvent().

ibrcommon::Mutex ibrcommon::LinkManager::_listener_mutex
protected

Definition at line 85 of file LinkManager.h.

Referenced by getMonitoredInterfaces(), and raiseEvent().

The documentation for this class was generated from the following files:
