#include <SQLiteBundleStorage.h>

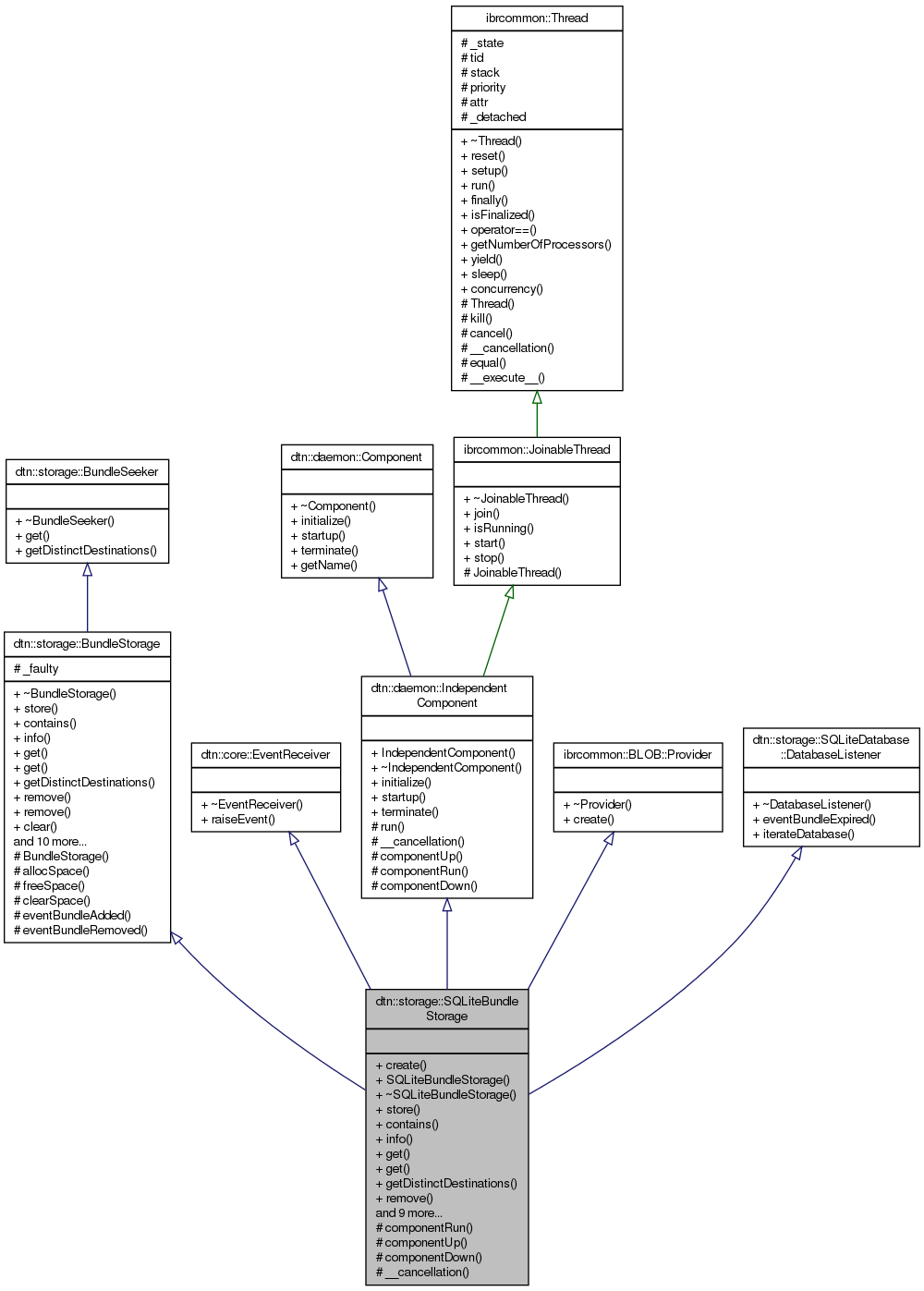

Inheritance diagram for dtn::storage::SQLiteBundleStorage:

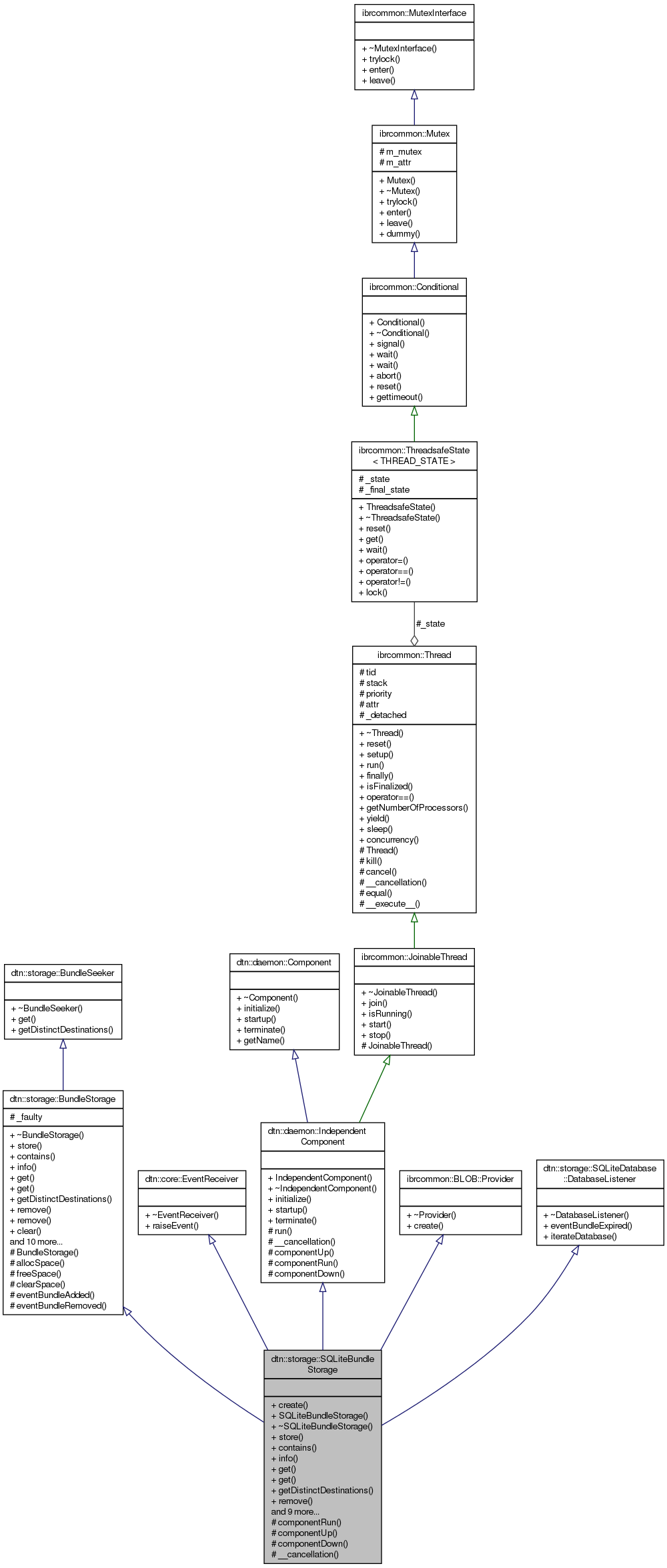

Collaboration diagram for dtn::storage::SQLiteBundleStorage:

Public Member Functions
ibrcommon::BLOB::Reference	create ()

	SQLiteBundleStorage (const ibrcommon::File &path, const dtn::data::Length &maxsize, bool usePersistentBundleSets=false)

virtual	~SQLiteBundleStorage ()

void	store (const dtn::data::Bundle &bundle)

bool	contains (const dtn::data::BundleID &id)

virtual dtn::data::MetaBundle	info (const dtn::data::BundleID &id)

dtn::data::Bundle	get (const dtn::data::BundleID &id)

virtual void	get (const BundleSelector &cb, BundleResult &result) throw (NoBundleFoundException, BundleSelectorException)

virtual const eid_set	getDistinctDestinations ()

void	remove (const dtn::data::BundleID &id)

void	clear ()

bool	empty ()

dtn::data::Size	count ()

void	releaseCustody (const dtn::data::EID &custodian, const dtn::data::BundleID &id)

void	raiseEvent (const dtn::core::Event *evt) throw ()

void	eventBundleExpired (const dtn::data::BundleID &id, const dtn::data::Length size) throw ()

void	iterateDatabase (const dtn::data::MetaBundle &bundle, const dtn::data::Length size)

virtual void	wait ()

virtual void	setFaulty (bool mode)

Public Member Functions inherited from dtn::storage::BundleStorage
virtual	~BundleStorage ()=0

void	remove (const dtn::data::Bundle &b)

dtn::data::Length	size () const

const dtn::data::EID	acceptCustody (const dtn::data::MetaBundle &meta)

void	rejectCustody (const dtn::data::MetaBundle &meta, dtn::data::CustodySignalBlock::REASON_CODE reason=dtn::data::CustodySignalBlock::NO_ADDITIONAL_INFORMATION)

void	attach (dtn::storage::BundleIndex *index)

void	detach (dtn::storage::BundleIndex *index)

Public Member Functions inherited from dtn::storage::BundleSeeker
virtual	~BundleSeeker ()

Public Member Functions inherited from dtn::core::EventReceiver
virtual	~EventReceiver ()=0

Public Member Functions inherited from dtn::daemon::IndependentComponent
	IndependentComponent ()

virtual	~IndependentComponent ()

virtual void	initialize () throw ()

virtual void	startup () throw ()

virtual void	terminate () throw ()

Public Member Functions inherited from dtn::daemon::Component
virtual	~Component ()=0

Public Member Functions inherited from ibrcommon::BLOB::Provider
virtual	~Provider ()=0

Public Member Functions inherited from dtn::storage::SQLiteDatabase::DatabaseListener
virtual	~DatabaseListener ()=0

Protected Member Functions
virtual void	componentRun () throw ()

virtual void	componentUp () throw ()

virtual void	componentDown () throw ()

void	__cancellation () throw ()

Protected Member Functions inherited from dtn::storage::BundleStorage
	BundleStorage (const dtn::data::Length &maxsize)

void	allocSpace (const dtn::data::Length &size) throw (StorageSizeExeededException)

void	freeSpace (const dtn::data::Length &size) throw ()

void	clearSpace () throw ()

void	eventBundleAdded (const dtn::data::MetaBundle &b) throw ()

void	eventBundleRemoved (const dtn::data::BundleID &id) throw ()

Protected Member Functions inherited from dtn::daemon::IndependentComponent
void	run () throw ()

Protected Member Functions inherited from ibrcommon::JoinableThread
virtual	~JoinableThread ()=0

void	join (void) throw (ThreadException)

bool	isRunning (void)

void	start (int priority=0) throw (ThreadException)

void	stop () throw ()

	JoinableThread (size_t size=DEFAULT_STACKSIZE)

Additional Inherited Members
Public Types inherited from dtn::storage::BundleSeeker
typedef std::set< dtn::data::EID >	eid_set

Protected Attributes inherited from dtn::storage::BundleStorage
bool	_faulty

Detailed Description

Definition at line 50 of file SQLiteBundleStorage.h.

Constructor & Destructor Documentation

dtn::storage::SQLiteBundleStorage::SQLiteBundleStorage	(	const ibrcommon::File &	path,
		const dtn::data::Length &	maxsize,
		bool	usePersistentBundleSets = `false`
	)

Constructor

Parameters

Pfad	zum Ordner in denen die Datein gespeichert werden.
Dateiname	der Datenbank
maximale	Größe der Datenbank
should	bundleSets be stored persistently in database? standard: false

Definition at line 115 of file SQLiteBundleStorage.cpp.

References ibrcommon::BLOB::changeProvider(), ibrcommon::File::createDirectory(), ibrcommon::LogLevel::critical, ibrcommon::File::get(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READWRITE, dtn::storage::SQLiteDatabase::open(), ibrcommon::File::remove(), dtn::data::BundleSet::setFactory(), and ibrcommon::Exception::what().

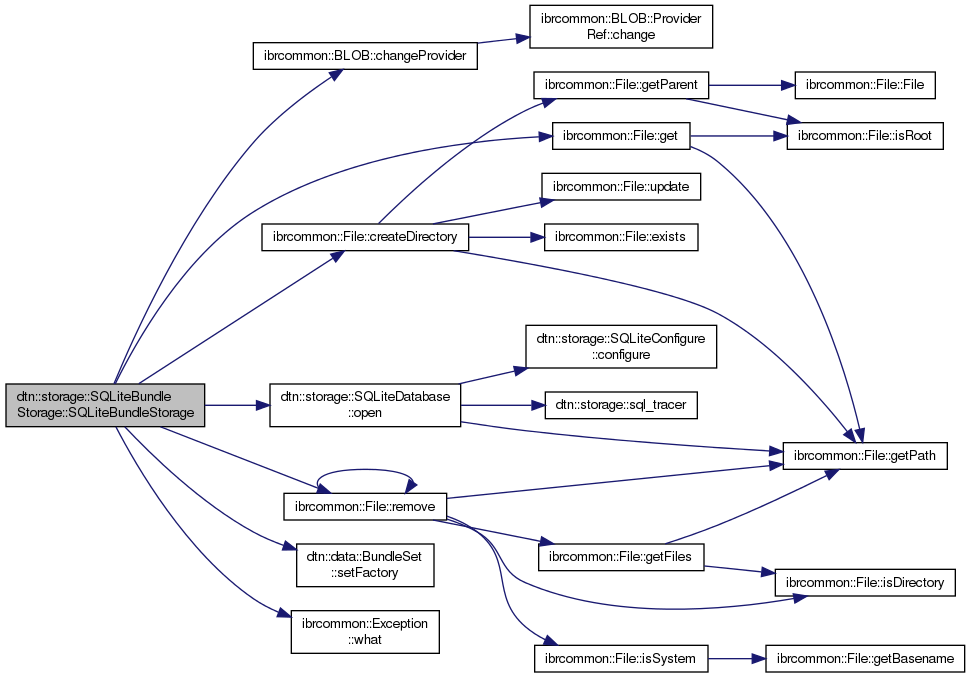

Here is the call graph for this function:

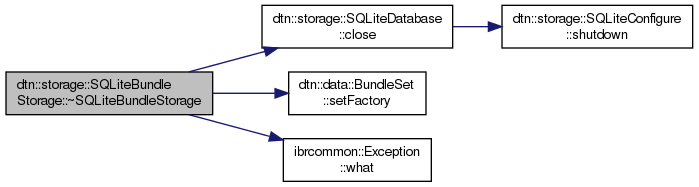

dtn::storage::SQLiteBundleStorage::~SQLiteBundleStorage ( )

virtual

destructor

Definition at line 148 of file SQLiteBundleStorage.cpp.

References dtn::storage::SQLiteDatabase::close(), ibrcommon::LogLevel::critical, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READWRITE, dtn::data::BundleSet::setFactory(), and ibrcommon::Exception::what().

Here is the call graph for this function:

Member Function Documentation

void dtn::storage::SQLiteBundleStorage::__cancellation	(	)
throw	(
	)

protectedvirtual

This method is called after componentDown() and should should guarantee that blocking calls in componentRun() will unblock.

Implements dtn::daemon::IndependentComponent.

Definition at line 221 of file SQLiteBundleStorage.cpp.

References ibrcommon::Queue< T >::abort().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::clear ( )

virtual

Clears all bundles and fragments in the storage. Routinginformation won't be deleted.

Reimplemented from dtn::storage::BundleStorage.

Definition at line 503 of file SQLiteBundleStorage.cpp.

References dtn::storage::SQLiteDatabase::clear(), dtn::storage::BundleStorage::clearSpace(), ibrcommon::File::createDirectory(), ibrcommon::LogLevel::critical, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READWRITE, ibrcommon::File::remove(), and ibrcommon::Exception::what().

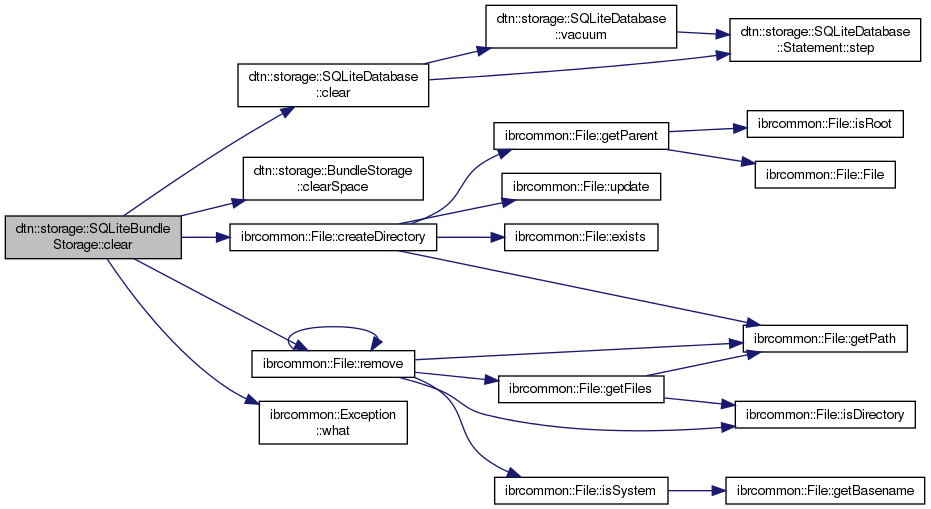

Here is the call graph for this function:

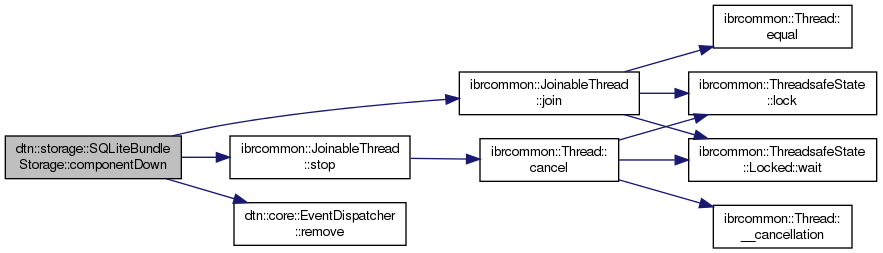

void dtn::storage::SQLiteBundleStorage::componentDown	(	)
throw	(
	)

protectedvirtual

This method is called if the component should stop. Clean-up code should be inserted here.

Implements dtn::daemon::IndependentComponent.

Definition at line 209 of file SQLiteBundleStorage.cpp.

References ibrcommon::JoinableThread::join(), dtn::core::EventDispatcher< E >::remove(), and ibrcommon::JoinableThread::stop().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::componentRun	(	)
throw	(
	)

protectedvirtual

This is the run method. The component should loop in there until componentDown() or __cancellation() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 163 of file SQLiteBundleStorage.cpp.

References ibrcommon::Queue< T >::getnpop().

Here is the call graph for this function:

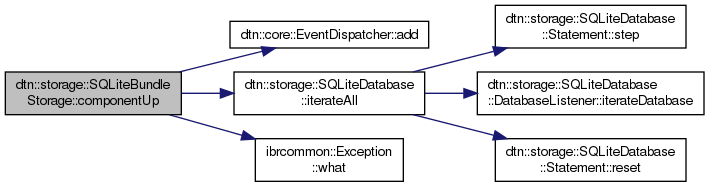

void dtn::storage::SQLiteBundleStorage::componentUp	(	)
throw	(
	)

protectedvirtual

Is called in preparation of the component. Before componentRun() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 193 of file SQLiteBundleStorage.cpp.

References dtn::core::EventDispatcher< E >::add(), ibrcommon::LogLevel::critical, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::storage::SQLiteDatabase::iterateAll(), and ibrcommon::Exception::what().

Here is the call graph for this function:

bool dtn::storage::SQLiteBundleStorage::contains ( const dtn::data::BundleID & id)

virtual

This method returns true if the requested bundle is stored in the storage.

Implements dtn::storage::BundleStorage.

Definition at line 467 of file SQLiteBundleStorage.cpp.

References dtn::storage::SQLiteDatabase::contains(), and ibrcommon::RWMutex::LOCK_READONLY.

Here is the call graph for this function:

dtn::data::Size dtn::storage::SQLiteBundleStorage::count ( )

virtual

Returns: the count of bundles in the storage

Reimplemented from dtn::storage::BundleStorage.

Definition at line 532 of file SQLiteBundleStorage.cpp.

References dtn::storage::SQLiteDatabase::count(), ibrcommon::LogLevel::critical, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, and ibrcommon::Exception::what().

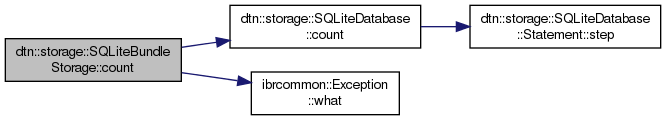

Here is the call graph for this function:

ibrcommon::BLOB::Reference dtn::storage::SQLiteBundleStorage::create ( )

virtual

create a new BLOB object within this storage

Returns

Implements ibrcommon::BLOB::Provider.

Definition at line 110 of file SQLiteBundleStorage.cpp.

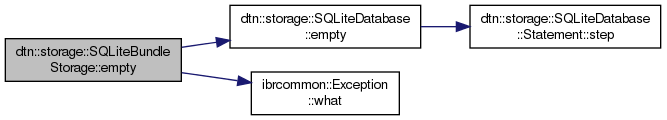

bool dtn::storage::SQLiteBundleStorage::empty ( )

virtual

Returns: True, if no bundles in the storage.

Reimplemented from dtn::storage::BundleStorage.

Definition at line 521 of file SQLiteBundleStorage.cpp.

References ibrcommon::LogLevel::critical, dtn::storage::SQLiteDatabase::empty(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::eventBundleExpired	(	const dtn::data::BundleID &	id,
		const dtn::data::Length	size
	)
throw	(
	)

virtual

callbacks for the sqlite database

Implements dtn::storage::SQLiteDatabase::DatabaseListener.

Definition at line 642 of file SQLiteBundleStorage.cpp.

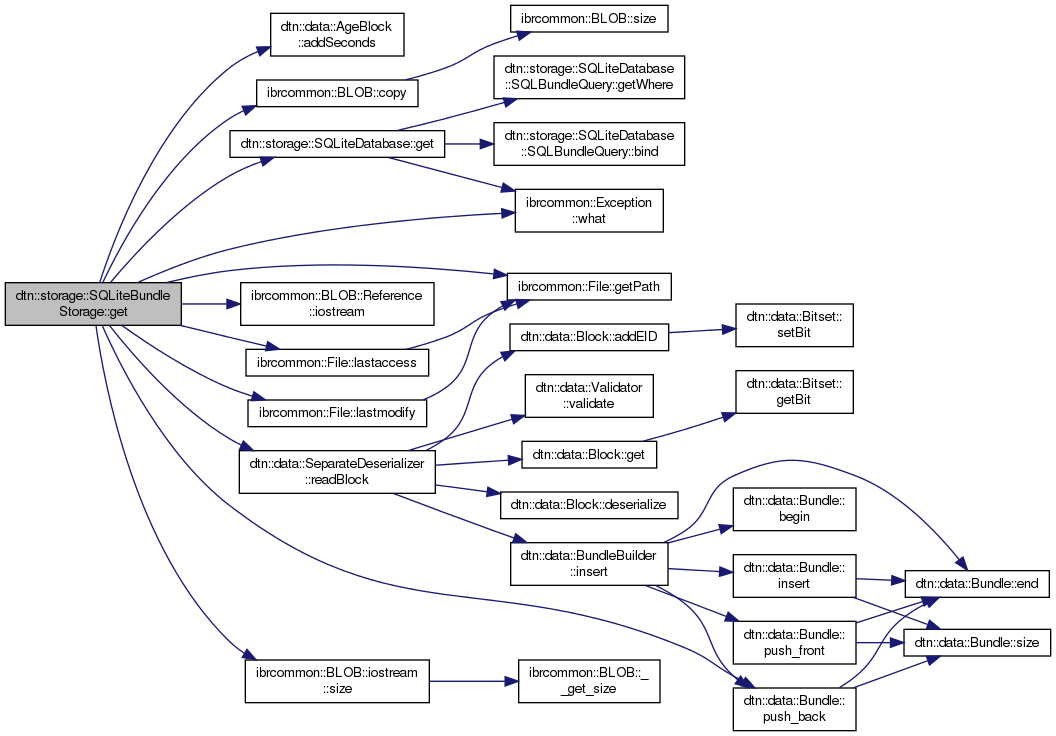

dtn::data::Bundle dtn::storage::SQLiteBundleStorage::get ( const dtn::data::BundleID & id)

virtual

This method returns a specific bundle which is identified by its id.

Parameters

id	The ID of the bundle to return.

Returns: A bundle object.

Implements dtn::storage::BundleStorage.

Definition at line 243 of file SQLiteBundleStorage.cpp.

References dtn::data::AgeBlock::addSeconds(), dtn::data::PayloadBlock::BLOCK_TYPE, ibrcommon::BLOB::copy(), ibrcommon::LogLevel::critical, ibrcommon::LogLevel::error, dtn::storage::SQLiteDatabase::get(), ibrcommon::File::getPath(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::BLOB::Reference::iostream(), ibrcommon::File::lastaccess(), ibrcommon::File::lastmodify(), ibrcommon::RWMutex::LOCK_READONLY, dtn::data::Bundle::push_back(), dtn::data::SeparateDeserializer::readBlock(), ibrcommon::BLOB::iostream::size(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::get	(	const BundleSelector &	cb,
		BundleResult &	result
	)
throw	(	NoBundleFoundException,
		BundleSelectorException
	)

virtual

See Also: BundleSeeker::get(BundleSelector &cb, BundleResult &result)

Implements dtn::storage::BundleStorage.

Definition at line 237 of file SQLiteBundleStorage.cpp.

References ibrcommon::RWMutex::LOCK_READONLY.

const SQLiteBundleStorage::eid_set dtn::storage::SQLiteBundleStorage::getDistinctDestinations ( )

virtual

See Also: BundleSeeker::getDistinctDestinations()

Implements dtn::storage::BundleStorage.

Definition at line 226 of file SQLiteBundleStorage.cpp.

References ibrcommon::LogLevel::critical, dtn::storage::SQLiteDatabase::getDistinctDestinations(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, and ibrcommon::Exception::what().

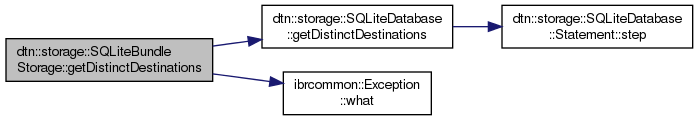

Here is the call graph for this function:

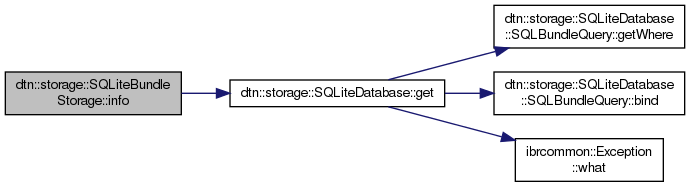

dtn::data::MetaBundle dtn::storage::SQLiteBundleStorage::info ( const dtn::data::BundleID & id)

virtual

Get meta data about a specific bundle ID

Implements dtn::storage::BundleStorage.

Definition at line 477 of file SQLiteBundleStorage.cpp.

References dtn::storage::SQLiteDatabase::get(), and ibrcommon::RWMutex::LOCK_READONLY.

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::iterateDatabase	(	const dtn::data::MetaBundle &	bundle,
		const dtn::data::Length	size
	)

virtual

Implements dtn::storage::SQLiteDatabase::DatabaseListener.

Definition at line 633 of file SQLiteBundleStorage.cpp.

References dtn::storage::BundleStorage::allocSpace(), and dtn::storage::BundleStorage::eventBundleAdded().

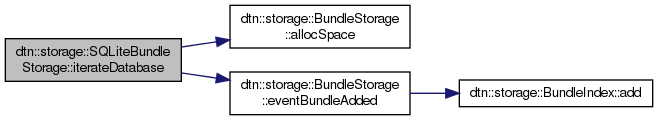

Here is the call graph for this function:

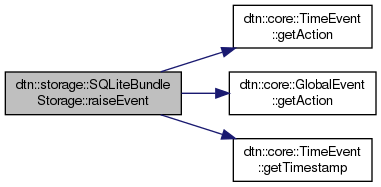

void dtn::storage::SQLiteBundleStorage::raiseEvent	(	const dtn::core::Event *	evt)
throw	(
	)

virtual

This method is used to receive events.

Parameters

evt

Implements dtn::core::EventReceiver.

Definition at line 543 of file SQLiteBundleStorage.cpp.

References dtn::core::TimeEvent::getAction(), dtn::core::GlobalEvent::getAction(), dtn::core::TimeEvent::getTimestamp(), dtn::core::GlobalEvent::GLOBAL_BUSY, dtn::core::GlobalEvent::GLOBAL_IDLE, and dtn::core::TIME_SECOND_TICK.

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::releaseCustody	(	const dtn::data::EID &	custodian,
		const dtn::data::BundleID &	id
	)

virtual

See Also: BundleStorage::releaseCustody();

Implements dtn::storage::BundleStorage.

Definition at line 619 of file SQLiteBundleStorage.cpp.

References ibrcommon::LogLevel::critical, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, dtn::storage::SQLiteDatabase::update(), dtn::storage::SQLiteDatabase::UPDATE_CUSTODIAN, and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::remove ( const dtn::data::BundleID & id)

virtual

This method deletes a specific bundle in the storage. No reports will be generated here.

Parameters

id	The ID of the bundle to remove.

Implements dtn::storage::BundleStorage.

Definition at line 489 of file SQLiteBundleStorage.cpp.

References ibrcommon::LogLevel::critical, dtn::storage::BundleStorage::eventBundleRemoved(), dtn::storage::BundleStorage::freeSpace(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READWRITE, dtn::storage::SQLiteDatabase::remove(), and ibrcommon::Exception::what().

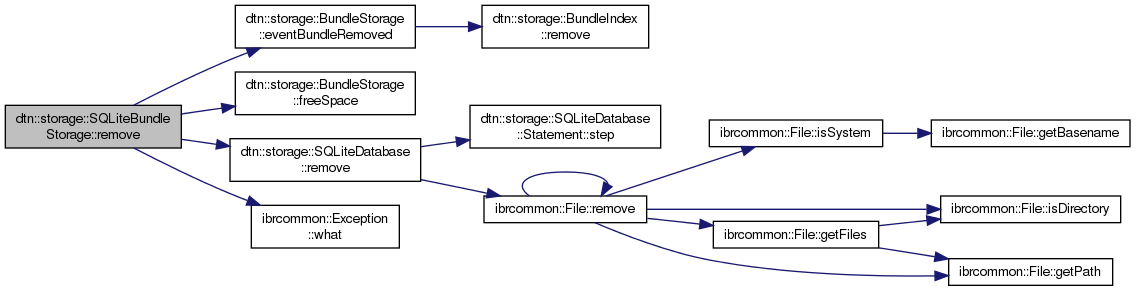

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::setFaulty ( bool mode)

virtual

Set the storage to faulty. If set to true, each try to store or retrieve a bundle will fail.

Reimplemented from dtn::storage::BundleStorage.

Definition at line 656 of file SQLiteBundleStorage.cpp.

References dtn::storage::BundleStorage::_faulty, and dtn::storage::SQLiteDatabase::setFaulty().

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::store ( const dtn::data::Bundle & bundle)

virtual

Stores a bundle in the storage.

Parameters

bundle The bundle to store.

Implements dtn::storage::BundleStorage.

Definition at line 342 of file SQLiteBundleStorage.cpp.

References dtn::storage::BundleStorage::acceptCustody(), dtn::storage::BundleStorage::allocSpace(), dtn::data::Bundle::begin(), dtn::data::PayloadBlock::BLOCK_TYPE, dtn::storage::SQLiteDatabase::commit(), ibrcommon::BLOB::copy(), dtn::data::MetaBundle::create(), ibrcommon::LogLevel::critical, dtn::data::Bundle::end(), dtn::storage::BundleStorage::eventBundleAdded(), dtn::storage::BundleStorage::freeSpace(), dtn::data::PayloadBlock::getBLOB(), dtn::data::DefaultSerializer::getLength(), ibrcommon::File::getPath(), dtn::data::Block::getType(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::BLOB::Reference::iostream(), ibrcommon::RWMutex::LOCK_READWRITE, ibrcommon::File::remove(), dtn::storage::SQLiteDatabase::rollback(), ibrcommon::BLOB::iostream::size(), dtn::storage::BundleStorage::size(), ibrcommon::File::size(), dtn::storage::SQLiteDatabase::store(), dtn::data::BundleID::toString(), dtn::storage::SQLiteDatabase::transaction(), dtn::storage::SQLiteDatabase::update(), dtn::storage::SQLiteDatabase::UPDATE_CUSTODIAN, and ibrcommon::Exception::what().

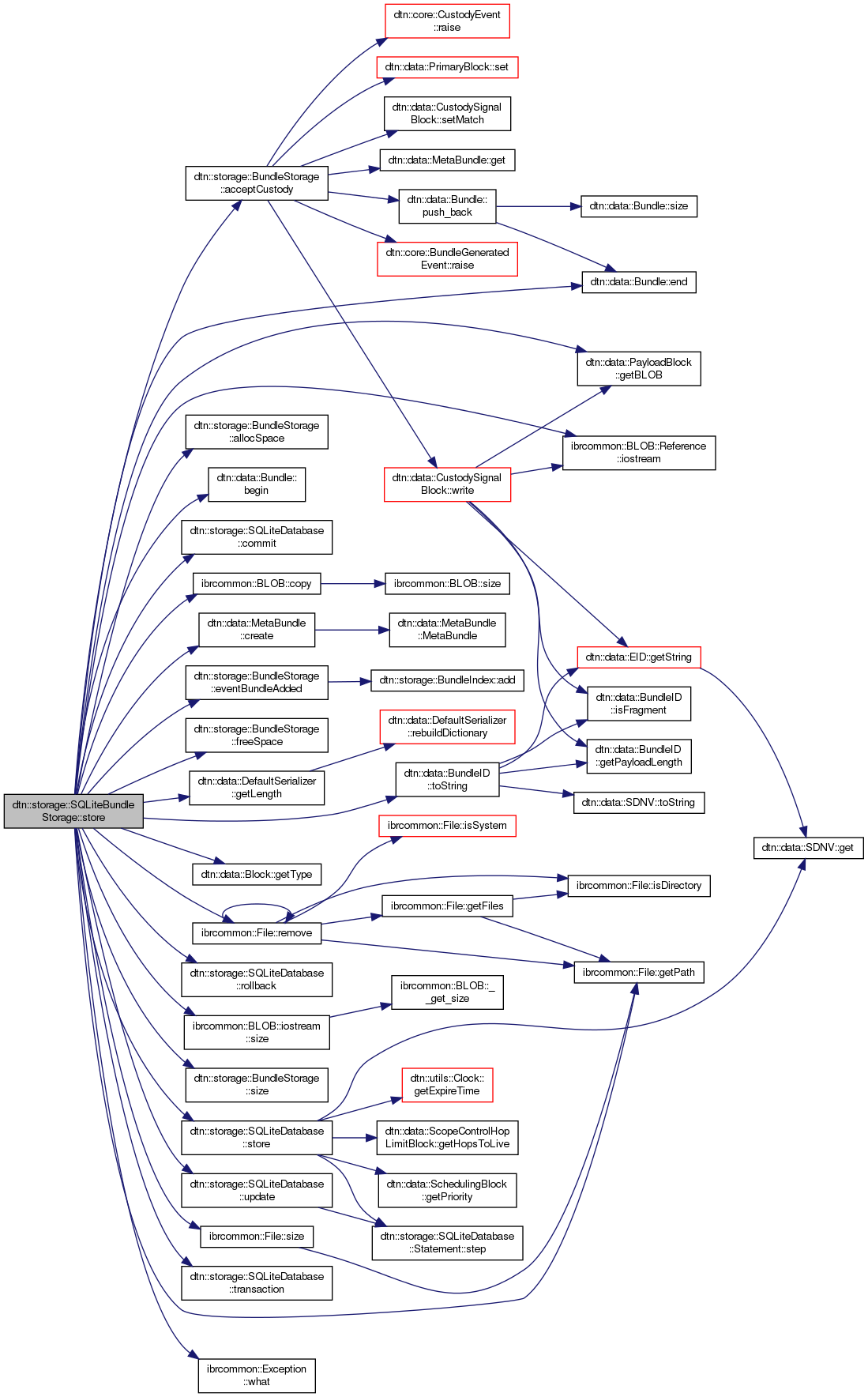

Here is the call graph for this function:

void dtn::storage::SQLiteBundleStorage::wait ( )

virtual

Wait until all the data has been stored to the disk

Reimplemented from dtn::storage::BundleStorage.

Definition at line 651 of file SQLiteBundleStorage.cpp.

References ibrcommon::Queue< T >::wait().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

daemon/src/storage/SQLiteBundleStorage.h
daemon/src/storage/SQLiteBundleStorage.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
