dtn::data::CustodySignalBlock Class Reference

#include <CustodySignalBlock.h>

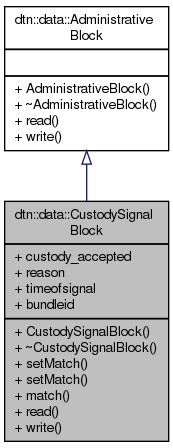

Inheritance diagram for dtn::data::CustodySignalBlock:

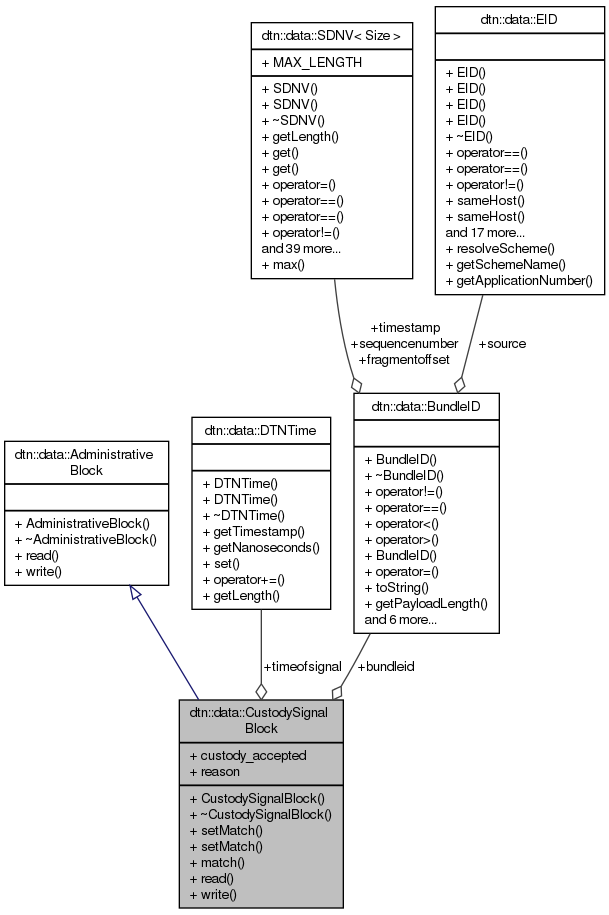

Collaboration diagram for dtn::data::CustodySignalBlock:

Public Types
enum	REASON_CODE {   NO_ADDITIONAL_INFORMATION = 0x00, RESERVED_01 = 0x01, RESERVED_02 = 0x02, REDUNDANT_RECEPTION = 0x03,   DEPLETED_STORAGE = 0x04, DESTINATION_ENDPOINT_ID_UNINTELLIGIBLE = 0x05, NO_KNOWN_ROUTE_TO_DESTINATION_FROM_HERE = 0x06, NO_TIMELY_CONTACT_WITH_NEXT_NODE_ON_ROUTE = 0x07,   BLOCK_UNINTELLIGIBLE = 0x08 }

Public Member Functions
	CustodySignalBlock ()
virtual	~CustodySignalBlock ()
void	setMatch (const dtn::data::MetaBundle &other)
void	setMatch (const dtn::data::Bundle &other)
bool	match (const dtn::data::Bundle &other) const
virtual void	read (const dtn::data::PayloadBlock &p) throw (WrongRecordException)
virtual void	write (dtn::data::PayloadBlock &p) const
Public Member Functions inherited from dtn::data::AdministrativeBlock
	AdministrativeBlock ()
virtual	~AdministrativeBlock ()=0

Public Attributes
bool	custody_accepted
REASON_CODE	reason
DTNTime	timeofsignal
dtn::data::BundleID	bundleid

Detailed Description

Definition at line 38 of file CustodySignalBlock.h.

Member Enumeration Documentation

enum dtn::data::CustodySignalBlock::REASON_CODE

Enumerator
NO_ADDITIONAL_INFORMATION
RESERVED_01
RESERVED_02
REDUNDANT_RECEPTION
DEPLETED_STORAGE
DESTINATION_ENDPOINT_ID_UNINTELLIGIBLE
NO_KNOWN_ROUTE_TO_DESTINATION_FROM_HERE
NO_TIMELY_CONTACT_WITH_NEXT_NODE_ON_ROUTE
BLOCK_UNINTELLIGIBLE

Definition at line 41 of file CustodySignalBlock.h.

Constructor & Destructor Documentation

dtn::data::CustodySignalBlock::CustodySignalBlock

(

)

Definition at line 32 of file CustodySignalBlock.cpp.

dtn::data::CustodySignalBlock::~CustodySignalBlock ( )

virtual

Definition at line 37 of file CustodySignalBlock.cpp.

Member Function Documentation

bool dtn::data::CustodySignalBlock::match

(

const dtn::data::Bundle &

other)

const

Definition at line 129 of file CustodySignalBlock.cpp.

References bundleid.

void dtn::data::CustodySignalBlock::read ( const dtn::data::PayloadBlock &  p) throw ( WrongRecordException )

virtual

Implements dtn::data::AdministrativeBlock.

Definition at line 41 of file CustodySignalBlock.cpp.

References ibrcommon::BLOB::Reference::iostream().

Referenced by dtn::core::BundleCore::raiseEvent().

Here is the call graph for this function:

void dtn::data::CustodySignalBlock::setMatch

(

const dtn::data::MetaBundle &

other)

Definition at line 117 of file CustodySignalBlock.cpp.

References bundleid.

Referenced by dtn::storage::BundleStorage::acceptCustody(), and dtn::storage::BundleStorage::rejectCustody().

void dtn::data::CustodySignalBlock::setMatch

(

const dtn::data::Bundle &

other)

Definition at line 123 of file CustodySignalBlock.cpp.

References bundleid.

void dtn::data::CustodySignalBlock::write ( dtn::data::PayloadBlock &  p) const

virtual

Implements dtn::data::AdministrativeBlock.

Definition at line 81 of file CustodySignalBlock.cpp.

References bundleid, ibrcommon::BLOB::iostream::clear(), custody_accepted, dtn::data::BundleID::fragmentoffset, dtn::data::PayloadBlock::getBLOB(), dtn::data::BundleID::getPayloadLength(), dtn::data::EID::getString(), ibrcommon::BLOB::Reference::iostream(), dtn::data::BundleID::isFragment(), reason, dtn::data::BundleID::sequencenumber, dtn::data::BundleID::source, timeofsignal, and dtn::data::BundleID::timestamp.

Referenced by dtn::storage::BundleStorage::acceptCustody(), and dtn::storage::BundleStorage::rejectCustody().

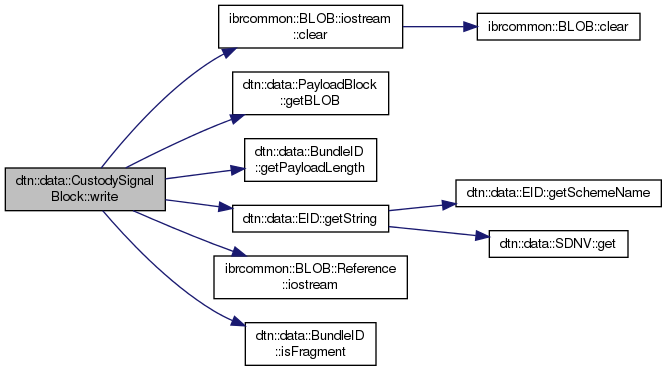

Here is the call graph for this function:

Member Data Documentation

dtn::data::BundleID dtn::data::CustodySignalBlock::bundleid

Definition at line 67 of file CustodySignalBlock.h.

Referenced by match(), setMatch(), and write().

bool dtn::data::CustodySignalBlock::custody_accepted

Definition at line 64 of file CustodySignalBlock.h.

Referenced by dtn::storage::BundleStorage::acceptCustody(), and write().

REASON_CODE dtn::data::CustodySignalBlock::reason

Definition at line 65 of file CustodySignalBlock.h.

Referenced by dtn::storage::BundleStorage::rejectCustody(), and write().

DTNTime dtn::data::CustodySignalBlock::timeofsignal

Definition at line 66 of file CustodySignalBlock.h.

Referenced by write().

---

The documentation for this class was generated from the following files:

• ibrdtn/ibrdtn/data/CustodySignalBlock.h
• ibrdtn/ibrdtn/data/CustodySignalBlock.cpp
