#include <NativeSession.h>

Collaboration diagram for dtn::api::NativeSession:

Public Types
enum	RegisterIndex { REG1 = 0, REG2 = 1 }

Public Member Functions
	NativeSession (NativeSessionCallback session_cb, NativeSerializerCallback serializer_cb)

	NativeSession (NativeSessionCallback session_cb, NativeSerializerCallback serializer_cb, const std::string &handle)

virtual	~NativeSession ()

void	destroy () throw ()

const dtn::data::EID &	getNodeEID () const throw ()

void	setEndpoint (const std::string &suffix) throw (NativeSessionException)

void	resetEndpoint () throw ()

void	addEndpoint (const std::string &suffix) throw (NativeSessionException)

void	removeEndpoint (const std::string &suffix) throw (NativeSessionException)

void	addRegistration (const dtn::data::EID &eid) throw (NativeSessionException)

void	removeRegistration (const dtn::data::EID &eid) throw (NativeSessionException)

void	clearRegistration () throw ()

std::vector< std::string >	getSubscriptions () throw ()

void	next (RegisterIndex ri) throw (BundleNotFoundException)

void	load (RegisterIndex ri, const dtn::data::BundleID &id) throw (BundleNotFoundException)

void	get (RegisterIndex ri) throw ()

void	getInfo (RegisterIndex ri) throw ()

void	free (RegisterIndex ri) throw (BundleNotFoundException)

void	clear (RegisterIndex ri) throw ()

void	delivered (const dtn::data::BundleID &id) const throw (BundleNotFoundException)

dtn::data::BundleID	send (RegisterIndex ri) throw ()

void	put (RegisterIndex ri, const dtn::data::Bundle &b) throw ()

void	put (RegisterIndex ri, const dtn::data::PrimaryBlock &b) throw ()

void	write (RegisterIndex ri, const char *buf, const size_t len, const size_t offset=std::string::npos) throw ()

void	read (RegisterIndex ri, char *buf, size_t &len, const size_t offset=0) throw ()

void	receive () throw (NativeSessionException)

const std::string &	getHandle () const

Detailed Description

Definition at line 84 of file NativeSession.h.

Member Enumeration Documentation

enum dtn::api::NativeSession::RegisterIndex

Enumerator
REG1
REG2

Definition at line 88 of file NativeSession.h.

Constructor & Destructor Documentation

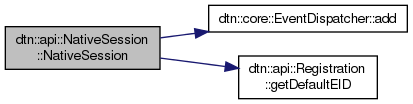

dtn::api::NativeSession::NativeSession	(	NativeSessionCallback *	session_cb,
		NativeSerializerCallback *	serializer_cb
	)

Constructor of the native session

Parameters

cb	A callback object for notifications. May be NULL.

Definition at line 44 of file NativeSession.cpp.

References dtn::core::EventDispatcher< E >::add(), dtn::api::Registration::getDefaultEID(), IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

Here is the call graph for this function:

dtn::api::NativeSession::NativeSession	(	NativeSessionCallback *	session_cb,
		NativeSerializerCallback *	serializer_cb,
		const std::string &	handle
	)

Constructor of the native session

Parameters

cb	A callback object for notifications. May be NULL.

Definition at line 56 of file NativeSession.cpp.

References dtn::core::EventDispatcher< E >::add(), dtn::api::Registration::getDefaultEID(), IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

Here is the call graph for this function:

dtn::api::NativeSession::~NativeSession ( )

virtual

Destructor

Definition at line 68 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::RWMutex::LOCK_READWRITE.

Member Function Documentation

void dtn::api::NativeSession::addEndpoint	(	const std::string &	suffix)
throw	(	NativeSessionException
	)

Add an application endpoint suffix to the registration

Definition at line 145 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::local, and dtn::data::EID::setApplication().

Here is the call graph for this function:

void dtn::api::NativeSession::addRegistration	(	const dtn::data::EID &	eid)
throw	(	NativeSessionException
	)

Add an endpoint identifier to the registration (commonly used for group endpoints)

Definition at line 179 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

void dtn::api::NativeSession::clear	(	RegisterIndex	ri)
throw	(
	)

Clear the local register

Definition at line 300 of file NativeSession.cpp.

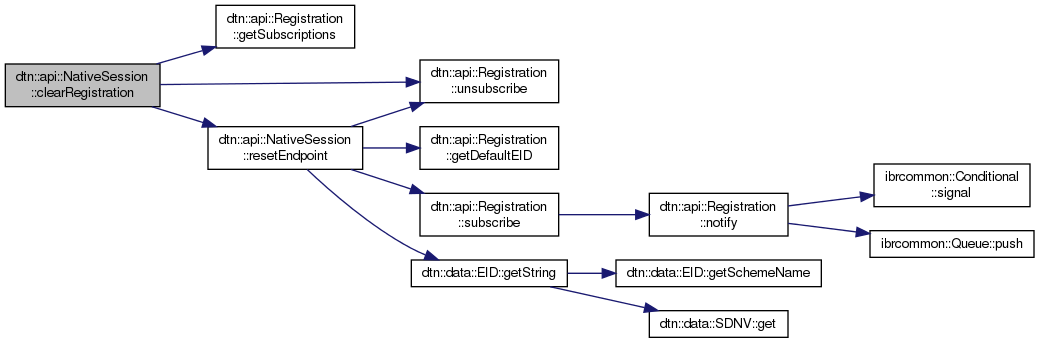

void dtn::api::NativeSession::clearRegistration	(	)
throw	(
	)

Removes all registrations and reset the default endpoint to the unique registration identifier

Definition at line 209 of file NativeSession.cpp.

References dtn::api::Registration::getSubscriptions(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, resetEndpoint(), and dtn::api::Registration::unsubscribe().

Here is the call graph for this function:

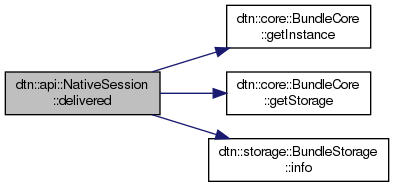

void dtn::api::NativeSession::delivered	(	const dtn::data::BundleID &	id)	const
throw	(	BundleNotFoundException
	)

Mark the bundle with the given ID as delivered.

Definition at line 305 of file NativeSession.cpp.

References dtn::core::BundleCore::getInstance(), dtn::core::BundleCore::getStorage(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and dtn::storage::BundleStorage::info().

Here is the call graph for this function:

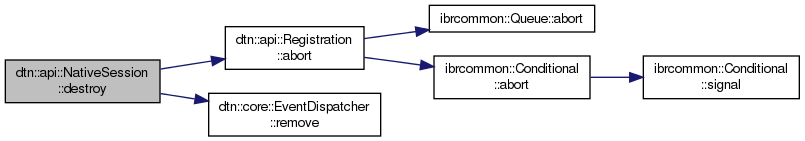

void dtn::api::NativeSession::destroy	(	)
throw	(
	)

Destroy this session and block until this process is done

Definition at line 80 of file NativeSession.cpp.

References dtn::api::Registration::abort(), and dtn::core::EventDispatcher< E >::remove().

Here is the call graph for this function:

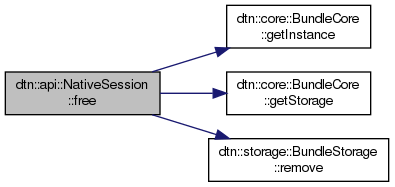

void dtn::api::NativeSession::free	(	RegisterIndex	ri)
throw	(	BundleNotFoundException
	)

Delete the bundle in the local register from the storage

Definition at line 290 of file NativeSession.cpp.

References dtn::core::BundleCore::getInstance(), dtn::core::BundleCore::getStorage(), and dtn::storage::BundleStorage::remove().

Here is the call graph for this function:

void dtn::api::NativeSession::get	(	RegisterIndex	ri)
throw	(
	)

Return the bundle in the register using the given callback

Definition at line 264 of file NativeSession.cpp.

References dtn::api::NativeSerializer::BUNDLE_FULL, ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, and ibrcommon::Exception::what().

Here is the call graph for this function:

const std::string & dtn::api::NativeSession::getHandle ( ) const

Return the handle of this session

Definition at line 491 of file NativeSession.cpp.

References dtn::api::Registration::getHandle().

Here is the call graph for this function:

void dtn::api::NativeSession::getInfo	(	RegisterIndex	ri)
throw	(
	)

Return the bundle skeleton in the register using the given callback

Definition at line 277 of file NativeSession.cpp.

References dtn::api::NativeSerializer::BUNDLE_INFO, ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::RWMutex::LOCK_READONLY, and ibrcommon::Exception::what().

Here is the call graph for this function:

const dtn::data::EID & dtn::api::NativeSession::getNodeEID	(	)	const
throw	(
	)

Returns the node EID of this device

Definition at line 88 of file NativeSession.cpp.

References dtn::core::BundleCore::local.

std::vector< std::string > dtn::api::NativeSession::getSubscriptions	(	)
throw	(
	)

Retrieve all registered endpoints

Definition at line 224 of file NativeSession.cpp.

References dtn::api::Registration::getSubscriptions().

Here is the call graph for this function:

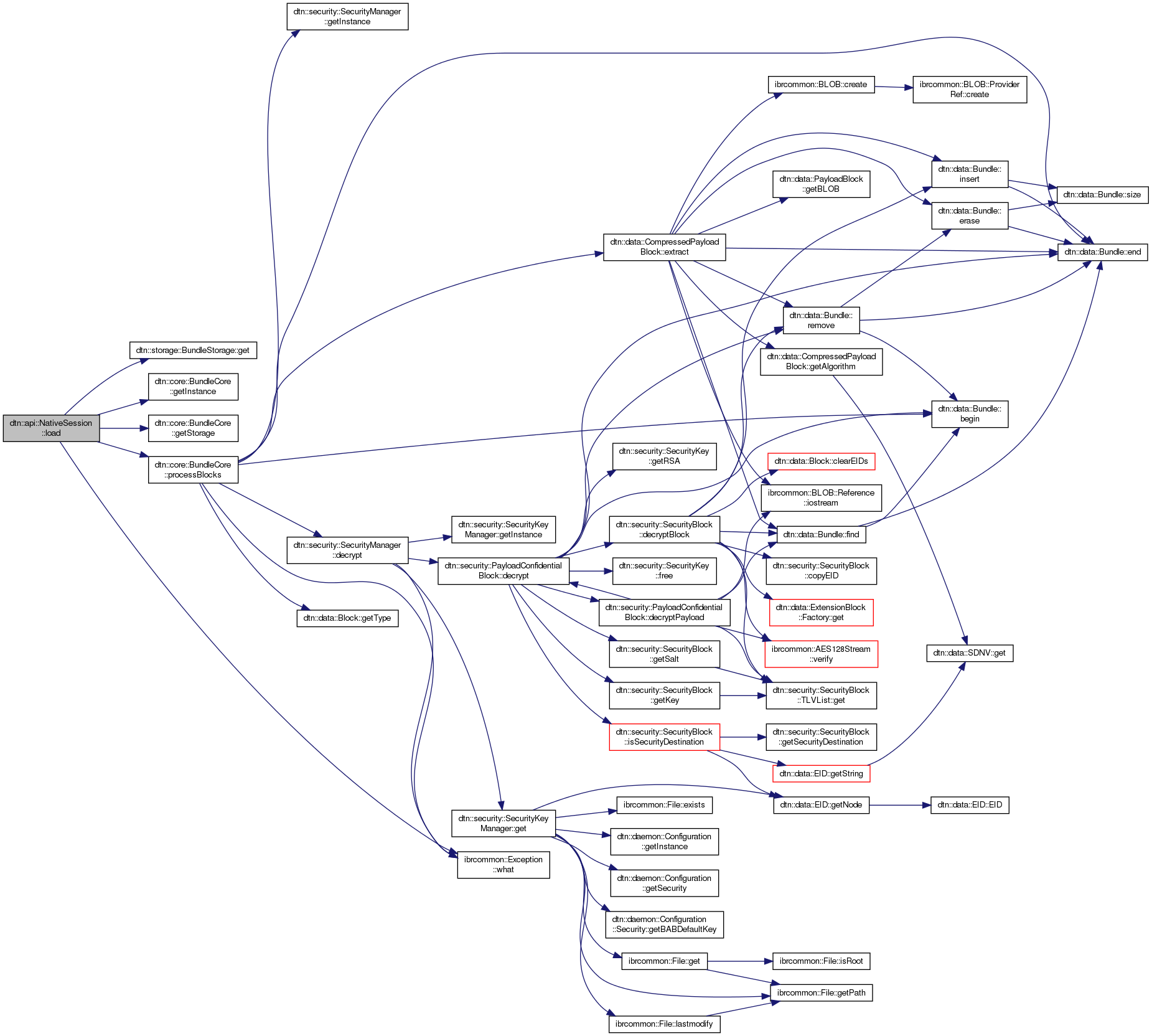

void dtn::api::NativeSession::load	(	RegisterIndex	ri,
		const dtn::data::BundleID &	id
	)
throw	(	BundleNotFoundException
	)

Load a bundle into the local register

Definition at line 248 of file NativeSession.cpp.

References dtn::storage::BundleStorage::get(), dtn::core::BundleCore::getInstance(), dtn::core::BundleCore::getStorage(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::processBlocks(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::api::NativeSession::next	(	RegisterIndex	ri)
throw	(	BundleNotFoundException
	)

Loads the next bundle in the queue into the local register

Definition at line 234 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

void dtn::api::NativeSession::put	(	RegisterIndex	ri,
		const dtn::data::Bundle &	b
	)
throw	(
	)

Copy the given bundle into the local register

Definition at line 328 of file NativeSession.cpp.

void dtn::api::NativeSession::put	(	RegisterIndex	ri,
		const dtn::data::PrimaryBlock &	b
	)
throw	(
	)

Copy the PrimaryBlock into the local register

Definition at line 334 of file NativeSession.cpp.

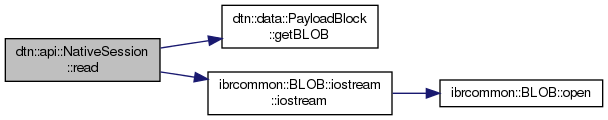

void dtn::api::NativeSession::read	(	RegisterIndex	ri,
		char *	buf,
		size_t &	len,
		const size_t	offset = `0`
	)
throw	(
	)

Read max. <len> bytes from the payload block in the bundle. If there is no payload block available the read method will set len = 0 and return. Otherwise the len variable contains the number of bytes written into buf.

Parameters

ri	Index to tell which bundle register to use.
buf	Buffer to put the data into.
len	The size of the buf array. After the call it contains the number of bytes in the buffer.
offset	Start here to read.

Definition at line 381 of file NativeSession.cpp.

References dtn::data::PayloadBlock::getBLOB(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::BLOB::iostream::iostream().

Here is the call graph for this function:

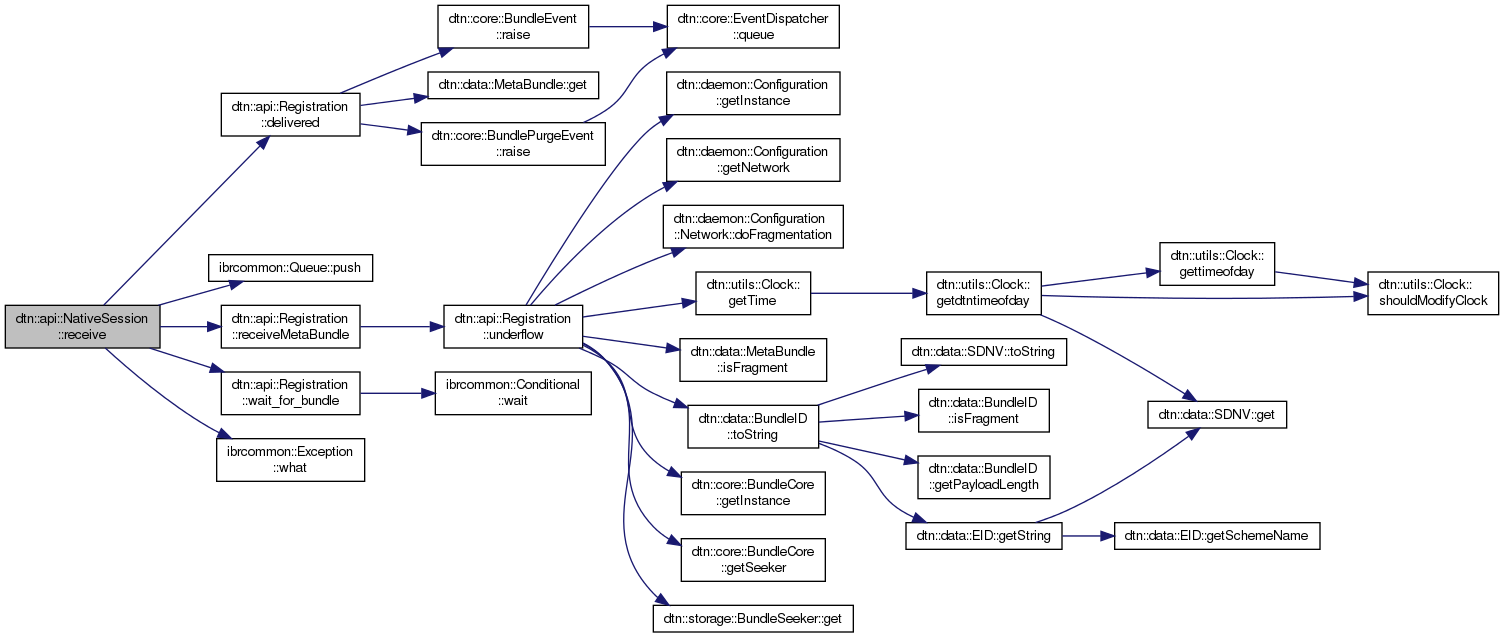

void dtn::api::NativeSession::receive	(	)
throw	(	NativeSessionException
	)

Receives one bundle and returns. If there is no bundle this call will block until a bundle is available or destroy() has been called.

Definition at line 423 of file NativeSession.cpp.

References dtn::data::PrimaryBlock::APPDATA_IS_ADMRECORD, dtn::api::Registration::delivered(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, ibrcommon::Queue< T >::push(), dtn::api::Registration::receiveMetaBundle(), dtn::api::Registration::wait_for_bundle(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::api::NativeSession::removeEndpoint	(	const std::string &	suffix)
throw	(	NativeSessionException
	)

Remove an application endpoint suffix from the registration

Definition at line 162 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::local, and dtn::data::EID::setApplication().

Here is the call graph for this function:

void dtn::api::NativeSession::removeRegistration	(	const dtn::data::EID &	eid)
throw	(	NativeSessionException
	)

Remove an endpoint identifier from the registration

Definition at line 194 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

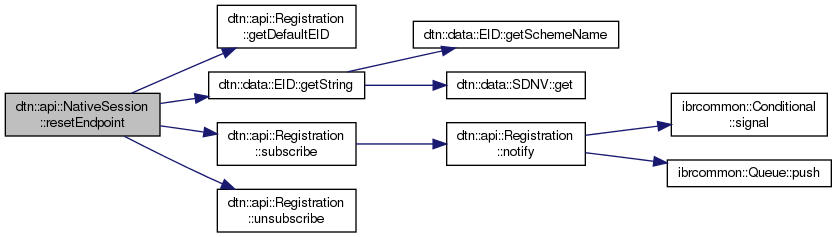

void dtn::api::NativeSession::resetEndpoint	(	)
throw	(
	)

Resets the default endpoint to the unique registration identifier

Definition at line 136 of file NativeSession.cpp.

References dtn::api::Registration::getDefaultEID(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::api::Registration::subscribe(), and dtn::api::Registration::unsubscribe().

Referenced by clearRegistration().

Here is the call graph for this function:

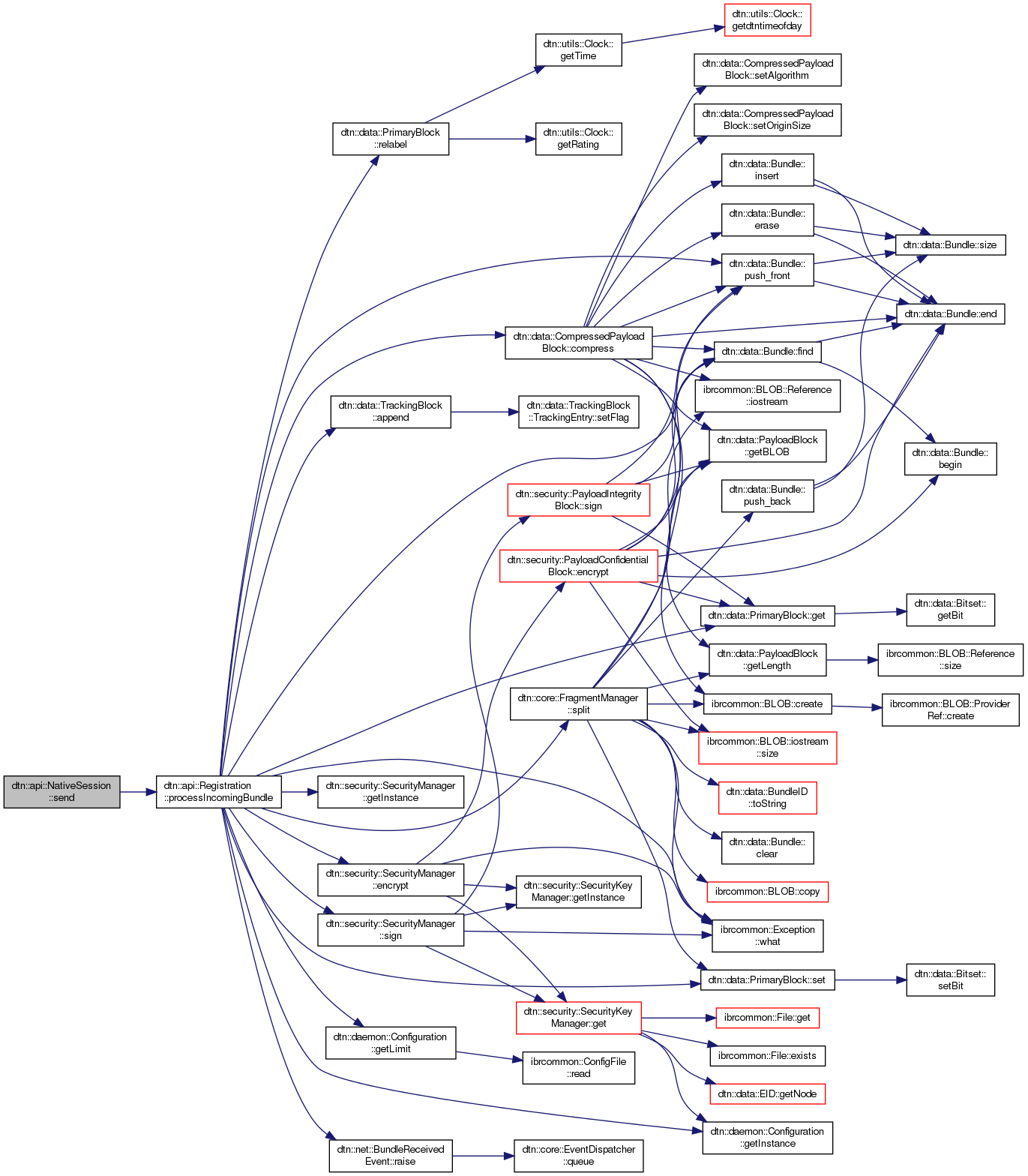

dtn::data::BundleID dtn::api::NativeSession::send	(	RegisterIndex	ri)
throw	(
	)

Send the bundle in the local register

Definition at line 318 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and dtn::api::Registration::processIncomingBundle().

Here is the call graph for this function:

void dtn::api::NativeSession::setEndpoint	(	const std::string &	suffix)
throw	(	NativeSessionException
	)

Set the default application endpoint suffix of this registration

Definition at line 114 of file NativeSession.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, and IBRCOMMON_LOGGER_ENDL.

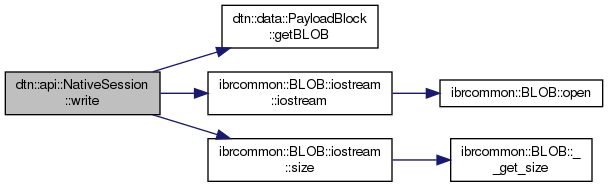

void dtn::api::NativeSession::write	(	RegisterIndex	ri,
		const char *	buf,
		const size_t	len,
		const size_t	offset = `std::string::npos`
	)
throw	(
	)

Write byte into the payload block of the bundle in the register. If there is no payload block, this method will append a new one at the end of all blocks.

Parameters

ri	Index to tell which bundle register to use.
buf	Buffer to copy.
len	The number of bytes to copy.
offset	Start here to write.

Definition at line 343 of file NativeSession.cpp.

References dtn::data::PayloadBlock::getBLOB(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, ibrcommon::BLOB::iostream::iostream(), and ibrcommon::BLOB::iostream::size().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

daemon/src/api/NativeSession.h
daemon/src/api/NativeSession.cpp
