#include <Client.h>

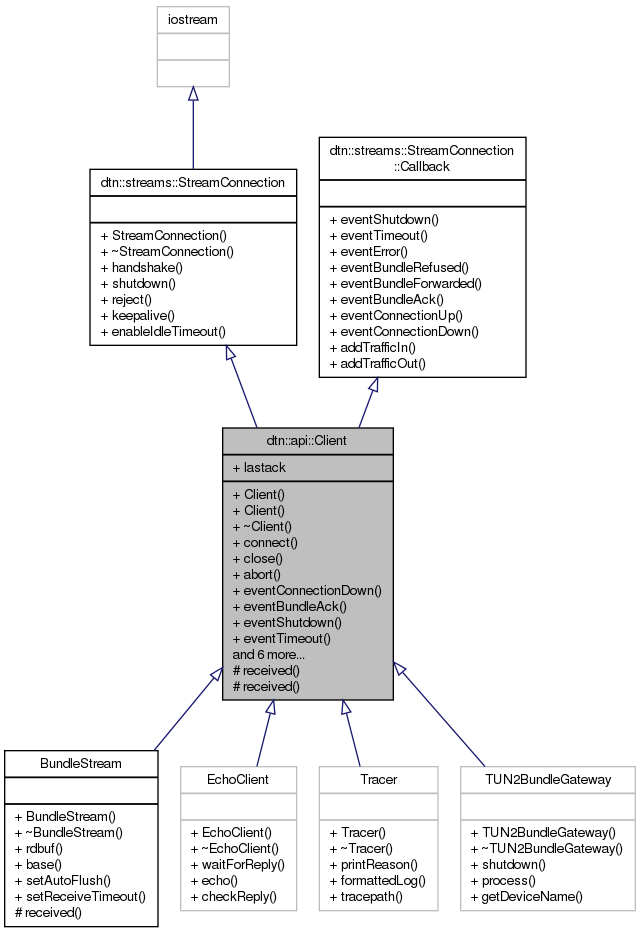

Inheritance diagram for dtn::api::Client:

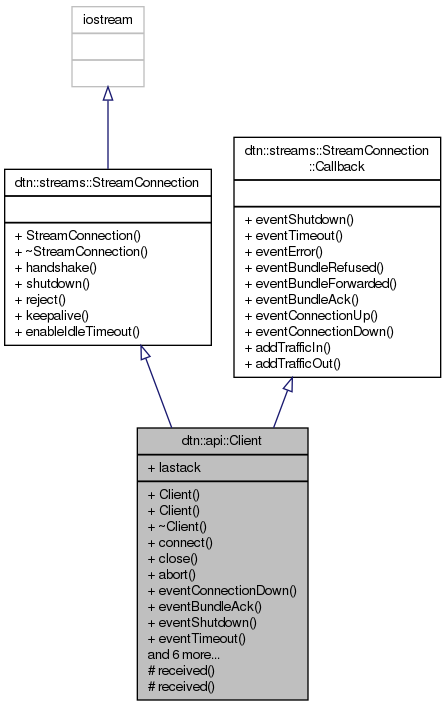

Collaboration diagram for dtn::api::Client:

Public Types
enum	COMMUNICATION_MODE { MODE_BIDIRECTIONAL = 0, MODE_SENDONLY = 1 }

Public Types inherited from dtn::streams::StreamConnection
enum	ConnectionShutdownCases { CONNECTION_SHUTDOWN_NOTSET = 0, CONNECTION_SHUTDOWN_IDLE = 1, CONNECTION_SHUTDOWN_ERROR = 2, CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN = 3, CONNECTION_SHUTDOWN_NODE_TIMEOUT = 4, CONNECTION_SHUTDOWN_PEER_SHUTDOWN = 5 }

Public Member Functions
	Client (const std::string &app, ibrcommon::socketstream &stream, const COMMUNICATION_MODE mode=MODE_BIDIRECTIONAL)

	Client (const std::string &app, const dtn::data::EID &group, ibrcommon::socketstream &stream, const COMMUNICATION_MODE mode=MODE_BIDIRECTIONAL)

virtual	~Client ()

void	connect ()

void	close ()

void	abort ()

virtual void	eventConnectionDown () throw ()

virtual void	eventBundleAck (const dtn::data::Length &ack) throw ()

virtual void	eventShutdown (StreamConnection::ConnectionShutdownCases) throw ()

virtual void	eventTimeout () throw ()

virtual void	eventError () throw ()

virtual void	eventConnectionUp (const dtn::streams::StreamContactHeader &) throw ()

virtual void	eventBundleRefused () throw ()

virtual void	eventBundleForwarded () throw ()

void	operator<< (const dtn::data::Bundle &b)

dtn::data::Bundle	getBundle (const dtn::data::Timeout timeout=0) throw (ConnectionException)

Public Member Functions inherited from dtn::streams::StreamConnection
	StreamConnection (StreamConnection::Callback &cb, iostream &stream, const dtn::data::Length buffer_size=4096)

virtual	~StreamConnection ()

void	handshake (const dtn::data::EID &eid, const dtn::data::Timeout &timeout, const dtn::data::Bitset< StreamContactHeader::HEADER_BITS > &flags)

void	shutdown (ConnectionShutdownCases csc=CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN)

void	reject ()

void	keepalive ()

void	enableIdleTimeout (const dtn::data::Timeout &seconds)

Public Member Functions inherited from dtn::streams::StreamConnection::Callback
virtual void	eventShutdown (StreamConnection::ConnectionShutdownCases csc)=0 throw ()

virtual void	addTrafficIn (size_t) throw ()

virtual void	addTrafficOut (size_t) throw ()

Public Attributes
dtn::data::Length	lastack

Protected Member Functions
virtual void	received (const dtn::streams::StreamContactHeader &)

virtual void	received (const dtn::data::Bundle &b)

Detailed Description

This is an abstract class is the base for any API connection to a IBR-DTN daemon. It uses an existing I/O stream to communicate bidirectional with the daemon.

For asynchronous reception of bundle this class contains a thread which deals the receiving part of the communication and calls the received() methods which should be overwritten.

Definition at line 80 of file Client.h.

Member Enumeration Documentation

enum dtn::api::Client::COMMUNICATION_MODE

This are the communication flags.

Enumerator
MODE_BIDIRECTIONAL	bidirectional communication is requested
MODE_SENDONLY	unidirectional communication is requested, no reception of bundles

Definition at line 131 of file Client.h.

Constructor & Destructor Documentation

dtn::api::Client::Client	(	const std::string &	app,
		ibrcommon::socketstream &	stream,
		const COMMUNICATION_MODE	mode = `MODE_BIDIRECTIONAL`
	)

Constructor for the API Connection. At least a application suffix and an existing tcp stream are required. The suffix is appended to the node id of the daemon. E.g. dtn://<node-id>/example (in this case is "example" the application id. The stream connects the daemon and this application together and will be used with the bundle protocol for TCP (draft-irtf-dtnrg-tcp-clayer-02) provided by the StreamConnection class.

Parameters

app	Application suffix.
stream	TCP stream object.
mode	Communication mode. Default is bidirectional communication.

Definition at line 92 of file Client.cpp.

dtn::api::Client::Client	(	const std::string &	app,
		const dtn::data::EID &	group,
		ibrcommon::socketstream &	stream,
		const COMMUNICATION_MODE	mode = `MODE_BIDIRECTIONAL`
	)

Definition at line 87 of file Client.cpp.

dtn::api::Client::~Client ( )

virtual

Virtual destructor for this class.

Definition at line 97 of file Client.cpp.

References ibrcommon::socketstream::close(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Exception::what().

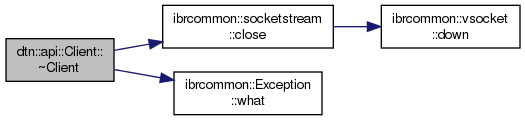

Here is the call graph for this function:

Member Function Documentation

void dtn::api::Client::abort ( )

Aborts blocking calls of getBundle()

Definition at line 162 of file Client.cpp.

References ibrcommon::Queue< T >::abort(), and dtn::streams::StreamConnection::shutdown().

Referenced by term().

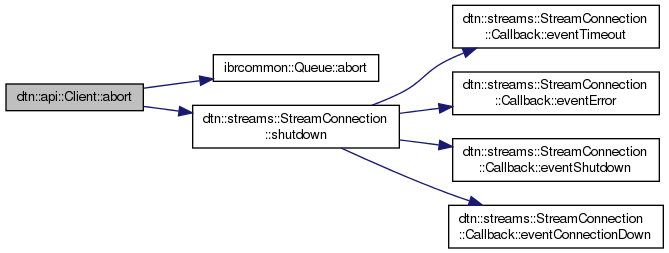

Here is the call graph for this function:

void dtn::api::Client::close ( )

Closes the client. Actually, this send out a SHUTDOWN message to the daemon. The connection itself has to be closed separately.

Definition at line 156 of file Client.cpp.

References dtn::streams::StreamConnection::shutdown().

Referenced by main(), and term().

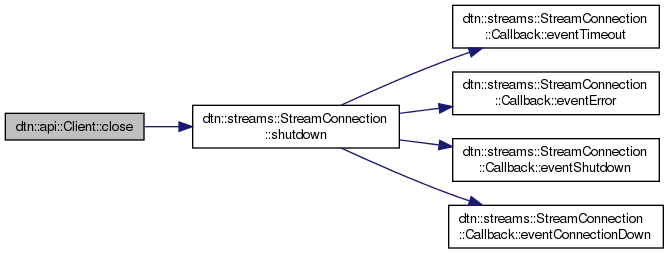

Here is the call graph for this function:

void dtn::api::Client::connect ( )

This method starts the thread and execute the handshake with the server.

Definition at line 113 of file Client.cpp.

References ibrcommon::LogLevel::error, dtn::data::EID::getString(), dtn::streams::StreamConnection::handshake(), dtn::streams::StreamContactHeader::HANDSHAKE_SENDONLY, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::data::EID::isNone(), MODE_SENDONLY, dtn::streams::StreamContactHeader::REQUEST_ACKNOWLEDGMENTS, dtn::data::Bitset< E >::setBit(), and ibrcommon::Exception::what().

Referenced by main().

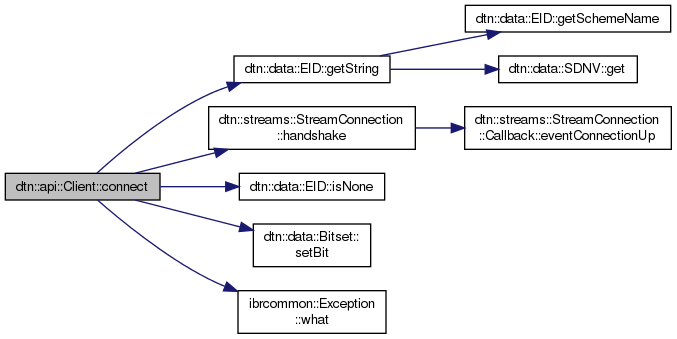

Here is the call graph for this function:

void dtn::api::Client::eventBundleAck	(	const dtn::data::Length &	ack)
throw	(
	)

virtual

The bundle ack event is called by the StreamConnection object and stores the last ACK'd bundle size in the lastack variable.

Parameters

ack	ACK'd bundle size

Implements dtn::streams::StreamConnection::Callback.

Definition at line 181 of file Client.cpp.

virtual void dtn::api::Client::eventBundleForwarded	(	)
throw	(
	)

inlinevirtual

The bundle forwarded event callback method can overloaded to determine when a bundle is forwarded to the daemon.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 221 of file Client.h.

virtual void dtn::api::Client::eventBundleRefused	(	)
throw	(
	)

inlinevirtual

The bundle refused event callback method can overloaded to handle a bundle refused by the porresponding daemon.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 215 of file Client.h.

void dtn::api::Client::eventConnectionDown	(	)
throw	(
	)

virtual

The connection down event is called by the StreamConnection object and aborts the blocking getBundle() method. If a client is working synchonous this method should not be overloaded!

Implements dtn::streams::StreamConnection::Callback.

Definition at line 170 of file Client.cpp.

References ibrcommon::Queue< T >::abort(), ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, and ibrcommon::Exception::what().

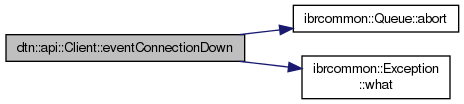

Here is the call graph for this function:

virtual void dtn::api::Client::eventConnectionUp	(	const dtn::streams::StreamContactHeader &	)
throw	(
	)

inlinevirtual

The connection up event callback method can overloaded to handle a successful connection handshake. In this call the header of the corresponding daemon is available.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 209 of file Client.h.

virtual void dtn::api::Client::eventError	(	)
throw	(
	)

inlinevirtual

The error event callback method can overloaded to handle errors occurring in the API protocol.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 202 of file Client.h.

virtual void dtn::api::Client::eventShutdown	(	StreamConnection::ConnectionShutdownCases	)
throw	(
	)

inlinevirtual

The shutdown event callback method can overloaded to handle shutdown events.

Definition at line 190 of file Client.h.

virtual void dtn::api::Client::eventTimeout	(	)
throw	(
	)

inlinevirtual

The timeout event callback method can overloaded to handle timeouts occurring in the API protocol.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 196 of file Client.h.

dtn::data::Bundle dtn::api::Client::getBundle	(	const dtn::data::Timeout	timeout = `0`)
throw	(	ConnectionException
	)

This method is for synchronous API usage only. It blocks until a bundle is received and return it. If the connection is closed during the get() call an exception is thrown

Parameters

timeout

Returns

Definition at line 209 of file Client.cpp.

References ibrcommon::QueueUnblockedException::QUEUE_ABORT, ibrcommon::QueueUnblockedException::QUEUE_TIMEOUT, ibrcommon::QueueUnblockedException::reason, and ibrcommon::Exception::what().

Referenced by main().

Here is the call graph for this function:

void dtn::api::Client::operator<< ( const dtn::data::Bundle & b)

Send a bundle to the daemon

Definition at line 197 of file Client.cpp.

virtual void dtn::api::Client::received ( const dtn::streams::StreamContactHeader & )

inlineprotectedvirtual

This method is called on the receipt of the handshake of the daemon. If you like to validate your connection you could overload this method, but must call the super method.

Definition at line 246 of file Client.h.

void dtn::api::Client::received ( const dtn::data::Bundle & b)

protectedvirtual

This method is called on the receipt of a new bundle. If you like to use asynchronous API mode you should overload this method to receive bundles.

Parameters

b	The received bundle.

Reimplemented in BundleStream.

Definition at line 186 of file Client.cpp.

References MODE_SENDONLY, and ibrcommon::Queue< T >::push().

Here is the call graph for this function:

Member Data Documentation

dtn::data::Length dtn::api::Client::lastack

Definition at line 238 of file Client.h.

The documentation for this class was generated from the following files:

ibrdtn/ibrdtn/api/Client.h
ibrdtn/ibrdtn/api/Client.cpp
