dtn::api::Registration Class Reference

#include <Registration.h>

Collaboration diagram for dtn::api::Registration:
Collaboration graph

Classes

class  AlreadyAttachedException

class  NotFoundException

class  NotPersistentException

class  RegistrationException


Public Types

enum  NOTIFY_CALL { NOTIFY_BUNDLE_AVAILABLE = 0, NOTIFY_NEIGHBOR_AVAILABLE = 1, NOTIFY_NEIGHBOR_UNAVAILABLE = 2, NOTIFY_SHUTDOWN = 3 }


Public Member Functions

 Registration ()

 Registration (const std::string &handle)

virtual ~Registration ()

void notify (const NOTIFY_CALL)

NOTIFY_CALL wait ()

void wait_for_bundle (size_t timeout=0)

void subscribe (const dtn::data::EID &endpoint)

void unsubscribe (const dtn::data::EID &endpoint)

bool hasSubscribed (const dtn::data::EID &endpoint)

const std::set< dtn::data::EID > getSubscriptions ()

bool operator== (const std::string &) const

bool operator== (const Registration &) const

bool operator< (const Registration &) const

dtn::data::Bundle receive () throw (dtn::storage::NoBundleFoundException)

dtn::data::MetaBundle receiveMetaBundle () throw (dtn::storage::NoBundleFoundException)

void delivered (const dtn::data::MetaBundle &m) const

const dtn::data::EID & getDefaultEID () const

const std::string & getHandle () const

void abort ()

void reset ()

void setPersistent (ibrcommon::Timer::time_t lifetime)

void unsetPersistent ()

bool isPersistent ()

bool isPersistent () const

void setFilterFragments (bool val)

ibrcommon::Timer::time_t getExpireTime () const

void attach ()

void detach ()


Static Public Member Functions

static void processIncomingBundle (const dtn::data::EID &source, dtn::data::Bundle &bundle)


Protected Member Functions

void underflow ()


Detailed Description

Definition at line 39 of file Registration.h.

Member Enumeration Documentation

enum dtn::api::Registration::NOTIFY_CALL
Enumerator
NOTIFY_BUNDLE_AVAILABLE
NOTIFY_NEIGHBOR_AVAILABLE
NOTIFY_NEIGHBOR_UNAVAILABLE
NOTIFY_SHUTDOWN

Definition at line 44 of file Registration.h.

Constructor & Destructor Documentation

dtn::api::Registration::Registration ( )

constructor of the registration

Definition at line 111 of file Registration.cpp.

References dtn::data::EID::setApplication().

Here is the call graph for this function:

dtn::api::Registration::Registration ( const std::string &  handle)

create a registration with a pre-defined handle (used to resume a session with an external manager)

Definition at line 103 of file Registration.cpp.

References dtn::data::EID::setApplication().

Here is the call graph for this function:

dtn::api::Registration::~Registration ( )
virtual

destructor of the registration

Definition at line 119 of file Registration.cpp.

Member Function Documentation

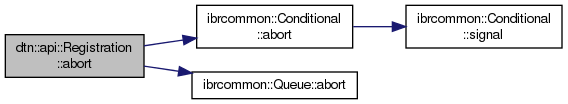

void dtn::api::Registration::abort ( )

abort all blocking operations on this registration

Definition at line 426 of file Registration.cpp.

References ibrcommon::Conditional::abort(), and ibrcommon::Queue< T >::abort().

Referenced by dtn::api::NativeSession::destroy(), dtn::api::OrderedStreamHandler::finally(), dtn::api::BinaryStreamClient::finally(), dtn::api::ExtendedApiHandler::finally(), dtn::api::ClientHandler::finally(), dtn::api::ExtendedApiHandler::run(), dtn::api::ClientHandler::switchRegistration(), dtn::api::BinaryStreamClient::~BinaryStreamClient(), and dtn::api::ExtendedApiHandler::~ExtendedApiHandler().

Here is the call graph for this function:

void dtn::api::Registration::attach ( )

attaches a client to this registration

Exceptions
AlreadyAttachedExceptiona client is already attached

Definition at line 489 of file Registration.cpp.

Referenced by dtn::api::ApiServer::getRegistration(), and dtn::api::ApiServer::timeout().

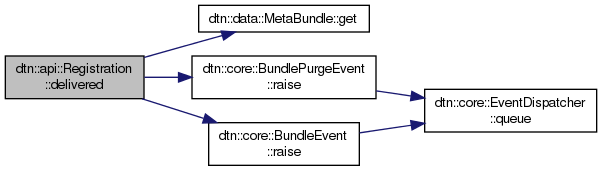

void dtn::api::Registration::delivered ( const dtn::data::MetaBundle &  m) const

notify a bundle as delivered (and delete it if singleton destination)

Parameters
id

Definition at line 172 of file Registration.cpp.

References dtn::core::BUNDLE_DELIVERED, dtn::data::PrimaryBlock::DESTINATION_IS_SINGLETON, dtn::data::MetaBundle::get(), dtn::core::BundlePurgeEvent::raise(), and dtn::core::BundleEvent::raise().

Referenced by dtn::api::OrderedStreamHandler::delivered(), dtn::api::BinaryStreamClient::eventBundleForwarded(), dtn::api::NativeSession::receive(), and dtn::api::ExtendedApiHandler::run().

Here is the call graph for this function:

void dtn::api::Registration::detach ( )

detaches a client from this registration

Definition at line 497 of file Registration.cpp.

References ibrcommon::Conditional::reset(), and ibrcommon::Queue< T >::reset().

Referenced by dtn::api::ApiServer::freeRegistration(), and dtn::api::ApiServer::timeout().

Here is the call graph for this function:

const dtn::data::EID & dtn::api::Registration::getDefaultEID ( ) const

returns a default EID based on the registration handle

Returns
A EID object.

Definition at line 435 of file Registration.cpp.

Referenced by dtn::api::BinaryStreamClient::eventConnectionUp(), dtn::api::NativeSession::NativeSession(), dtn::api::OrderedStreamHandler::OrderedStreamHandler(), dtn::api::OrderedStreamHandler::put(), dtn::api::NativeSession::resetEndpoint(), and dtn::api::ExtendedApiHandler::run().

ibrcommon::Timer::time_t dtn::api::Registration::getExpireTime ( ) const

gets the expire time of this registration if it is persistent

See Also
ibrcommon::Timer::get_current_time()
Exceptions
NotPersistentExceptionthe registration is not persistent
Returns
the expire time according to ibrcommon::Timer::get_current_time()

Definition at line 481 of file Registration.cpp.

References isPersistent().

Here is the call graph for this function:

const std::string & dtn::api::Registration::getHandle ( ) const

returns the handle of this registration

Returns

Definition at line 440 of file Registration.cpp.

Referenced by dtn::api::ApiServer::componentRun(), dtn::api::BinaryStreamClient::eventConnectionUp(), dtn::api::ApiServer::freeRegistration(), dtn::api::NativeSession::getHandle(), dtn::api::ExtendedApiHandler::run(), and dtn::api::ApiServer::timeout().

const std::set< dtn::data::EID > dtn::api::Registration::getSubscriptions ( )
Returns
A list of active subscriptions.

Definition at line 166 of file Registration.cpp.

Referenced by dtn::api::NativeSession::clearRegistration(), dtn::api::NativeSession::getSubscriptions(), and dtn::api::ExtendedApiHandler::run().

bool dtn::api::Registration::hasSubscribed ( const dtn::data::EID &  endpoint)

check if this registration has subscribed to a specific endpoint

Parameters
endpoint
Returns

Definition at line 160 of file Registration.cpp.

Referenced by dtn::api::ApiServer::raiseEvent().

bool dtn::api::Registration::isPersistent ( )

returns the persistent state of this registration and also sets the persistent state to false, if the timer is expired

Returns
the persistent state

Definition at line 456 of file Registration.cpp.

References ibrcommon::Timer::get_current_time().

Referenced by dtn::api::ApiServer::freeRegistration(), getExpireTime(), dtn::api::ApiServer::getRegistration(), and dtn::api::ApiServer::timeout().

Here is the call graph for this function:

bool dtn::api::Registration::isPersistent ( ) const

returns the persistent state of this registration

Returns
the persistent state

Definition at line 466 of file Registration.cpp.

References ibrcommon::Timer::get_current_time().

Here is the call graph for this function:

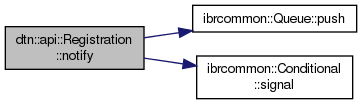

void dtn::api::Registration::notify ( const NOTIFY_CALL  call)

notify the corresponding client about something happen

Definition at line 124 of file Registration.cpp.

References NOTIFY_BUNDLE_AVAILABLE, ibrcommon::Queue< T >::push(), and ibrcommon::Conditional::signal().

Referenced by dtn::api::ApiServer::raiseEvent(), and subscribe().

Here is the call graph for this function:

bool dtn::api::Registration::operator< ( const Registration &  other) const

compares and order a registration (using the handle)

Definition at line 421 of file Registration.cpp.

bool dtn::api::Registration::operator== ( const std::string &  other) const

compares the local handle with the given one

Definition at line 405 of file Registration.cpp.

bool dtn::api::Registration::operator== ( const Registration &  other) const

compares another registration with this one

Definition at line 413 of file Registration.cpp.

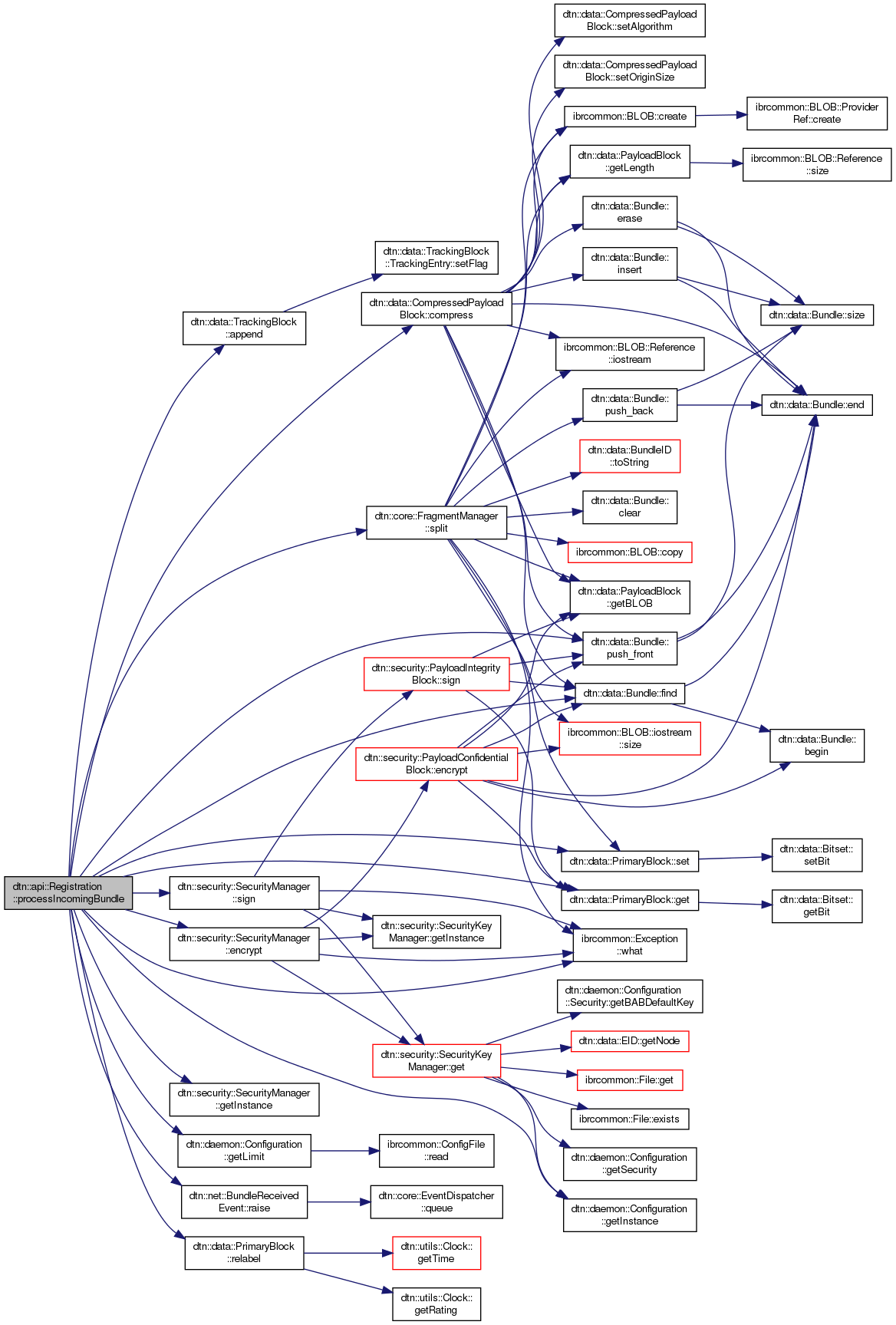

void dtn::api::Registration::processIncomingBundle ( const dtn::data::EID &  source,
dtn::data::Bundle &  bundle
)
static

Definition at line 510 of file Registration.cpp.

References dtn::data::TrackingBlock::append(), dtn::data::CompressedPayloadBlock::compress(), dtn::data::CompressedPayloadBlock::COMPRESSION_ZLIB, dtn::data::PrimaryBlock::custodian, dtn::data::PrimaryBlock::destination, dtn::data::PrimaryBlock::DTNSEC_REQUEST_ENCRYPT, dtn::data::PrimaryBlock::DTNSEC_REQUEST_SIGN, dtn::security::SecurityManager::encrypt(), dtn::data::Bundle::find(), dtn::data::PrimaryBlock::get(), dtn::security::SecurityManager::getInstance(), dtn::daemon::Configuration::getInstance(), dtn::daemon::Configuration::getLimit(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::data::PrimaryBlock::IBRDTN_REQUEST_COMPRESSION, dtn::core::BundleCore::local, dtn::data::Bundle::push_front(), dtn::net::BundleReceivedEvent::raise(), dtn::data::PrimaryBlock::relabel(), dtn::data::PrimaryBlock::reportto, dtn::data::PrimaryBlock::set(), dtn::security::SecurityManager::sign(), dtn::data::BundleID::source, dtn::core::FragmentManager::split(), dtn::data::BundleID::timestamp, ibrcommon::LogLevel::warning, and ibrcommon::Exception::what().

Referenced by dtn::api::BinaryStreamClient::run(), dtn::api::ExtendedApiHandler::run(), and dtn::api::NativeSession::send().

Here is the call graph for this function:

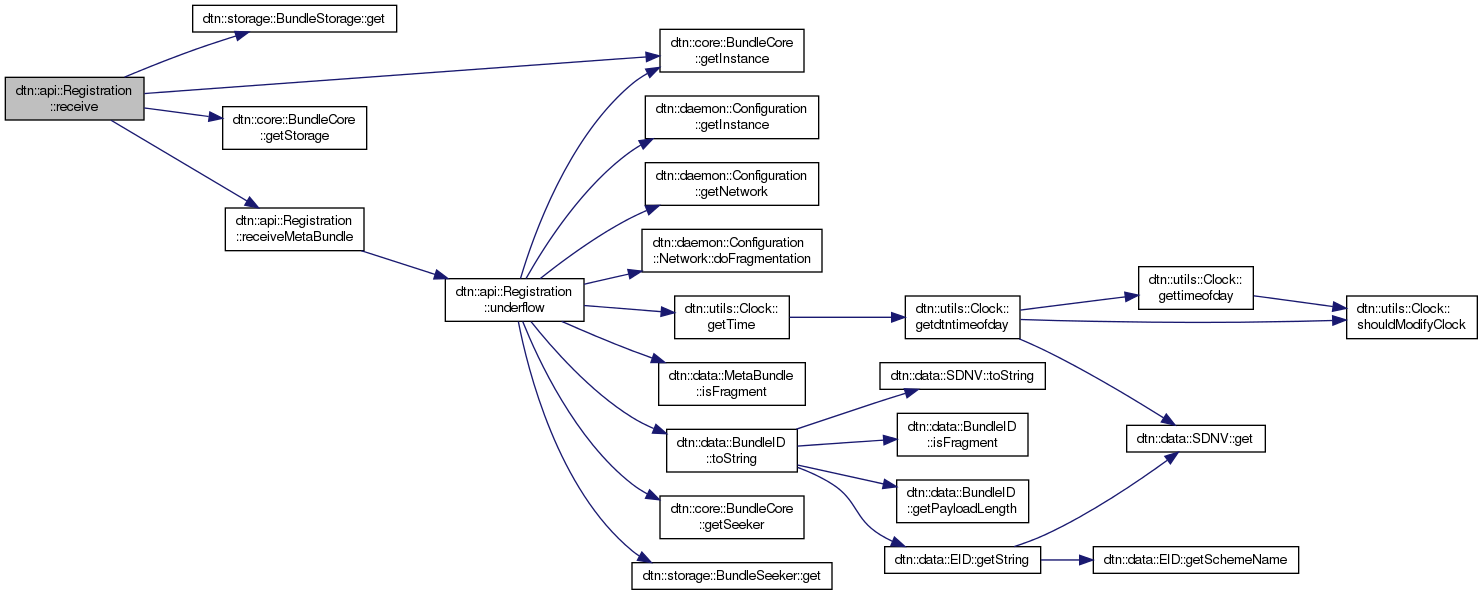

dtn::data::Bundle dtn::api::Registration::receive ( )
throw (dtn::storage::NoBundleFoundException
)

Receive a bundle from the queue. If the queue is empty, it will query the storage for more bundles (up to 10). If no bundle is found and the queue is empty an exception is thrown.

Returns

Definition at line 183 of file Registration.cpp.

References dtn::storage::BundleStorage::get(), dtn::core::BundleCore::getInstance(), dtn::core::BundleCore::getStorage(), and receiveMetaBundle().

Here is the call graph for this function:

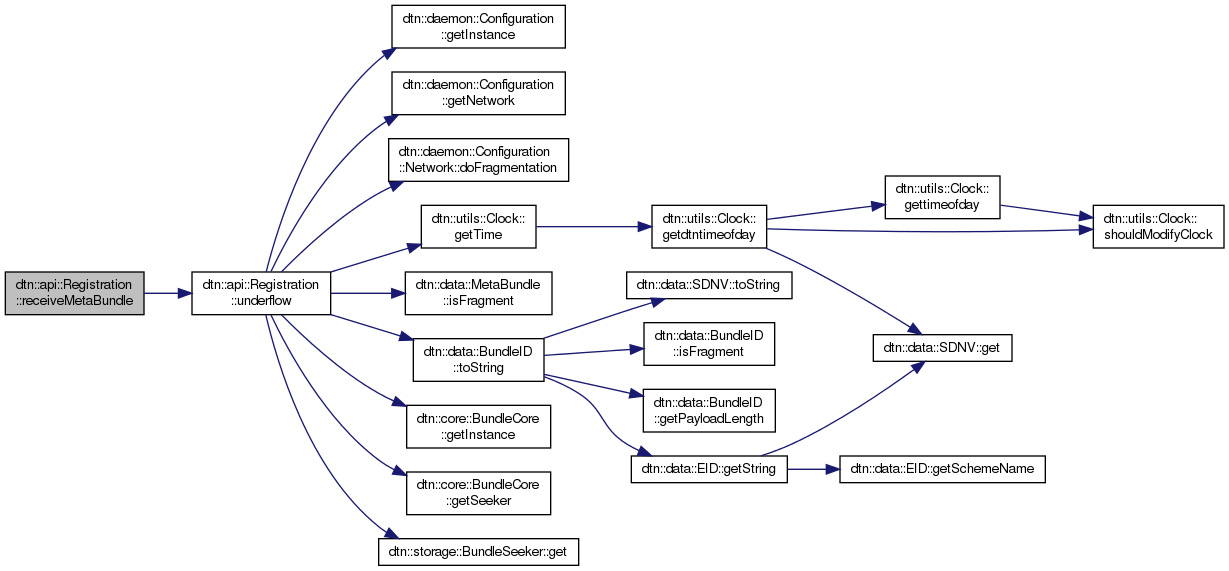

dtn::data::MetaBundle dtn::api::Registration::receiveMetaBundle ( )
throw (dtn::storage::NoBundleFoundException
)

Definition at line 195 of file Registration.cpp.

References IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, ibrcommon::QueueUnblockedException::QUEUE_ABORT, ibrcommon::QueueUnblockedException::reason, and underflow().

Referenced by dtn::api::OrderedStreamHandler::get(), receive(), and dtn::api::NativeSession::receive().

Here is the call graph for this function:

void dtn::api::Registration::reset ( )

resets the underlying queues (if you want to continue using the registration after an abort call

void dtn::api::Registration::setFilterFragments ( bool  val)

Allows to disable the re-assemble of fragments

Definition at line 476 of file Registration.cpp.

void dtn::api::Registration::setPersistent ( ibrcommon::Timer::time_t  lifetime)

make this registration persistent

Parameters
lifetimethe lifetime of the registration in seconds

Definition at line 445 of file Registration.cpp.

References ibrcommon::Timer::get_current_time().

Referenced by dtn::api::ExtendedApiHandler::run().

Here is the call graph for this function:

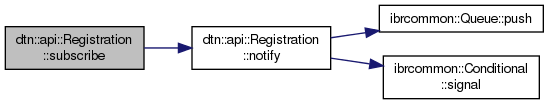

void dtn::api::Registration::subscribe ( const dtn::data::EID &  endpoint)

subscribe to a end-point

Definition at line 383 of file Registration.cpp.

References notify(), and NOTIFY_BUNDLE_AVAILABLE.

Referenced by dtn::api::BinaryStreamClient::eventConnectionUp(), dtn::api::ExtendedApiHandler::ExtendedApiHandler(), dtn::api::NativeSession::resetEndpoint(), dtn::api::OrderedStreamHandler::run(), and dtn::api::ExtendedApiHandler::run().

Here is the call graph for this function:

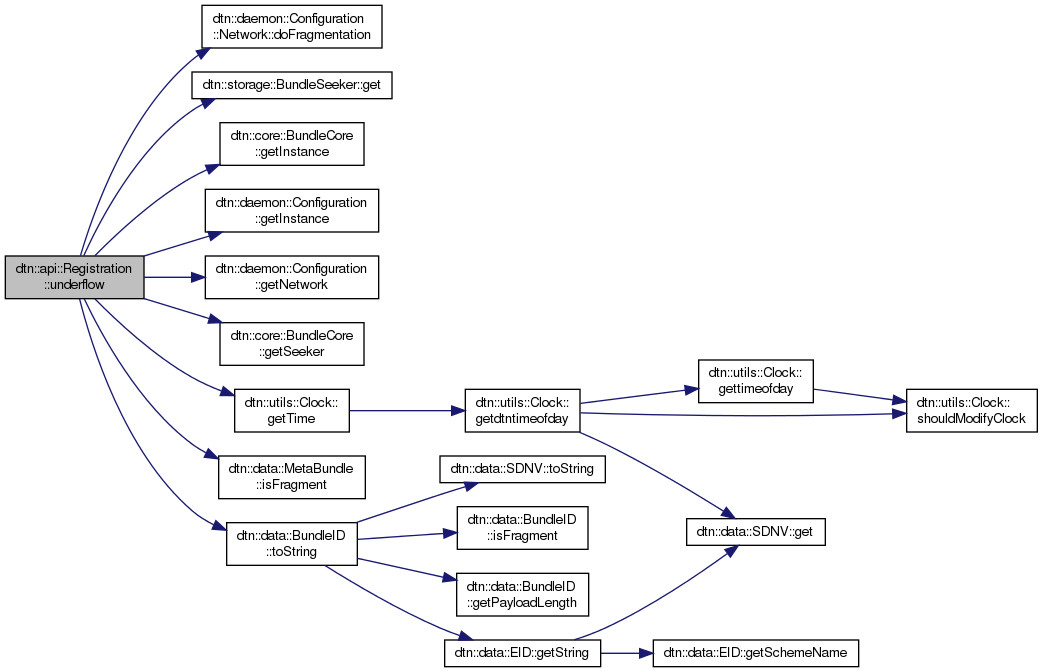

void dtn::api::Registration::underflow ( )
protected

search for bundles in the storage

Definition at line 221 of file Registration.cpp.

References dtn::data::MetaBundle::destination, dtn::daemon::Configuration::Network::doFragmentation(), dtn::storage::BundleSeeker::get(), dtn::core::BundleCore::getInstance(), dtn::daemon::Configuration::getInstance(), dtn::daemon::Configuration::getNetwork(), dtn::core::BundleCore::getSeeker(), dtn::utils::Clock::getTime(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::data::MetaBundle::isFragment(), dtn::core::BundleCore::max_bundles_in_transit, dtn::data::BundleID::source, and dtn::data::BundleID::toString().

Referenced by receiveMetaBundle().

Here is the call graph for this function:

void dtn::api::Registration::unsetPersistent ( )

remove the persistent flag of this registration

Definition at line 451 of file Registration.cpp.

void dtn::api::Registration::unsubscribe ( const dtn::data::EID &  endpoint)

unsubscribe to a end-point

Definition at line 396 of file Registration.cpp.

Referenced by dtn::api::NativeSession::clearRegistration(), dtn::api::BinaryStreamClient::eventConnectionDown(), dtn::api::NativeSession::resetEndpoint(), dtn::api::OrderedStreamHandler::run(), and dtn::api::ExtendedApiHandler::run().

Registration::NOTIFY_CALL dtn::api::Registration::wait ( )

wait for the next notify event

Returns

Definition at line 155 of file Registration.cpp.

References ibrcommon::Queue< T >::getnpop().

Here is the call graph for this function:

void dtn::api::Registration::wait_for_bundle ( size_t  timeout = 0)

wait for available bundle

Definition at line 138 of file Registration.cpp.

References ibrcommon::Conditional::wait().

Referenced by dtn::api::OrderedStreamHandler::get(), and dtn::api::NativeSession::receive().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
