dtn::routing::NeighborDatabase Class Reference

#include <NeighborDatabase.h>

Inheritance diagram for dtn::routing::NeighborDatabase:

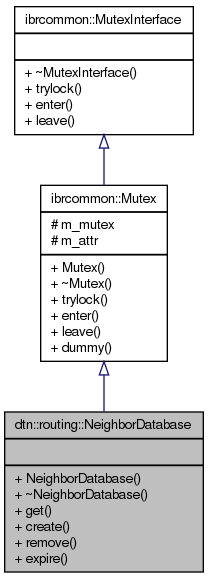

Collaboration diagram for dtn::routing::NeighborDatabase:

Classes
class	AlreadyInTransitException
class	BloomfilterNotAvailableException
class	DatasetNotAvailableException
class	NeighborEntry
class	NeighborNotAvailableException
class	NoMoreTransfersAvailable
class	NoRouteKnownException

Public Member Functions
	NeighborDatabase ()
virtual	~NeighborDatabase ()
NeighborDatabase::NeighborEntry &	get (const dtn::data::EID &eid, bool noCached=false) throw (NeighborNotAvailableException)
NeighborDatabase::NeighborEntry &	create (const dtn::data::EID &eid) throw ()
void	remove (const dtn::data::EID &eid)
void	expire (const dtn::data::Timestamp &timestamp)
Public Member Functions inherited from ibrcommon::Mutex
	Mutex (MUTEX_TYPE type=MUTEX_NORMAL)
virtual	~Mutex ()
virtual void	trylock () throw (MutexException)
virtual void	enter () throw (MutexException)
virtual void	leave () throw (MutexException)
Public Member Functions inherited from ibrcommon::MutexInterface
virtual	~MutexInterface ()=0

Additional Inherited Members
Public Types inherited from ibrcommon::Mutex
enum	MUTEX_TYPE { MUTEX_NORMAL = PTHREAD_MUTEX_NORMAL, MUTEX_RECURSIVE = PTHREAD_MUTEX_RECURSIVE, MUTEX_ERRORCHECK = PTHREAD_MUTEX_ERRORCHECK }
Static Public Member Functions inherited from ibrcommon::Mutex
static MutexInterface &	dummy ()
Protected Attributes inherited from ibrcommon::Mutex
pthread_mutex_t	m_mutex
pthread_mutexattr_t	m_attr

Detailed Description

The neighbor database contains collected information about neighbors. This includes the last timestamp on which a neighbor was seen, the bundles this neighbors has received (bloomfilter with age).

Definition at line 45 of file NeighborDatabase.h.

Constructor & Destructor Documentation

dtn::routing::NeighborDatabase::NeighborDatabase

(

)

Definition at line 187 of file NeighborDatabase.cpp.

dtn::routing::NeighborDatabase::~NeighborDatabase ( )

virtual

Definition at line 191 of file NeighborDatabase.cpp.

Member Function Documentation

NeighborDatabase::NeighborEntry & dtn::routing::NeighborDatabase::create	(	const dtn::data::EID &	eid)
throw	(
	)

Query a neighbor entry of the database. If the entry does not exists, a new entry is created and returned.

Parameters

eid	The EID of the neighbor.

Returns

The neighbor entry reference.

Definition at line 202 of file NeighborDatabase.cpp.

void dtn::routing::NeighborDatabase::expire

(

const dtn::data::Timestamp &

timestamp)

trigger expire mechanisms for bloomfilter and bundle summary

Parameters

timestamp

Definition at line 127 of file NeighborDatabase.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::expire(), and dtn::routing::NeighborDatabase::NeighborEntry::isExpired().

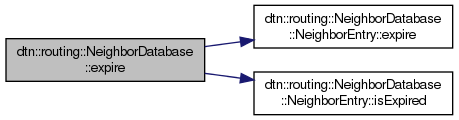

Here is the call graph for this function:

NeighborDatabase::NeighborEntry & dtn::routing::NeighborDatabase::get	(	const dtn::data::EID &	eid,
		bool	noCached = false
	)
throw	(	NeighborNotAvailableException
	)

Query a neighbor entry of the database. It throws an exception if the neighbor is not available.

Parameters

eid	The EID of the neighbor
noCached	Only returns an entry if the neighbor is available

Returns

The neighbor entry reference.

Definition at line 218 of file NeighborDatabase.cpp.

References dtn::core::BundleCore::getInstance().

Referenced by dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::routing::ProphetRoutingExtension::processHandshake(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

Here is the call graph for this function:

void dtn::routing::NeighborDatabase::remove

(

const dtn::data::EID &

eid)

Remove an entry of the database.

Parameters

eid	The EID of the neighbor to remove.

Definition at line 235 of file NeighborDatabase.cpp.

---

The documentation for this class was generated from the following files:

• daemon/src/routing/NeighborDatabase.h
• daemon/src/routing/NeighborDatabase.cpp
