#include <RoutingExtension.h>

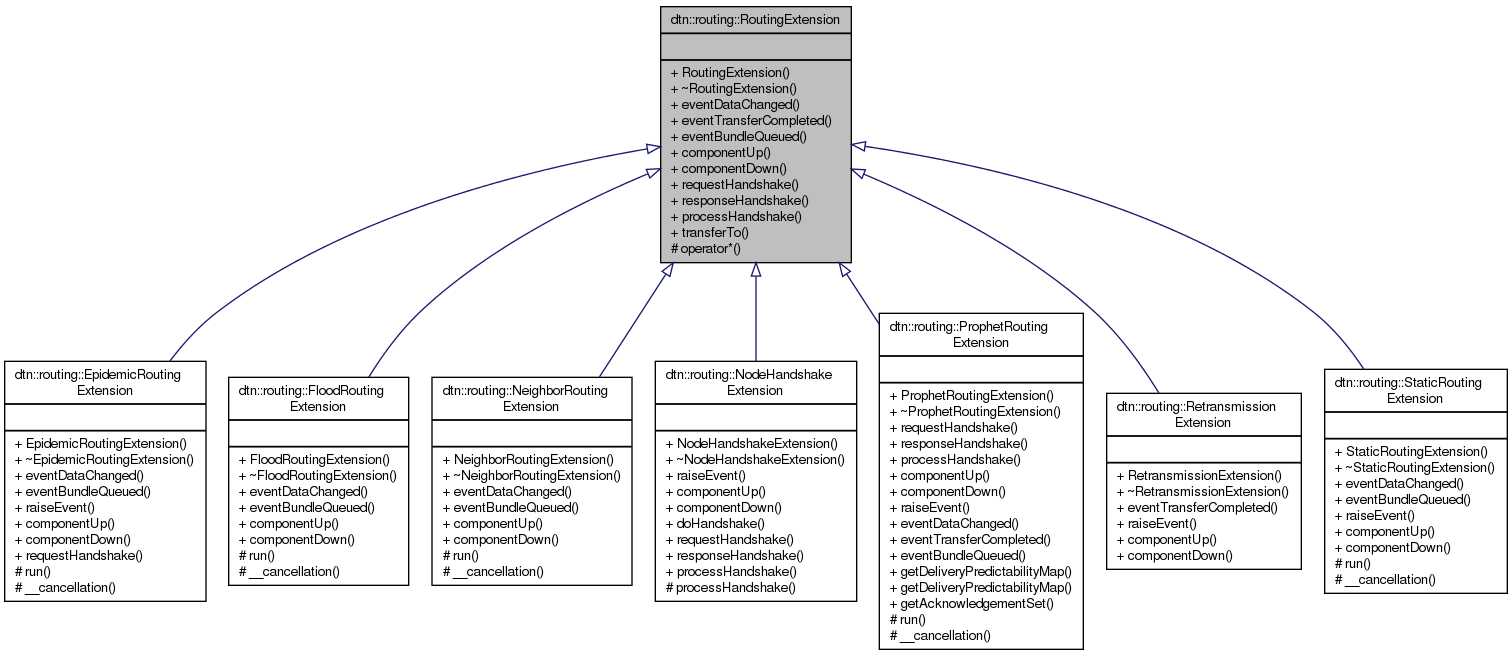

Inheritance diagram for dtn::routing::RoutingExtension:

Collaboration diagram for dtn::routing::RoutingExtension:

Public Types
enum	CALLBACK_ACTION { ROUTE_CALLBACK_FORWARDED = 0, ROUTE_CALLBACK_ABORTED = 1, ROUTE_CALLBACK_REJECTED = 2, ROUTE_CALLBACK_DELETED = 3 }

Public Member Functions
	RoutingExtension ()

virtual	~RoutingExtension ()=0

virtual void	eventDataChanged (const dtn::data::EID &peer) throw ()

virtual void	eventTransferCompleted (const dtn::data::EID &peer, const dtn::data::MetaBundle &meta) throw ()

virtual void	eventBundleQueued (const dtn::data::EID &peer, const dtn::data::MetaBundle &meta) throw ()

virtual void	componentUp ()=0 throw ()

virtual void	componentDown ()=0 throw ()

virtual void	requestHandshake (const dtn::data::EID &, NodeHandshake &) const

virtual void	responseHandshake (const dtn::data::EID &, const NodeHandshake &, NodeHandshake &)

virtual void	processHandshake (const dtn::data::EID &, NodeHandshake &)

void	transferTo (const dtn::data::EID &destination, const dtn::data::MetaBundle &meta)

Protected Member Functions
BaseRouter &	operator* ()

Detailed Description

Definition at line 37 of file RoutingExtension.h.

Member Enumeration Documentation

enum dtn::routing::RoutingExtension::CALLBACK_ACTION

Enumerator
ROUTE_CALLBACK_FORWARDED
ROUTE_CALLBACK_ABORTED
ROUTE_CALLBACK_REJECTED
ROUTE_CALLBACK_DELETED

Definition at line 65 of file RoutingExtension.h.

Constructor & Destructor Documentation

dtn::routing::RoutingExtension::RoutingExtension ( )

base implementation of the Extension class

Definition at line 36 of file RoutingExtension.cpp.

dtn::routing::RoutingExtension::~RoutingExtension ( )

pure virtual

Definition at line 39 of file RoutingExtension.cpp.

Member Function Documentation

virtual void dtn::routing::RoutingExtension::componentDown	(	)
throw	(
	)

pure virtual

Implemented in dtn::routing::ProphetRoutingExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::StaticRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, dtn::routing::RetransmissionExtension, and dtn::routing::NodeHandshakeExtension.

Referenced by dtn::routing::BaseRouter::extensionsDown().

virtual void dtn::routing::RoutingExtension::componentUp	(	)
throw	(
	)

pure virtual

Implemented in dtn::routing::ProphetRoutingExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::StaticRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, dtn::routing::RetransmissionExtension, and dtn::routing::NodeHandshakeExtension.

Referenced by dtn::routing::BaseRouter::extensionsUp().

virtual void dtn::routing::RoutingExtension::eventBundleQueued	(	const dtn::data::EID &	peer,
		const dtn::data::MetaBundle &	meta
	)
throw	(
	)

inlinevirtual

This method is called every time a bundle was queued

Reimplemented in dtn::routing::ProphetRoutingExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::StaticRoutingExtension, and dtn::routing::NeighborRoutingExtension.

Definition at line 59 of file RoutingExtension.h.

virtual void dtn::routing::RoutingExtension::eventDataChanged	(	const dtn::data::EID &	peer)
throw	(
	)

inlinevirtual

This method is called every time something has changed. The module should search again for bundles to transfer to the given peer.

Reimplemented in dtn::routing::ProphetRoutingExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, and dtn::routing::StaticRoutingExtension.

Definition at line 49 of file RoutingExtension.h.

virtual void dtn::routing::RoutingExtension::eventTransferCompleted	(	const dtn::data::EID &	peer,
		const dtn::data::MetaBundle &	meta
	)
throw	(
	)

inlinevirtual

This method is called every time a bundle has been completed successfully

Reimplemented in dtn::routing::ProphetRoutingExtension, and dtn::routing::RetransmissionExtension.

Definition at line 54 of file RoutingExtension.h.

BaseRouter & dtn::routing::RoutingExtension::operator* ( )

protected

Definition at line 42 of file RoutingExtension.cpp.

References dtn::core::BundleCore::getInstance(), and dtn::core::BundleCore::getRouter().

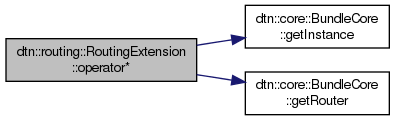

Here is the call graph for this function:

virtual void dtn::routing::RoutingExtension::processHandshake	(	const dtn::data::EID &	,
		NodeHandshake &
	)

inlinevirtual

After a handshake has been completed every module can process the handshake response.

Parameters

The	EID of the other node.
The	received handshake object.

Reimplemented in dtn::routing::ProphetRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 95 of file RoutingExtension.h.

Referenced by dtn::routing::BaseRouter::processHandshake().

virtual void dtn::routing::RoutingExtension::requestHandshake	(	const dtn::data::EID &	,
		NodeHandshake &
	)		const

inlinevirtual

If some data of another node is required. These method is called to collect all necessary identifier of data items.

Parameters

The	EID of the other node.
The	object to put the requested identifier into.

Reimplemented in dtn::routing::EpidemicRoutingExtension, dtn::routing::ProphetRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 79 of file RoutingExtension.h.

Referenced by dtn::routing::BaseRouter::requestHandshake().

virtual void dtn::routing::RoutingExtension::responseHandshake	(	const dtn::data::EID &	,
		const NodeHandshake &	,
		NodeHandshake &
	)

inlinevirtual

If a handshake message is received, this method is called to collect the different data items generated by the router extensions.

Parameters

The	EID of the other node.
The	received handshake object.
The	response for the received handshake.

Reimplemented in dtn::routing::ProphetRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 88 of file RoutingExtension.h.

Referenced by dtn::routing::BaseRouter::responseHandshake().

void dtn::routing::RoutingExtension::transferTo	(	const dtn::data::EID &	destination,
		const dtn::data::MetaBundle &	meta
	)

Transfer one bundle to another node.

Exceptions

BundleNotFoundException if the bundle do not exist.

Parameters

destination	The EID of the other node.
id	The ID of the bundle to transfer. This bundle must be stored in the storage.

Transfer one bundle to another node.

Parameters

destination	The EID of the other node.
id	The ID of the bundle to transfer. This bundle must be stored in the storage.

Definition at line 52 of file RoutingExtension.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::acquireTransfer(), dtn::core::BundleCore::getConnectionManager(), dtn::core::BundleCore::getInstance(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, dtn::net::ConnectionManager::queue(), and dtn::data::BundleID::toString().

Referenced by dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

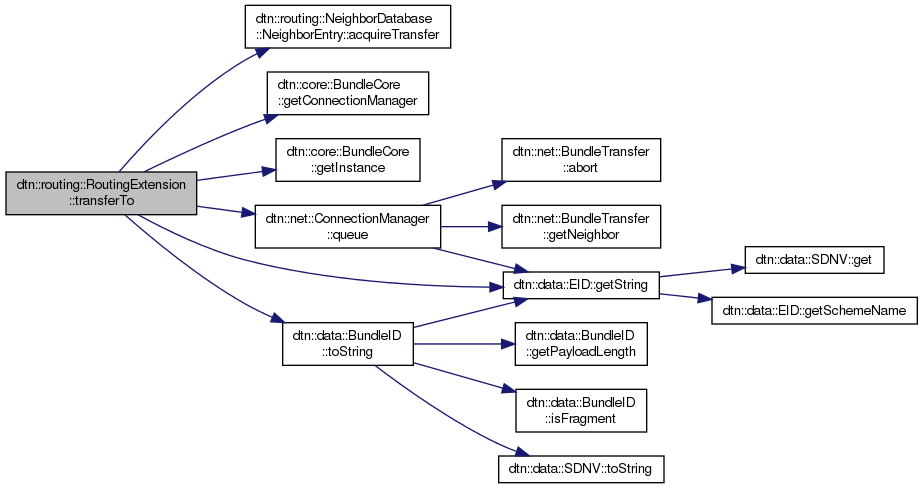

Here is the call graph for this function:

The documentation for this class was generated from the following files:

daemon/src/routing/RoutingExtension.h
daemon/src/routing/RoutingExtension.cpp
