Routing extension for PRoPHET routing. More...

#include <ProphetRoutingExtension.h>

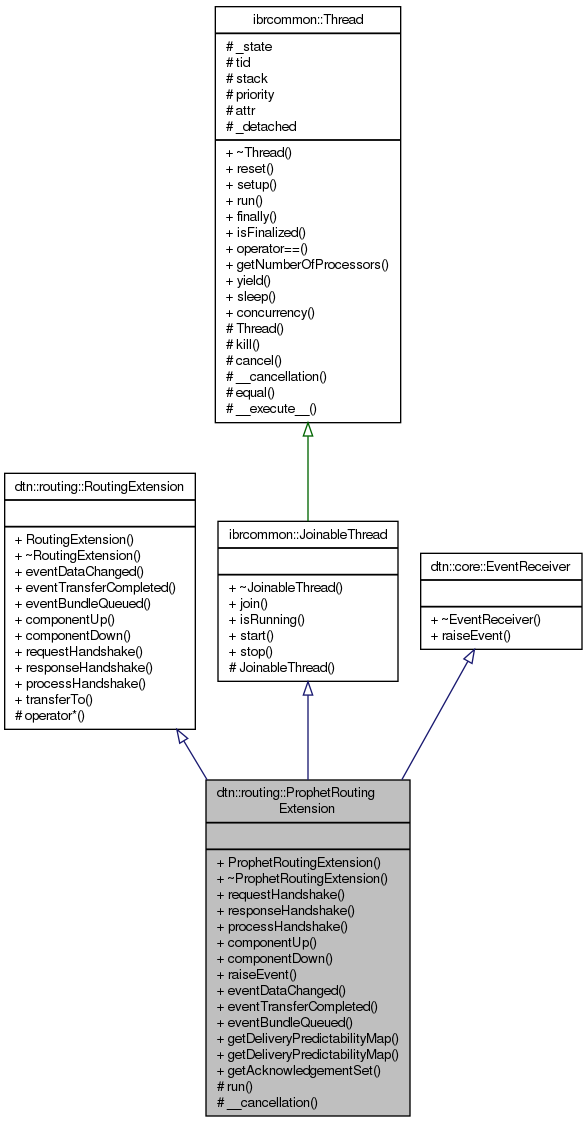

Inheritance diagram for dtn::routing::ProphetRoutingExtension:

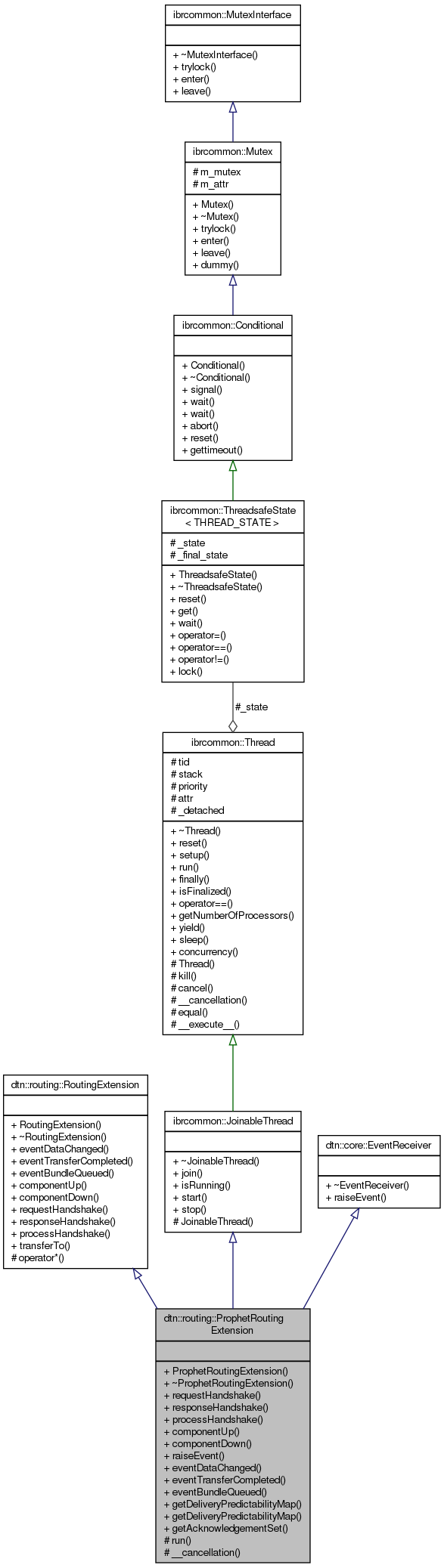

Collaboration diagram for dtn::routing::ProphetRoutingExtension:

Classes
class	GRTR_Strategy
	The GRTR forwarding strategy. Using this strategy, packets are forwarding, if the neighbor has a higher predictability then the destination. More...

class	GTMX_Strategy
	The GTMX forwarding strategy. Using this strategy, packets are forwarding, if the neighbor has a higher predictability then the destination, but at most NF_max times. More...

Public Member Functions
	ProphetRoutingExtension (ForwardingStrategy *strategy, float p_encounter_max, float p_encounter_first, float p_first_threshold, float beta, float gamma, float delta, size_t time_unit, size_t i_typ, dtn::data::Timestamp next_exchange_timeout)

virtual	~ProphetRoutingExtension ()

virtual void	requestHandshake (const dtn::data::EID &, NodeHandshake &) const

virtual void	responseHandshake (const dtn::data::EID &, const NodeHandshake &, NodeHandshake &)

virtual void	processHandshake (const dtn::data::EID &, NodeHandshake &)

virtual void	componentUp () throw ()

virtual void	componentDown () throw ()

virtual void	raiseEvent (const dtn::core::Event *evt) throw ()

virtual void	eventDataChanged (const dtn::data::EID &peer) throw ()

virtual void	eventTransferCompleted (const dtn::data::EID &peer, const dtn::data::MetaBundle &meta) throw ()

virtual void	eventBundleQueued (const dtn::data::EID &peer, const dtn::data::MetaBundle &meta) throw ()

ibrcommon::ThreadsafeReference < DeliveryPredictabilityMap >	getDeliveryPredictabilityMap ()

ibrcommon::ThreadsafeReference < const DeliveryPredictabilityMap >	getDeliveryPredictabilityMap () const

ibrcommon::ThreadsafeReference < const AcknowledgementSet >	getAcknowledgementSet () const

Public Member Functions inherited from dtn::routing::RoutingExtension
	RoutingExtension ()

virtual	~RoutingExtension ()=0

void	transferTo (const dtn::data::EID &destination, const dtn::data::MetaBundle &meta)

Public Member Functions inherited from ibrcommon::JoinableThread
virtual	~JoinableThread ()=0

void	join (void) throw (ThreadException)

bool	isRunning (void)

void	start (int priority=0) throw (ThreadException)

void	stop () throw ()

Public Member Functions inherited from dtn::core::EventReceiver
virtual	~EventReceiver ()=0

Protected Member Functions
virtual void	run () throw ()

void	__cancellation () throw ()

Protected Member Functions inherited from dtn::routing::RoutingExtension
BaseRouter &	operator* ()

Protected Member Functions inherited from ibrcommon::JoinableThread
	JoinableThread (size_t size=DEFAULT_STACKSIZE)

Protected Member Functions inherited from ibrcommon::Thread
virtual	~Thread ()=0

void	reset () throw (ThreadException)

virtual void	setup (void) throw ()

virtual void	finally (void) throw ()

bool	isFinalized () throw ()

bool	operator== (const ibrcommon::Thread &other)

	Thread (size_t stack=DEFAULT_STACKSIZE)

int	kill (int sig)

void	cancel () throw ()

Friends
class	ForwardingStrategy

Additional Inherited Members
Public Types inherited from dtn::routing::RoutingExtension
enum	CALLBACK_ACTION { ROUTE_CALLBACK_FORWARDED = 0, ROUTE_CALLBACK_ABORTED = 1, ROUTE_CALLBACK_REJECTED = 2, ROUTE_CALLBACK_DELETED = 3 }

Static Protected Member Functions inherited from ibrcommon::Thread
static size_t	getNumberOfProcessors ()

static void	yield (void)

static void	sleep (time_t timeout)

static void	concurrency (int level)

static bool	equal (pthread_t thread1, pthread_t thread2)

static void *	__execute__ (void *obj) throw ()

Detailed Description

Routing extension for PRoPHET routing.

PRoPHET keeps track of predictabilities to see specific other nodes. i.e. Nodes that are seen often will have a high predictabilites attached and forwarding decisions can be made based on these predictabilites. In addition, these predictabilites are updated transitively by exchanging predictabilityMaps with neighbors. For a detailed description of the protocol, see draft-irtf-dtnrg-prophet-09

Definition at line 53 of file ProphetRoutingExtension.h.

Constructor & Destructor Documentation

dtn::routing::ProphetRoutingExtension::ProphetRoutingExtension	(	ForwardingStrategy *	strategy,
		float	p_encounter_max,
		float	p_encounter_first,
		float	p_first_threshold,
		float	beta,
		float	gamma,
		float	delta,
		size_t	time_unit,
		size_t	i_typ,
		dtn::data::Timestamp	next_exchange_timeout
	)

Definition at line 54 of file ProphetRoutingExtension.cpp.

References dtn::utils::Clock::getMonotonicTimestamp(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::LogLevel::info, dtn::core::BundleCore::local, dtn::routing::DeliveryPredictabilityMap::set(), and dtn::routing::ForwardingStrategy::setProphetRouter().

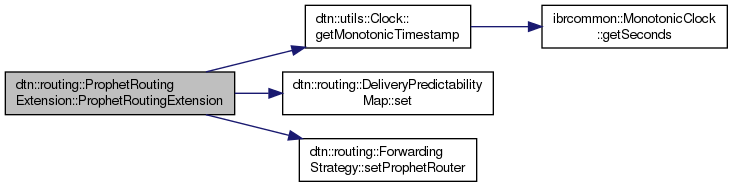

Here is the call graph for this function:

dtn::routing::ProphetRoutingExtension::~ProphetRoutingExtension ( )

virtual

Definition at line 75 of file ProphetRoutingExtension.cpp.

References ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::stop().

Here is the call graph for this function:

Member Function Documentation

void dtn::routing::ProphetRoutingExtension::__cancellation	(	)
throw	(
	)

protectedvirtual

Implements ibrcommon::Thread.

Definition at line 540 of file ProphetRoutingExtension.cpp.

References ibrcommon::Queue< T >::abort().

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::componentDown	(	)
throw	(
	)

virtual

Implements dtn::routing::RoutingExtension.

Definition at line 307 of file ProphetRoutingExtension.cpp.

References ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::JoinableThread::join(), dtn::core::EventDispatcher< E >::remove(), ibrcommon::JoinableThread::stop(), and ibrcommon::Exception::what().

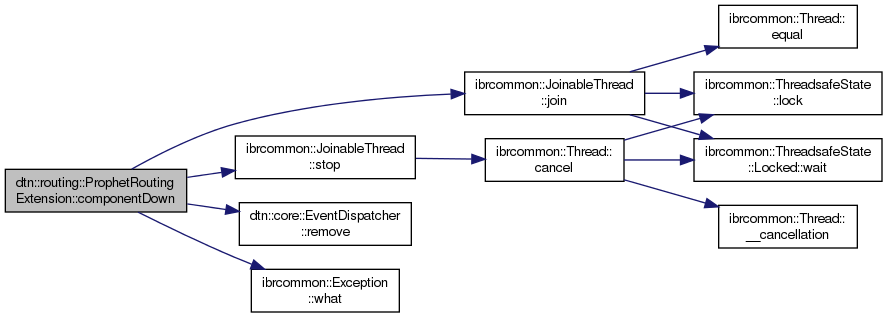

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::componentUp	(	)
throw	(
	)

virtual

Implements dtn::routing::RoutingExtension.

Definition at line 289 of file ProphetRoutingExtension.cpp.

References dtn::core::EventDispatcher< E >::add(), ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::Queue< T >::reset(), ibrcommon::JoinableThread::start(), and ibrcommon::Exception::what().

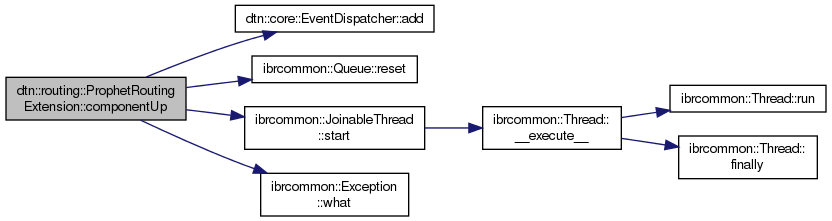

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::eventBundleQueued	(	const dtn::data::EID &	peer,
		const dtn::data::MetaBundle &	meta
	)
throw	(
	)

virtual

This method is called every time a bundle was queued

Reimplemented from dtn::routing::RoutingExtension.

Definition at line 217 of file ProphetRoutingExtension.cpp.

References dtn::core::BundleCore::getConnectionManager(), dtn::core::Node::getEID(), dtn::core::BundleCore::getInstance(), and dtn::net::ConnectionManager::getNeighbors().

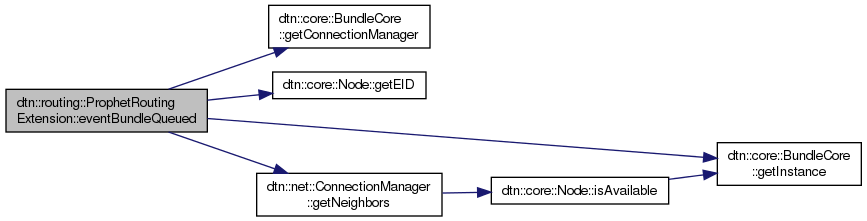

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::eventDataChanged	(	const dtn::data::EID &	peer)
throw	(
	)

virtual

This method is called every time something has changed. The module should search again for bundles to transfer to the given peer.

Reimplemented from dtn::routing::RoutingExtension.

Definition at line 202 of file ProphetRoutingExtension.cpp.

void dtn::routing::ProphetRoutingExtension::eventTransferCompleted	(	const dtn::data::EID &	peer,
		const dtn::data::MetaBundle &	meta
	)
throw	(
	)

virtual

This method is called every time a bundle has been completed successfully

Reimplemented from dtn::routing::RoutingExtension.

Definition at line 208 of file ProphetRoutingExtension.cpp.

References dtn::routing::ProphetRoutingExtension::GTMX_Strategy::addForward().

Here is the call graph for this function:

ibrcommon::ThreadsafeReference< const AcknowledgementSet > dtn::routing::ProphetRoutingExtension::getAcknowledgementSet ( ) const

Returns a threadsafe reference to the AcknowledgementSet. I.e. the corresponding Mutex is locked while this object exists.

Definition at line 336 of file ProphetRoutingExtension.cpp.

ibrcommon::ThreadsafeReference< DeliveryPredictabilityMap > dtn::routing::ProphetRoutingExtension::getDeliveryPredictabilityMap ( )

Returns a threadsafe reference to the DeliveryPredictabilityMap. I.e. the corresponding Mutex is locked while this object exists. In addition, the map is aged before it is returned.

Definition at line 322 of file ProphetRoutingExtension.cpp.

ibrcommon::ThreadsafeReference< const DeliveryPredictabilityMap > dtn::routing::ProphetRoutingExtension::getDeliveryPredictabilityMap ( ) const

Returns a threadsafe reference to the DeliveryPredictabilityMap. I.e. the corresponding Mutex is locked while this object exists. This const version does not age the map.

Definition at line 331 of file ProphetRoutingExtension.cpp.

void dtn::routing::ProphetRoutingExtension::processHandshake	(	const dtn::data::EID &	neighbor,
		NodeHandshake &	response
	)

virtual

See Also: BaseRouter::Extension::processHandshake

Reimplemented from dtn::routing::RoutingExtension.

Definition at line 106 of file ProphetRoutingExtension.cpp.

References dtn::core::BundlePurgeEvent::ACK_RECIEVED, dtn::routing::AcknowledgementSet::begin(), dtn::core::BUNDLE_DELETED, dtn::data::MetaBundle::destination, dtn::data::PrimaryBlock::DESTINATION_IS_SINGLETON, dtn::routing::AcknowledgementSet::end(), dtn::data::MetaBundle::get(), dtn::storage::BundleStorage::get(), dtn::routing::NodeHandshake::get(), dtn::routing::NeighborDatabase::get(), dtn::data::EID::getNode(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::core::BundleCore::local, dtn::routing::AcknowledgementSet::merge(), dtn::data::StatusReportBlock::NO_ADDITIONAL_INFORMATION, dtn::routing::NeighborDatabase::NeighborEntry::putDataset(), dtn::core::BundlePurgeEvent::raise(), dtn::core::BundleEvent::raise(), dtn::data::EID::sameHost(), dtn::data::BundleID::toString(), and ibrcommon::LogLevel::warning.

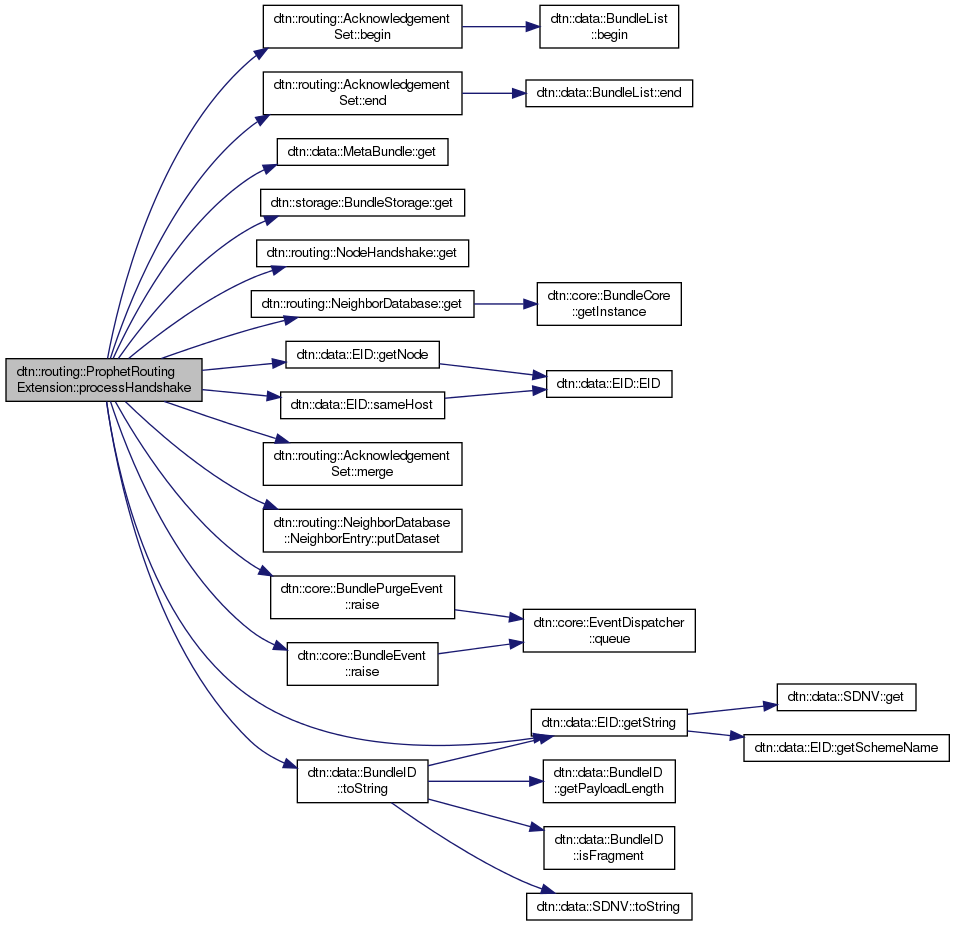

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::raiseEvent	(	const dtn::core::Event *	evt)
throw	(
	)

virtual

Implements dtn::core::EventReceiver.

Definition at line 234 of file ProphetRoutingExtension.cpp.

References dtn::core::BundlePurgeEvent::bundle, dtn::core::BundlePurgeEvent::DELIVERED, dtn::utils::Clock::getMonotonicTimestamp(), dtn::core::TimeEvent::getTimestamp(), dtn::routing::NodeHandshakeEvent::HANDSHAKE_COMPLETED, dtn::routing::NodeHandshakeEvent::HANDSHAKE_UPDATED, dtn::routing::NodeHandshakeEvent::peer, dtn::core::BundlePurgeEvent::reason, and dtn::routing::NodeHandshakeEvent::state.

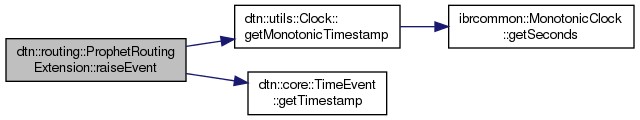

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::requestHandshake	(	const dtn::data::EID &	,
		NodeHandshake &	handshake
	)		const

virtual

See Also: BaseRouter::Extension::requestHandshake

Reimplemented from dtn::routing::RoutingExtension.

Definition at line 82 of file ProphetRoutingExtension.cpp.

References dtn::routing::NodeHandshake::addRequest(), dtn::routing::DeliveryPredictabilityMap::identifier, dtn::routing::AcknowledgementSet::identifier, and dtn::routing::BloomFilterSummaryVector::identifier.

Here is the call graph for this function:

void dtn::routing::ProphetRoutingExtension::responseHandshake	(	const dtn::data::EID &	neighbor,
		const NodeHandshake &	request,
		NodeHandshake &	response
	)
