IBR-DTNSuite  0.12
Classes | Public Member Functions | Static Public Attributes | List of all members
dtn::data::SchedulingBlock Class Reference

#include <SchedulingBlock.h>

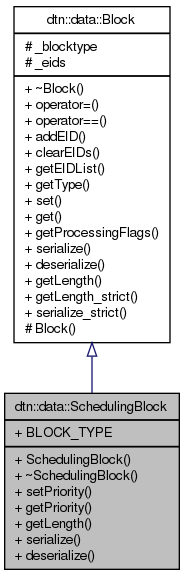

Inheritance diagram for dtn::data::SchedulingBlock:
Inheritance graph
Collaboration diagram for dtn::data::SchedulingBlock:
Collaboration graph

Classes

class  Factory


Public Member Functions

 SchedulingBlock ()

virtual ~SchedulingBlock ()

void setPriority (Integer p)

Integer getPriority () const

virtual Length getLength () const

virtual std::ostream & serialize (std::ostream &stream, Length &length) const

virtual std::istream & deserialize (std::istream &stream, const Length &length)

- Public Member Functions inherited from dtn::data::Block
virtual ~Block ()

Block & operator= (const Block &block)

bool operator== (const block_t &id) const

virtual void addEID (const dtn::data::EID &eid)

virtual void clearEIDs ()

virtual const eid_list & getEIDList () const

const block_t & getType () const

void set (ProcFlags flag, const bool &value)

bool get (ProcFlags flag) const

const Bitset< ProcFlags > & getProcessingFlags () const

virtual Length getLength_strict () const

virtual std::ostream & serialize_strict (std::ostream &stream, Length &length) const


Static Public Attributes

static const dtn::data::block_t BLOCK_TYPE = 198


Additional Inherited Members

- Public Types inherited from dtn::data::Block
enum  ProcFlags {
  REPLICATE_IN_EVERY_FRAGMENT = 1, TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED = 1 << 0x01, DELETE_BUNDLE_IF_NOT_PROCESSED = 1 << 0x02, LAST_BLOCK = 1 << 0x03,
  DISCARD_IF_NOT_PROCESSED = 1 << 0x04, FORWARDED_WITHOUT_PROCESSED = 1 << 0x05, BLOCK_CONTAINS_EIDS = 1 << 0x06
}

typedef std::list< dtn::data::EID > eid_list

- Protected Member Functions inherited from dtn::data::Block
 Block (block_t blocktype)

- Protected Attributes inherited from dtn::data::Block
block_t _blocktype

eid_list _eids


Detailed Description

Definition at line 34 of file SchedulingBlock.h.

Constructor & Destructor Documentation

dtn::data::SchedulingBlock::SchedulingBlock ( )

Definition at line 35 of file SchedulingBlock.cpp.

References dtn::data::Block::REPLICATE_IN_EVERY_FRAGMENT, and dtn::data::Block::set().

Referenced by dtn::data::SchedulingBlock::Factory::create().

Here is the call graph for this function:

dtn::data::SchedulingBlock::~SchedulingBlock ( )
virtual

Definition at line 42 of file SchedulingBlock.cpp.

Member Function Documentation

std::istream & dtn::data::SchedulingBlock::deserialize ( std::istream &  stream,
const Length &  length
)
virtual

Deserialize the derived block payload.

Parameters
streamA input stream to deserialize from.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 78 of file SchedulingBlock.cpp.

Length dtn::data::SchedulingBlock::getLength ( ) const
virtual

Return the length of the payload, if this were an abstract block. It is the length put in the third field, after block type and processing flags.

Implements dtn::data::Block.

Definition at line 57 of file SchedulingBlock.cpp.

References dtn::data::Bitset< E >::getBit(), and dtn::data::SDNV< E >::getLength().

Referenced by serialize().

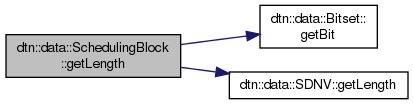

Here is the call graph for this function:

Integer dtn::data::SchedulingBlock::getPriority ( ) const

Definition at line 52 of file SchedulingBlock.cpp.

Referenced by dtn::storage::SQLiteDatabase::store().

std::ostream & dtn::data::SchedulingBlock::serialize ( std::ostream &  stream,
Length &  length
) const
virtual

Serialize the derived block payload.

Parameters
streamA output stream to serialize into.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 66 of file SchedulingBlock.cpp.

References getLength().

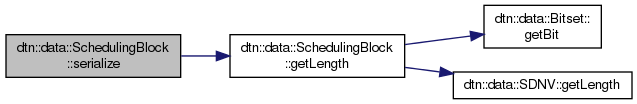

Here is the call graph for this function:

void dtn::data::SchedulingBlock::setPriority ( Integer  p)

Definition at line 46 of file SchedulingBlock.cpp.

References dtn::data::Bitset< E >::setBit().

Here is the call graph for this function:

Member Data Documentation

const dtn::data::block_t dtn::data::SchedulingBlock::BLOCK_TYPE = 198
static

Definition at line 45 of file SchedulingBlock.h.

The documentation for this class was generated from the following files:
