dtn::data::ExtensionBlock Class Reference

#include <ExtensionBlock.h>

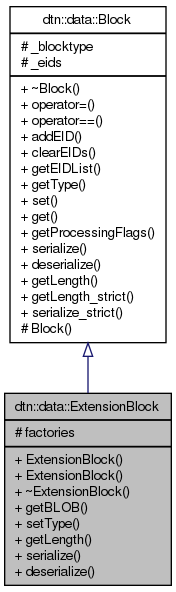

Inheritance diagram for dtn::data::ExtensionBlock:
Inheritance graph

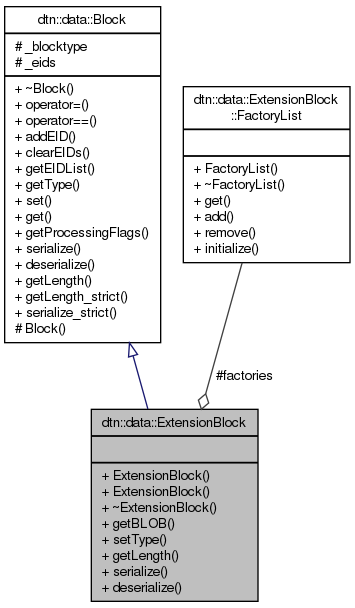

Collaboration diagram for dtn::data::ExtensionBlock:
Collaboration graph

Classes

class  Factory

class  FactoryList


Public Member Functions

 ExtensionBlock ()

 ExtensionBlock (ibrcommon::BLOB::Reference ref)

virtual ~ExtensionBlock ()

ibrcommon::BLOB::Reference getBLOB () const

void setType (block_t type)

virtual Length getLength () const

virtual std::ostream & serialize (std::ostream &stream, Length &length) const

virtual std::istream & deserialize (std::istream &stream, const Length &length)

- Public Member Functions inherited from dtn::data::Block
virtual ~Block ()

Block & operator= (const Block &block)

bool operator== (const block_t &id) const

virtual void addEID (const dtn::data::EID &eid)

virtual void clearEIDs ()

virtual const eid_list & getEIDList () const

const block_t & getType () const

void set (ProcFlags flag, const bool &value)

bool get (ProcFlags flag) const

const Bitset< ProcFlags > & getProcessingFlags () const

virtual Length getLength_strict () const

virtual std::ostream & serialize_strict (std::ostream &stream, Length &length) const


Static Protected Attributes

static FactoryList * factories = NULL


Additional Inherited Members

- Public Types inherited from dtn::data::Block
enum  ProcFlags {
  REPLICATE_IN_EVERY_FRAGMENT = 1, TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED = 1 << 0x01, DELETE_BUNDLE_IF_NOT_PROCESSED = 1 << 0x02, LAST_BLOCK = 1 << 0x03,
  DISCARD_IF_NOT_PROCESSED = 1 << 0x04, FORWARDED_WITHOUT_PROCESSED = 1 << 0x05, BLOCK_CONTAINS_EIDS = 1 << 0x06
}

typedef std::list< dtn::data::EID > eid_list

- Protected Member Functions inherited from dtn::data::Block
 Block (block_t blocktype)

- Protected Attributes inherited from dtn::data::Block
block_t _blocktype

eid_list _eids


Detailed Description

Definition at line 34 of file ExtensionBlock.h.

Constructor & Destructor Documentation

dtn::data::ExtensionBlock::ExtensionBlock ( )

Definition at line 95 of file ExtensionBlock.cpp.

dtn::data::ExtensionBlock::ExtensionBlock ( ibrcommon::BLOB::Reference  ref)

Definition at line 100 of file ExtensionBlock.cpp.

dtn::data::ExtensionBlock::~ExtensionBlock ( )
virtual

Definition at line 105 of file ExtensionBlock.cpp.

Member Function Documentation

std::istream & dtn::data::ExtensionBlock::deserialize ( std::istream &  stream,
const Length &  length
)
virtual

Deserialize the derived block payload.

Parameters
streamA input stream to deserialize from.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 138 of file ExtensionBlock.cpp.

References ibrcommon::BLOB::iostream::clear(), ibrcommon::BLOB::copy(), dtn::data::Block::FORWARDED_WITHOUT_PROCESSED, ibrcommon::BLOB::Reference::iostream(), dtn::data::Block::set(), and ibrcommon::Exception::what().

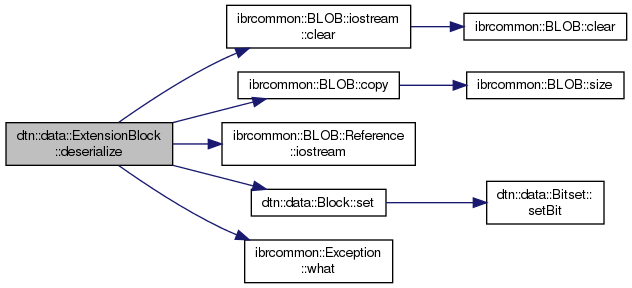

Here is the call graph for this function:

ibrcommon::BLOB::Reference dtn::data::ExtensionBlock::getBLOB ( ) const

Definition at line 109 of file ExtensionBlock.cpp.

Length dtn::data::ExtensionBlock::getLength ( ) const
virtual

Return the length of the payload, if this were an abstract block. It is the length put in the third field, after block type and processing flags.

Implements dtn::data::Block.

Definition at line 119 of file ExtensionBlock.cpp.

References ibrcommon::BLOB::Reference::size().

Here is the call graph for this function:

std::ostream & dtn::data::ExtensionBlock::serialize ( std::ostream &  stream,
Length &  length
) const
virtual

Serialize the derived block payload.

Parameters
streamA output stream to serialize into.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 124 of file ExtensionBlock.cpp.

References ibrcommon::BLOB::copy(), ibrcommon::BLOB::Reference::iostream(), ibrcommon::BLOB::iostream::size(), and ibrcommon::Exception::what().

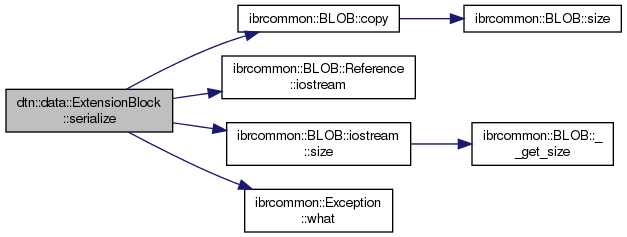

Here is the call graph for this function:

void dtn::data::ExtensionBlock::setType ( block_t  type)

Definition at line 114 of file ExtensionBlock.cpp.

References dtn::data::Block::_blocktype.

Referenced by dtn::data::BundleBuilder::insert().

Member Data Documentation

ExtensionBlock::FactoryList * dtn::data::ExtensionBlock::factories = NULL
staticprotected

Definition at line 81 of file ExtensionBlock.h.

Referenced by dtn::data::ExtensionBlock::Factory::Factory(), dtn::data::ExtensionBlock::Factory::get(), dtn::data::ExtensionBlock::FactoryList::initialize(), and dtn::data::ExtensionBlock::Factory::~Factory().

The documentation for this class was generated from the following files:
