IBR-DTNSuite  0.12
Public Member Functions | Static Public Attributes | List of all members
dtn::data::PayloadBlock Class Reference

#include <PayloadBlock.h>

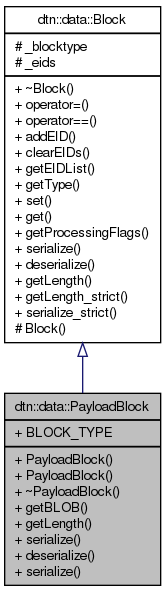

Inheritance diagram for dtn::data::PayloadBlock:
Inheritance graph
Collaboration diagram for dtn::data::PayloadBlock:
Collaboration graph

Public Member Functions

 PayloadBlock ()

 PayloadBlock (ibrcommon::BLOB::Reference ref)

virtual ~PayloadBlock ()

ibrcommon::BLOB::Reference getBLOB () const

virtual Length getLength () const

virtual std::ostream & serialize (std::ostream &stream, Length &length) const

virtual std::istream & deserialize (std::istream &stream, const Length &length)

std::ostream & serialize (std::ostream &stream, const Length &clip_offset, const Length &clip_length) const

- Public Member Functions inherited from dtn::data::Block
virtual ~Block ()

Block & operator= (const Block &block)

bool operator== (const block_t &id) const

virtual void addEID (const dtn::data::EID &eid)

virtual void clearEIDs ()

virtual const eid_list & getEIDList () const

const block_t & getType () const

void set (ProcFlags flag, const bool &value)

bool get (ProcFlags flag) const

const Bitset< ProcFlags > & getProcessingFlags () const

virtual Length getLength_strict () const

virtual std::ostream & serialize_strict (std::ostream &stream, Length &length) const


Static Public Attributes

static const dtn::data::block_t BLOCK_TYPE = 1


Additional Inherited Members

- Public Types inherited from dtn::data::Block
enum  ProcFlags {
  REPLICATE_IN_EVERY_FRAGMENT = 1, TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED = 1 << 0x01, DELETE_BUNDLE_IF_NOT_PROCESSED = 1 << 0x02, LAST_BLOCK = 1 << 0x03,
  DISCARD_IF_NOT_PROCESSED = 1 << 0x04, FORWARDED_WITHOUT_PROCESSED = 1 << 0x05, BLOCK_CONTAINS_EIDS = 1 << 0x06
}

typedef std::list< dtn::data::EID > eid_list

- Protected Member Functions inherited from dtn::data::Block
 Block (block_t blocktype)

- Protected Attributes inherited from dtn::data::Block
block_t _blocktype

eid_list _eids


Detailed Description

Definition at line 35 of file PayloadBlock.h.

Constructor & Destructor Documentation

dtn::data::PayloadBlock::PayloadBlock ( )

Definition at line 33 of file PayloadBlock.cpp.

dtn::data::PayloadBlock::PayloadBlock ( ibrcommon::BLOB::Reference  ref)

Definition at line 38 of file PayloadBlock.cpp.

dtn::data::PayloadBlock::~PayloadBlock ( )
virtual

Definition at line 43 of file PayloadBlock.cpp.

Member Function Documentation

std::istream & dtn::data::PayloadBlock::deserialize ( std::istream &  stream,
const Length &  length
)
virtual

Deserialize the derived block payload.

Parameters
streamA input stream to deserialize from.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 87 of file PayloadBlock.cpp.

References ibrcommon::BLOB::iostream::clear(), ibrcommon::BLOB::copy(), dtn::data::Block::FORWARDED_WITHOUT_PROCESSED, ibrcommon::BLOB::Reference::iostream(), dtn::data::Block::set(), and ibrcommon::Exception::what().

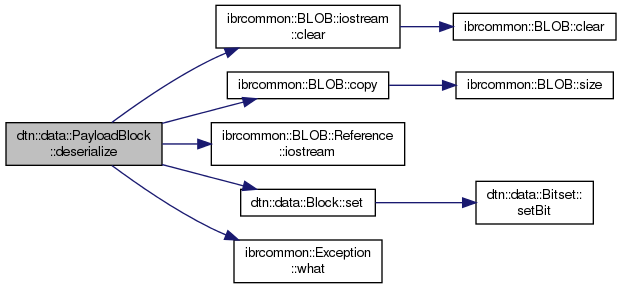

Here is the call graph for this function:

ibrcommon::BLOB::Reference dtn::data::PayloadBlock::getBLOB ( ) const

Definition at line 47 of file PayloadBlock.cpp.

Referenced by dtn::daemon::CapsuleWorker::callbackBundleReceived(), dtn::daemon::EchoWorker::callbackBundleReceived(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::data::CompressedPayloadBlock::compress(), dtn::utils::Utils::decapsule(), dtn::utils::Utils::encapsule(), dtn::security::PayloadConfidentialBlock::encrypt(), dtn::data::CompressedPayloadBlock::extract(), main(), dtn::data::operator<<(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::api::NativeSession::read(), dtn::api::ExtendedApiHandler::run(), dtn::security::PayloadIntegrityBlock::sign(), dtn::core::FragmentManager::split(), dtn::storage::SQLiteBundleStorage::store(), dtn::api::BundleStreamBuf::underflow(), dtn::data::CustodySignalBlock::write(), dtn::data::StatusReportBlock::write(), and dtn::api::NativeSession::write().

Length dtn::data::PayloadBlock::getLength ( ) const
virtual

Return the length of the payload, if this were an abstract block. It is the length put in the third field, after block type and processing flags.

Implements dtn::data::Block.

Definition at line 52 of file PayloadBlock.cpp.

References ibrcommon::BLOB::Reference::size().

Referenced by dtn::data::CompressedPayloadBlock::compress(), dtn::data::Bundle::getPayloadLength(), dtn::data::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::DefaultSerializer::serialize(), and dtn::core::FragmentManager::split().

Here is the call graph for this function:

std::ostream & dtn::data::PayloadBlock::serialize ( std::ostream &  stream,
Length &  length
) const
virtual

Serialize the derived block payload.

Parameters
streamA output stream to serialize into.
Returns
The same reference as given with the stream parameter.

Implements dtn::data::Block.

Definition at line 57 of file PayloadBlock.cpp.

References ibrcommon::BLOB::copy(), ibrcommon::BLOB::Reference::iostream(), ibrcommon::BLOB::iostream::size(), and ibrcommon::Exception::what().

Referenced by dtn::data::DefaultSerializer::serialize().

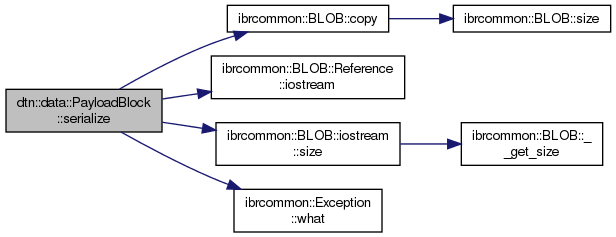

Here is the call graph for this function:

std::ostream & dtn::data::PayloadBlock::serialize ( std::ostream &  stream,
const Length &  clip_offset,
const Length &  clip_length
) const

serialize only a part of the payload

Parameters
streamThe stream to serialize to.
clip_offsetThe data offset of the payload.
clip_lengthThe length of the data.
Returns
The previously given stream.

Definition at line 72 of file PayloadBlock.cpp.

References ibrcommon::BLOB::copy(), ibrcommon::BLOB::Reference::iostream(), and ibrcommon::Exception::what().

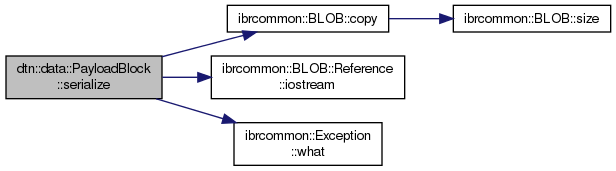

Here is the call graph for this function:

Member Data Documentation

const dtn::data::block_t dtn::data::PayloadBlock::BLOCK_TYPE = 1
static

Definition at line 38 of file PayloadBlock.h.

Referenced by dtn::data::CompressedPayloadBlock::compress(), dtn::security::SecurityBlock::decryptBlock(), dtn::data::CompressedPayloadBlock::extract(), dtn::storage::SQLiteBundleStorage::get(), dtn::data::BundleBuilder::insert(), dtn::security::MutableSerializer::operator<<(), dtn::data::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::ExtendedApiHandler::run(), and dtn::storage::SQLiteBundleStorage::store().

The documentation for this class was generated from the following files:
