#include <BundleCore.h>

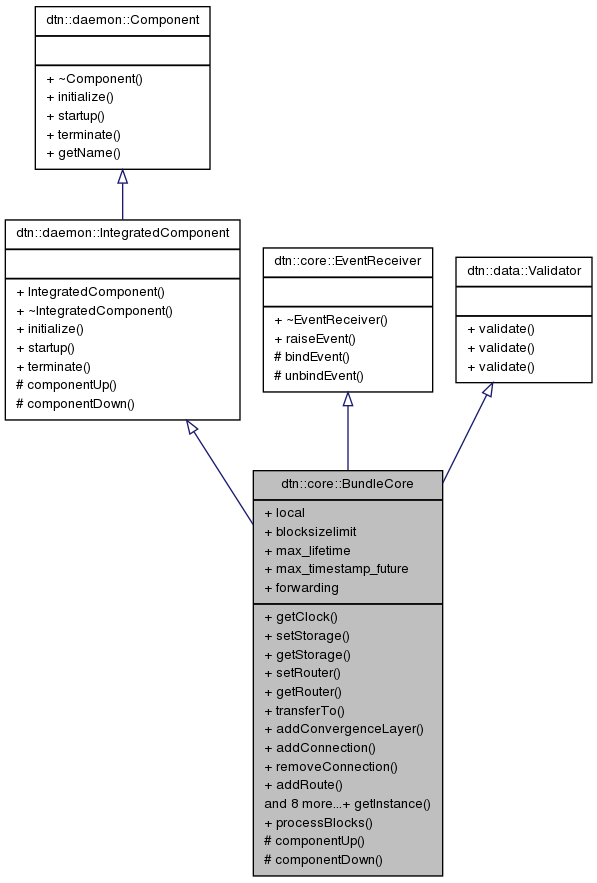

Inheritance diagram for dtn::core::BundleCore:

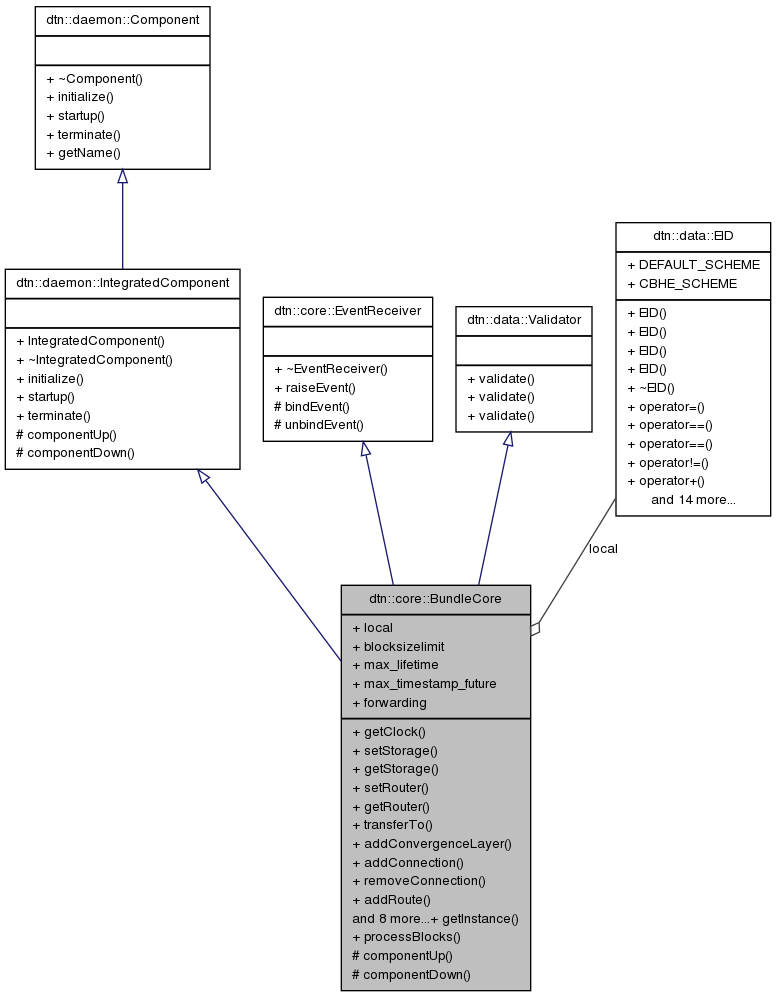

Collaboration diagram for dtn::core::BundleCore:

Public Member Functions
WallClock &	getClock ()
void	setStorage (dtn::storage::BundleStorage *storage)
dtn::storage::BundleStorage &	getStorage ()
void	setRouter (dtn::routing::BaseRouter *router)
dtn::routing::BaseRouter &	getRouter () const
void	transferTo (const dtn::data::EID &destination, const dtn::data::BundleID &bundle)
void	addConvergenceLayer (dtn::net::ConvergenceLayer *cl)
void	addConnection (const dtn::core::Node &n)
void	removeConnection (const dtn::core::Node &n)
void	addRoute (const dtn::data::EID &destination, const dtn::data::EID &nexthop, size_t timeout=0)
void	removeRoute (const dtn::data::EID &destination, const dtn::data::EID &nexthop)
const std::set< dtn::core::Node >	getNeighbors ()
bool	isNeighbor (const dtn::core::Node &node)
const dtn::core::Node	getNeighbor (const dtn::data::EID &eid)
void	raiseEvent (const dtn::core::Event *evt)
virtual void	validate (const dtn::data::PrimaryBlock &obj) const throw (RejectedException)
virtual void	validate (const dtn::data::Block &obj, const size_t length) const throw (RejectedException)
virtual void	validate (const dtn::data::Bundle &obj) const throw (RejectedException)
virtual const std::string	getName () const
Static Public Member Functions
static BundleCore &	getInstance ()
static void	processBlocks (dtn::data::Bundle &b)
Static Public Attributes
static dtn::data::EID	local
static size_t	blocksizelimit = 0
static size_t	max_lifetime = 0
static size_t	max_timestamp_future = 0
static bool	forwarding = true
Protected Member Functions
virtual void	componentUp ()
virtual void	componentDown ()

Detailed Description

The BundleCore manage the Bundle Protocol basics

Definition at line 32 of file BundleCore.h.

Member Function Documentation

void dtn::core::BundleCore::addConnection ( const dtn::core::Node & n )

Definition at line 148 of file BundleCore.cpp.

References dtn::net::ConnectionManager::addConnection().

Referenced by __daemon_run(), and dtn_dht_handle_lookup_result().

Here is the call graph for this function:

void dtn::core::BundleCore::addConvergenceLayer ( dtn::net::ConvergenceLayer * cl )

Definition at line 143 of file BundleCore.cpp.

References dtn::net::ConnectionManager::addConvergenceLayer().

Referenced by createConvergenceLayers().

Here is the call graph for this function:

void dtn::core::BundleCore::addRoute	(	const dtn::data::EID &	destination,
		const dtn::data::EID &	nexthop,
		size_t	timeout = `0`
	)

Add a static route to the static routing module.

Parameters:

destination
nexthop
timeout

Definition at line 158 of file BundleCore.cpp.

References raiseEvent(), and dtn::routing::StaticRouteChangeEvent::ROUTE_ADD.

Referenced by dtn_dht_handle_lookup_result().

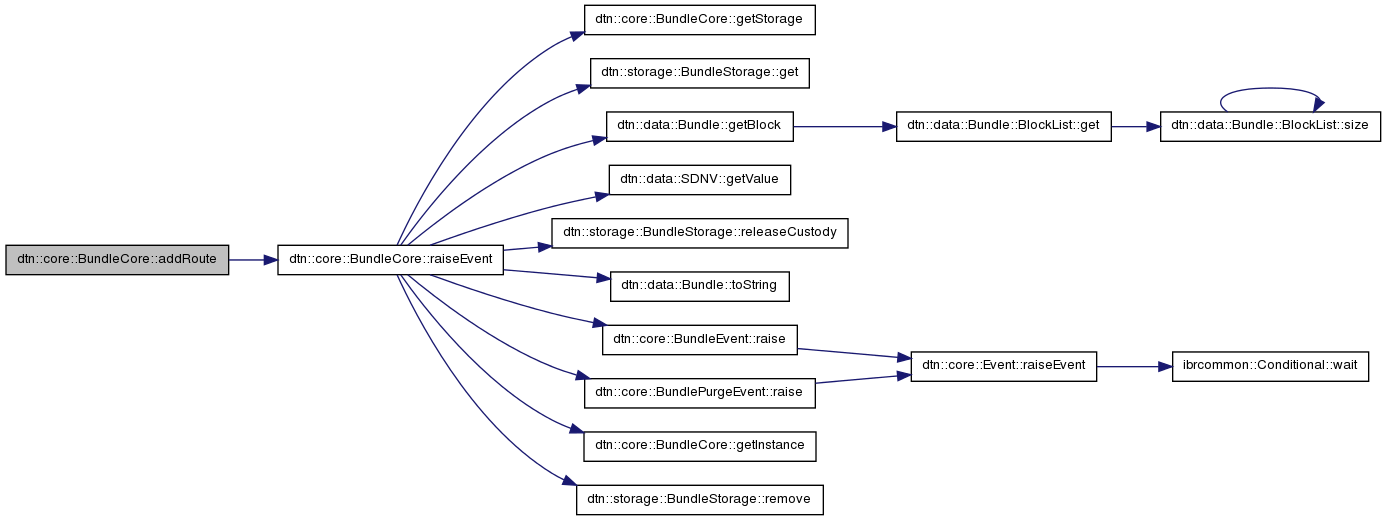

Here is the call graph for this function:

void dtn::core::BundleCore::componentDown ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 88 of file BundleCore.cpp.

References dtn::daemon::IntegratedComponent::terminate().

Here is the call graph for this function:

void dtn::core::BundleCore::componentUp ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 79 of file BundleCore.cpp.

References dtn::daemon::IntegratedComponent::initialize(), and dtn::daemon::IntegratedComponent::startup().

Here is the call graph for this function:

WallClock & dtn::core::BundleCore::getClock ( )

Definition at line 123 of file BundleCore.cpp.

BundleCore & dtn::core::BundleCore::getInstance ( ) [static]

Definition at line 48 of file BundleCore.cpp.

Referenced by dtn::daemon::CapsuleWorker::callbackBundleReceived(), dtn::core::FragmentManager::componentRun(), dtn::net::FileConvergenceLayer::componentRun(), dtn::dht::DHTNameService::componentRun(), dtn_dht_handle_lookup_result(), dtn::routing::RetransmissionExtension::notify(), dtn::routing::FloodRoutingExtension::notify(), dtn::routing::EpidemicRoutingExtension::notify(), dtn::routing::ProphetRoutingExtension::notify(), dtn::net::UDPConvergenceLayer::operator>>(), dtn::net::operator>>(), processBlocks(), dtn::net::UDPConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), raiseEvent(), dtn::api::Registration::receive(), dtn::net::LOWPANConnectionSender::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::api::ExtendedApiHandler::run(), dtn::net::DatagramConnection::run(), dtn::net::LOWPANConnection::run(), dtn::net::DownloadThread::run(), dtn::core::FragmentManager::setOffset(), dtn::routing::BaseRouter::Extension::transferTo(), dtn::api::BundleStreamBuf::underflow(), and dtn::api::Registration::underflow().

const std::string dtn::core::BundleCore::getName ( ) const [virtual]

See also:: Component::getName()

Implements dtn::daemon::Component.

Definition at line 369 of file BundleCore.cpp.

const dtn::core::Node dtn::core::BundleCore::getNeighbor ( const dtn::data::EID & eid )

Get the neighbor with the given EID.

Exceptions:

dtn::net::NeighborNotAvailableException if the neighbor is not available.

Parameters:

eid	The EID of the neighbor.

Returns:: A node object with all neighbor data.

Definition at line 178 of file BundleCore.cpp.

References dtn::net::ConnectionManager::getNeighbor().

Here is the call graph for this function:

const std::set< dtn::core::Node > dtn::core::BundleCore::getNeighbors ( )

get a set with all neighbors

Returns:

Definition at line 168 of file BundleCore.cpp.

References dtn::net::ConnectionManager::getNeighbors().

Referenced by dtn::dht::DHTNameService::componentRun(), dtn::routing::FloodRoutingExtension::notify(), dtn::routing::EpidemicRoutingExtension::notify(), dtn::routing::ProphetRoutingExtension::notify(), dtn::routing::NeighborRoutingExtension::run(), and dtn::api::ExtendedApiHandler::run().

Here is the call graph for this function:

dtn::routing::BaseRouter & dtn::core::BundleCore::getRouter ( ) const

Definition at line 104 of file BundleCore.cpp.

dtn::storage::BundleStorage & dtn::core::BundleCore::getStorage ( )

Definition at line 114 of file BundleCore.cpp.

Referenced by __daemon_run(), dtn::core::FragmentManager::componentRun(), dtn::net::FileConvergenceLayer::componentRun(), dtn::dht::DHTNameService::componentRun(), dtn::net::UDPConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), raiseEvent(), dtn::api::Registration::receive(), dtn::net::LOWPANConnectionSender::run(), dtn::api::ExtendedApiHandler::run(), dtn::core::FragmentManager::setOffset(), dtn::api::BundleStreamBuf::underflow(), and dtn::api::Registration::underflow().

bool dtn::core::BundleCore::isNeighbor ( const dtn::core::Node & node )

Checks if a node is already known as neighbor.

Parameters:

@return

Definition at line 173 of file BundleCore.cpp.

References dtn::net::ConnectionManager::isNeighbor().

Referenced by dtn_dht_handle_lookup_result().

Here is the call graph for this function:

void dtn::core::BundleCore::processBlocks ( dtn::data::Bundle & b ) [static]

Definition at line 374 of file BundleCore.cpp.

References dtn::data::CompressedPayloadBlock::BLOCK_TYPE, dtn::security::PayloadConfidentialBlock::BLOCK_TYPE, dtn::data::CompressedPayloadBlock::extract(), dtn::data::Bundle::getBlocks(), getInstance(), dtn::data::Block::getType(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Exception::what().

Referenced by dtn::api::ExtendedApiHandler::run(), and dtn::api::BundleStreamBuf::underflow().

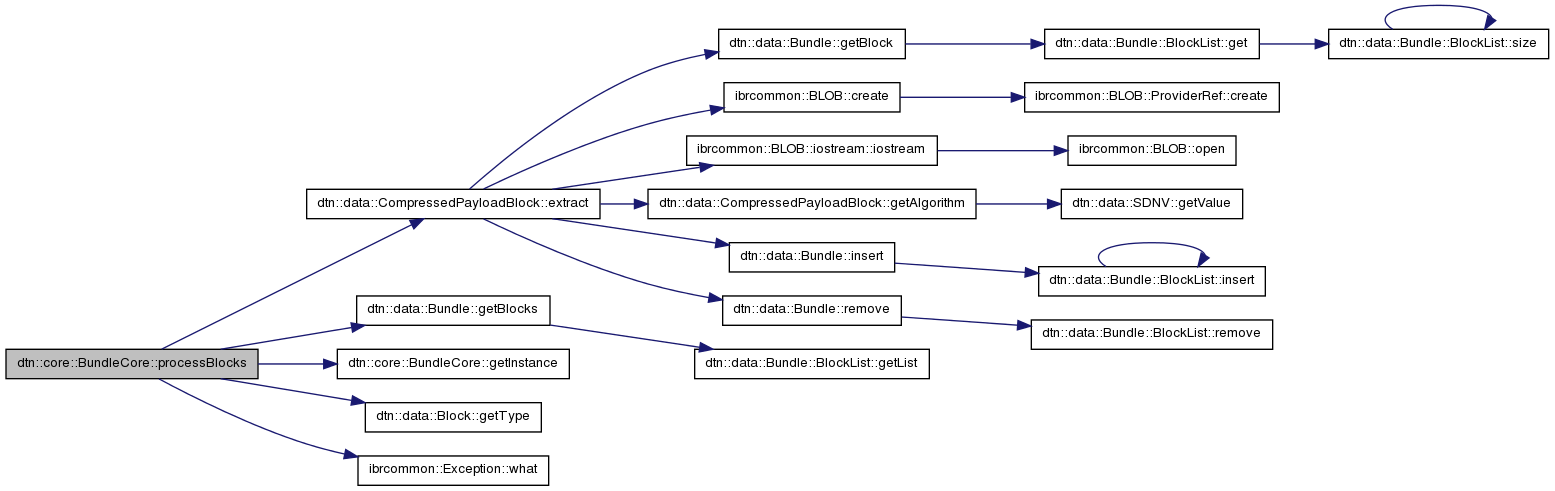

Here is the call graph for this function:

void dtn::core::BundleCore::raiseEvent ( const dtn::core::Event * evt ) [virtual]

Implements dtn::core::EventReceiver.

Definition at line 183 of file BundleCore.cpp.

References dtn::data::CustodySignalBlock::_bundle_sequence, dtn::data::CustodySignalBlock::_bundle_timestamp, dtn::data::CustodySignalBlock::_fragment_length, dtn::data::CustodySignalBlock::_fragment_offset, dtn::data::CustodySignalBlock::_source, dtn::data::PrimaryBlock::_source, dtn::core::BundlePurgeEvent::bundle, dtn::routing::QueueBundleEvent::bundle, dtn::core::BUNDLE_DELETED, dtn::core::BUNDLE_DELIVERED, dtn::data::MetaBundle::destination, dtn::data::StatusReportBlock::DESTINATION_ENDPOINT_ID_UNINTELLIGIBLE, dtn::data::BundleID::fragment, dtn::storage::BundleStorage::get(), dtn::data::Bundle::getBlock(), getInstance(), getStorage(), dtn::data::SDNV::getValue(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, local, dtn::core::BundlePurgeEvent::raise(), dtn::core::BundleEvent::raise(), dtn::storage::BundleStorage::releaseCustody(), dtn::storage::BundleStorage::remove(), and dtn::data::Bundle::toString().

Referenced by addRoute(), and removeRoute().

Here is the call graph for this function:

void dtn::core::BundleCore::removeConnection ( const dtn::core::Node & n )

Definition at line 153 of file BundleCore.cpp.

References dtn::net::ConnectionManager::removeConnection().

Here is the call graph for this function:

void dtn::core::BundleCore::removeRoute	(	const dtn::data::EID &	destination,
		const dtn::data::EID &	nexthop
	)

Remove a static route from the static routing module.

Parameters:

destination
nexthop

Definition at line 163 of file BundleCore.cpp.

References raiseEvent(), and dtn::routing::StaticRouteChangeEvent::ROUTE_DEL.

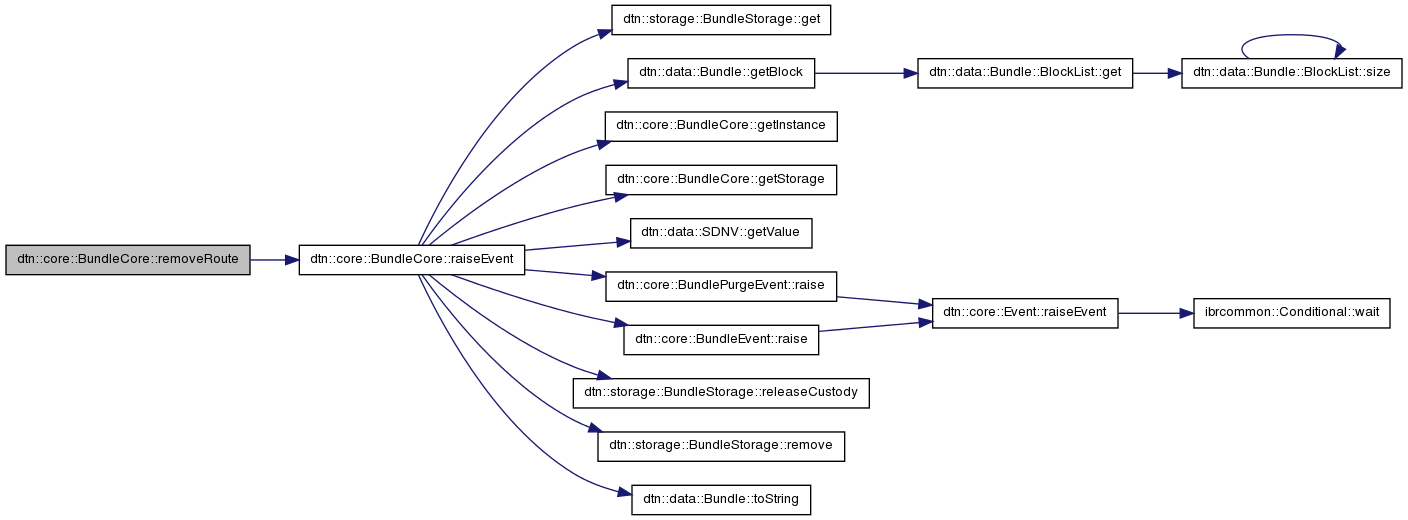

Here is the call graph for this function:

void dtn::core::BundleCore::setRouter ( dtn::routing::BaseRouter * router )

Definition at line 99 of file BundleCore.cpp.

Referenced by __daemon_run().

void dtn::core::BundleCore::setStorage ( dtn::storage::BundleStorage * storage )

Definition at line 94 of file BundleCore.cpp.

Referenced by createBundleStorage().

void dtn::core::BundleCore::transferTo	(	const dtn::data::EID &	destination,
		const dtn::data::BundleID &	bundle
	)

Definition at line 128 of file BundleCore.cpp.

References dtn::net::ConnectionManager::queue(), dtn::routing::RequeueBundleEvent::raise(), dtn::net::TransferAbortedEvent::raise(), and dtn::net::TransferAbortedEvent::REASON_CONNECTION_DOWN.

Referenced by dtn::routing::RetransmissionExtension::notify(), and dtn::routing::BaseRouter::Extension::transferTo().

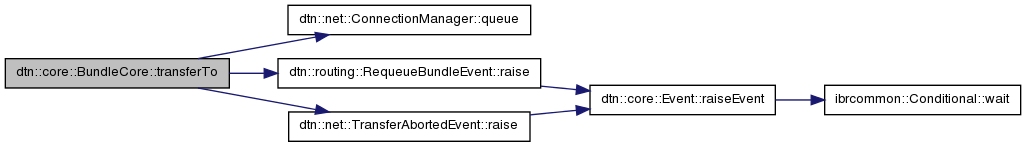

Here is the call graph for this function:

void dtn::core::BundleCore::validate ( const dtn::data::PrimaryBlock & obj ) const throw (RejectedException) [virtual]

Implements dtn::data::Validator.

Definition at line 249 of file BundleCore.cpp.

References forwarding, dtn::utils::Clock::getTime(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, local, max_lifetime, max_timestamp_future, and dtn::utils::Clock::quality.

Referenced by dtn::daemon::CapsuleWorker::callbackBundleReceived(), dtn::net::DatagramConnection::run(), dtn::net::LOWPANConnection::run(), and dtn::net::DownloadThread::run().

Here is the call graph for this function:

void dtn::core::BundleCore::validate	(	const dtn::data::Block &	obj,
		const size_t	length
	)		const throw (RejectedException) `[virtual]`

Implements dtn::data::Validator.

Definition at line 299 of file BundleCore.cpp.

References blocksizelimit, IBRCOMMON_LOGGER, and IBRCOMMON_LOGGER_ENDL.

void dtn::core::BundleCore::validate ( const dtn::data::Bundle & obj ) const throw (RejectedException) [virtual]

Implements dtn::data::Validator.

Definition at line 318 of file BundleCore.cpp.

References dtn::data::StatusReportBlock::BLOCK_UNINTELLIGIBLE, dtn::core::BUNDLE_RECEIVED, dtn::data::Block::DELETE_BUNDLE_IF_NOT_PROCESSED, dtn::security::SecurityManager::fastverify(), dtn::data::Block::get(), dtn::security::SecurityManager::getInstance(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::utils::Clock::isExpired(), dtn::core::BundleEvent::raise(), and dtn::data::Block::TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED.

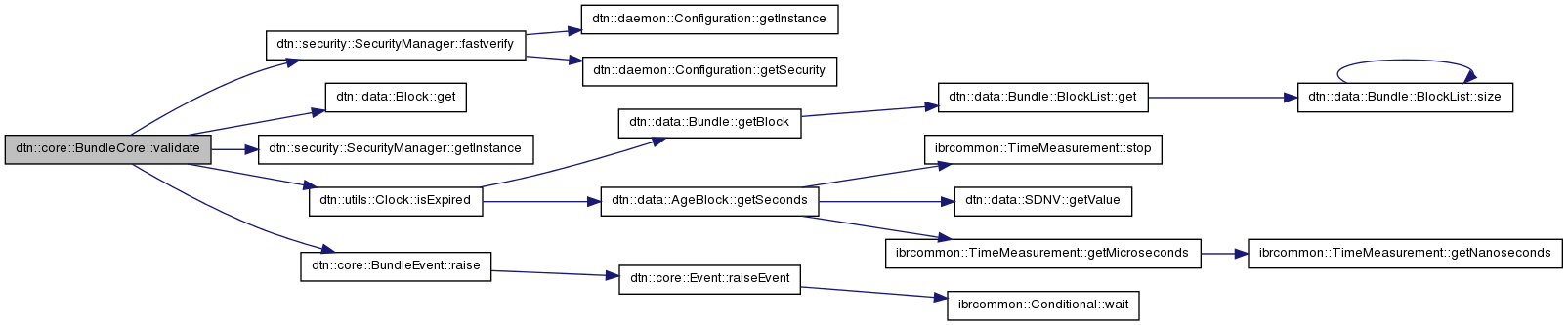

Here is the call graph for this function:

Member Data Documentation

size_t dtn::core::BundleCore::blocksizelimit = 0 [static]

Define a global block size limit. This is used in the validator to reject bundles while receiving.

Definition at line 99 of file BundleCore.h.

Referenced by setGlobalVars(), and validate().

bool dtn::core::BundleCore::forwarding = true [static]

Define if forwarding is allowed. If set to false, this daemon only accepts bundles for local applications.

Definition at line 114 of file BundleCore.h.

Referenced by validate().

dtn::data::EID dtn::core::BundleCore::local [static]

Definition at line 35 of file BundleCore.h.

Referenced by dtn::storage::BundleStorage::acceptCustody(), dtn::security::SecurityManager::auth(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::core::FragmentManager::componentRun(), dtn::net::FileConvergenceLayer::componentRun(), dtn::net::HTTPConvergenceLayer::componentRun(), dtn::dht::DHTNameService::componentRun(), dtn::net::TCPConvergenceLayer::componentRun(), dtn::dht::DHTNameService::componentUp(), dtn::security::SecurityManager::decrypt(), dtn::net::ConnectionManager::discovered(), dtn_dht_handle_lookup_result(), dtn::security::SecurityManager::encrypt(), dtn::core::AbstractWorker::initialize(), dtn::net::TCPConvergenceLayer::open(), dtn::routing::ProphetRoutingExtension::processHandshake(), dtn::routing::ProphetRoutingExtension::ProphetRoutingExtension(), dtn::net::HTTPConvergenceLayer::queue(), dtn::net::TCPConvergenceLayer::queue(), dtn::daemon::DTNTPWorker::raiseEvent(), raiseEvent(), dtn::dht::DHTNameService::raiseEvent(), dtn::routing::BaseRouter::raiseEvent(), dtn::storage::BundleStorage::rejectCustody(), dtn::api::OrderedStreamHandler::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::api::ExtendedApiHandler::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), dtn::api::BinaryStreamClient::run(), dtn::routing::EpidemicRoutingExtension::run(), dtn::net::IPNDAgent::sendAnnoucement(), dtn::net::LOWPANConvergenceLayer::sendAnnoucement(), dtn::net::DatagramConvergenceLayer::sendAnnoucement(), setGlobalVars(), dtn::security::SecurityManager::sign(), dtn::core::FragmentManager::signal(), validate(), and dtn::security::SecurityManager::verifyPIB().

size_t dtn::core::BundleCore::max_lifetime = 0 [static]

Define the maximum lifetime for accepted bundles

Definition at line 104 of file BundleCore.h.

Referenced by setGlobalVars(), and validate().

size_t dtn::core::BundleCore::max_timestamp_future = 0 [static]

Define the maximum offset for the timestamp of pre-dated bundles

Definition at line 109 of file BundleCore.h.

Referenced by setGlobalVars(), and validate().

The documentation for this class was generated from the following files:

daemon/src/core/BundleCore.h
daemon/src/core/BundleCore.cpp
