dtn::net::ConnectionEvent Class Reference

#include <ConnectionEvent.h>

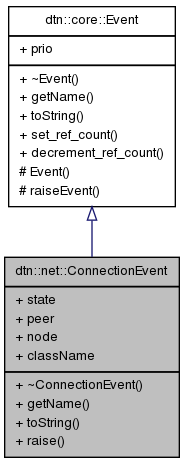

Inheritance diagram for dtn::net::ConnectionEvent:

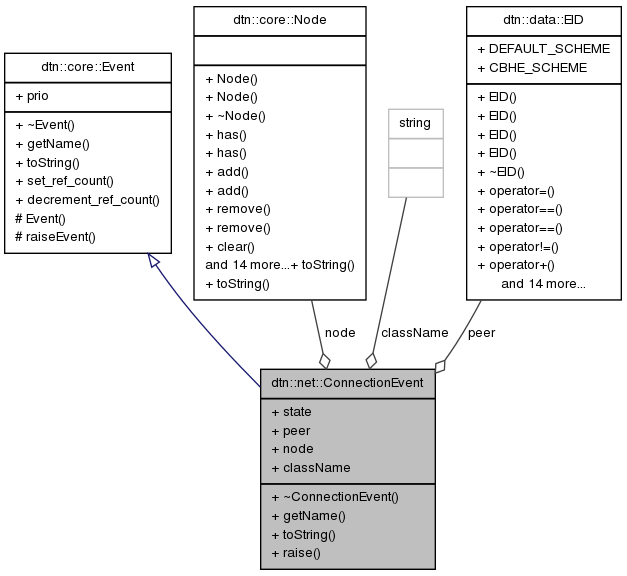

Collaboration diagram for dtn::net::ConnectionEvent:

List of all members.

Public Types
enum	State { CONNECTION_SETUP = 0, CONNECTION_UP = 1, CONNECTION_DOWN = 2, CONNECTION_TIMEOUT = 3 }
Public Member Functions
virtual	~ConnectionEvent ()
const string	getName () const
std::string	toString () const
Static Public Member Functions
static void	raise (State, const dtn::core::Node &)
Public Attributes
const State	state
const dtn::data::EID	peer
const dtn::core::Node	node
Static Public Attributes
static const string	className = "ConnectionEvent"

---

Detailed Description

Definition at line 19 of file ConnectionEvent.h.

---

Member Enumeration Documentation

enum dtn::net::ConnectionEvent::State

Enumerator:

CONNECTION_SETUP
CONNECTION_UP
CONNECTION_DOWN
CONNECTION_TIMEOUT

Definition at line 22 of file ConnectionEvent.h.

---

Constructor & Destructor Documentation

dtn::net::ConnectionEvent::~ConnectionEvent

(

)

[virtual]

Definition at line 20 of file ConnectionEvent.cpp.

---

Member Function Documentation

const string dtn::net::ConnectionEvent::getName

(

)

const [virtual]

Implements dtn::core::Event.

Definition at line 31 of file ConnectionEvent.cpp.

References className.

Referenced by dtn::api::EventConnection::raiseEvent().

void dtn::net::ConnectionEvent::raise	(	State	s,
		const dtn::core::Node &	n
	)		[static]

Definition at line 25 of file ConnectionEvent.cpp.

References dtn::core::Event::raiseEvent().

Referenced by dtn::net::TCPConnection::eventConnectionDown(), dtn::net::TCPConnection::eventConnectionUp(), and dtn::net::TCPConnection::eventTimeout().

Here is the call graph for this function:

std::string dtn::net::ConnectionEvent::toString

(

)

const [virtual]

Implements dtn::core::Event.

Definition at line 37 of file ConnectionEvent.cpp.

References className, CONNECTION_DOWN, CONNECTION_SETUP, CONNECTION_TIMEOUT, CONNECTION_UP, dtn::data::EID::getString(), peer, and state.

Here is the call graph for this function:

---

Member Data Documentation

const string dtn::net::ConnectionEvent::className = "ConnectionEvent" [static]

Definition at line 36 of file ConnectionEvent.h.

Referenced by dtn::net::ConnectionManager::componentDown(), dtn::routing::BaseRouter::componentDown(), dtn::net::ConnectionManager::componentUp(), dtn::routing::BaseRouter::componentUp(), dtn::api::EventConnection::finally(), getName(), dtn::api::EventConnection::setup(), and toString().

const dtn::core::Node dtn::net::ConnectionEvent::node

Definition at line 42 of file ConnectionEvent.h.

Referenced by dtn::net::ConnectionManager::raiseEvent().

const dtn::data::EID dtn::net::ConnectionEvent::peer

Definition at line 41 of file ConnectionEvent.h.

Referenced by dtn::routing::StaticRoutingExtension::notify(), dtn::routing::NeighborRoutingExtension::notify(), dtn::routing::FloodRoutingExtension::notify(), dtn::api::EventConnection::raiseEvent(), dtn::net::ConnectionManager::raiseEvent(), and toString().

const State dtn::net::ConnectionEvent::state

Definition at line 40 of file ConnectionEvent.h.

Referenced by dtn::routing::StaticRoutingExtension::notify(), dtn::routing::NeighborRoutingExtension::notify(), dtn::routing::FloodRoutingExtension::notify(), dtn::api::EventConnection::raiseEvent(), dtn::net::ConnectionManager::raiseEvent(), and toString().

---

The documentation for this class was generated from the following files:

• daemon/src/net/ConnectionEvent.h
• daemon/src/net/ConnectionEvent.cpp
