#include <BaseRouter.h>

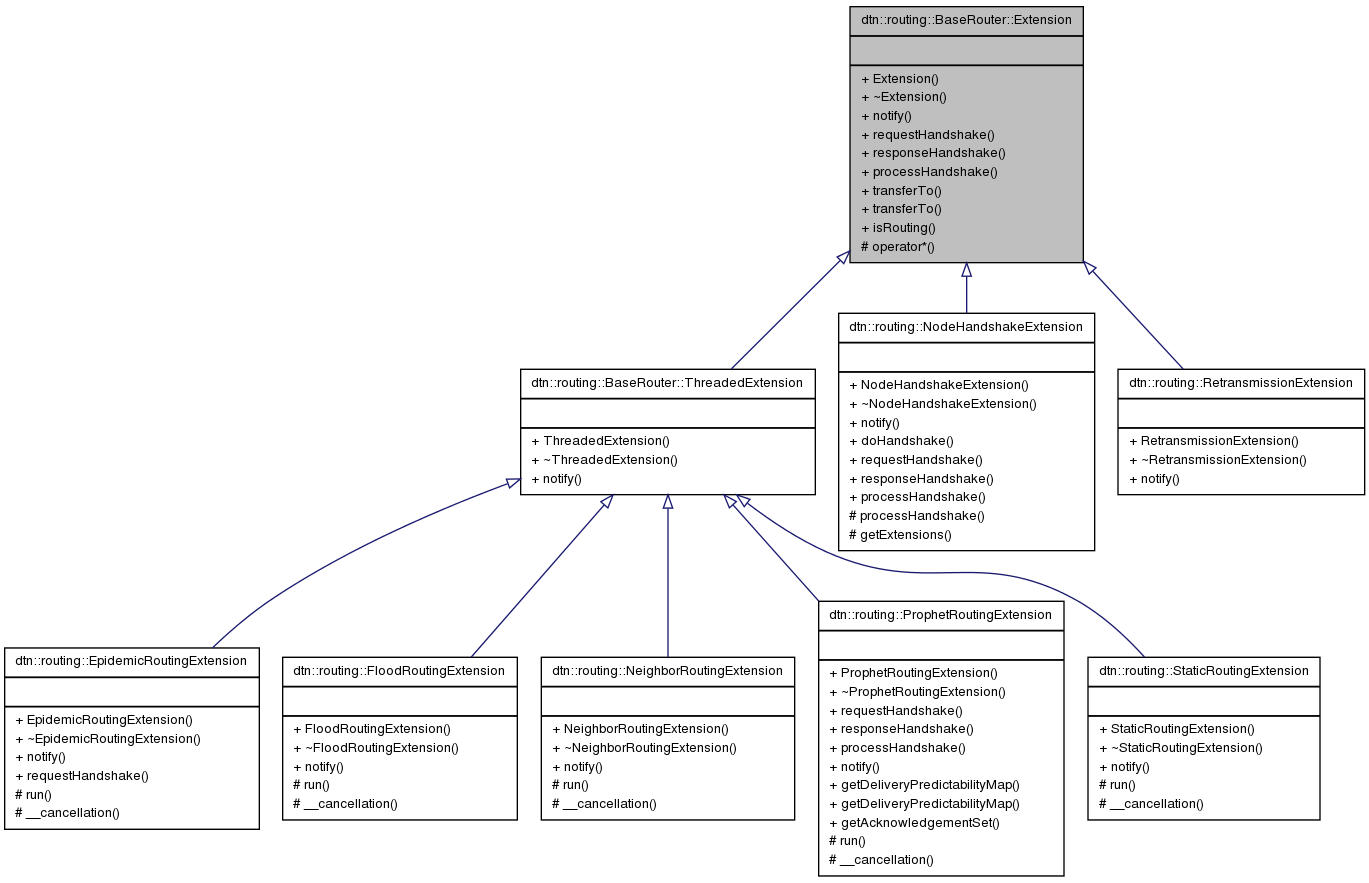

Inheritance diagram for dtn::routing::BaseRouter::Extension:

Public Types
enum	CALLBACK_ACTION { ROUTE_CALLBACK_FORWARDED = 0, ROUTE_CALLBACK_ABORTED = 1, ROUTE_CALLBACK_REJECTED = 2, ROUTE_CALLBACK_DELETED = 3 }
Public Member Functions
	Extension ()
virtual	~Extension ()=0
virtual void	notify (const dtn::core::Event *evt)=0
virtual void	requestHandshake (const dtn::data::EID &, NodeHandshake &) const
virtual void	responseHandshake (const dtn::data::EID &, const NodeHandshake &, NodeHandshake &)
virtual void	processHandshake (const dtn::data::EID &, NodeHandshake &)
void	transferTo (const dtn::data::EID &destination, const dtn::data::BundleID &id)
void	transferTo (NeighborDatabase::NeighborEntry &entry, const dtn::data::BundleID &id)
Static Public Member Functions
static bool	isRouting (const dtn::data::EID &eid)
Protected Member Functions
BaseRouter &	operator* ()
Friends
class	BaseRouter

Detailed Description

Definition at line 65 of file BaseRouter.h.

Member Enumeration Documentation

enum dtn::routing::BaseRouter::Extension::CALLBACK_ACTION

Enumerator:

ROUTE_CALLBACK_FORWARDED
ROUTE_CALLBACK_ABORTED
ROUTE_CALLBACK_REJECTED
ROUTE_CALLBACK_DELETED

Definition at line 73 of file BaseRouter.h.

Constructor & Destructor Documentation

dtn::routing::BaseRouter::Extension::Extension ( )

base implementation of the Extension class

Definition at line 61 of file BaseRouter.cpp.

dtn::routing::BaseRouter::Extension::~Extension ( ) [pure virtual]

Definition at line 64 of file BaseRouter.cpp.

Member Function Documentation

bool dtn::routing::BaseRouter::Extension::isRouting ( const dtn::data::EID & eid ) [static]

Returns true, if the bundle contains routing data.

Parameters:

meta

Returns:

Definition at line 98 of file BaseRouter.cpp.

References dtn::data::EID::CBHE_SCHEME, dtn::data::EID::getApplication(), and dtn::data::EID::getScheme().

Referenced by dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

Here is the call graph for this function:

virtual void dtn::routing::BaseRouter::Extension::notify ( const dtn::core::Event * evt ) [pure virtual]

Implemented in dtn::routing::ProphetRoutingExtension, dtn::routing::BaseRouter::ThreadedExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, dtn::routing::NodeHandshakeExtension, dtn::routing::RetransmissionExtension, and dtn::routing::StaticRoutingExtension.

BaseRouter & dtn::routing::BaseRouter::Extension::operator* ( ) [protected]

Definition at line 67 of file BaseRouter.cpp.

virtual void dtn::routing::BaseRouter::Extension::processHandshake	(	const dtn::data::EID &	,
		NodeHandshake &
	)		`[inline, virtual]`

After a handshake has been completed every module can process the handshake response.

Parameters:

The	EID of the other node.
The	received handshake object.

Reimplemented in dtn::routing::ProphetRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 103 of file BaseRouter.h.

Referenced by dtn::routing::NodeHandshakeExtension::processHandshake().

virtual void dtn::routing::BaseRouter::Extension::requestHandshake	(	const dtn::data::EID &	,
		NodeHandshake &
	)		const `[inline, virtual]`

If some data of another node is required. These method is called to collect all necessary identifier of data items.

Parameters:

The	EID of the other node.
The	object to put the requested identifier into.

Reimplemented in dtn::routing::ProphetRoutingExtension, dtn::routing::EpidemicRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 87 of file BaseRouter.h.

virtual void dtn::routing::BaseRouter::Extension::responseHandshake	(	const dtn::data::EID &	,
		const NodeHandshake &	,
		NodeHandshake &
	)		`[inline, virtual]`

If a handshake message is received, this method is called to collect the different data items generated by the router extensions.

Parameters:

The	EID of the other node.
The	received handshake object.
The	response for the received handshake.

Reimplemented in dtn::routing::ProphetRoutingExtension, and dtn::routing::NodeHandshakeExtension.

Definition at line 96 of file BaseRouter.h.

Referenced by dtn::routing::NodeHandshakeExtension::processHandshake().

void dtn::routing::BaseRouter::Extension::transferTo	(	const dtn::data::EID &	destination,
		const dtn::data::BundleID &	id
	)

Transfer one bundle to another node.

Exceptions:

BundleNotFoundException if the bundle do not exist.

Parameters:

destination	The EID of the other node.
id	The ID of the bundle to transfer. This bundle must be stored in the storage.

Transfer one bundle to another node.

Parameters:

destination	The EID of the other node.
id	The ID of the bundle to transfer. This bundle must be stored in the storage.

Definition at line 77 of file BaseRouter.cpp.

Referenced by dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

void dtn::routing::BaseRouter::Extension::transferTo	(	NeighborDatabase::NeighborEntry &	entry,
		const dtn::data::BundleID &	id
	)

Definition at line 89 of file BaseRouter.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::acquireTransfer(), dtn::routing::NeighborDatabase::NeighborEntry::eid, dtn::core::BundleCore::getInstance(), and dtn::core::BundleCore::transferTo().

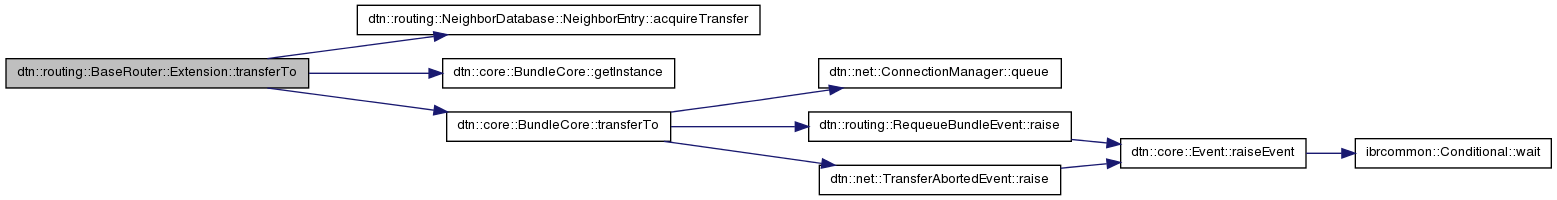

Here is the call graph for this function:

Friends And Related Function Documentation

friend class BaseRouter [friend]

Definition at line 125 of file BaseRouter.h.

The documentation for this class was generated from the following files:

daemon/src/routing/BaseRouter.h
daemon/src/routing/BaseRouter.cpp
