dtn::daemon::Configuration::Network Class Reference

#include <Configuration.h>

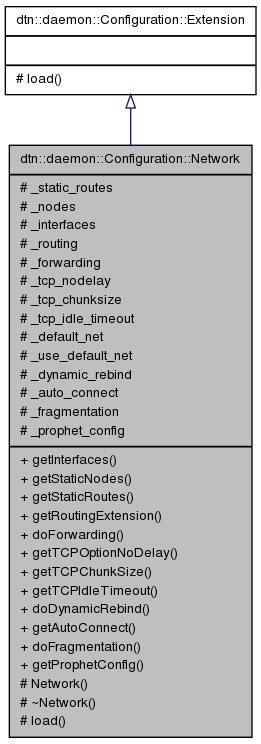

Inheritance diagram for dtn::daemon::Configuration::Network:
Inheritance graph
[legend]

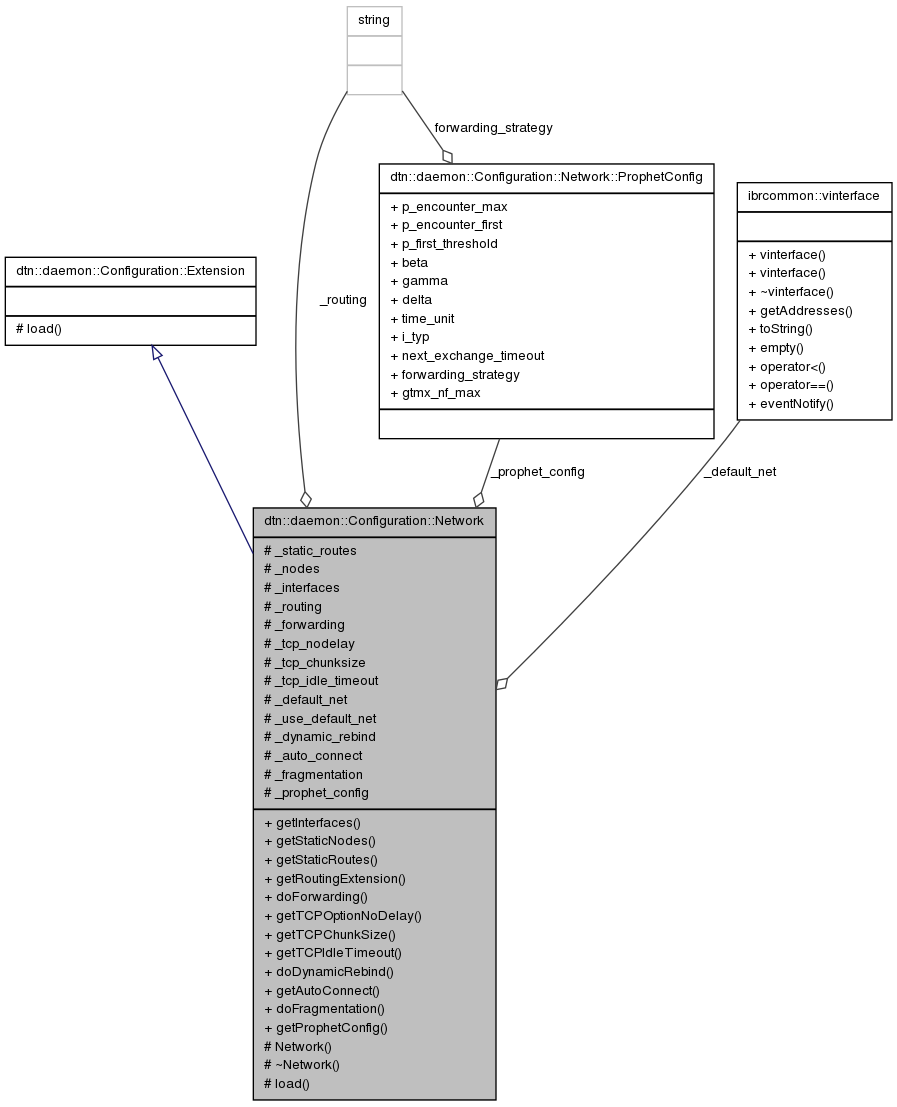

Collaboration diagram for dtn::daemon::Configuration::Network:
Collaboration graph
[legend]

List of all members.

Classes

struct  ProphetConfig

Public Member Functions

const std::list< NetConfig > & getInterfaces () const
const std::list< Node > & getStaticNodes () const
const std::multimap
< std::string, std::string > & 		getStaticRoutes () const
RoutingExtension getRoutingExtension () const
bool doForwarding () const
bool getTCPOptionNoDelay () const
size_t getTCPChunkSize () const
size_t getTCPIdleTimeout () const
bool doDynamicRebind () const
size_t getAutoConnect () const
bool doFragmentation () const
ProphetConfig getProphetConfig () const

Protected Member Functions

 Network ()
virtual ~Network ()
void load (const ibrcommon::ConfigFile &conf)

Protected Attributes

std::multimap< std::string,
std::string > 		_static_routes
std::list< Node > _nodes
std::list< NetConfig > _interfaces
std::string _routing
bool _forwarding
bool _tcp_nodelay
size_t _tcp_chunksize
size_t _tcp_idle_timeout
ibrcommon::vinterface _default_net
bool _use_default_net
bool _dynamic_rebind
size_t _auto_connect
bool _fragmentation
ProphetConfig _prophet_config

Friends

class Configuration

Detailed Description

Definition at line 314 of file Configuration.h.

Constructor & Destructor Documentation

dtn::daemon::Configuration::Network::Network ( ) [protected]

Definition at line 83 of file Configuration.cpp.

dtn::daemon::Configuration::Network::~Network ( ) [protected, virtual]

Definition at line 109 of file Configuration.cpp.

Member Function Documentation

bool dtn::daemon::Configuration::Network::doDynamicRebind ( ) const
Returns:
True, if the dynamic rebind feature is requested.

Definition at line 862 of file Configuration.cpp.

Referenced by __daemon_run().

bool dtn::daemon::Configuration::Network::doForwarding ( ) const

Define if forwarding is enabled. If not, only local bundles will be accepted.

Returns:
True, if forwarding is enabled.

Definition at line 837 of file Configuration.cpp.

Referenced by __daemon_run().

bool dtn::daemon::Configuration::Network::doFragmentation ( ) const
Returns:
True, if fragmentation support is enabled.

Definition at line 842 of file Configuration.cpp.

Referenced by __daemon_run().

size_t dtn::daemon::Configuration::Network::getAutoConnect ( ) const
Returns:
Each x seconds try to connect to all available nodes.

Definition at line 867 of file Configuration.cpp.

Referenced by dtn::net::ConnectionManager::componentUp().

const std::list< Configuration::NetConfig > & dtn::daemon::Configuration::Network::getInterfaces ( ) const

Returns all configured network interfaces

Definition at line 447 of file Configuration.cpp.

Referenced by __daemon_run(), dtn::dht::DHTNameService::componentRun(), and createConvergenceLayers().

Configuration::Network::ProphetConfig dtn::daemon::Configuration::Network::getProphetConfig ( ) const
Returns:
a struct containing the prophet configuration parameters

Definition at line 872 of file Configuration.cpp.

Referenced by __daemon_run().

Configuration::RoutingExtension dtn::daemon::Configuration::Network::getRoutingExtension ( ) const
Returns:
the routing extension to use.

Definition at line 828 of file Configuration.cpp.

References dtn::daemon::Configuration::DEFAULT_ROUTING, dtn::daemon::Configuration::EPIDEMIC_ROUTING, dtn::daemon::Configuration::FLOOD_ROUTING, and dtn::daemon::Configuration::PROPHET_ROUTING.

Referenced by __daemon_run().

const std::list< Node > & dtn::daemon::Configuration::Network::getStaticNodes ( ) const

Returns all static neighboring nodes

Definition at line 743 of file Configuration.cpp.

Referenced by __daemon_run().

const std::multimap< std::string, std::string > & dtn::daemon::Configuration::Network::getStaticRoutes ( ) const

Returns all static routes

Definition at line 738 of file Configuration.cpp.

Referenced by dtn::routing::StaticRoutingExtension::run().

size_t dtn::daemon::Configuration::Network::getTCPChunkSize ( ) const
Returns:
The size of TCP chunks for bundles.

Definition at line 852 of file Configuration.cpp.

size_t dtn::daemon::Configuration::Network::getTCPIdleTimeout ( ) const
Returns:
The idle timeout for TCP connections in seconds.

Definition at line 857 of file Configuration.cpp.

Referenced by dtn::net::TCPConnection::eventConnectionUp().

bool dtn::daemon::Configuration::Network::getTCPOptionNoDelay ( ) const
Returns:
True, is tcp options NODELAY should be set.

Definition at line 847 of file Configuration.cpp.

void dtn::daemon::Configuration::Network::load ( const ibrcommon::ConfigFile &  conf) [protected, virtual]

Load static routes

load static nodes

get routing extension

get the routing extension

get network interfaces

TCP options

dynamic rebind

auto connect interval

fragmentation support

Implements dtn::daemon::Configuration::Extension.

Definition at line 509 of file Configuration.cpp.

References dtn::core::Node::add(), dtn::core::Node::CONN_BLUETOOTH, dtn::core::Node::CONN_DGRAM_ETHERNET, dtn::core::Node::CONN_DGRAM_LOWPAN, dtn::core::Node::CONN_DGRAM_UDP, dtn::core::Node::CONN_FILE, dtn::core::Node::CONN_HTTP, dtn::core::Node::CONN_LOWPAN, dtn::core::Node::CONN_TCPIP, dtn::core::Node::CONN_UDPIP, dtn::core::Node::CONN_UNDEFINED, dtn::core::Node::getEID(), ibrcommon::ConfigFile::keyExists(), dtn::daemon::Configuration::NetConfig::mtu, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_ETHERNET, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_LOWPAN, dtn::daemon::Configuration::NetConfig::NETWORK_DGRAM_UDP, dtn::daemon::Configuration::NetConfig::NETWORK_FILE, dtn::daemon::Configuration::NetConfig::NETWORK_HTTP, dtn::daemon::Configuration::NetConfig::NETWORK_LOWPAN, dtn::daemon::Configuration::NetConfig::NETWORK_TCP, dtn::daemon::Configuration::NetConfig::NETWORK_UDP, dtn::daemon::Configuration::NetConfig::NETWORK_UNKNOWN, dtn::core::Node::NODE_STATIC, ibrcommon::ConfigFile::read(), dtn::core::Node::setConnectImmediately(), and dtn::utils::Utils::tokenize().

Referenced by dtn::daemon::Configuration::load().

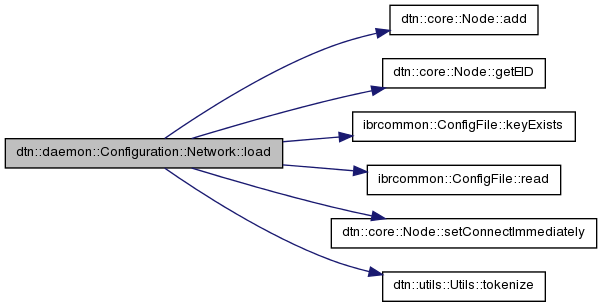

Here is the call graph for this function:

Friends And Related Function Documentation

friend class Configuration [friend]

Definition at line 316 of file Configuration.h.

Member Data Documentation

size_t dtn::daemon::Configuration::Network::_auto_connect [protected]

Definition at line 348 of file Configuration.h.

ibrcommon::vinterface dtn::daemon::Configuration::Network::_default_net [protected]

Definition at line 345 of file Configuration.h.

Referenced by dtn::daemon::Configuration::params().

bool dtn::daemon::Configuration::Network::_dynamic_rebind [protected]

Definition at line 347 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_forwarding [protected]

Definition at line 341 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_fragmentation [protected]

Definition at line 349 of file Configuration.h.

std::list<NetConfig> dtn::daemon::Configuration::Network::_interfaces [protected]

Definition at line 339 of file Configuration.h.

std::list<Node> dtn::daemon::Configuration::Network::_nodes [protected]

Definition at line 338 of file Configuration.h.

ProphetConfig dtn::daemon::Configuration::Network::_prophet_config [protected]

Definition at line 350 of file Configuration.h.

std::string dtn::daemon::Configuration::Network::_routing [protected]

Definition at line 340 of file Configuration.h.

std::multimap<std::string, std::string> dtn::daemon::Configuration::Network::_static_routes [protected]

Definition at line 337 of file Configuration.h.

size_t dtn::daemon::Configuration::Network::_tcp_chunksize [protected]

Definition at line 343 of file Configuration.h.

size_t dtn::daemon::Configuration::Network::_tcp_idle_timeout [protected]

Definition at line 344 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_tcp_nodelay [protected]

Definition at line 342 of file Configuration.h.

bool dtn::daemon::Configuration::Network::_use_default_net [protected]

Definition at line 346 of file Configuration.h.

Referenced by dtn::daemon::Configuration::params().

The documentation for this class was generated from the following files:
