ibrcommon::vsocket Class Reference

#include <vsocket.h>

Inheritance diagram for ibrcommon::vsocket:
Inheritance graph
[legend]

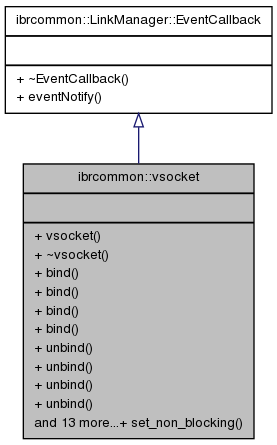

Collaboration diagram for ibrcommon::vsocket:
Collaboration graph
[legend]

List of all members.

Classes

class  vbind

Public Types

enum  Option {
  VSOCKET_REUSEADDR = 1 << 0, VSOCKET_LINGER = 1 << 1, VSOCKET_NODELAY = 1 << 2, VSOCKET_BROADCAST = 1 << 3,
  VSOCKET_NONBLOCKING = 1 << 4, VSOCKET_MULTICAST = 1 << 5, VSOCKET_MULTICAST_V6 = 1 << 6
}

Public Member Functions

 vsocket ()
virtual ~vsocket ()
int bind (const vaddress &address, const int port, unsigned int socktype=SOCK_STREAM)
void bind (const vinterface &iface, const int port, unsigned int socktype=SOCK_STREAM)
int bind (const int port, unsigned int socktype=SOCK_STREAM)
int bind (const ibrcommon::File &file, unsigned int socktype=SOCK_STREAM)
void unbind (const vaddress &address, const int port)
void unbind (const vinterface &iface, const int port)
void unbind (const int port)
void unbind (const ibrcommon::File &file)
void add (const int fd)
const std::list< int > get (const ibrcommon::vinterface &iface, const ibrcommon::vaddress::Family f=vaddress::VADDRESS_UNSPEC)
const std::list< int > get (const ibrcommon::vaddress::Family f=vaddress::VADDRESS_UNSPEC)
void listen (int connections)
void relisten ()
void set (const Option &o)
void unset (const Option &o)
void close ()
void shutdown ()
int fd ()
void select (std::list< int > &fds, struct timeval *tv=NULL)
int sendto (const void *buf, size_t n, const ibrcommon::vaddress &address, const unsigned int port)
void eventNotify (const LinkManagerEvent &evt)
void setEventCallback (ibrcommon::LinkManager::EventCallback *cb)

Static Public Member Functions

static void set_non_blocking (int socket, bool nonblock=true)

Detailed Description

Definition at line 57 of file vsocket.h.

Member Enumeration Documentation

enum ibrcommon::vsocket::Option
Enumerator:
VSOCKET_REUSEADDR
VSOCKET_LINGER
VSOCKET_NODELAY
VSOCKET_BROADCAST
VSOCKET_NONBLOCKING
VSOCKET_MULTICAST
VSOCKET_MULTICAST_V6

Definition at line 60 of file vsocket.h.

Constructor & Destructor Documentation

ibrcommon::vsocket::vsocket ( )

Definition at line 84 of file vsocket.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and set_non_blocking().

Here is the call graph for this function:

ibrcommon::vsocket::~vsocket ( ) [virtual]

Definition at line 99 of file vsocket.cpp.

References close(), ibrcommon::LinkManager::getInstance(), and ibrcommon::LinkManager::unregisterAllEvents().

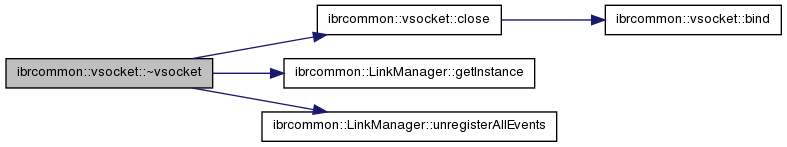

Here is the call graph for this function:

Member Function Documentation

void ibrcommon::vsocket::add ( const int  fd)

Definition at line 229 of file vsocket.cpp.

References bind().

Referenced by dtn::net::FileMonitor::componentUp(), and ibrcommon::NetLinkManager::run().

Here is the call graph for this function:

int ibrcommon::vsocket::bind ( const vaddress &  address,
const int  port,
unsigned int  socktype = SOCK_STREAM
)

Definition at line 193 of file vsocket.cpp.

Referenced by add(), ibrcommon::UnicastSocket::bind(), dtn::net::UDPDatagramService::bind(), ibrcommon::tcpserver::bind(), bind(), close(), dtn::net::IPNDAgent::componentUp(), eventNotify(), get(), listen(), select(), sendto(), set(), shutdown(), ibrcommon::tcpserver::tcpserver(), and unset().

void ibrcommon::vsocket::bind ( const vinterface &  iface,
const int  port,
unsigned int  socktype = SOCK_STREAM
)

Definition at line 132 of file vsocket.cpp.

References bind(), ibrcommon::vinterface::empty(), ibrcommon::vinterface::getAddresses(), ibrcommon::LinkManager::getInstance(), and ibrcommon::LinkManager::registerInterfaceEvent().

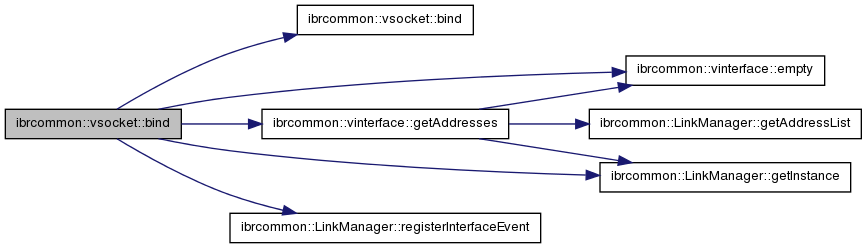

Here is the call graph for this function:

int ibrcommon::vsocket::bind ( const int  port,
unsigned int  socktype = SOCK_STREAM
)

Definition at line 181 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

int ibrcommon::vsocket::bind ( const ibrcommon::File &  file,
unsigned int  socktype = SOCK_STREAM
)

Definition at line 199 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

void ibrcommon::vsocket::close ( )

Definition at line 282 of file vsocket.cpp.

References bind().

Referenced by dtn::net::FileMonitor::__cancellation(), dtn::net::IPNDAgent::__cancellation(), ibrcommon::NetLinkManager::__cancellation(), ibrcommon::tcpserver::close(), ibrcommon::udpsocket::shutdown(), ibrcommon::lowpansocket::shutdown(), ibrcommon::udpsocket::~udpsocket(), and ~vsocket().

Here is the call graph for this function:

void ibrcommon::vsocket::eventNotify ( const LinkManagerEvent &  evt) [virtual]

Implements ibrcommon::LinkManager::EventCallback.

Definition at line 315 of file vsocket.cpp.

References bind(), ibrcommon::LinkManagerEvent::EVENT_ADDRESS_ADDED, ibrcommon::LinkManagerEvent::EVENT_ADDRESS_REMOVED, ibrcommon::LinkManager::EventCallback::eventNotify(), ibrcommon::LinkManagerEvent::getAddress(), ibrcommon::LinkManagerEvent::getInterface(), ibrcommon::LinkManagerEvent::getType(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, ibrcommon::vinterface::toString(), ibrcommon::vaddress::toString(), unbind(), and ibrcommon::Exception::what().

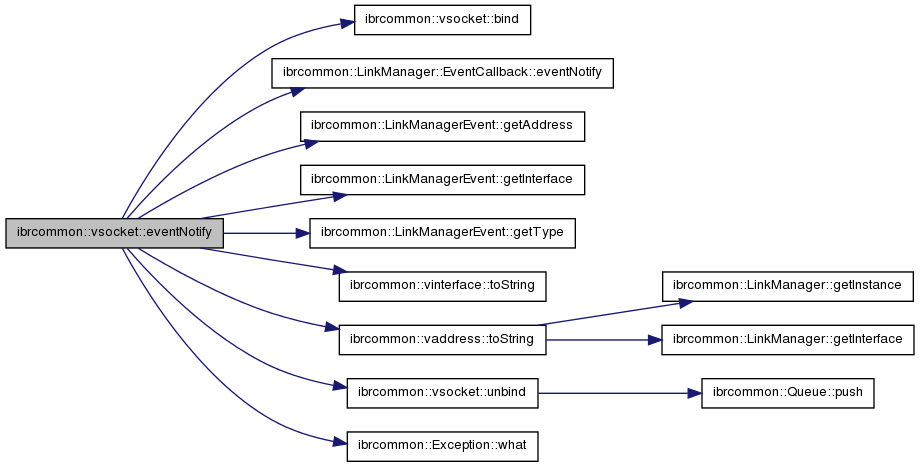

Here is the call graph for this function:

int ibrcommon::vsocket::fd ( )

Definition at line 309 of file vsocket.cpp.

Referenced by ibrcommon::UnicastSocketLowpan::bind().

const std::list< int > ibrcommon::vsocket::get ( const ibrcommon::vinterface &  iface,
const ibrcommon::vaddress::Family  f = vaddress::VADDRESS_UNSPEC
)

Definition at line 358 of file vsocket.cpp.

References bind(), and ibrcommon::vaddress::VADDRESS_UNSPEC.

Referenced by ibrcommon::udpsocket::send().

Here is the call graph for this function:

const std::list< int > ibrcommon::vsocket::get ( const ibrcommon::vaddress::Family  f = vaddress::VADDRESS_UNSPEC)

Definition at line 376 of file vsocket.cpp.

References bind(), and ibrcommon::vaddress::VADDRESS_UNSPEC.

Here is the call graph for this function:

void ibrcommon::vsocket::listen ( int  connections)

Definition at line 235 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::tcpserver::bind(), ibrcommon::tcpserver::listen(), and relisten().

Here is the call graph for this function:

void ibrcommon::vsocket::relisten ( )

Definition at line 248 of file vsocket.cpp.

References listen().

Referenced by select().

Here is the call graph for this function:

void ibrcommon::vsocket::select ( std::list< int > &  fds,
struct timeval *  tv = NULL
)

Definition at line 452 of file vsocket.cpp.

References ibrcommon::__nonlinux_select(), bind(), ibrcommon::Queue< T >::empty(), ibrcommon::Queue< T >::exclusive(), ibrcommon::Queue< T >::Locked::front(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, ibrcommon::Queue< T >::Locked::pop(), and relisten().

Referenced by ibrcommon::tcpserver::accept(), dtn::net::FileMonitor::componentRun(), dtn::net::IPNDAgent::componentRun(), ibrcommon::udpsocket::receive(), ibrcommon::lowpansocket::receive(), and ibrcommon::NetLinkManager::run().

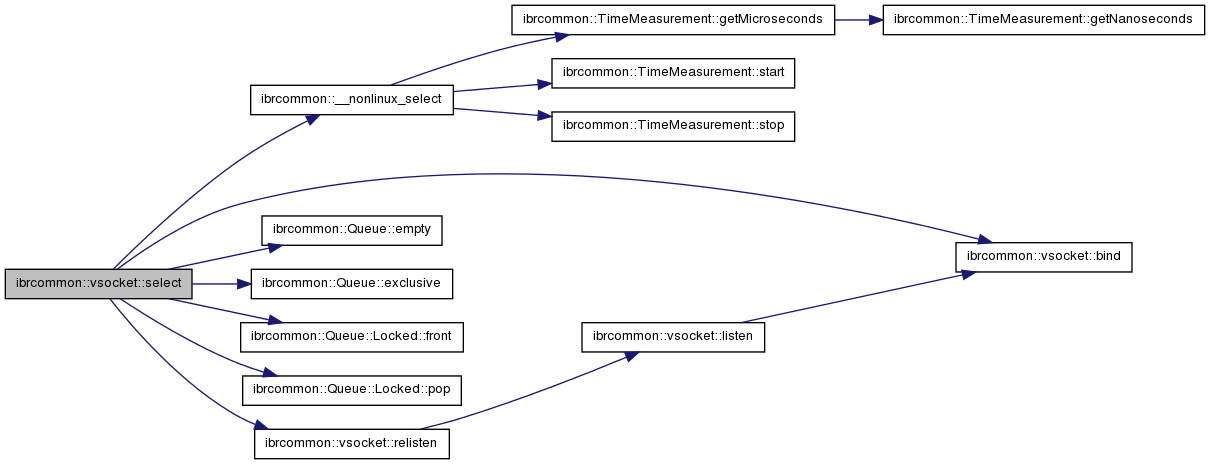

Here is the call graph for this function:

int ibrcommon::vsocket::sendto ( const void *  buf,
size_t  n,
const ibrcommon::vaddress &  address,
const unsigned int  port
)

Definition at line 391 of file vsocket.cpp.

References ibrcommon::vaddress::addrinfo(), bind(), ibrcommon::vaddress::getFamily(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::vaddress::toString().

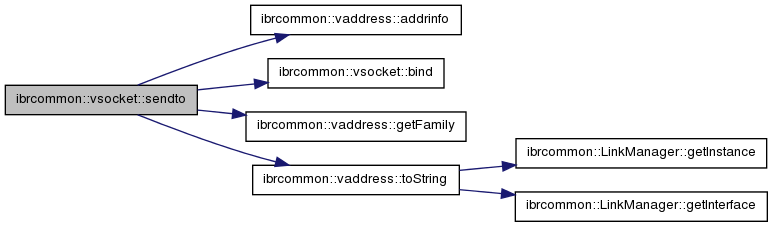

Here is the call graph for this function:

void ibrcommon::vsocket::set ( const Option &  o)

Definition at line 254 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::tcpserver::bind(), and dtn::net::IPNDAgent::IPNDAgent().

Here is the call graph for this function:

void ibrcommon::vsocket::set_non_blocking ( int  socket,
bool  nonblock = true
) [static]

Definition at line 66 of file vsocket.cpp.

Referenced by ibrcommon::tcpstream::select(), ibrcommon::tcpstream::tcpstream(), and vsocket().

void ibrcommon::vsocket::setEventCallback ( ibrcommon::LinkManager::EventCallback *  cb)

Definition at line 353 of file vsocket.cpp.

Referenced by dtn::net::IPNDAgent::componentDown(), and dtn::net::IPNDAgent::componentUp().

void ibrcommon::vsocket::shutdown ( )

Definition at line 296 of file vsocket.cpp.

References bind().

Referenced by dtn::net::IPNDAgent::componentDown(), and ibrcommon::tcpserver::shutdown().

Here is the call graph for this function:

void ibrcommon::vsocket::unbind ( const vaddress &  address,
const int  port
)

Definition at line 205 of file vsocket.cpp.

References ibrcommon::Queue< T >::push().

Referenced by eventNotify(), and unbind().

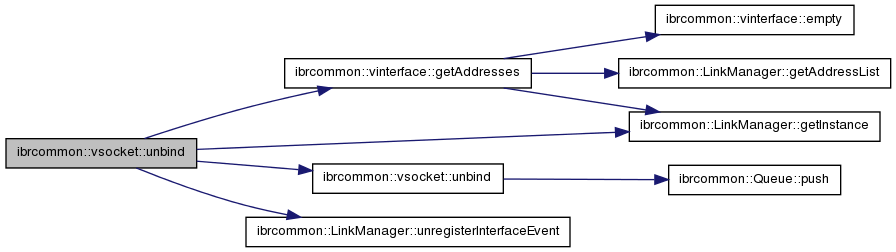

Here is the call graph for this function:

void ibrcommon::vsocket::unbind ( const vinterface &  iface,
const int  port
)

Definition at line 164 of file vsocket.cpp.

References ibrcommon::vinterface::getAddresses(), ibrcommon::LinkManager::getInstance(), unbind(), and ibrcommon::LinkManager::unregisterInterfaceEvent().

Here is the call graph for this function:

void ibrcommon::vsocket::unbind ( const int  port)

Definition at line 187 of file vsocket.cpp.

References unbind().

Here is the call graph for this function:

void ibrcommon::vsocket::unbind ( const ibrcommon::File &  file)

Definition at line 217 of file vsocket.cpp.

References ibrcommon::Queue< T >::push().

Here is the call graph for this function:

void ibrcommon::vsocket::unset ( const Option &  o)

Definition at line 268 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
