A Stream Class that adds Signatures and Encryption through TLS. More...

#include <TLSStream.h>

Public Types
typedef std::char_traits< char >	traits
Public Member Functions
	TLSStream (std::iostream *stream)
	The TLSStream Constructor.
virtual	~TLSStream ()
	The default Destructor.
void	setServer (bool val)
void	close ()
	Closes the TLS Connection.
X509 *	activate ()
Static Public Member Functions
static void	init (X509 certificate, EVP_PKEY privateKey, ibrcommon::File trustedCAPath, bool enableEncryption=false)
	Initializes the TLSStream class.
static void	flushInitialization ()
	Removes the SSL_CTX to allow a new init()
static bool	isInitialized ()
	checks if the Class is already initialized.
Static Public Attributes
static const size_t	BUFF_SIZE = 5120
	The size of the input and output buffers.
Protected Member Functions
virtual int	sync ()
virtual traits::int_type	overflow (traits::int_type=traits::eof())
virtual traits::int_type	underflow ()

Detailed Description

A Stream Class that adds Signatures and Encryption through TLS.

The Stream passes data from and to the underlying Stream unchanged(unencrypted) until activate() is called. init() has to be called before the first usage.

Definition at line 27 of file TLSStream.h.

Member Typedef Documentation

typedef std::char_traits<char> ibrcommon::TLSStream::traits

Definition at line 30 of file TLSStream.h.

Constructor & Destructor Documentation

ibrcommon::TLSStream::TLSStream ( std::iostream * stream )

The TLSStream Constructor.

Parameters:

stream	the underlying Stream to read from / write to
server	states, if TLS is used in client or server mode (true for server, false for client)

Definition at line 32 of file TLSStream.cpp.

References BUFF_SIZE.

ibrcommon::TLSStream::~TLSStream ( ) [virtual]

The default Destructor.

Definition at line 42 of file TLSStream.cpp.

Member Function Documentation

X509 * ibrcommon::TLSStream::activate ( )

Returns:: the X509 certificate of the peer

Warning:: the caller has to check the identity in the certificate

Definition at line 55 of file TLSStream.cpp.

References ibrcommon::iostreamBIO::getBIO(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Exception::what().

Here is the call graph for this function:

void ibrcommon::TLSStream::close ( )

Closes the TLS Connection.

Warning:: The underlying Stream is not closed by this function.

Definition at line 347 of file TLSStream.cpp.

References IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Referenced by underflow().

void ibrcommon::TLSStream::flushInitialization ( ) [static]

Removes the SSL_CTX to allow a new init()

Definition at line 328 of file TLSStream.cpp.

void ibrcommon::TLSStream::init	(	X509 *	certificate,
		EVP_PKEY *	privateKey,
		ibrcommon::File	trustedCAPath,
		bool	enableEncryption = `false`
	)		`[static]`

Initializes the TLSStream class.

Parameters:

certificate	The certificate for the private Key
privateKey	The private Key to use with openSSL
trustedCAPath	A directory containing certificates that are trusted. These are also used to build the own certificate chain.
enableEncryption	True if encryption shall be enabled. Otherwise only authentication is enabled.

In particular, this function initializes the used openSSL Context. The certificate directory has to hold certificates files with hashed names created by c_rehash (from the openssl library).

Warning:: Beware that the certificate path does not have certificates valid and invalid certificates mixed with the same subject, openssl will only use the first that is found.; on default, encryption is disabled and the stream does only provide authentication

Definition at line 237 of file TLSStream.cpp.

References ibrcommon::File::getFiles(), ibrcommon::File::getPath(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::File::isDirectory().

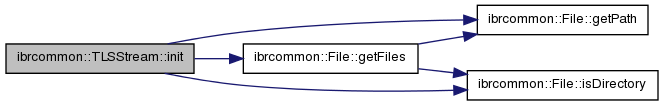

Here is the call graph for this function:
