#include <Thread.h>

Inheritance diagram for ibrcommon::Thread:

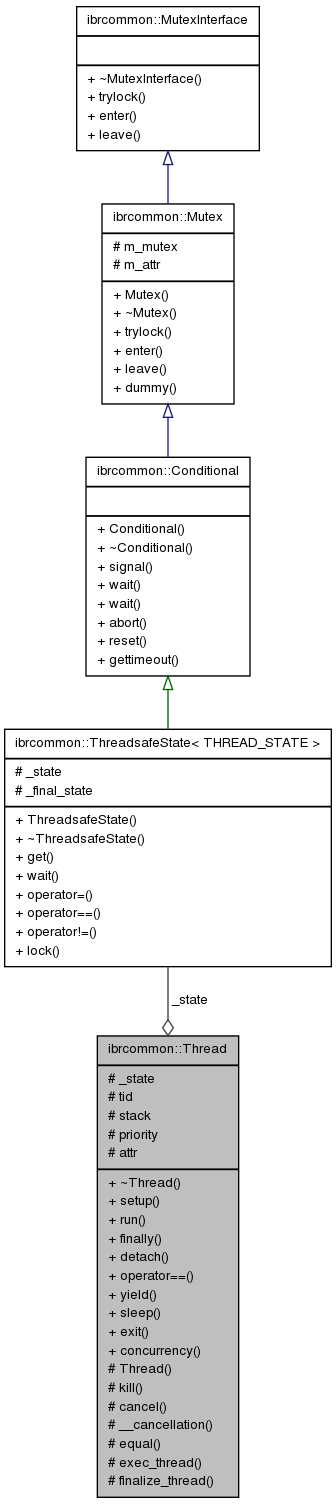

Collaboration diagram for ibrcommon::Thread:

Public Member Functions
virtual	~Thread ()=0
virtual void	setup (void)
virtual void	run (void)=0
virtual void	finally (void)
void	detach (void)
bool	operator== (const ibrcommon::Thread &other)
Static Public Member Functions
static void	yield (void)
static void	sleep (size_t timeout)
static void	exit (void)
static void	concurrency (int level)
Protected Types
enum	THREAD_STATE { THREAD_INITIALIZED = 1 << 0, THREAD_PREPARE = 1 << 1, THREAD_SETUP = 1 << 2, THREAD_RUNNING = 1 << 3, THREAD_CANCELLED = 1 << 4, THREAD_FINALIZING = 1 << 5, THREAD_FINALIZED = 1 << 6, THREAD_JOINED = 1 << 7, THREAD_ERROR = 1 << 8 }
Protected Member Functions
	Thread (size_t stack=DEFAULT_STACKSIZE, bool delete_on_exit=false)
int	kill (int sig)
void	cancel () throw (ThreadException)
virtual void	__cancellation ()=0
Static Protected Member Functions
static bool	equal (pthread_t thread1, pthread_t thread2)
static void *	exec_thread (void *obj)
static void	finalize_thread (void *obj)
Protected Attributes
ibrcommon::ThreadsafeState < THREAD_STATE >	_state
pthread_t	tid
size_t	stack
int	priority
pthread_attr_t	attr

Detailed Description

An abstract class for defining classes that operate as a thread. A derived thread class has a run method that is invoked with the newly created thread context, and can use the derived object to store all member data that needs to be associated with that context. This means the derived object can safely hold thread-specific data that is managed with the life of the object, rather than having to use the clumsy thread-specific data management and access functions found in thread support libraries.

Author:: David Sugar <dyfet@gnutelephony.org>

Definition at line 42 of file Thread.h.

Member Enumeration Documentation

enum ibrcommon::Thread::THREAD_STATE [protected]

Enumerator:

THREAD_INITIALIZED
THREAD_PREPARE
THREAD_SETUP
THREAD_RUNNING
THREAD_CANCELLED
THREAD_FINALIZING
THREAD_FINALIZED
THREAD_JOINED
THREAD_ERROR

Definition at line 45 of file Thread.h.

Constructor & Destructor Documentation

ibrcommon::Thread::Thread	(	size_t	stack = `DEFAULT_STACKSIZE`,
		bool	delete_on_exit = `false`
	)		`[protected]`

Create a thread object that will have a preset stack size. If 0 is used, then the stack size is os defined/default.

Parameters:

stack size to use or 0 for default.

Definition at line 105 of file Thread.cpp.

References attr.

ibrcommon::Thread::~Thread ( ) [pure virtual]

Destroy thread object, thread-specific data, and execution context.

Definition at line 143 of file Thread.cpp.

References attr.

Member Function Documentation

virtual void ibrcommon::Thread::__cancellation ( ) [protected, pure virtual]

Implemented in dtn::net::TCPConvergenceLayer, dtn::routing::ProphetRoutingExtension, dtn::net::DatagramConvergenceLayer, dtn::dht::DHTNameService, dtn::net::TCPConnection, dtn::storage::SQLiteBundleStorage, dtn::net::DownloadThread, dtn::storage::DataStorage, dtn::api::ClientHandler, dtn::net::HTTPConvergenceLayer, ibrcommon::NetLinkManager, ibrcommon::NetLink3Manager, dtn::net::LOWPANConvergenceLayer, ibrcommon::Timer, dtn::daemon::IndependentComponent, dtn::api::ApiServer, dtn::net::LOWPANConnection, dtn::net::UDPConvergenceLayer, dtn::net::DatagramConnection, dtn::net::IPNDAgent, dtn::routing::EpidemicRoutingExtension, dtn::net::FileConvergenceLayer, dtn::routing::StaticRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::net::FileMonitor, dtn::routing::NeighborRoutingExtension, dtn::core::FragmentManager, and dtn::net::LOWPANConnectionSender.

Referenced by cancel().

void ibrcommon::Thread::cancel ( ) throw (ThreadException) [protected]

Cancel the running thread context.

Definition at line 164 of file Thread.cpp.

References __cancellation(), _state, ibrcommon::ThreadsafeState< T >::lock(), THREAD_CANCELLED, THREAD_ERROR, THREAD_FINALIZED, THREAD_INITIALIZED, THREAD_JOINED, THREAD_PREPARE, THREAD_RUNNING, THREAD_SETUP, and ibrcommon::ThreadsafeState< T >::Locked::wait().

Referenced by ibrcommon::JoinableThread::stop(), and ibrcommon::DetachedThread::stop().

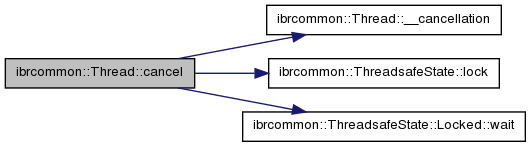

Here is the call graph for this function:

void ibrcommon::Thread::concurrency ( int level ) [static]

Set concurrency level of process. This is essentially a portable wrapper for pthread_setconcurrency.

Definition at line 122 of file Thread.cpp.

void ibrcommon::Thread::detach ( void )

detach this thread

Definition at line 148 of file Thread.cpp.

References tid.

bool ibrcommon::Thread::equal	(	pthread_t	thread1,
		pthread_t	thread2
	)		`[static, protected]`

Determine if two thread identifiers refer to the same thread.

Parameters:

thread1	to test.
thread2	to test.

Returns:: true if both are the same context.

Definition at line 195 of file Thread.cpp.

Referenced by ibrcommon::JoinableThread::join(), and operator==().

void * ibrcommon::Thread::exec_thread ( void * obj ) [static, protected]

static execute thread method

Definition at line 50 of file Thread.cpp.

References exit(), finalize_thread(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, THREAD_PREPARE, THREAD_RUNNING, and THREAD_SETUP.

Referenced by ibrcommon::JoinableThread::start(), and ibrcommon::DetachedThread::start().

Here is the call graph for this function:

void ibrcommon::Thread::exit ( void ) [static]

Exit the thread context.

Definition at line 153 of file Thread.cpp.

Referenced by exec_thread(), and ibrcommon::JoinableThread::join().

void ibrcommon::Thread::finalize_thread ( void * obj ) [static, protected]

this method finalizes a thread. If the thread is self-deleting, the object will be invalid after exection.

Definition at line 25 of file Thread.cpp.

References _state, finally(), THREAD_FINALIZED, and THREAD_FINALIZING.

Referenced by exec_thread().

Here is the call graph for this function:

virtual void ibrcommon::Thread::finally ( void ) [inline, virtual]

This method is called when the run() method finishes.

Reimplemented in dtn::net::TCPConnection, dtn::api::ClientHandler, dtn::net::LOWPANConnection, and dtn::net::DatagramConnection.

Definition at line 110 of file Thread.h.

Referenced by finalize_thread().

int ibrcommon::Thread::kill ( int sig ) [protected]

sends a signal to this thread

Parameters:

sig

Returns:

Definition at line 158 of file Thread.cpp.

References tid.

bool ibrcommon::Thread::operator== ( const ibrcommon::Thread & other ) [inline]

Determine if two thread identifiers refer to the same thread.

Parameters:

other The thread to compare.

Returns:: True, if both threads are the same.

Definition at line 133 of file Thread.h.

References equal(), and tid.

Here is the call graph for this function:

virtual void ibrcommon::Thread::run ( void ) [pure virtual]

Abstract interface for thread context run method.

Implemented in dtn::routing::ProphetRoutingExtension, dtn::net::TCPConnection, dtn::net::DownloadThread, dtn::storage::DataStorage, dtn::api::ClientHandler, ibrcommon::NetLinkManager, ibrcommon::NetLink3Manager, ibrcommon::Timer, dtn::daemon::IndependentComponent, dtn::net::LOWPANConnection, dtn::net::DatagramConnection, dtn::routing::EpidemicRoutingExtension, dtn::routing::StaticRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, and dtn::net::LOWPANConnectionSender.

virtual void ibrcommon::Thread::setup ( void ) [inline, virtual]

This method is called before the run.

Reimplemented in dtn::net::TCPConnection, dtn::api::ClientHandler, dtn::net::LOWPANConnection, and dtn::net::DatagramConnection.

Definition at line 100 of file Thread.h.

void ibrcommon::Thread::sleep ( size_t timeout ) [static]

Sleep current thread for a specified time period.

Parameters:

timeout to sleep for in milliseconds.

Definition at line 129 of file Thread.cpp.

Referenced by dtn::api::ApiServer::componentDown(), dtn::net::FileMonitor::componentRun(), and dtn::net::HTTPConvergenceLayer::componentRun().

void ibrcommon::Thread::yield ( void ) [static]

Yield execution context of the current thread. This is a static and may be used anywhere.

Definition at line 111 of file Thread.cpp.

Referenced by dtn::net::IPNDAgent::componentRun(), dtn::net::UDPConvergenceLayer::componentRun(), dtn::net::LOWPANConvergenceLayer::componentRun(), dtn::api::ApiServer::componentRun(), dtn::net::HTTPConvergenceLayer::componentRun(), dtn::net::DatagramConvergenceLayer::componentRun(), dtn::net::TCPConvergenceLayer::componentRun(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::StaticRoutingExtension::run(), dtn::routing::EpidemicRoutingExtension::run(), ibrcommon::Timer::run(), dtn::net::DownloadThread::run(), and dtn::net::TCPConnection::run().

Member Data Documentation

ibrcommon::ThreadsafeState<THREAD_STATE> ibrcommon::Thread::_state [protected]

Definition at line 58 of file Thread.h.

Referenced by cancel(), finalize_thread(), ibrcommon::JoinableThread::isRunning(), ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::~JoinableThread().

pthread_attr_t ibrcommon::Thread::attr [protected]

Definition at line 70 of file Thread.h.

Referenced by Thread(), and ~Thread().

int ibrcommon::Thread::priority [protected]

Definition at line 67 of file Thread.h.

size_t ibrcommon::Thread::stack [protected]

Definition at line 64 of file Thread.h.

pthread_t ibrcommon::Thread::tid [protected]

Definition at line 61 of file Thread.h.

Referenced by detach(), ibrcommon::JoinableThread::join(), kill(), and operator==().

The documentation for this class was generated from the following files:

ibrcommon/ibrcommon/thread/Thread.h
ibrcommon/ibrcommon/thread/Thread.cpp
