dtn::data::Block Class Reference

#include <Block.h>

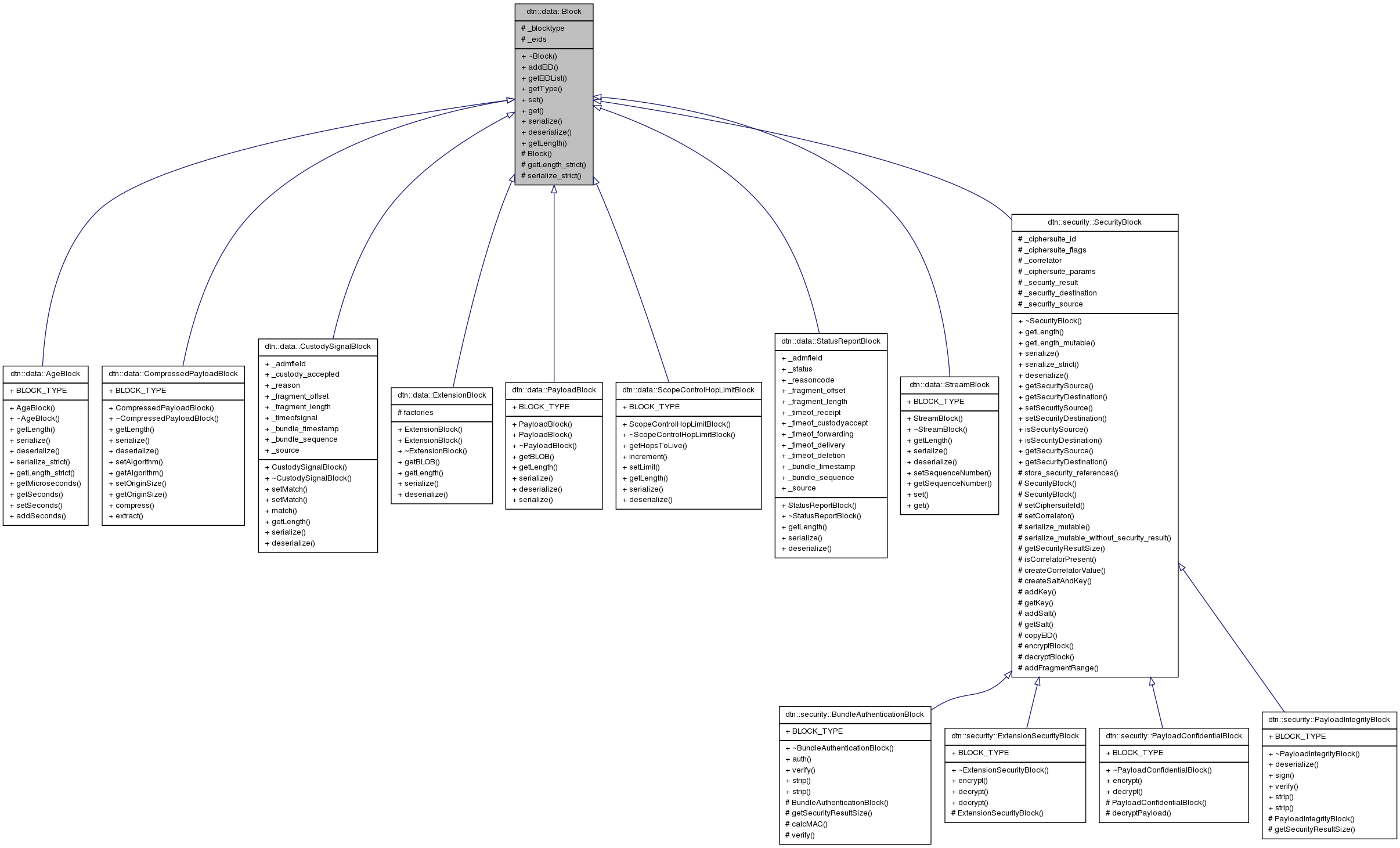

Inheritance diagram for dtn::data::Block:

List of all members.

Public Types
enum	ProcFlags {   REPLICATE_IN_EVERY_FRAGMENT = 1, TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED = 1 << 0x01, DELETE_BUNDLE_IF_NOT_PROCESSED = 1 << 0x02, LAST_BLOCK = 1 << 0x03,   DISCARD_IF_NOT_PROCESSED = 1 << 0x04, FORWARDED_WITHOUT_PROCESSED = 1 << 0x05, BLOCK_CONTAINS_EIDS = 1 << 0x06 }
Public Member Functions
virtual	~Block ()
virtual void	addEID (const dtn::data::EID &eid)
virtual std::list< dtn::data::EID >	getEIDList () const
char	getType () const
void	set (ProcFlags flag, const bool &value)
bool	get (ProcFlags flag) const
virtual std::ostream &	serialize (std::ostream &stream, size_t &length) const =0
virtual std::istream &	deserialize (std::istream &stream, const size_t length)=0
virtual size_t	getLength () const =0
Protected Member Functions
	Block (char blocktype)
virtual size_t	getLength_strict () const
virtual std::ostream &	serialize_strict (std::ostream &stream, size_t &length) const
Protected Attributes
char	_blocktype
std::list< dtn::data::EID >	_eids
Friends
class	Bundle
class	DefaultSerializer
class	dtn::security::StrictSerializer
class	dtn::security::MutualSerializer
class	DefaultDeserializer
class	SeparateSerializer
class	SeparateDeserializer

---

Detailed Description

Definition at line 31 of file Block.h.

---

Member Enumeration Documentation

enum dtn::data::Block::ProcFlags

Enumerator:

REPLICATE_IN_EVERY_FRAGMENT
TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED
DELETE_BUNDLE_IF_NOT_PROCESSED
LAST_BLOCK
DISCARD_IF_NOT_PROCESSED
FORWARDED_WITHOUT_PROCESSED
BLOCK_CONTAINS_EIDS

Definition at line 42 of file Block.h.

---

Constructor & Destructor Documentation

dtn::data::Block::~Block

(

)

[virtual]

Definition at line 23 of file Block.cpp.

dtn::data::Block::Block

(

char

blocktype

)

[protected]

The constructor of this class is protected to prevent instantiation of this abstract class.

Parameters:

blocktype

The type of the block.

Definition at line 18 of file Block.cpp.

---

Member Function Documentation

void dtn::data::Block::addEID

(

const dtn::data::EID &

eid

)

[virtual]

Definition at line 27 of file Block.cpp.

References _eids, and BLOCK_CONTAINS_EIDS.

Referenced by dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), and dtn::data::SeparateDeserializer::operator>>().

virtual std::istream& dtn::data::Block::deserialize	(	std::istream &	stream,
		const size_t	length
	)		[pure virtual]

Deserialize the derived block payload.

Parameters:

stream

A input stream to deserialize from.

Returns:

The same reference as given with the stream parameter.

Implemented in dtn::security::SecurityBlock, dtn::security::PayloadIntegrityBlock, dtn::data::StatusReportBlock, dtn::data::CustodySignalBlock, dtn::data::CompressedPayloadBlock, dtn::data::ExtensionBlock, dtn::data::StreamBlock, dtn::data::ScopeControlHopLimitBlock, dtn::data::AgeBlock, and dtn::data::PayloadBlock.

Referenced by dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::data::SeparateDeserializer::operator>>(), and dtn::api::ExtendedApiHandler::run().

bool dtn::data::Block::get

(

ProcFlags

flag

)

const

Definition at line 52 of file Block.cpp.

Referenced by dtn::security::SecurityBlock::decryptBlock(), dtn::security::MutualSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::data::SeparateSerializer::getLength(), dtn::api::PlainSerializer::operator<<(), dtn::security::StrictSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::SeparateSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::data::SeparateDeserializer::operator>>(), dtn::data::DefaultSerializer::serialize(), and dtn::core::BundleCore::validate().

std::list< dtn::data::EID > dtn::data::Block::getEIDList

(

)

const [virtual]

Definition at line 35 of file Block.cpp.

References _eids.

Referenced by dtn::security::SecurityBlock::decryptBlock(), dtn::data::Dictionary::Dictionary(), dtn::data::DefaultSerializer::isCompressable(), dtn::api::PlainSerializer::operator<<(), and dtn::data::DefaultSerializer::rebuildDictionary().

virtual size_t dtn::data::Block::getLength

(

)

const [pure virtual]

Return the length of the payload, if this were an abstract block. It is the length put in the third field, after block type and processing flags.

Implemented in dtn::security::SecurityBlock, dtn::data::StatusReportBlock, dtn::data::CustodySignalBlock, dtn::data::CompressedPayloadBlock, dtn::data::ExtensionBlock, dtn::data::StreamBlock, dtn::data::ScopeControlHopLimitBlock, dtn::data::AgeBlock, and dtn::data::PayloadBlock.

Referenced by dtn::security::MutualSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::data::SeparateSerializer::getLength(), getLength_strict(), dtn::api::PlainSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::SeparateSerializer::operator<<(), dtn::api::ExtendedApiHandler::run(), and dtn::storage::SQLiteBundleStorage::store().

size_t dtn::data::Block::getLength_strict

(

)

const [protected, virtual]

Return the length of the payload in strict format

Reimplemented in dtn::data::AgeBlock.

Definition at line 57 of file Block.cpp.

References getLength().

Referenced by dtn::security::StrictSerializer::operator<<().

Here is the call graph for this function:

char dtn::data::Block::getType

(

)

const [inline]

Definition at line 58 of file Block.h.

References _blocktype.

Referenced by dtn::api::PlainSerializer::operator<<(), dtn::security::StrictSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::core::BundleCore::processBlocks(), and dtn::storage::SQLiteDatabase::store().

virtual std::ostream& dtn::data::Block::serialize	(	std::ostream &	stream,
		size_t &	length
	)		const [pure virtual]

Serialize the derived block payload.

Parameters:

stream

A output stream to serialize into.

Returns:

The same reference as given with the stream parameter.

Implemented in dtn::security::SecurityBlock, dtn::data::StatusReportBlock, dtn::data::CustodySignalBlock, dtn::data::CompressedPayloadBlock, dtn::data::ExtensionBlock, dtn::data::StreamBlock, dtn::data::ScopeControlHopLimitBlock, dtn::data::AgeBlock, and dtn::data::PayloadBlock.

Referenced by dtn::api::PlainSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::SeparateSerializer::operator<<(), dtn::api::ExtendedApiHandler::run(), and serialize_strict().

std::ostream & dtn::data::Block::serialize_strict	(	std::ostream &	stream,
		size_t &	length
	)		const [protected, virtual]

Serialize the block in a strict way. Dynamic fields are set to the last deserialized value.

Parameters:

stream

the stream to be written into

Returns:

the same stream as the parameter for chaining

Reimplemented in dtn::security::SecurityBlock, and dtn::data::AgeBlock.

Definition at line 62 of file Block.cpp.

References serialize().

Referenced by dtn::security::StrictSerializer::operator<<().

Here is the call graph for this function:

void dtn::data::Block::set	(	ProcFlags	flag,
		const bool &	value
	)

Definition at line 40 of file Block.cpp.

Referenced by dtn::security::BundleAuthenticationBlock::auth(), dtn::api::PlainDeserializer::operator>>(), dtn::data::Bundle::BlockList::push_back(), dtn::data::Bundle::BlockList::push_front(), dtn::api::PlainDeserializer::readBlock(), dtn::api::ExtendedApiHandler::run(), and dtn::security::PayloadIntegrityBlock::sign().

---

Friends And Related Function Documentation

friend class Bundle [friend]

Definition at line 33 of file Block.h.

friend class DefaultDeserializer [friend]

Definition at line 37 of file Block.h.

friend class DefaultSerializer [friend]

Definition at line 34 of file Block.h.

friend class dtn::security::MutualSerializer [friend]

Definition at line 36 of file Block.h.

friend class dtn::security::StrictSerializer [friend]

Definition at line 35 of file Block.h.

friend class SeparateDeserializer [friend]

Definition at line 39 of file Block.h.

friend class SeparateSerializer [friend]

Definition at line 38 of file Block.h.

---

Member Data Documentation

char dtn::data::Block::_blocktype [protected]

Definition at line 103 of file Block.h.

Referenced by dtn::security::SecurityBlock::deserialize(), dtn::security::MutualSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::data::SeparateSerializer::getLength(), getType(), dtn::security::StrictSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::SeparateSerializer::operator<<(), dtn::data::DefaultDeserializer::operator>>(), dtn::data::SeparateDeserializer::operator>>(), and dtn::data::DefaultSerializer::serialize().

std::list<dtn::data::EID> dtn::data::Block::_eids [protected]

Definition at line 106 of file Block.h.

Referenced by addEID(), dtn::security::SecurityBlock::deserialize(), getEIDList(), dtn::security::MutualSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::data::SeparateSerializer::getLength(), dtn::security::StrictSerializer::operator<<(), dtn::security::MutualSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::SeparateSerializer::operator<<(), dtn::data::DefaultSerializer::serialize(), and dtn::security::SecurityBlock::store_security_references().

---

The documentation for this class was generated from the following files:

• ibrdtn/ibrdtn/data/Block.h
• ibrdtn/ibrdtn/data/Block.cpp
