#include <SecurityBlock.h>

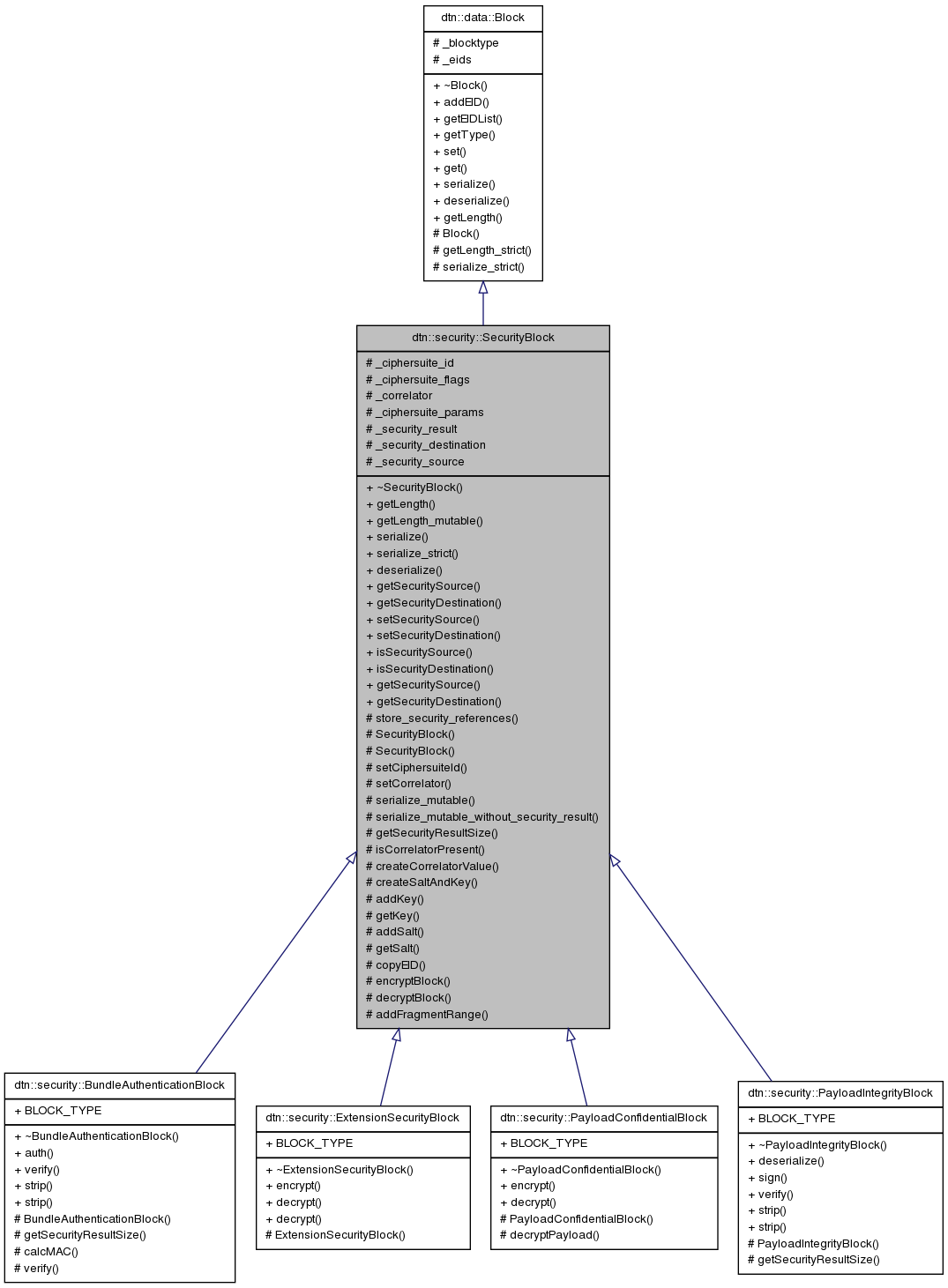

Inheritance diagram for dtn::security::SecurityBlock:

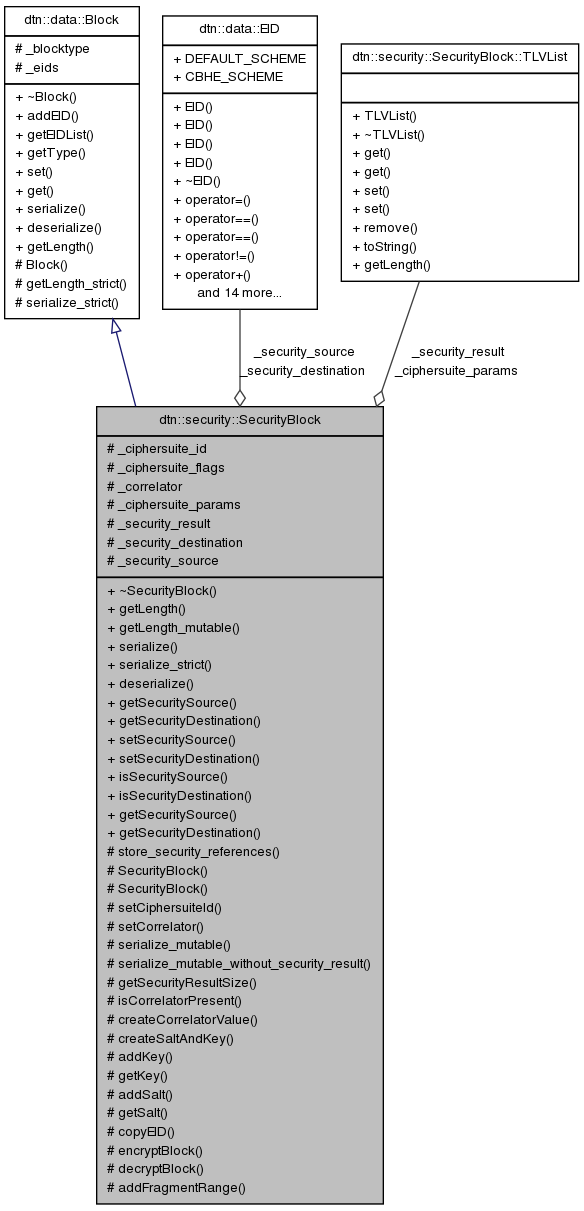

Collaboration diagram for dtn::security::SecurityBlock:

Classes
class	TLV
class	TLVList
Public Types
enum	BLOCK_TYPES { BUNDLE_AUTHENTICATION_BLOCK = 0x02, PAYLOAD_INTEGRITY_BLOCK = 0x03, PAYLOAD_CONFIDENTIAL_BLOCK = 0x04, EXTENSION_SECURITY_BLOCK = 0x09 }
enum	TLV_TYPES { not_set = 0, initialization_vector = 1, key_information = 3, fragment_range = 4, integrity_signature = 5, salt = 7, PCB_integrity_check_value = 8, encapsulated_block = 10, block_type_of_encapsulated_block = 11 }
enum	CIPHERSUITE_FLAGS { CONTAINS_SECURITY_RESULT = 1 << 0, CONTAINS_CORRELATOR = 1 << 1, CONTAINS_CIPHERSUITE_PARAMS = 1 << 2, CONTAINS_SECURITY_DESTINATION = 1 << 3, CONTAINS_SECURITY_SOURCE = 1 << 4, BIT5_RESERVED = 1 << 5, BIT6_RESERVED = 1 << 6 }
enum	CIPHERSUITE_IDS { BAB_HMAC = 0x001, PIB_RSA_SHA256 = 0x002, PCB_RSA_AES128_PAYLOAD_PIB_PCB = 0x003, ESB_RSA_AES128_EXT = 0x004 }
Public Member Functions
virtual	~SecurityBlock ()=0
virtual size_t	getLength () const
virtual size_t	getLength_mutable () const
virtual std::ostream &	serialize (std::ostream &stream, size_t &length) const
virtual std::ostream &	serialize_strict (std::ostream &stream, size_t &length) const
virtual std::istream &	deserialize (std::istream &stream, const size_t length)
const dtn::data::EID	getSecuritySource () const
const dtn::data::EID	getSecurityDestination () const
void	setSecuritySource (const dtn::data::EID &source)
void	setSecurityDestination (const dtn::data::EID &destination)
bool	isSecuritySource (const dtn::data::Bundle &, const dtn::data::EID &) const
bool	isSecurityDestination (const dtn::data::Bundle &, const dtn::data::EID &) const
const dtn::data::EID	getSecuritySource (const dtn::data::Bundle &) const
const dtn::data::EID	getSecurityDestination (const dtn::data::Bundle &) const
Protected Member Functions
void	store_security_references ()
	SecurityBlock (const SecurityBlock::BLOCK_TYPES type, const CIPHERSUITE_IDS id)
	SecurityBlock (const SecurityBlock::BLOCK_TYPES type)
void	setCiphersuiteId (const CIPHERSUITE_IDS id)
void	setCorrelator (const u_int64_t corr)
virtual dtn::security::MutualSerializer &	serialize_mutable (dtn::security::MutualSerializer &serializer) const
virtual dtn::security::MutualSerializer &	serialize_mutable_without_security_result (dtn::security::MutualSerializer &serializer) const
virtual size_t	getSecurityResultSize () const
Static Protected Member Functions
static bool	isCorrelatorPresent (const dtn::data::Bundle &bundle, const u_int64_t correlator)
static u_int64_t	createCorrelatorValue (const dtn::data::Bundle &bundle)
static void	createSaltAndKey (u_int32_t &salt, unsigned char *key, size_t key_size)
static void	addKey (TLVList &security_parameter, unsigned char const const key, size_t key_size, RSA rsa)
static bool	getKey (const TLVList &security_parameter, unsigned char key, size_t key_size, RSA rsa)
static void	addSalt (TLVList &security_parameters, const u_int32_t &salt)
static u_int32_t	getSalt (const TLVList &security_parameters)
static void	copyEID (const dtn::data::Block &from, dtn::data::Block &to, size_t skip=0)
template<class T >
static T &	encryptBlock (dtn::data::Bundle &bundle, const dtn::data::Block &block, u_int32_t salt, const unsigned char ephemeral_key[ibrcommon::AES128Stream::key_size_in_bytes])
static void	decryptBlock (dtn::data::Bundle &bundle, const dtn::security::SecurityBlock &block, u_int32_t salt, const unsigned char key[ibrcommon::AES128Stream::key_size_in_bytes])
static void	addFragmentRange (TLVList &ciphersuite_params, size_t fragmentoffset, size_t payload_length)
Protected Attributes
u_int64_t	_ciphersuite_id
u_int64_t	_ciphersuite_flags
u_int64_t	_correlator
TLVList	_ciphersuite_params
TLVList	_security_result
dtn::data::EID	_security_destination
dtn::data::EID	_security_source
Friends
class	StrictSerializer
class	MutualSerializer

Detailed Description

Abstract base class for BundleAuthenticationBlock, PayloadIntegrityBlock, PayloadConfidentialBlock and ExtensionSecurityBlock. It provides definitions of constants and basic functions, which are shared among the blocks. These blocks can be serialized in three forms. In normal form, which is needed for transmission, in strict canonical form, which is need for the BundleAuthenticationBlock and in mutable canonical form. In strict canonical form the security result can be set to be ignored. In mutable canonical form all SDNVs are unpacked to 8 byte fields, numbers written in network byte order and even the security result may be ignored, too. Because the size of security result of the children cannot be known in advance, the children have to implement a method for getting this size.

Definition at line 34 of file SecurityBlock.h.

Member Enumeration Documentation

enum dtn::security::SecurityBlock::BLOCK_TYPES

the block id for each block type

Enumerator:

BUNDLE_AUTHENTICATION_BLOCK
PAYLOAD_INTEGRITY_BLOCK
PAYLOAD_CONFIDENTIAL_BLOCK
EXTENSION_SECURITY_BLOCK

Definition at line 40 of file SecurityBlock.h.

enum dtn::security::SecurityBlock::CIPHERSUITE_FLAGS

the position of each flag in the ciphersuite flags

Enumerator:

CONTAINS_SECURITY_RESULT
CONTAINS_CORRELATOR
CONTAINS_CIPHERSUITE_PARAMS
CONTAINS_SECURITY_DESTINATION
CONTAINS_SECURITY_SOURCE
BIT5_RESERVED
BIT6_RESERVED

Definition at line 62 of file SecurityBlock.h.

enum dtn::security::SecurityBlock::CIPHERSUITE_IDS

the ids of the supported ciphersuites

Enumerator:

BAB_HMAC
PIB_RSA_SHA256
PCB_RSA_AES128_PAYLOAD_PIB_PCB
ESB_RSA_AES128_EXT

Definition at line 73 of file SecurityBlock.h.

enum dtn::security::SecurityBlock::TLV_TYPES

the id of each TLV type, which is used in security parameters or security result

Enumerator:

not_set
initialization_vector
key_information
fragment_range
integrity_signature
salt
PCB_integrity_check_value
encapsulated_block
block_type_of_encapsulated_block

Definition at line 49 of file SecurityBlock.h.

Constructor & Destructor Documentation

dtn::security::SecurityBlock::~SecurityBlock ( ) [pure virtual]

does nothing

Definition at line 186 of file SecurityBlock.cpp.

dtn::security::SecurityBlock::SecurityBlock	(	const SecurityBlock::BLOCK_TYPES	type,
		const CIPHERSUITE_IDS	id
	)		`[protected]`

Creates an empty SecurityBlock. This is only needed by children, which add blocks to bundles in a factory

Parameters:

type	type of child block
id	the ciphersuite

Definition at line 174 of file SecurityBlock.cpp.

dtn::security::SecurityBlock::SecurityBlock ( const SecurityBlock::BLOCK_TYPES type ) [protected]

Creates a factory with a partner. If partner is empty, this must be a instance with a private key or a BundleAuthenticationBlock.

Parameters:

type	type of child block

Definition at line 180 of file SecurityBlock.cpp.

Member Function Documentation

void dtn::security::SecurityBlock::addFragmentRange	(	TLVList &	ciphersuite_params,
		size_t	fragmentoffset,
		size_t	payload_length
	)		`[static, protected]`

Calculates the Size of the stream and adds a fragment range item to ciphersuite_params

Parameters:

ciphersuite_params	the string which will get a fragment range TLV added
stream	the stream which size will be calculated

Definition at line 668 of file SecurityBlock.cpp.

References fragment_range, and dtn::security::SecurityBlock::TLVList::set().

Referenced by dtn::security::PayloadConfidentialBlock::encrypt(), and dtn::security::PayloadIntegrityBlock::sign().

Here is the call graph for this function:

void dtn::security::SecurityBlock::addKey	(	TLVList &	security_parameter,
		unsigned char const *const	key,
		size_t	key_size,
		RSA *	rsa
	)		`[static, protected]`

Adds a key as a TLV to a string. The key is encrypted using the public key provided in the rsa object.

Parameters:

security_parameter	the string object which gets the TLV appended which contains the encrypted key
key	the plaintext key
key_size	the size of the plaintext key
rsa	object containing the public key for encryption of the symmetric key

Definition at line 518 of file SecurityBlock.cpp.

References IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_ex, key_information, and dtn::security::SecurityBlock::TLVList::set().

Referenced by dtn::security::ExtensionSecurityBlock::encrypt(), and dtn::security::PayloadConfidentialBlock::encrypt().

Here is the call graph for this function:

void dtn::security::SecurityBlock::addSalt	(	TLVList &	security_parameters,
		const u_int32_t &	salt
	)		`[static, protected]`

Adds a salt TLV object to a string.

Parameters:

security_parameters	the string
salt	the salt which shall be added

Definition at line 572 of file SecurityBlock.cpp.

References salt, and dtn::security::SecurityBlock::TLVList::set().

Referenced by dtn::security::ExtensionSecurityBlock::encrypt(), and dtn::security::PayloadConfidentialBlock::encrypt().

Here is the call graph for this function:

void dtn::security::SecurityBlock::copyEID	(	const dtn::data::Block &	from,
		dtn::data::Block &	to,
		size_t	skip = `0`
	)		`[static, protected]`

Copys all EIDs from one block to another and skips the first skip EIDs

Parameters:

from	source of the EIDs
to	destination of the EIDs
skip	how much EIDs should be skipped at the beginning

Definition at line 556 of file SecurityBlock.cpp.

Referenced by decryptBlock(), and encryptBlock().

u_int64_t dtn::security::SecurityBlock::createCorrelatorValue ( const dtn::data::Bundle & bundle ) [static, protected]

Creates a unique correlatorvalue for bundle

Parameters:

bundle the bundle for which a new unique correlator shall be created

Returns:: a unique correlator

Definition at line 276 of file SecurityBlock.cpp.

References isCorrelatorPresent().

Referenced by dtn::security::BundleAuthenticationBlock::auth(), and dtn::security::PayloadConfidentialBlock::encrypt().

Here is the call graph for this function:

void dtn::security::SecurityBlock::createSaltAndKey	(	u_int32_t &	salt,
		unsigned char *	key,
		size_t	key_size
	)		`[static, protected]`

Fills salt and key with random numbers.

Parameters:

salt	reference to salt
key	pointer to key
key_size	size of key

Definition at line 503 of file SecurityBlock.cpp.

References IBRCOMMON_LOGGER_ENDL, and IBRCOMMON_LOGGER_ex.

Referenced by dtn::security::ExtensionSecurityBlock::encrypt(), and dtn::security::PayloadConfidentialBlock::encrypt().

void dtn::security::SecurityBlock::decryptBlock	(	dtn::data::Bundle &	bundle,
		const dtn::security::SecurityBlock &	block,
		u_int32_t	salt,
		const unsigned char	key[ibrcommon::AES128Stream::key_size_in_bytes]
	)		`[static, protected]`

Decrypts the block which is held in the SecurityBlock replaces it. The ciphertext is only substituted and the old block reconstructed if tag verification succeeds.

Parameters:

bundle	the bundle which contains block
block	the security block with an encrypted block in its security result
salt	the salt
ephemeral_key	the key

Returns:: true if tag verification succeeded, false if not

Definition at line 585 of file SecurityBlock.cpp.

References _ciphersuite_flags, _ciphersuite_params, _security_result, dtn::data::PayloadBlock::BLOCK_TYPE, ibrcommon::CipherStream::CIPHER_DECRYPT, CONTAINS_SECURITY_DESTINATION, CONTAINS_SECURITY_SOURCE, copyEID(), encapsulated_block, dtn::data::Block::get(), dtn::security::SecurityBlock::TLVList::get(), dtn::data::Block::getEIDList(), initialization_vector, dtn::data::Bundle::insert(), ibrcommon::AES128Stream::iv_len, dtn::data::Bundle::remove(), ibrcommon::AES128Stream::tag_len, and ibrcommon::AES128Stream::verify().

Referenced by dtn::security::ExtensionSecurityBlock::decrypt(), and dtn::security::PayloadConfidentialBlock::decrypt().

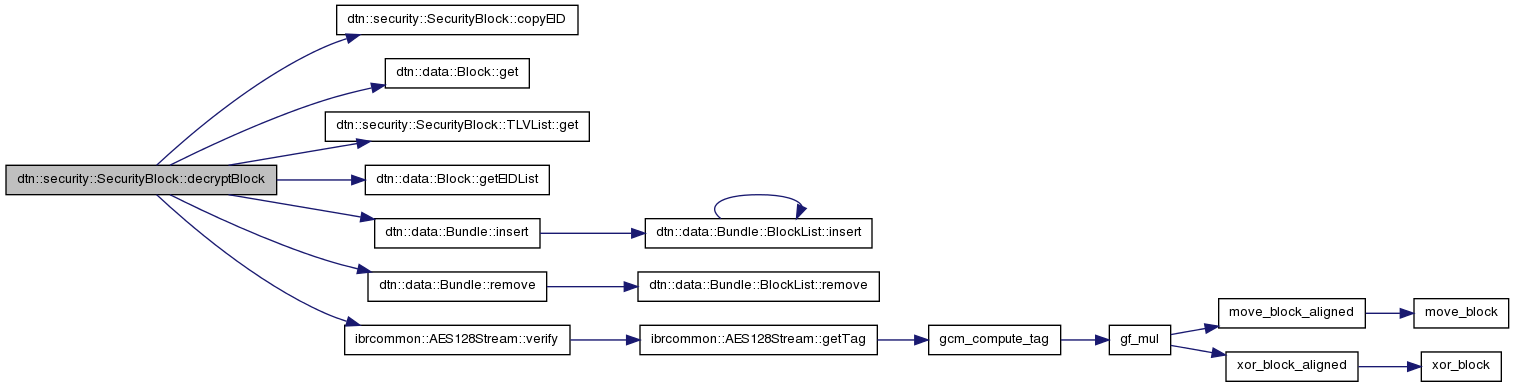

Here is the call graph for this function:

std::istream & dtn::security::SecurityBlock::deserialize	(	std::istream &	stream,
		const size_t	length
	)		`[virtual]`

Parses the SecurityBlock from a Stream

Parameters:

stream the stream to read from

Implements dtn::data::Block.

Reimplemented in dtn::security::PayloadIntegrityBlock.

Definition at line 382 of file SecurityBlock.cpp.

References dtn::data::Block::_blocktype, _ciphersuite_flags, _ciphersuite_id, _ciphersuite_params, _correlator, dtn::data::Block::_eids, _security_destination, _security_result, _security_source, BAB_HMAC, BUNDLE_AUTHENTICATION_BLOCK, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_CORRELATOR, CONTAINS_SECURITY_DESTINATION, CONTAINS_SECURITY_RESULT, CONTAINS_SECURITY_SOURCE, ESB_RSA_AES128_EXT, EXTENSION_SECURITY_BLOCK, dtn::data::SDNV::getValue(), PAYLOAD_CONFIDENTIAL_BLOCK, PAYLOAD_INTEGRITY_BLOCK, PCB_RSA_AES128_PAYLOAD_PIB_PCB, and PIB_RSA_SHA256.

Here is the call graph for this function:

template<class T >

T & dtn::security::SecurityBlock::encryptBlock	(	dtn::data::Bundle &	bundle,
		const dtn::data::Block &	block,
		u_int32_t	salt,
		const unsigned char	ephemeral_key[ibrcommon::AES128Stream::key_size_in_bytes]
	)		`[static, protected]`

Encrypts a Block. The used initialisation vector will be written into the security parameters of the new SecurityBlock. The ciphertext will have the tag appended and be written into security result. The flags that this block contains ciphersuite parameters and security result will be set. If this is the first block, don't forget to add the key and salt to its security parameters.

Parameters:

bundle	the bundle which contains block
block	the block which shall be encrypted and encapsulated
salt	the salt to be used
ephemeral_key	the key to be used

Returns:: the Security Block which replaced block

Definition at line 401 of file SecurityBlock.h.

References ibrcommon::CipherStream::CIPHER_ENCRYPT, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_SECURITY_RESULT, copyEID(), encapsulated_block, ibrcommon::AES128Stream::getIV(), ibrcommon::AES128Stream::getTag(), initialization_vector, dtn::data::Bundle::insert(), ibrcommon::AES128Stream::iv_len, dtn::data::Bundle::remove(), and ibrcommon::AES128Stream::tag_len.

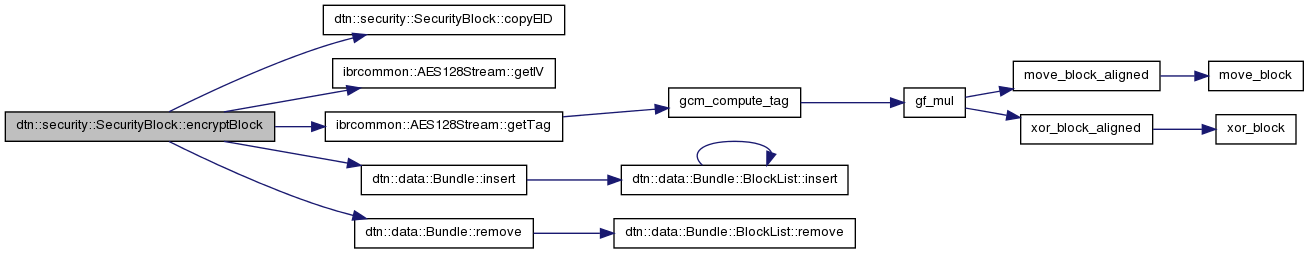

Here is the call graph for this function:

bool dtn::security::SecurityBlock::getKey	(	const TLVList &	security_parameter,
		unsigned char *	key,
		size_t	key_size,
		RSA *	rsa
	)		`[static, protected]`

Reads a symmetric key TLV object from a string.

Parameters:

securiy_parameter	the TLVs containing string
key	pointer to an array to which the key will be written
key_size	size of the array
rsa	object containing the private key for decryption of the symmetric key

Returns:: true if the key has been successfully decrypted

Definition at line 534 of file SecurityBlock.cpp.

References dtn::security::SecurityBlock::TLVList::get(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_ex, and key_information.

Referenced by dtn::security::ExtensionSecurityBlock::decrypt(), and dtn::security::PayloadConfidentialBlock::decrypt().

Here is the call graph for this function:

size_t dtn::security::SecurityBlock::getLength ( ) const [virtual]

Returns the length of this Block

Returns:: the length

Implements dtn::data::Block.

Definition at line 284 of file SecurityBlock.cpp.

References _ciphersuite_flags, _ciphersuite_id, _ciphersuite_params, _correlator, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_CORRELATOR, CONTAINS_SECURITY_RESULT, dtn::data::SDNV::getLength(), dtn::security::SecurityBlock::TLVList::getLength(), getSecurityResultSize(), and dtn::data::SDNV::getValue().

Referenced by dtn::security::BundleAuthenticationBlock::getSecurityResultSize().

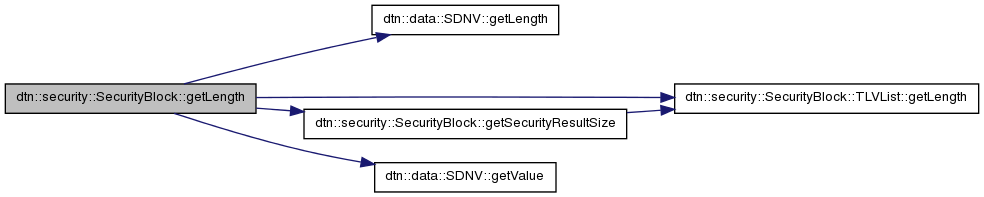

Here is the call graph for this function:

size_t dtn::security::SecurityBlock::getLength_mutable ( ) const [virtual]

Returns the length of this Block if it would serialized in mutable canonical form

Returns:: the length in mutable canonical form

Definition at line 309 of file SecurityBlock.cpp.

References _ciphersuite_flags, _ciphersuite_params, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_CORRELATOR, CONTAINS_SECURITY_RESULT, dtn::security::SecurityBlock::TLVList::getLength(), getSecurityResultSize(), and dtn::security::MutualSerializer::sdnv_size.

Referenced by dtn::security::MutualSerializer::getLength(), and dtn::security::MutualSerializer::operator<<().

Here is the call graph for this function:

u_int32_t dtn::security::SecurityBlock::getSalt ( const TLVList & security_parameters ) [static, protected]

Reads a salt TLV from a string containing TLVs

Parameters:

security_parameters string containing TLVs

Definition at line 578 of file SecurityBlock.cpp.

References dtn::security::SecurityBlock::TLVList::get(), and salt.

Referenced by dtn::security::ExtensionSecurityBlock::decrypt(), and dtn::security::PayloadConfidentialBlock::decrypt().

Here is the call graph for this function:

const dtn::data::EID dtn::security::SecurityBlock::getSecurityDestination ( ) const

Returns the Security destination of a SecurityBlock or dtn:none if none exists

Definition at line 232 of file SecurityBlock.cpp.

References _security_destination.

Referenced by getSecurityDestination(), and isSecurityDestination().

const dtn::data::EID dtn::security::SecurityBlock::getSecurityDestination ( const dtn::data::Bundle & bundle ) const

Returns the security destination of a given block

Parameters:

bundle the bundle to which the block belongs to

Returns:: the security destination

Definition at line 699 of file SecurityBlock.cpp.

References dtn::data::PrimaryBlock::_destination, dtn::data::EID::getNode(), and getSecurityDestination().

Here is the call graph for this function:

size_t dtn::security::SecurityBlock::getSecurityResultSize ( ) const [protected, virtual]

Returns the size of the security result if it would be serialized, even if it is empty. This is needed for canonicalisation. If it is empty this will be zero. There is no way to know how big will a payload be in advance. Children have to override it for the canonicalisation forms if nessessary (especial BundleAuthenticationBlock and PayloadIntegrityBlock).

Returns:: the size of the serialized security result

Reimplemented in dtn::security::BundleAuthenticationBlock, and dtn::security::PayloadIntegrityBlock.

Definition at line 495 of file SecurityBlock.cpp.

References _security_result, and dtn::security::SecurityBlock::TLVList::getLength().

Referenced by getLength(), getLength_mutable(), serialize_mutable_without_security_result(), and serialize_strict().

Here is the call graph for this function:

const dtn::data::EID dtn::security::SecurityBlock::getSecuritySource ( ) const

Returns the Security source of a SecurityBlock or dtn:none if none exists

Definition at line 227 of file SecurityBlock.cpp.

References _security_source.

Referenced by getSecuritySource(), isSecuritySource(), dtn::security::SecurityManager::verifyBAB(), and dtn::security::SecurityManager::verifyPIB().

const dtn::data::EID dtn::security::SecurityBlock::getSecuritySource ( const dtn::data::Bundle & bundle ) const

Returns the security source of a given block

Parameters:

bundle the bundle to which the block belongs to

Returns:: the security source

Definition at line 691 of file SecurityBlock.cpp.

References dtn::data::PrimaryBlock::_source, dtn::data::EID::getNode(), and getSecuritySource().

Here is the call graph for this function:

bool dtn::security::SecurityBlock::isCorrelatorPresent	(	const dtn::data::Bundle &	bundle,
		const u_int64_t	correlator
	)		`[static, protected]`

Checks if the given correlator value is used in the bundle

Parameters:

bundle	the bundle in which shall be searched for correlators
correlator	the correlator to be tested for uniqueness

Returns:: false if correlator is unique, true otherwise

Definition at line 260 of file SecurityBlock.cpp.

References _correlator, BUNDLE_AUTHENTICATION_BLOCK, EXTENSION_SECURITY_BLOCK, dtn::data::Bundle::getBlocks(), PAYLOAD_CONFIDENTIAL_BLOCK, and PAYLOAD_INTEGRITY_BLOCK.

Referenced by createCorrelatorValue().

Here is the call graph for this function:

bool dtn::security::SecurityBlock::isSecurityDestination	(	const dtn::data::Bundle &	bundle,
		const dtn::data::EID &	eid
	)		const

Checks if the given EID is a security destination for the given block

Parameters:

bundle	the bundle to which the block belongs to
eid	the eid of the destination

Returns:: true if eid is the security destination, false if not

Definition at line 685 of file SecurityBlock.cpp.

References dtn::data::EID::getNode(), getSecurityDestination(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Referenced by dtn::security::PayloadConfidentialBlock::decrypt(), and dtn::security::SecurityManager::verifyPIB().

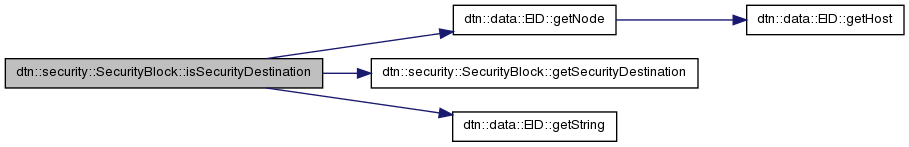

Here is the call graph for this function:

bool dtn::security::SecurityBlock::isSecuritySource	(	const dtn::data::Bundle &	bundle,
		const dtn::data::EID &	eid
	)		const

Checks if the given EID is a security source for the given block

Parameters:

bundle	the bundle to which the block belongs to
eid	the eid of the source

Returns:: true if eid is the security source, false if not

Definition at line 679 of file SecurityBlock.cpp.

References dtn::data::EID::getNode(), getSecuritySource(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Referenced by dtn::security::BundleAuthenticationBlock::verify().

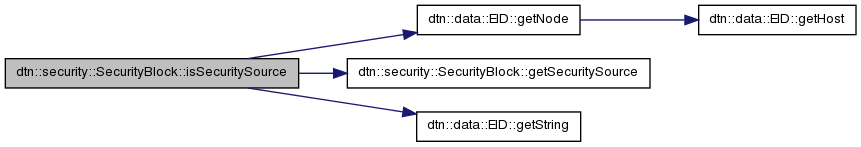

Here is the call graph for this function:

std::ostream & dtn::security::SecurityBlock::serialize	(	std::ostream &	stream,
		size_t &	length
	)		const `[virtual]`

Serializes this Block into stream

Parameters:

the	stream in which should be written

Returns:: the same stream as the input stream

Implements dtn::data::Block.

Definition at line 338 of file SecurityBlock.cpp.

References _ciphersuite_flags, _ciphersuite_id, _ciphersuite_params, _correlator, _security_result, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_CORRELATOR, and CONTAINS_SECURITY_RESULT.

dtn::security::MutualSerializer & dtn::security::SecurityBlock::serialize_mutable ( dtn::security::MutualSerializer & serializer ) const [protected, virtual]

Canonicalizes the block into the stream.

Parameters:

stream the stream to be written into

Returns:: the same stream as the parameter for chaining

Definition at line 453 of file SecurityBlock.cpp.

References _ciphersuite_flags, _ciphersuite_id, _ciphersuite_params, _security_result, CONTAINS_CIPHERSUITE_PARAMS, CONTAINS_CORRELATOR, and CONTAINS_SECURITY_RESULT.

dtn::security::MutualSerializer & dtn::security::SecurityBlock::serialize_mutable_without_security_result ( dtn::security::MutualSerializer & serializer ) const [protected, virtual]
