dtn::net::IPNDAgent Class Reference

#include <IPNDAgent.h>

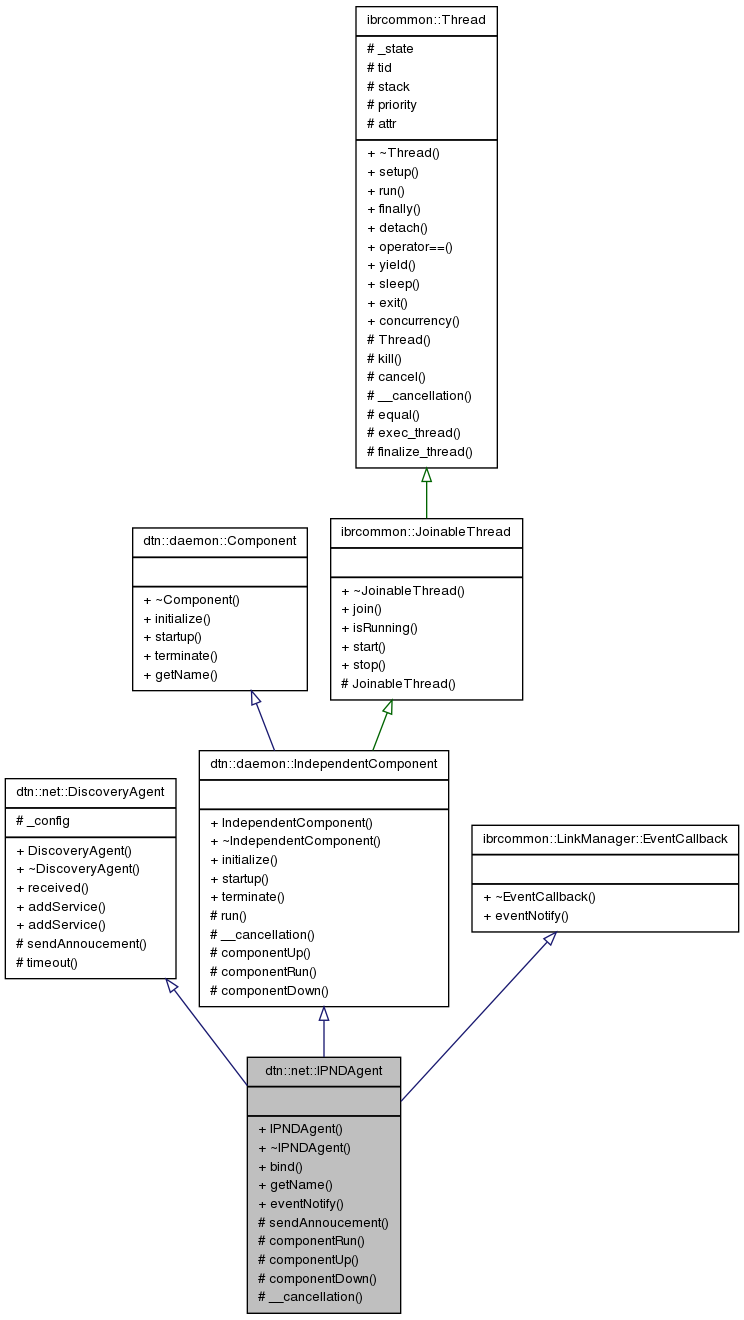

Inheritance diagram for dtn::net::IPNDAgent:
Inheritance graph
[legend]

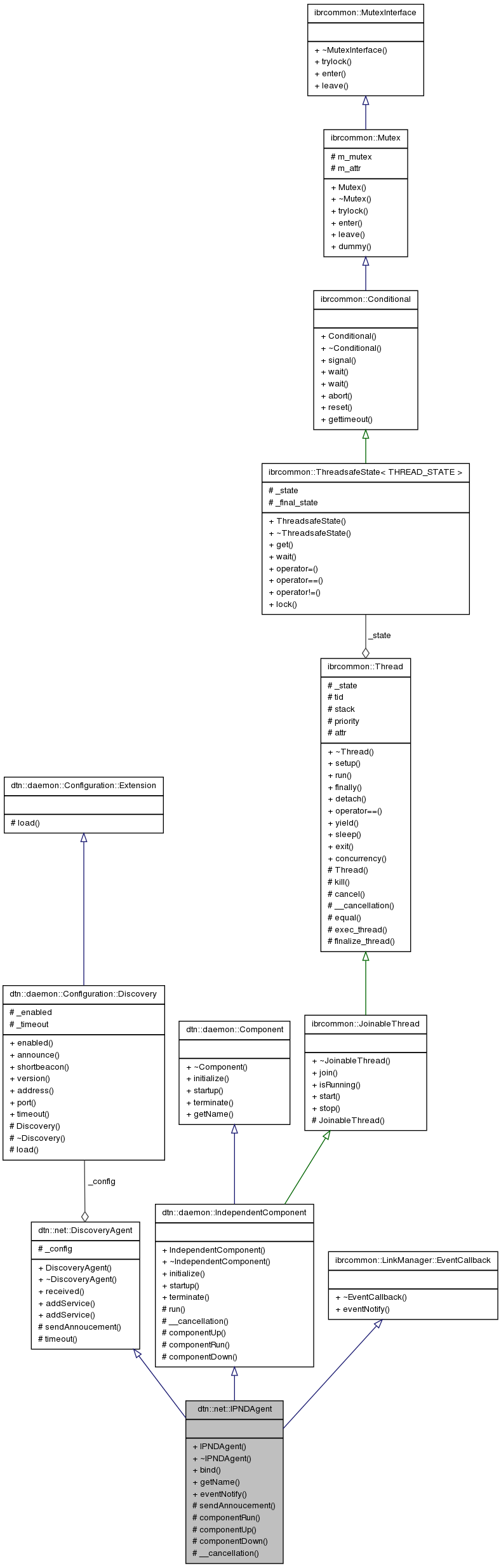

Collaboration diagram for dtn::net::IPNDAgent:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 IPNDAgent (int port, const ibrcommon::vaddress &address)
virtual ~IPNDAgent ()
void bind (const ibrcommon::vinterface &net)
virtual const std::string getName () const
void eventNotify (const ibrcommon::LinkManagerEvent &evt)

Protected Member Functions

void sendAnnoucement (const u_int16_t &sn, std::list< DiscoveryService > &services)
virtual void componentRun ()
virtual void componentUp ()
virtual void componentDown ()
void __cancellation ()

Detailed Description

Definition at line 35 of file IPNDAgent.h.

Constructor & Destructor Documentation

dtn::net::IPNDAgent::IPNDAgent ( int  port,
const ibrcommon::vaddress &  address
)

Definition at line 24 of file IPNDAgent.cpp.

References dtn::net::DiscoveryAgent::_config, dtn::net::DiscoveryAnnouncement::DISCO_VERSION_00, dtn::net::DiscoveryAnnouncement::DISCO_VERSION_01, dtn::net::DiscoveryAnnouncement::DTND_IPDISCOVERY, IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, ibrcommon::vaddress::isMulticast(), ibrcommon::vsocket::set(), ibrcommon::vaddress::toString(), dtn::daemon::Configuration::Discovery::version(), ibrcommon::vsocket::VSOCKET_BROADCAST, ibrcommon::vsocket::VSOCKET_MULTICAST, and ibrcommon::vsocket::VSOCKET_REUSEADDR.

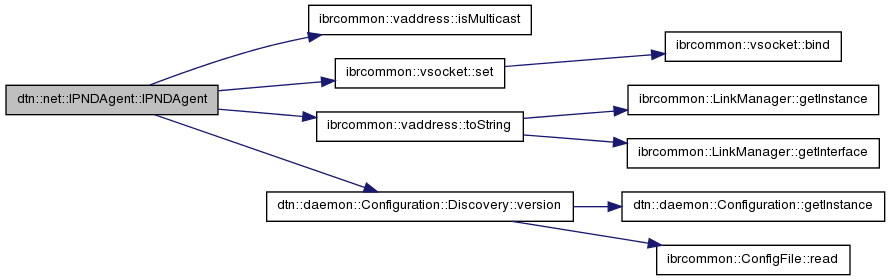

Here is the call graph for this function:

dtn::net::IPNDAgent::~IPNDAgent ( ) [virtual]

Definition at line 59 of file IPNDAgent.cpp.

Member Function Documentation

void dtn::net::IPNDAgent::__cancellation ( ) [protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 260 of file IPNDAgent.cpp.

References ibrcommon::vsocket::close().

Here is the call graph for this function:

void dtn::net::IPNDAgent::bind ( const ibrcommon::vinterface &  net)

Definition at line 63 of file IPNDAgent.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::vinterface::toString().

Referenced by __daemon_run().

Here is the call graph for this function:

void dtn::net::IPNDAgent::componentDown ( ) [protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 185 of file IPNDAgent.cpp.

References ibrcommon::JoinableThread::join(), ibrcommon::vsocket::setEventCallback(), ibrcommon::vsocket::shutdown(), and ibrcommon::JoinableThread::stop().

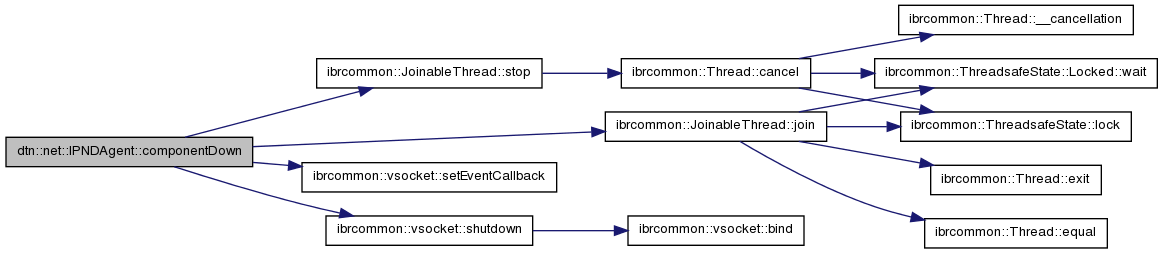

Here is the call graph for this function:

void dtn::net::IPNDAgent::componentRun ( ) [protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 197 of file IPNDAgent.cpp.

References dtn::net::DiscoveryAnnouncement::addService(), ibrcommon::TimeMeasurement::getMilliseconds(), dtn::net::DiscoveryAnnouncement::getServices(), dtn::net::DiscoveryAnnouncement::isShort(), dtn::net::DiscoveryAgent::received(), ibrcommon::recvfrom(), ibrcommon::vsocket::select(), ibrcommon::TimeMeasurement::start(), ibrcommon::TimeMeasurement::stop(), dtn::net::DiscoveryAgent::timeout(), and ibrcommon::Thread::yield().

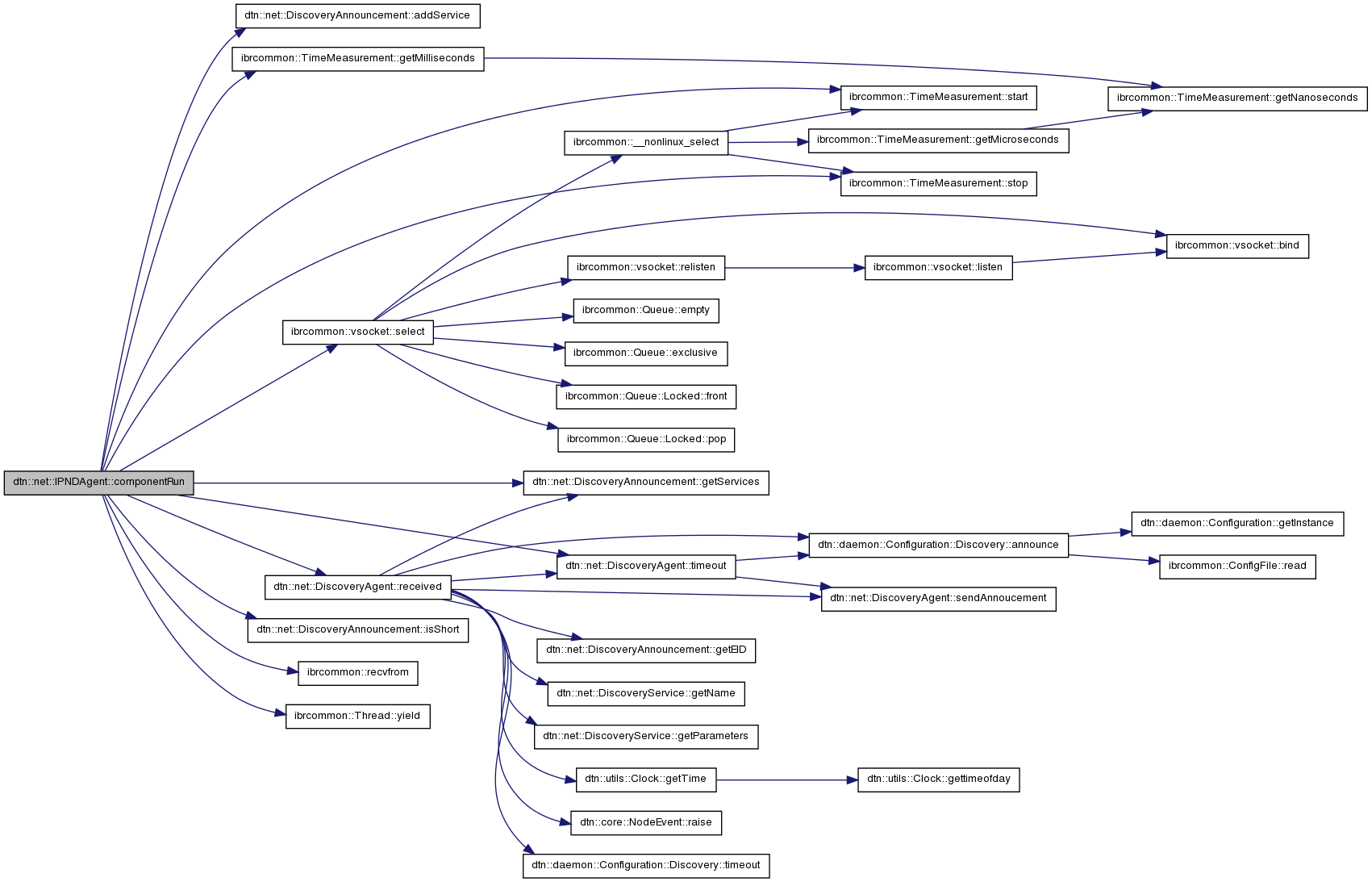

Here is the call graph for this function:

void dtn::net::IPNDAgent::componentUp ( ) [protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 146 of file IPNDAgent.cpp.

References ibrcommon::vsocket::bind(), ibrcommon::vinterface::empty(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, ibrcommon::vaddress::isMulticast(), ibrcommon::MulticastSocket::joinGroup(), ibrcommon::vsocket::setEventCallback(), and ibrcommon::Exception::what().

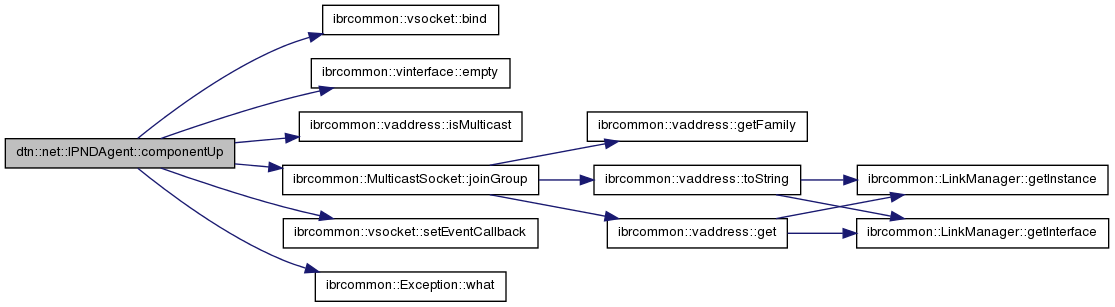

Here is the call graph for this function:

void dtn::net::IPNDAgent::eventNotify ( const ibrcommon::LinkManagerEvent &  evt) [virtual]

Implements ibrcommon::LinkManager::EventCallback.

Definition at line 134 of file IPNDAgent.cpp.

References ibrcommon::LinkManagerEvent::EVENT_ADDRESS_ADDED, ibrcommon::LinkManagerEvent::getInterface(), ibrcommon::LinkManagerEvent::getType(), ibrcommon::vaddress::isMulticast(), and ibrcommon::MulticastSocket::joinGroup().

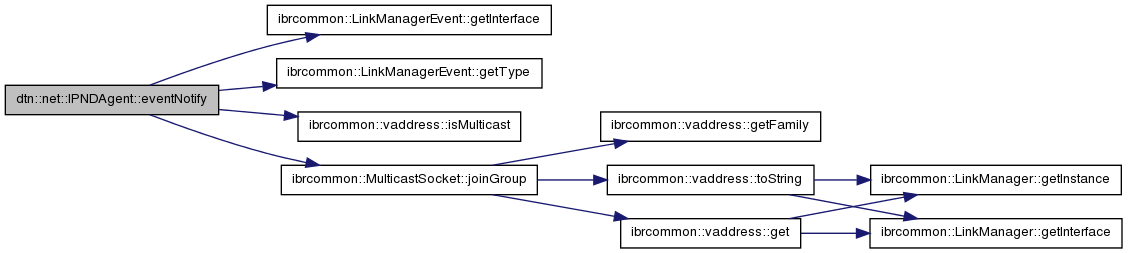

Here is the call graph for this function:

const std::string dtn::net::IPNDAgent::getName ( ) const [virtual]
See also:
Component::getName()

Implements dtn::daemon::Component.

Definition at line 266 of file IPNDAgent.cpp.

void dtn::net::IPNDAgent::sendAnnoucement ( const u_int16_t &  sn,
std::list< DiscoveryService > &  services
) [protected]

Definition at line 97 of file IPNDAgent.cpp.

References dtn::net::DiscoveryAgent::_config, dtn::net::DiscoveryAnnouncement::addService(), dtn::net::DiscoveryAnnouncement::clearServices(), dtn::core::BundleCore::local, dtn::net::DiscoveryAnnouncement::setSequencenumber(), dtn::daemon::Configuration::Discovery::shortbeacon(), and dtn::net::DiscoveryService::update().

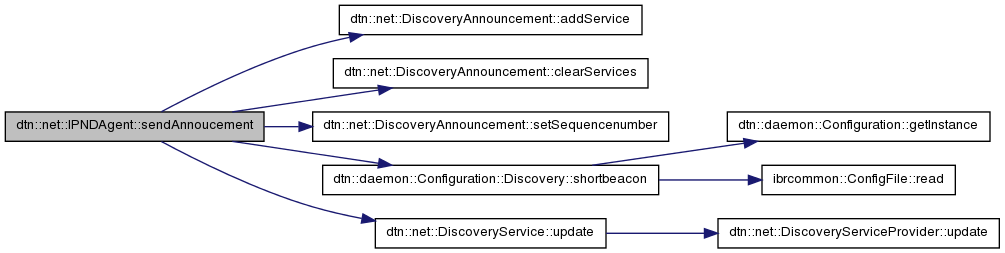

Here is the call graph for this function:

The documentation for this class was generated from the following files:
